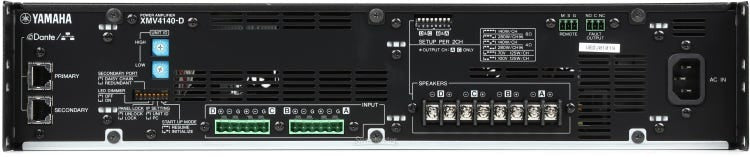

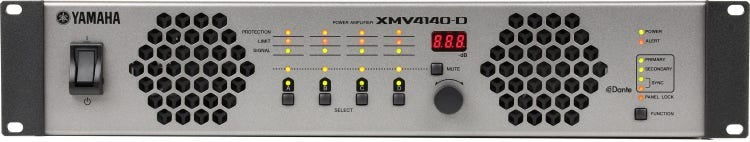

Yamaha XMV4140-D 4-channel 140W Power Amplifier with Dante

Yamaha XMV Series Power Amplifiers: Advanced Technology for Flexible Sound Solutions

The Yamaha XMV Series offers a versatile, efficient, and reliable solution for installed sound applications, combining innovative features like simultaneous high- and low-impedance operation, Double Power Mode, and advanced protection systems. Whether for a small venue or a complex system in a large facility, XMV amplifiers streamline the installation process while ensuring robust performance.

Key Features

High-Impedance and Low-Impedance Operation

• Simultaneous Operation:

  • Supports high-impedance (70V/100V) and low-impedance (4Ω/8Ω) modes simultaneously, eliminating the need for additional amplifiers or transformers.
  • Ideal for venues requiring both connection types in the same system.

• Per-Channel Pair Configuration:

  • High-impedance operation (70V/100V) can be assigned to any pair of channels without reducing the total number of available channels.
  • Streamlines installation and simplifies system design.

Double Power Mode

• Enhanced Output Flexibility:
  • Doubles the power output of selected channels to drive higher-capacity speakers.
  • Allows simultaneous powering of speakers with varying output requirements, enhancing design flexibility.

Note: Activating Double Power Mode reduces the total number of available channels by half.

Selectable Input Formats

• YDIF or Dante Audio:
  • YDIF: Simplifies setup with Ethernet cables for small-to-medium venues.
  • Dante: Ideal for large venues with long-distance cabling needs, ensuring low-latency digital audio transmission.

Optimized Integration with MTX Series

• Seamless MTX Processor Compatibility:
  • Settings like mute on/off and volume attenuation can be controlled via MTX Editor software.
  • YDIF and Dante ports enable fast, plug-and-play system configuration.

Industry-Leading Efficiency

• Class-D Circuit Innovation:

  • Achieves over 90% efficiency by automatically switching circuit voltage to match output requirements.
  • Minimizes energy loss and keeps distortion low, ensuring optimal performance in both high- and low-impedance modes.

• Power Factor Correction (PFC):

  • Ensures efficient power usage, reducing current draw and cable requirements while improving reliability.
  • Decreases the likelihood of circuit breaker trips during operation.

Intelligent Protection Features

• Automatic Protection Functions:
  • Protects against low load impedance, overcurrent, and overheating for long-term reliability.
  • Ensures consistent performance, even in less-than-ideal conditions.

Applications

The XMV Series is ideal for:

• Retail and hospitality venues requiring both background music and public address capabilities.
• Corporate and educational facilities with complex audio zones and varying speaker requirements.
• Houses of worship, theaters, and event spaces needing scalable, efficient sound solutions.
