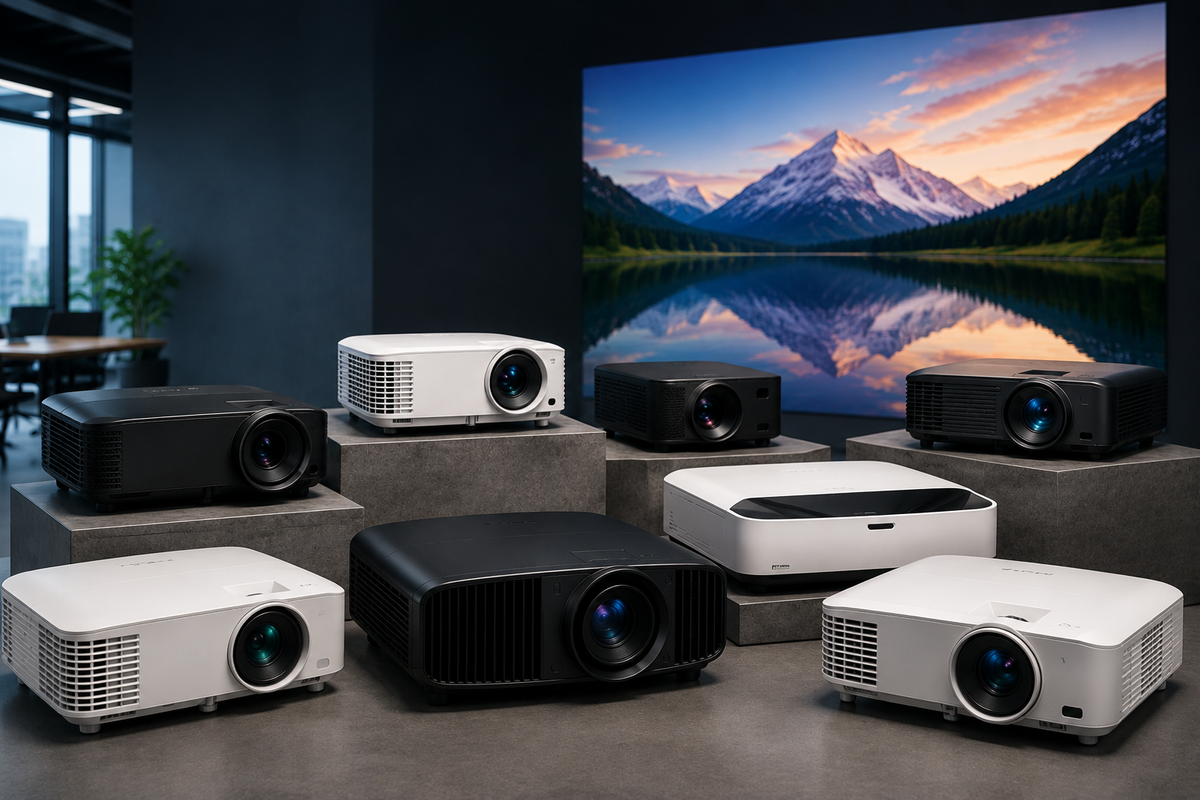

Professional Projectors for Every Environment

HDMI remains common for local video sources, but professional installations may require additional connectivity. Depending on the application, useful features can include HDBaseT, DisplayPort, USB, LAN/Ethernet and RS-232 control. Network connectivity can simplify remote monitoring and management, while HDBaseT can carry audio, video and control signals over long distances using compatible equipment. The best connection set depends on the sources, cable distances and control system used in the installation.

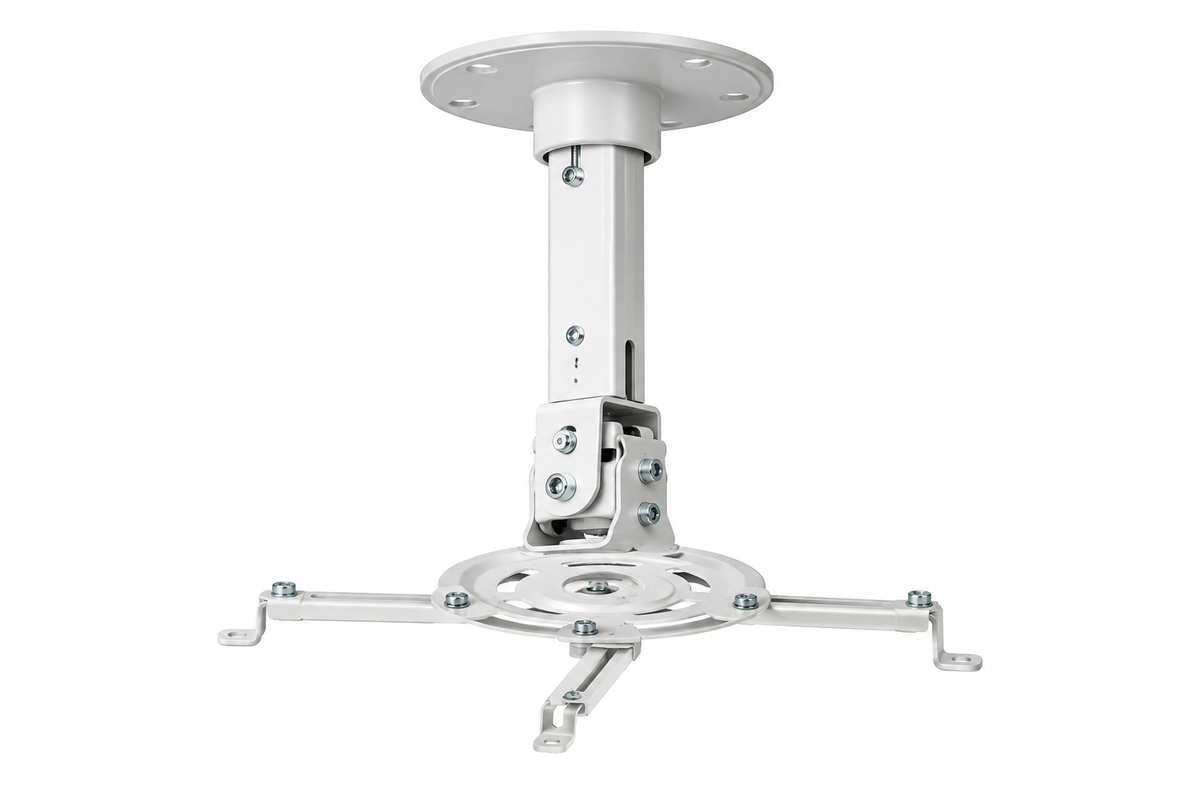

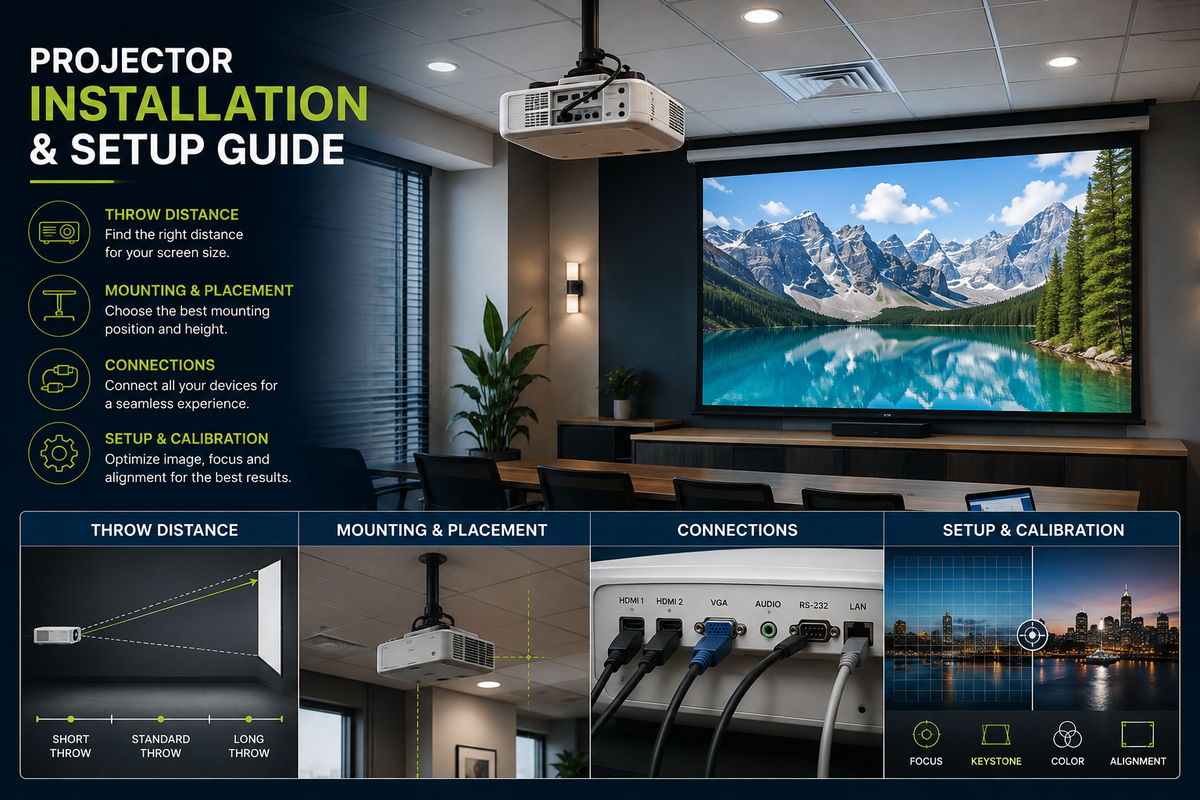

Many professional projectors support ceiling installation, but you should verify the manufacturer's approved mounting orientations before installation. The mount must be compatible with the projector's mounting pattern and rated for its weight. You also need to account for lens position, throw distance, ventilation clearance, cable routing and access for future service. Larger installation projectors may require specialized heavy-duty mounting hardware.

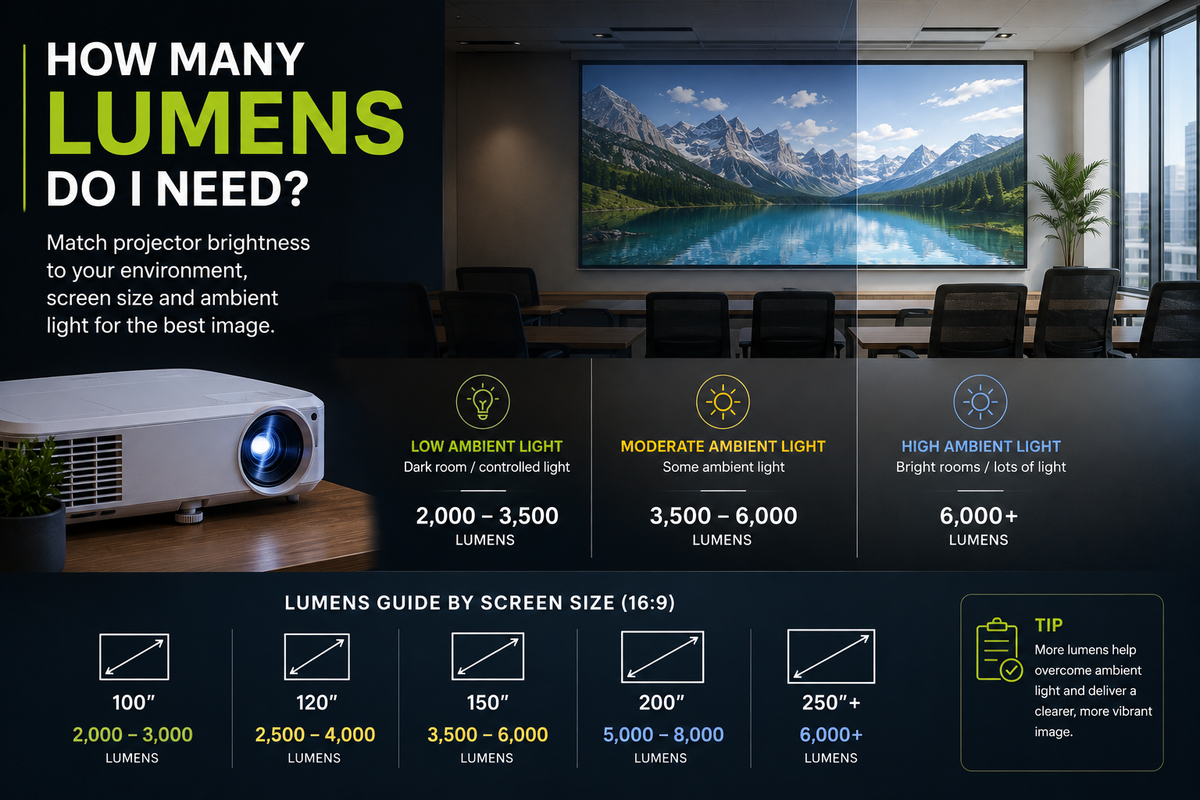

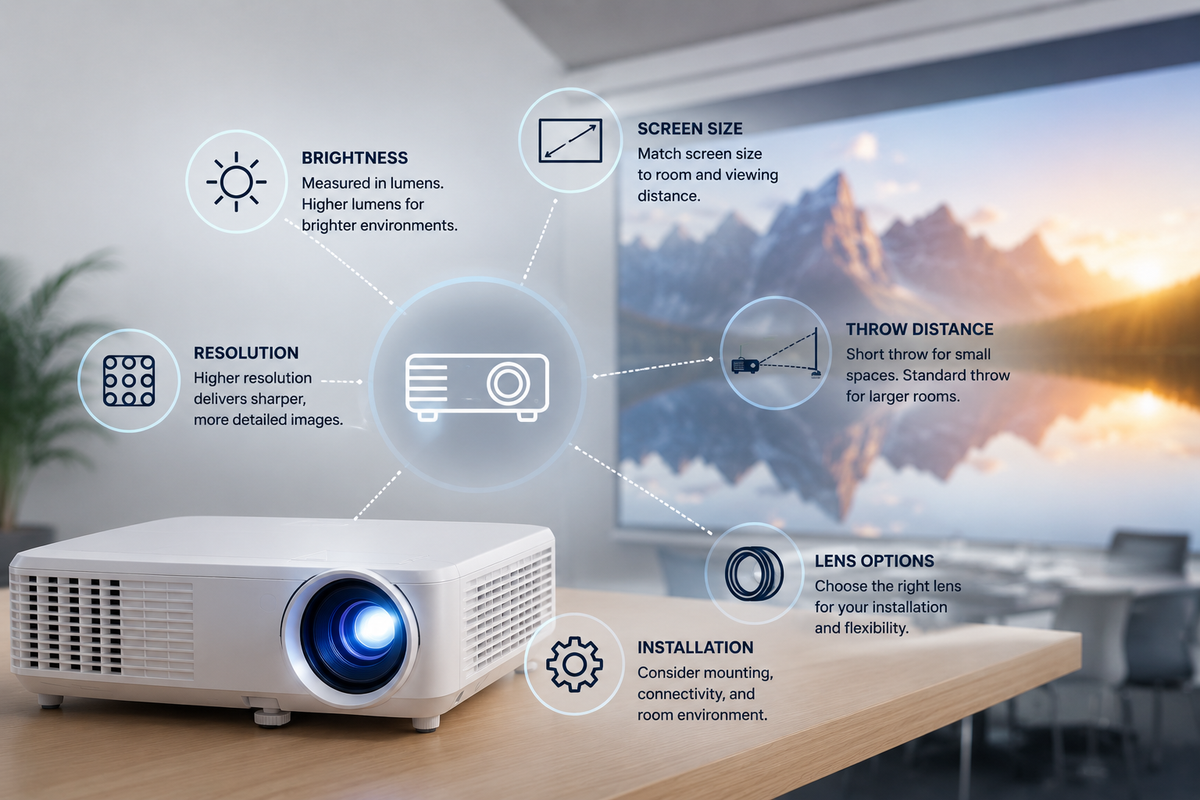

The right brightness depends on screen size, ambient light and how the room will be used. A controlled meeting room or classroom may perform well around 4,000–6,000 lumens, while brighter spaces and larger screens often benefit from 6,000–10,000 lumens or more. Auditoriums, houses of worship and large venues may require significantly higher output. Rather than choosing by lumens alone, consider brightness together with screen size and room lighting.

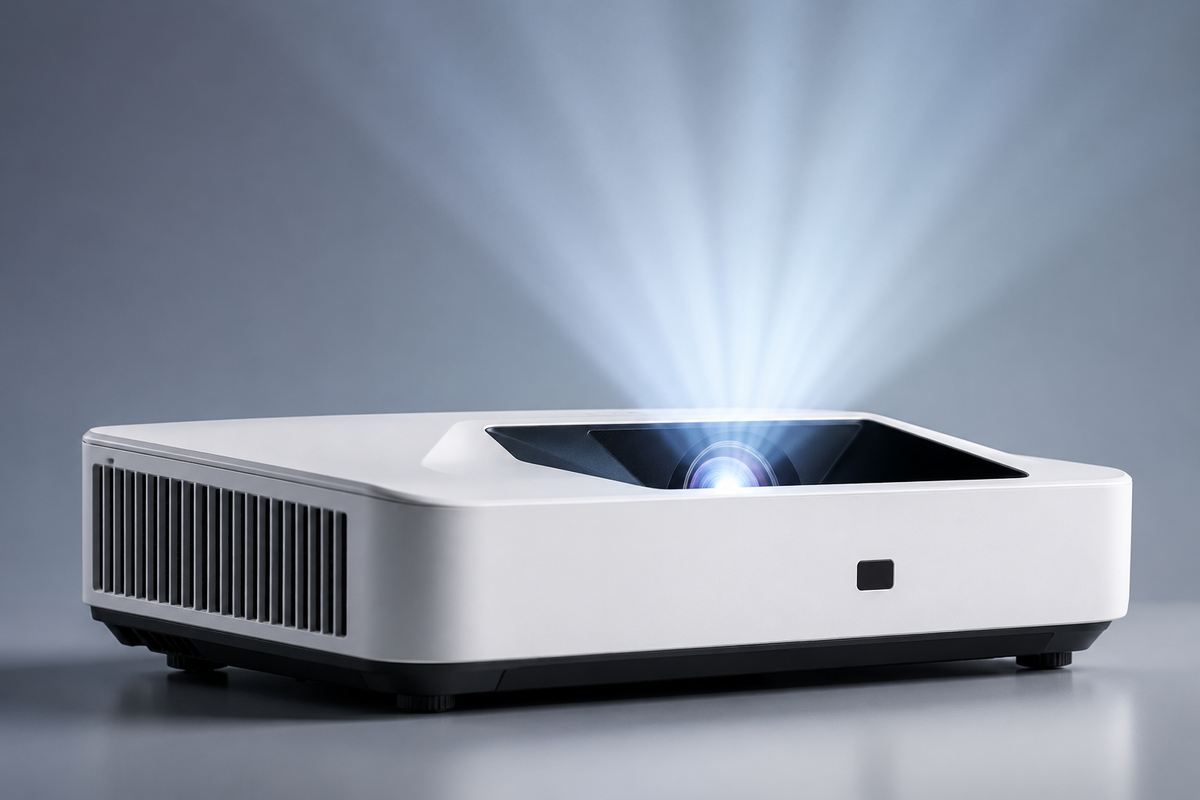

The difference is primarily how far the projector must be positioned from the screen to create a particular image size. Standard-throw projectors generally require the most distance. Short-throw models create large images from closer positions, while ultra-short-throw projectors can often operate very close to the screen or wall. Shorter throw distances can be especially useful in classrooms, training rooms and other spaces where people might otherwise walk through the projected image.

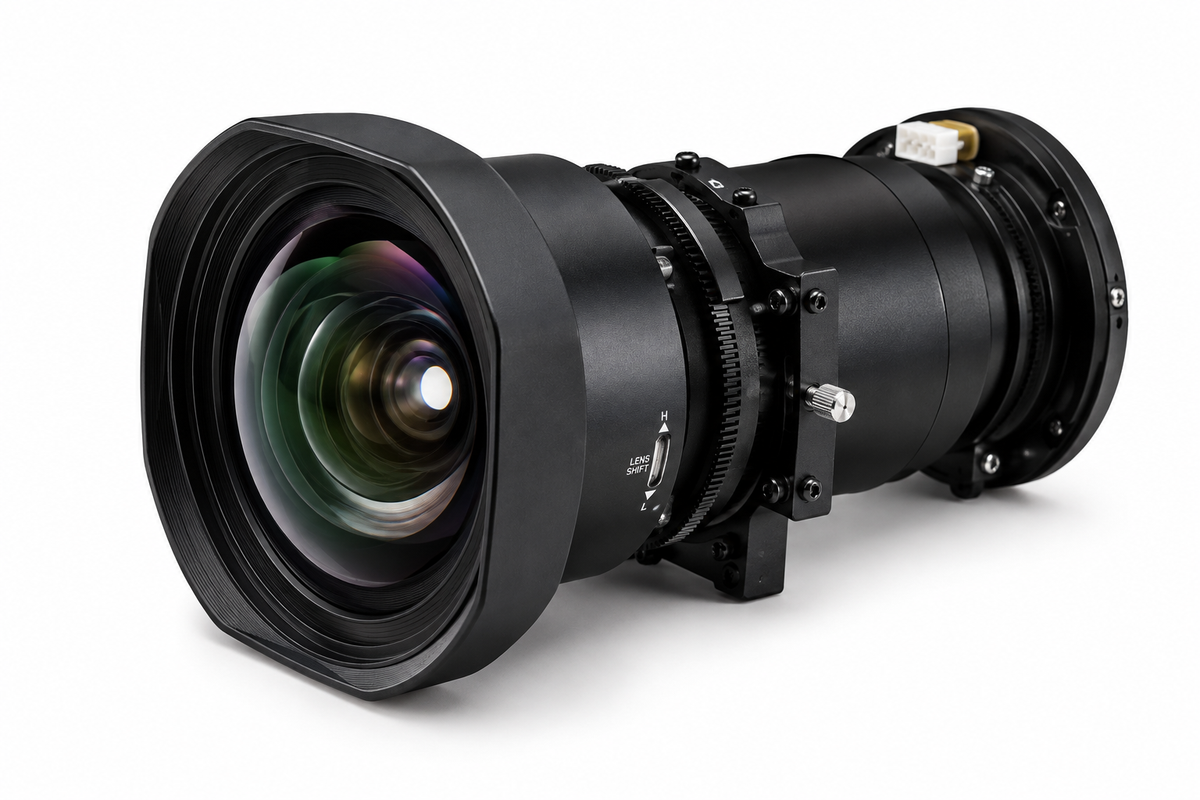

Start with the projector's throw ratio and your desired image width. As a general rule, throw distance equals image width multiplied by throw ratio. A projector with a 1.5:1 throw ratio displaying an 8-foot-wide image would require approximately 12 feet between the lens and screen. Projectors with interchangeable lenses may support several different throw ranges, so lens selection is an important part of planning larger installations.

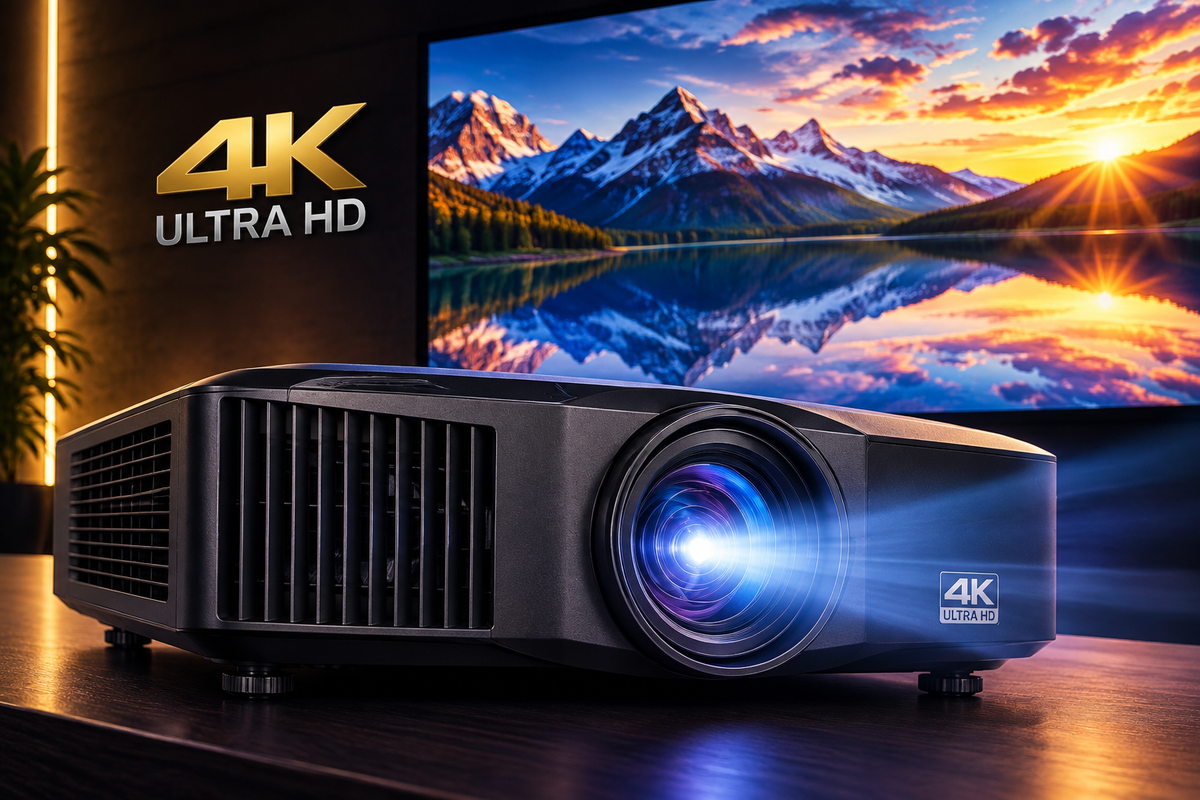

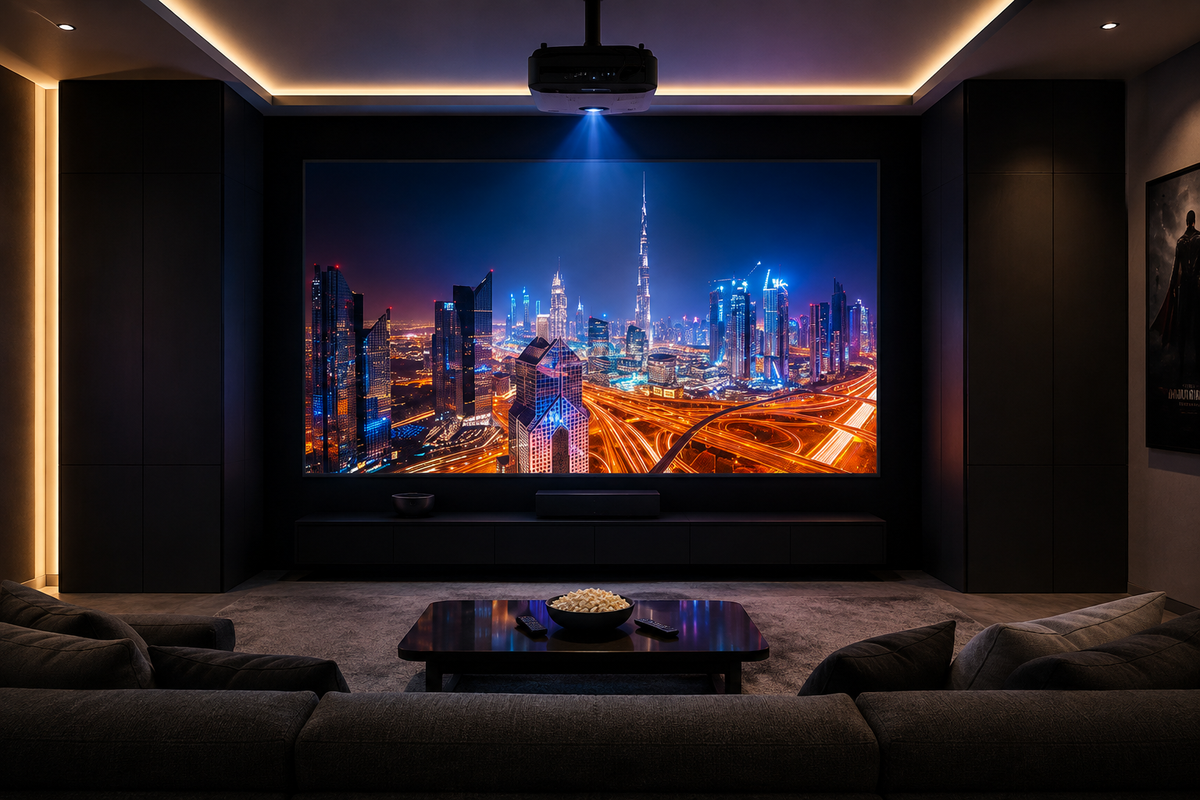

4K projection is particularly valuable when displaying detailed content, using large screens or when viewers sit close enough to appreciate the additional resolution. It can be an excellent choice for conference rooms, museums, simulation, visualization, home theater and other applications where fine image detail matters. For basic presentations or smaller classroom screens, however, brightness and installation flexibility may be more important than moving from WUXGA to 4K.

For many professional installations, laser projection has become the preferred technology. Laser light sources typically provide long operating life, reduced maintenance, quick startup and more consistent brightness over time compared with replaceable lamps. Many commercial laser projectors are rated for approximately 20,000 hours of light-source operation under specified conditions, with some offering extended-life modes. Actual performance and lifespan vary by model and operating environment.

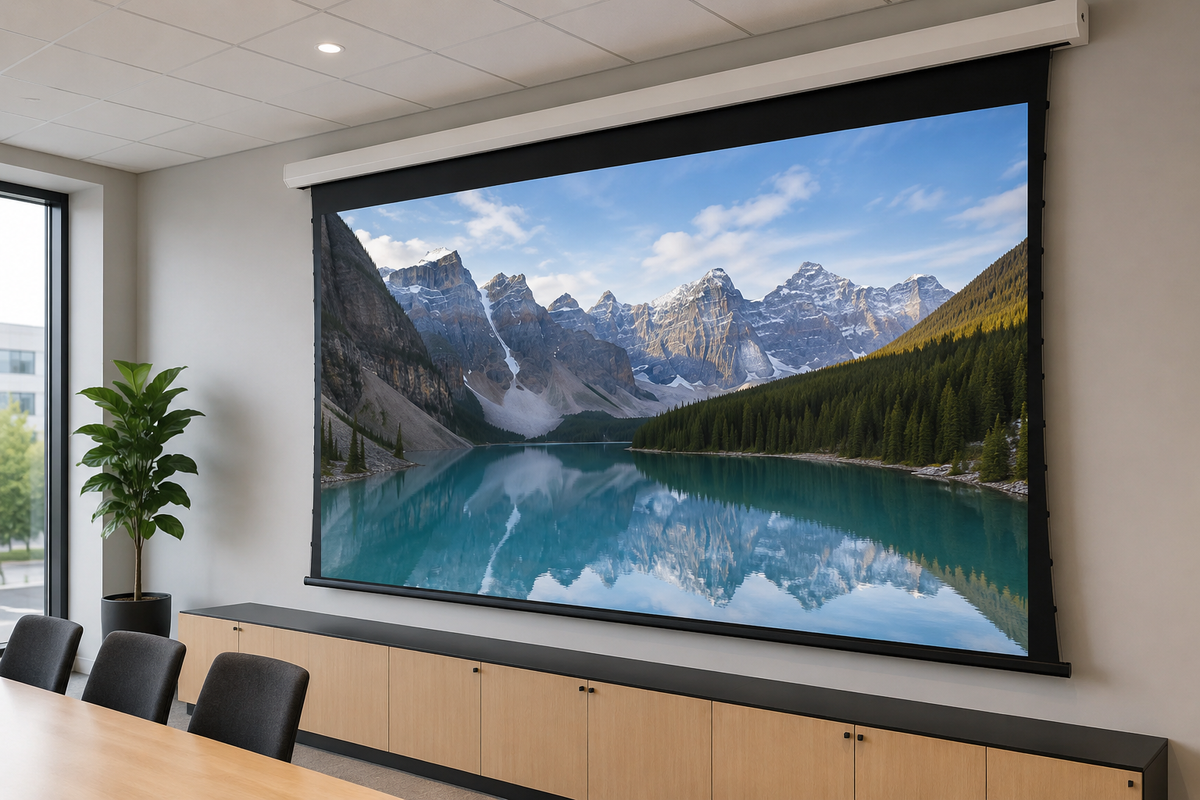

Bright rooms generally require higher projector output, but lumens aren't the only consideration. Screen size, screen material, placement and the amount and direction of ambient light all influence perceived contrast and image quality. A smaller image from the same projector will generally appear brighter than a much larger image. For conference rooms, classrooms and public spaces with significant lighting, choose the projector and screen as a complete system rather than simply selecting the highest lumen rating.

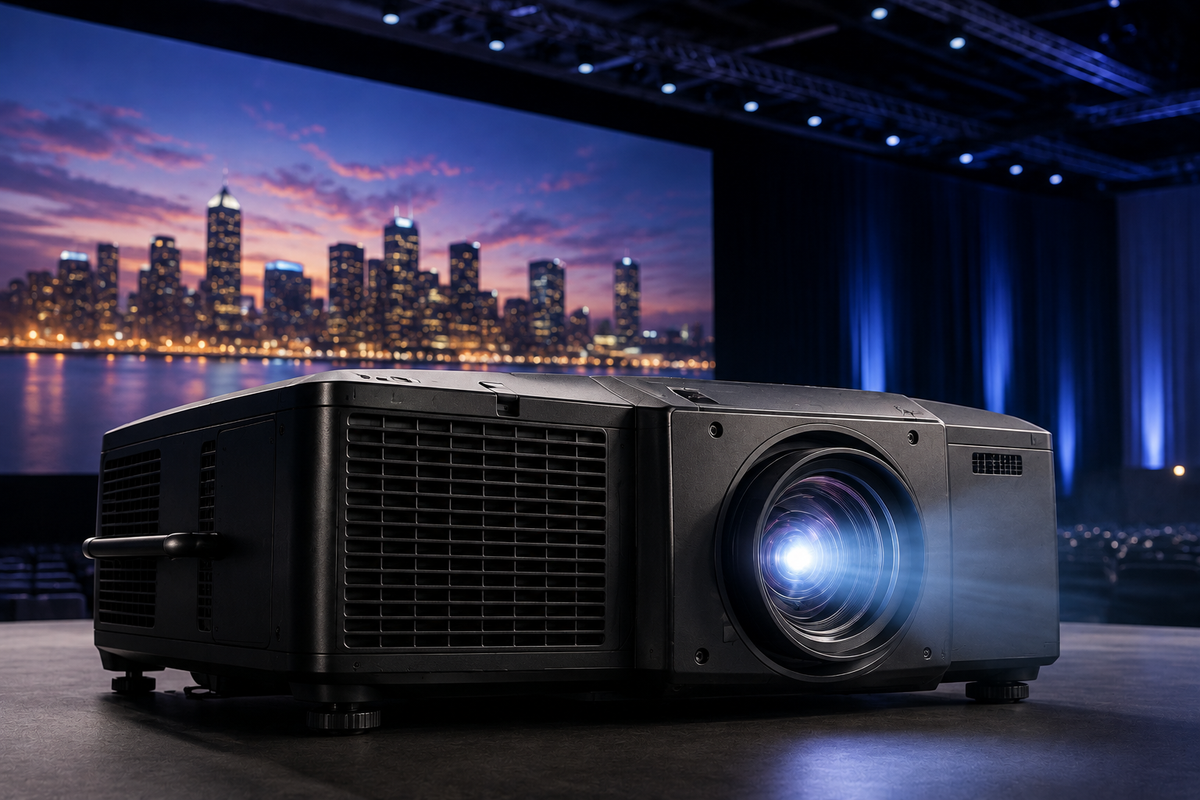

Large-venue installations should be planned around brightness, lens options, throw distance, resolution, installation orientation and connectivity. Features such as interchangeable lenses, powered zoom and focus, lens shift, geometric correction and edge blending can become important for auditoriums, stages, houses of worship and projection-mapping applications. Serviceability and continuous-use requirements should also be considered when the projector will be installed in a difficult-to-access location.

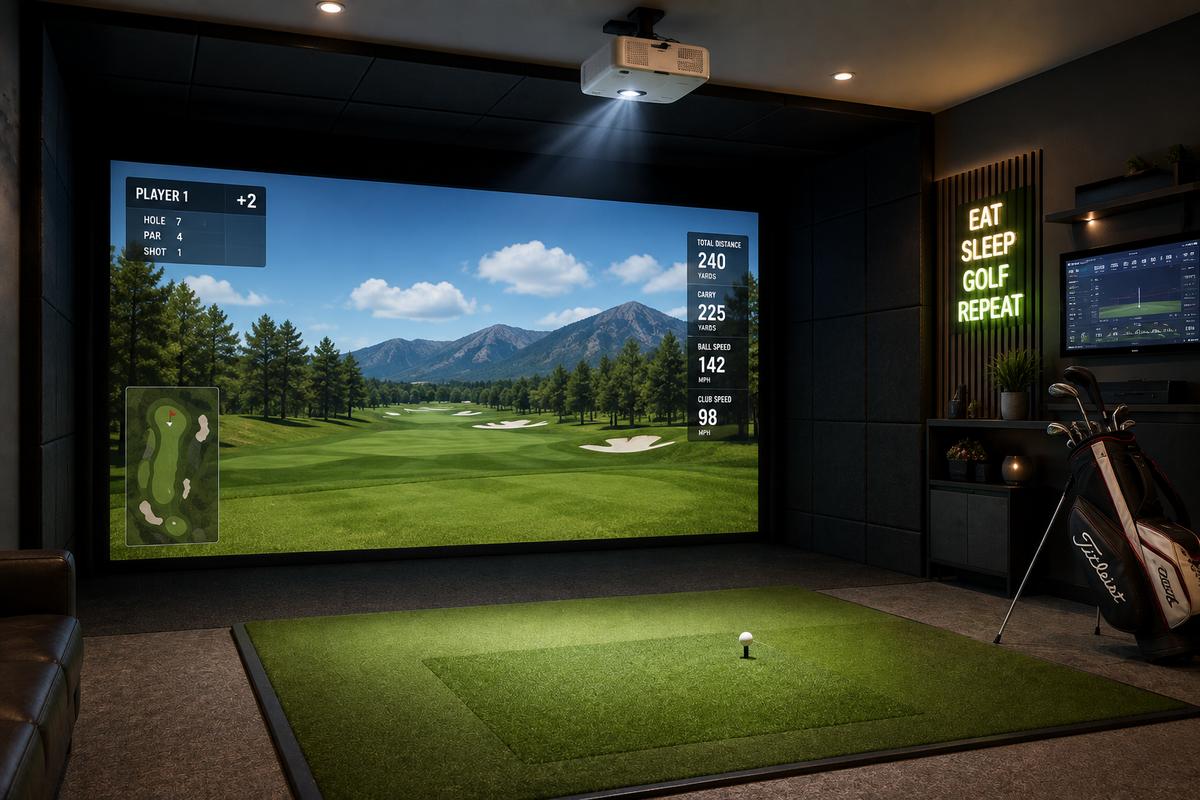

Golf simulator projection requires more than simply producing a bright image. Throw ratio is especially important because the projector must create a large image without interfering with the golfer or swing area. Brightness, resolution and aspect ratio should match the simulator enclosure and impact screen. Mounting position also needs careful planning to minimize shadows while protecting the projector from clubs and golf balls.
