Direct View LED Video Walls & Displays

A Direct View LED (DVLED) display creates an image using individual LED modules rather than an LCD panel with a backlight. Multiple LED cabinets or modules are assembled together to create a larger display surface. Because there are no traditional LCD bezels between panels, DVLED can produce a nearly seamless image across very large screen sizes and custom aspect ratios.

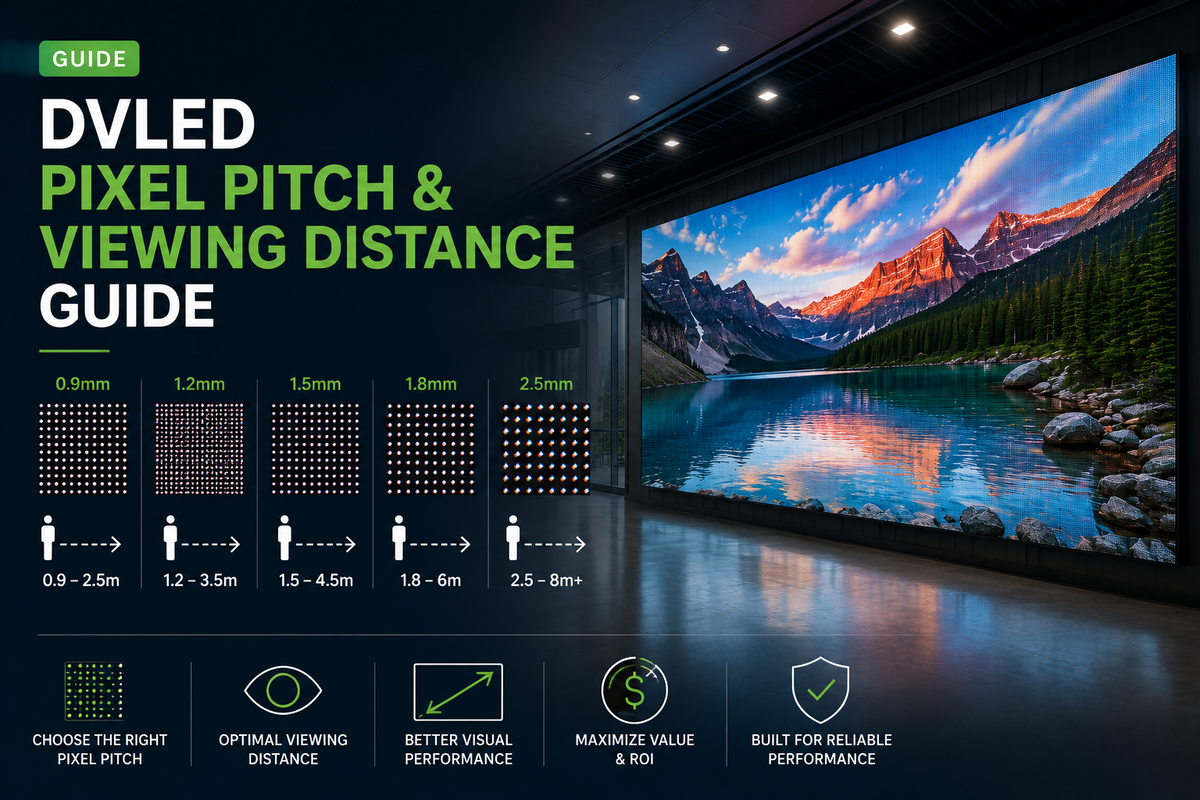

The right pixel pitch depends primarily on how close viewers will be to the screen. Smaller pixel pitches place the LEDs closer together and provide greater image detail at shorter viewing distances. Larger pixel pitches can be appropriate when viewers are farther away and can significantly reduce system cost. The goal is not necessarily to purchase the smallest available pixel pitch, but to select one that provides the required image quality at the application's expected viewing distance.

Start with the available wall dimensions, desired aspect ratio, content resolution and expected viewing distance. Unlike conventional displays, DVLED systems can often be configured from multiple cabinets to create very large or customized display dimensions. For presentations and standard video content, a 16:9 configuration is often convenient, while architectural, retail and signage installations may benefit from wider or custom formats.

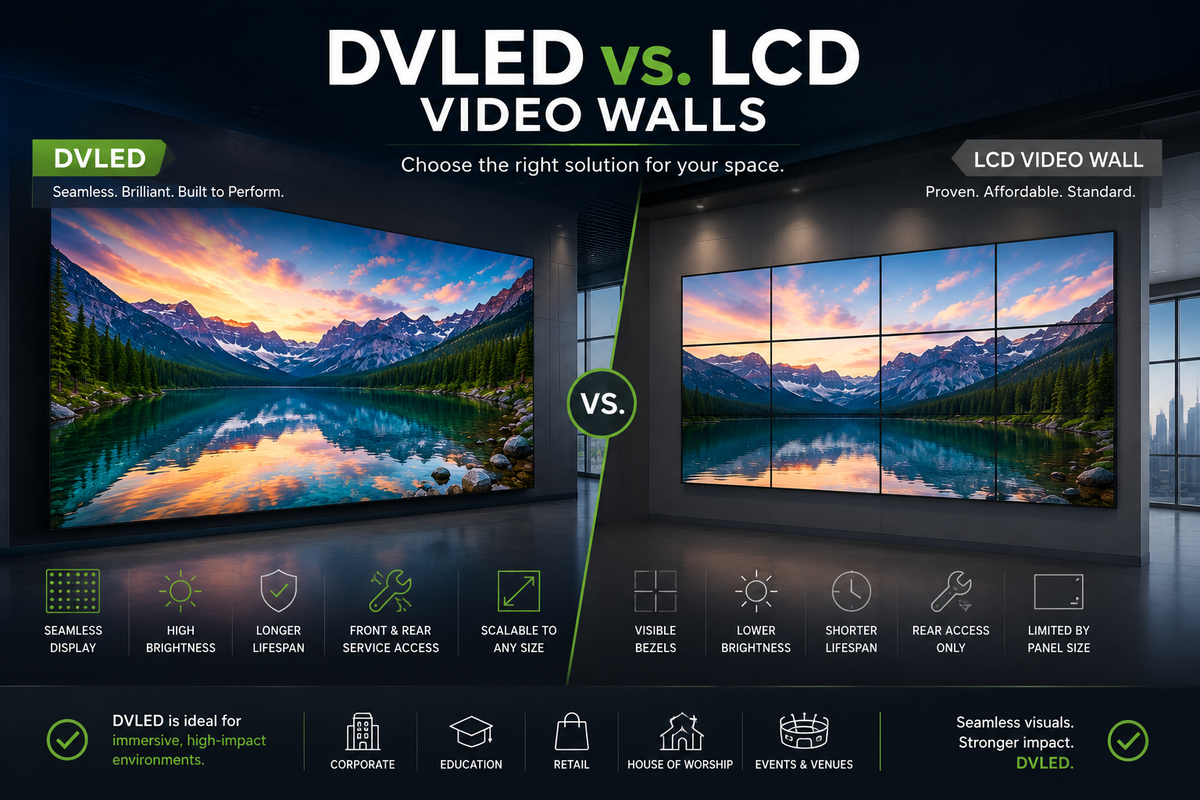

DVLED creates a continuous display surface without the visible panel bezels associated with tiled LCD video walls. It can also provide greater flexibility in overall size, shape and brightness. LCD video walls can still be an economical choice for many commercial applications, particularly when very fine pixel pitch or seamless presentation is not required. The better technology depends on viewing distance, image quality requirements, installation environment and budget.

Yes, provided the appropriate pixel pitch is selected. Fine-pitch DVLED products are designed for environments such as boardrooms, control rooms and presentation spaces where viewers may sit relatively close to the display. As viewing distance decreases, pixel pitch becomes increasingly important because individual LEDs can become noticeable if the pitch is too large for the application.

Many professional DVLED systems are engineered for extended or continuous commercial operation, but operating specifications vary by manufacturer and model. Applications such as command centers, transportation facilities and digital signage may require 24/7 capability. Buyers should verify the manufacturer's duty-cycle rating as well as cooling, power, brightness and environmental requirements before specifying a system for continuous use.

A complete installation typically includes the LED cabinets or modules, mounting structure, power components, data connections and an LED controller or video processor. Depending on the application, additional equipment may include media players, switchers, scalers, control systems and redundant power or signal components. The supporting wall structure and electrical requirements should also be evaluated before installation.

Yes, but the physical size and pixel pitch of the LED wall determine its native pixel resolution. Unlike purchasing a conventional 4K television, a DVLED system's total resolution is created by combining the pixel resolution of its individual cabinets. A system can therefore be engineered to achieve 1920 × 1080, 3840 × 2160 or another target resolution based on the screen dimensions and selected pixel pitch.

Outdoor DVLED must withstand environmental conditions while producing enough brightness to remain visible in daylight. Weather resistance, operating temperature, brightness and ingress protection are therefore important considerations. Indoor systems generally prioritize finer pixel pitches, closer viewing distances and image quality at lower brightness levels. A display should always be specified for the environment in which it will actually operate.

Screen dimensions alone do not determine DVLED cost. Pixel pitch, total pixel count, LED quality, cabinet construction, brightness, processing hardware, serviceability, redundancy and manufacturer support can all affect pricing. A finer-pitch wall may contain substantially more LEDs and require more processing than a similar-sized wall designed for longer viewing distances. For this reason, DVLED systems should be compared by their complete specifications and application requirements—not simply by screen size and price.
