PTZ Cameras for Professional Video Production

A PTZ camera is a remotely controlled camera capable of pan, tilt and zoom movement. Unlike a fixed camera, a PTZ camera can reframe a scene, follow presenters, capture different areas of a room and recall preset camera positions without physically moving the camera. Professional PTZ cameras are commonly used for video conferencing, live streaming, education, houses of worship, corporate events and broadcast production.

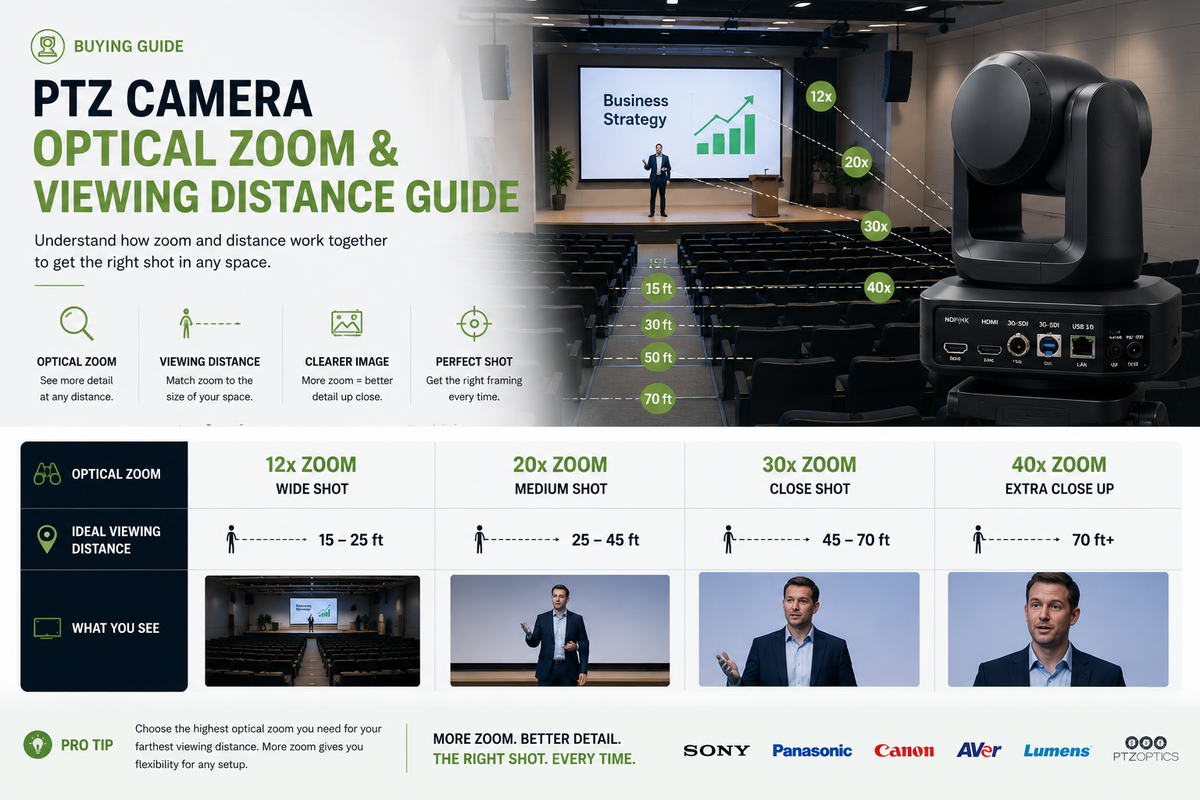

The right optical zoom depends primarily on the distance between the camera and the subject and how tightly you need to frame the shot. Smaller conference rooms may require relatively little zoom, while lecture halls, auditoriums and houses of worship can benefit from 20x, 30x or greater optical zoom. Optical zoom is preferable to relying heavily on digital zoom because it allows the camera to capture a tighter image without the same loss of detail.

A 1080p PTZ camera can provide excellent results for conferencing, streaming and many standard video applications. A 4K camera provides additional image detail and can be particularly useful for professional production, large displays, recording, digital cropping and applications where image quality is a priority. Resolution should be considered alongside sensor quality, optics, lighting performance and the resolution supported by the rest of the video workflow.

An auto-tracking PTZ camera uses intelligent detection and tracking technology to automatically keep a presenter or other subject properly framed as they move through a defined area. Depending on the camera, tracking modes may include presenter tracking, zone tracking, group framing and automatic composition. This can be especially valuable in classrooms, training rooms, corporate presentations and houses of worship where a dedicated camera operator may not be available.

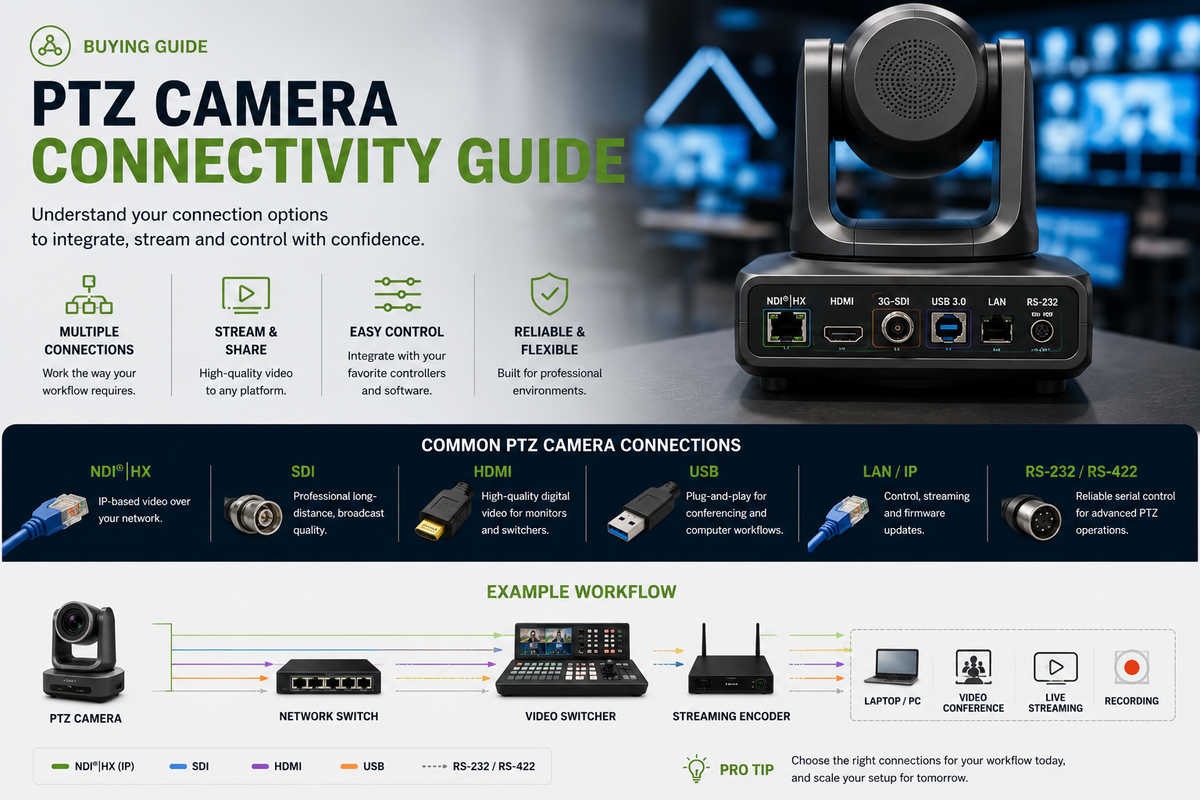

These connections support different types of AV workflows. HDMI is commonly used for direct connection to displays, capture devices and switchers, while SDI is widely used in professional video production because it can carry video reliably over longer cable runs. USB is convenient for computer-based conferencing, and IP networking can provide video, control and remote management over a network. NDI-compatible cameras can transport professional video across an IP network and are particularly useful in network-based production environments.

Yes. Professional PTZ cameras can typically be operated using one or more methods, including a hardware joystick controller, web interface, manufacturer software, production software or network-based control system. Many installations also use camera presets so an operator can instantly move the camera to predefined positions for a podium, conference table, stage or other important area.

Yes. One of the major advantages of professional PTZ systems is the ability for a single operator to manage multiple cameras from a centralized location. Compatible controllers and production software can provide camera selection, pan, tilt, zoom, focus and preset recall across several cameras. This makes PTZ systems particularly effective for multi-camera streaming, broadcast, event production and houses of worship.

Many professional PTZ cameras support desktop, wall and ceiling installations when used with the appropriate mounting hardware. The correct mounting position depends on the room, desired viewing angle, camera field of view and required coverage. Ceiling-mounted cameras may also provide image-flip settings so the video remains correctly oriented. Mounting location should be planned together with power, network, video and control cabling.

Resolution alone does not determine low-light performance. Sensor size, lens quality, aperture, image processing and the amount of available light all affect image quality. For auditoriums, stages, houses of worship and event spaces with changing lighting conditions, look closely at the camera's low-light specifications and consider how far the camera will be positioned from the subject.

Start with the application and physical environment. Determine the distance from the camera to the subject, required field of view, optical zoom, resolution and lighting conditions. Then consider whether you need auto tracking, SDI, HDMI, USB, NDI or other IP connectivity, along with PoE, mounting and remote-control requirements. The best PTZ camera is not necessarily the model with the highest specifications—it is the camera whose optics, connectivity and control capabilities fit the complete AV workflow.
