Product Summary
Product Overview
The Yamaha VXS10S is a 10" 100W subwoofer with a dual voice coil configuration (8 + 8 Ohms), designed specifically for installation applications.
To meet the growing demands of the installation market, Yamaha developed the VXS speakers, offering exceptional sound quality alongside a focus on ease of installation. The speakers are crafted to deliver premium audio while seamlessly blending into various commercial environments. Notably, the hexagonal grille design enhances sound clarity by improving the aperture ratio, and the sleek, smooth curves of the surface-mount cabinet ensure that the speakers can be mounted closely to walls. Additionally, they are fully adjustable for panning and tilting to direct sound to the desired areas.
Specifications
- Type: Subwoofer, Bass Reflex
- Component: 10" (25 cm) Cone Driver, Dual Voice Coil
- Nominal Impedance: 8 Ohms + 8 Ohms
-
Power Rating (IEC, 100h):
- Noise: 100 W + 100 W
- Program: 200 W + 200 W
- Max: 400 W + 400 W
- Sensitivity (1W, 1m): 96 dB SPL
- Maximum SPL (Calculated, 1m): 125 dB SPL
- Frequency Range (-10 dB): 45 Hz – 250 Hz
- Subwoofer Filter Network: Low-pass filter 6 dB/Oct, 200 Hz
- Acoustic Filter: Low-pass filter 6 dB/Oct, 200 Hz
- Satellite Filter Network: High-pass filter 6 dB/Oct, 200 Hz
- Satellite Impedance: 8 Ohm load per satellite output recommended
-
Connectors:
- Euroblock (4 pin) × 1: Input (CH1: +/-, CH2: +/-)
- Euroblock (4 pin) × 1: Input (input: +/-, loop-thru: +/-)
- Overload Protection: Full-range power limiting to protect network and transducers
- Magnetically Shielded: No
- Enclosure Shape: Rectangle
- Cabinet Material: MDF
- Finish: Black (PVC, approximate value: Munsell N3)
- Dimensions (Speaker Only): 10.2" x 19.7" x 15.3"
- Weight (Speaker Only): 16.5 kg (36.4 lb)
Design Focus
Yamaha’s design philosophy for the VXS series combines both aesthetic appeal and functionality. The VXS10S subwoofer is part of a broader lineup crafted to meet the needs of various installation scenarios, providing high-quality sound while being mindful of its surroundings. The design ensures the speakers not only perform well but also complement the decor of any environment, whether mounted on the wall or ceiling. By paying attention to every detail in the materials used, including speaker cone paper and high-performance transducers, Yamaha ensures the VXS Series delivers the full potential of every installation.

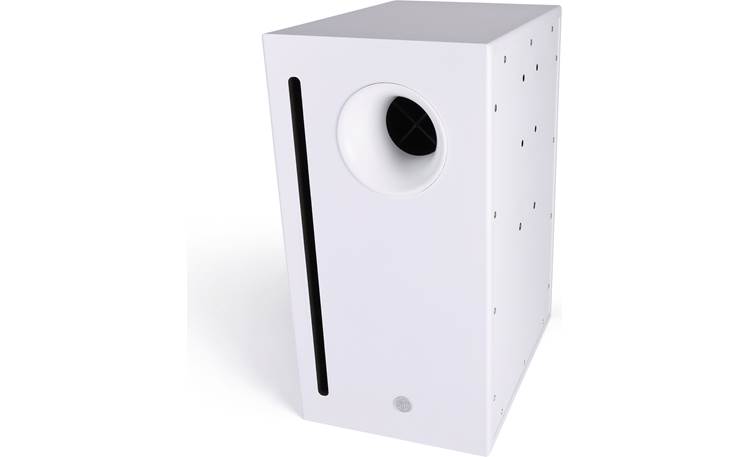

Yamaha VXS10SW 10" 8 Ohm Surface-Mount Subwoofer, White
Call for Price
Product Description
Product Overview
The Yamaha VXS10S is a 10" 100W subwoofer with a dual voice coil configuration (8 + 8 Ohms), designed specifically for installation applications.
To meet the growing demands of the installation market, Yamaha developed the VXS speakers, offering exceptional sound quality alongside a focus on ease of installation. The speakers are crafted to deliver premium audio while seamlessly blending into various commercial environments. Notably, the hexagonal grille design enhances sound clarity by improving the aperture ratio, and the sleek, smooth curves of the surface-mount cabinet ensure that the speakers can be mounted closely to walls. Additionally, they are fully adjustable for panning and tilting to direct sound to the desired areas.
Specifications
- Type: Subwoofer, Bass Reflex
- Component: 10" (25 cm) Cone Driver, Dual Voice Coil
- Nominal Impedance: 8 Ohms + 8 Ohms
-
Power Rating (IEC, 100h):
- Noise: 100 W + 100 W
- Program: 200 W + 200 W
- Max: 400 W + 400 W
- Sensitivity (1W, 1m): 96 dB SPL
- Maximum SPL (Calculated, 1m): 125 dB SPL
- Frequency Range (-10 dB): 45 Hz – 250 Hz
- Subwoofer Filter Network: Low-pass filter 6 dB/Oct, 200 Hz
- Acoustic Filter: Low-pass filter 6 dB/Oct, 200 Hz
- Satellite Filter Network: High-pass filter 6 dB/Oct, 200 Hz
- Satellite Impedance: 8 Ohm load per satellite output recommended
-
Connectors:
- Euroblock (4 pin) × 1: Input (CH1: +/-, CH2: +/-)
- Euroblock (4 pin) × 1: Input (input: +/-, loop-thru: +/-)
- Overload Protection: Full-range power limiting to protect network and transducers
- Magnetically Shielded: No
- Enclosure Shape: Rectangle
- Cabinet Material: MDF
- Finish: Black (PVC, approximate value: Munsell N3)
- Dimensions (Speaker Only): 10.2" x 19.7" x 15.3"
- Weight (Speaker Only): 16.5 kg (36.4 lb)
Design Focus
Yamaha’s design philosophy for the VXS series combines both aesthetic appeal and functionality. The VXS10S subwoofer is part of a broader lineup crafted to meet the needs of various installation scenarios, providing high-quality sound while being mindful of its surroundings. The design ensures the speakers not only perform well but also complement the decor of any environment, whether mounted on the wall or ceiling. By paying attention to every detail in the materials used, including speaker cone paper and high-performance transducers, Yamaha ensures the VXS Series delivers the full potential of every installation.
