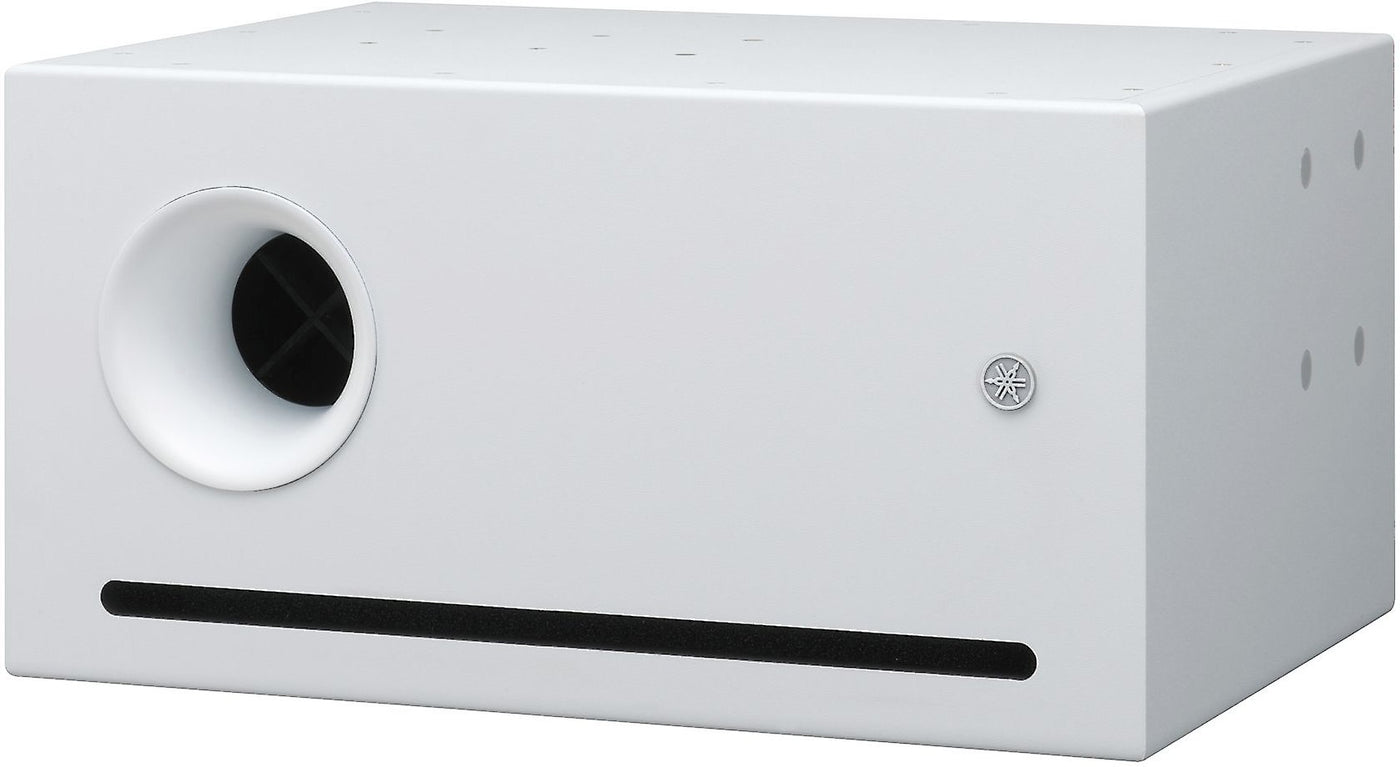

Yamaha VXS10STW 10" Surface-Mount Subwoofer, 70V, White

Product Overview
The VXS10ST is a 10" dual voice coil subwoofer, designed for 70V/100V systems, available in a sleek white finish.

Yamaha's VXS and VXC speaker series are crafted to meet the diverse needs of the installation market, offering exceptional sound quality with easy and safe installation options. The lineup includes a broad selection of models, all available in black or white finishes, and can be painted to match any interior decor seamlessly. Both ceiling and surface mount options are available for optimal flexibility in placement.

The VXS Series provides both full-range models and subwoofers, ensuring that you can select the ideal speaker for your application. For locations requiring enhanced low-end performance, the VXS Series subwoofers can be paired with full-range speakers to create a powerful and balanced sound system. These full-range models are equipped with internal transformers, allowing them to switch between high and low impedance simply by adjusting the rear tap. They also offer IP45-rated protection, making them perfect for use in outdoor environments.

Easy Installation & Versatile Mounting
The VXS Series speakers come with a dedicated bracket, ensuring safe, hassle-free installation. The brackets allow the speakers to be temporarily mounted, providing hands-free adjustment of the mounting angles. This setup makes the installation process smoother and more precise. The VXS Series speakers can be mounted on both walls and ceilings, with no need for additional brackets, offering versatility in various installation scenarios.

VXS subwoofers can also be mounted on walls with their dedicated brackets or on ceilings using Yamaha's U brackets (UB-DXR8), designed for use with the DXR8 powered speakers.

Superior Sound Quality for Any Application
Designed to deliver superb music reproduction and clear announcements, the VXS and VXC Series speakers are perfect for a wide range of commercial environments. These speakers are built with advanced transducers and robust magnetic circuits that enhance their driving force, improving both sound quality and overall performance. The speakers feature custom tweeter diaphragms and specially formulated cone paper, optimizing sound reproduction. The cabinets are constructed from carefully selected plastic materials, ensuring durability and strength while being designed with precise bass-reflex tuning for tight, controlled low-end.

The design of the VXS Series reflects Yamaha's commitment to combining aesthetics with functionality. The hexagonal grille design enhances sound clarity by increasing the aperture ratio, and the smooth, compact cabinet design allows the speakers to be mounted close to walls while still offering pan and tilt capabilities to optimize sound coverage. The tweeter design in the VXC Series further improves sound clarity by allowing unrestricted movement of the woofer.

Yamaha VXS10STW Specifications:

• Type: Subwoofer, Bass Reflex
• Component: 10" (25 cm) Cone Driver, Dual Voice Coil
• Nominal Impedance: 8 Ohms + 8 Ohms
• Transformer Taps:
  • 70V: 200W, 100W, 50W, 25W
  • 100V: 200W, 100W, 50W
• Sensitivity (1W, 1m): 96 dB SPL
• Maximum SPL (Calculated, 1m): 125 dB SPL
• Frequency Range (-10 dB): 45 Hz – 250 Hz
• Subwoofer Filter Network: Low-pass filter 6 dB/Oct, 200 Hz
• Satellite Filter Network: High-pass filter 6 dB/Oct, 200 Hz
• Satellite Impedance: 8 Ohm load per satellite output recommended
• Connectors:
  • Euroblock (4 pin) x 1: Input (CH1: +/-, CH2: +/-)
  • Euroblock (4 pin) x 1: Input (input: +/-, loop-thru: +/-)
  • Euroblock (5 pin) x 1: Transformer taps
• Overload Protection: Full-range power limiting to protect network and transducers
• Magnetically Shielded: No
• Enclosure Shape: Rectangle
• Cabinet Material: MDF
• Finish: White (PVC, approximate value: Munsell N3)
• Dimensions (Speaker Only): 10.2" x 19.7" x 15.3"
• Weight (Speaker Only): 19.5 kg (43.0 lbs)
