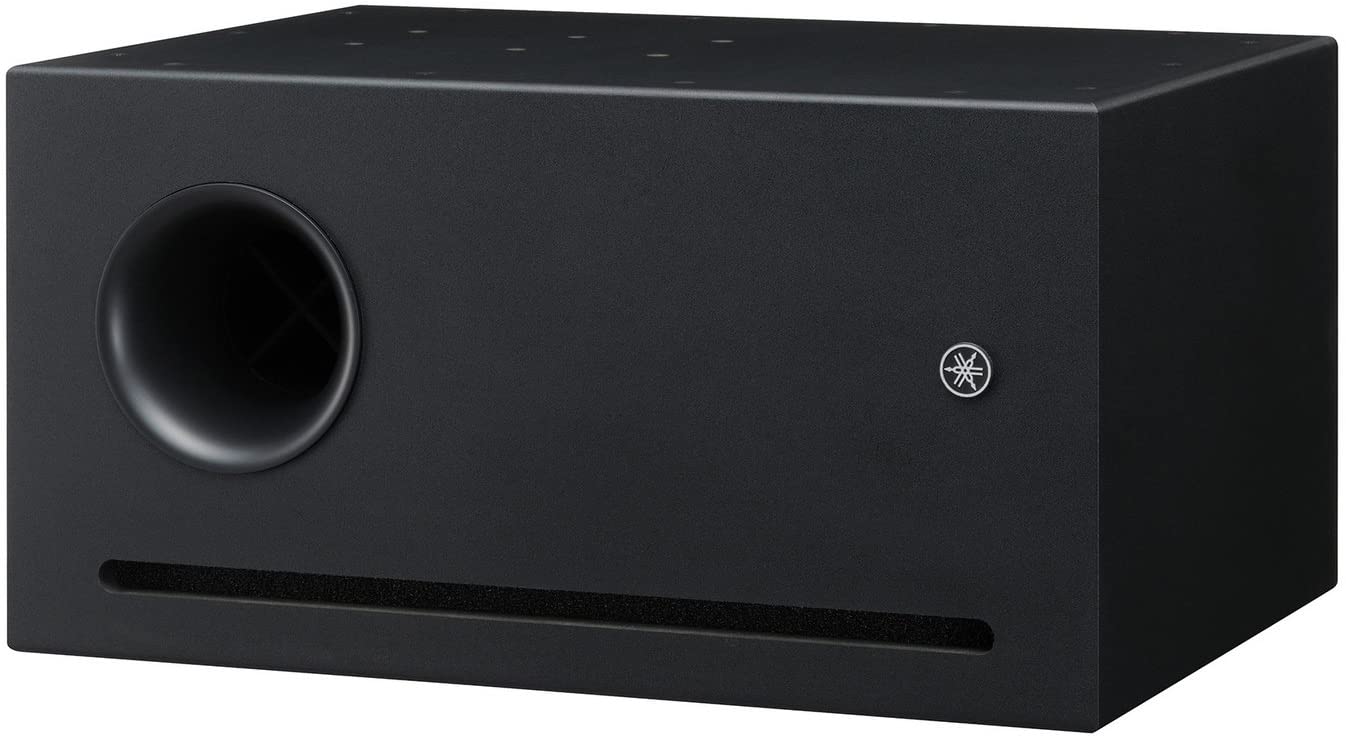

Yamaha VXS10S 10" 8 Ohm Surface-Mount Subwoofer, Black

Product Overview

The Yamaha VXS10S is a powerful 10" subwoofer designed for installations, delivering 100W of dual voice coil performance at 8 + 8 Ohms. This subwoofer is a perfect addition to Yamaha's VXS speaker line, designed to meet the increasing demand for high-quality audio in a variety of commercial applications. Engineered to provide exceptional sound reproduction, the VXS10S is also focused on ease of installation, ensuring that users can integrate it into their setups with minimal hassle. Yamaha’s emphasis on functionality and design ensures that these speakers offer great sound performance without disrupting the interior decor of any space. A key feature of the VXS Series is the hexagonal grille design, which enhances sound clarity by optimizing the aperture ratio. The smooth curves of the cabinet’s surface-mount design allow the speaker to sit closely against the wall, providing flexibility for precise panning and tilting to cover specific service areas.

Specifications

• Type: Subwoofer, Bass reflex
• Component: 10" (25 cm) cone driver, Dual voice coil
• Nominal impedance: 8 Ohms + 8 Ohms
• Power rating (IEC, 100h):
  • NOISE: 100 W + 100 W
  • PGM: 200 W + 200 W
  • MAX: 400 W + 400 W
• Sensitivity (1W, 1m): 96 dB SPL
• Maximum SPL (Calculated, 1m): 125 dB SPL
• Frequency range (-10 dB): 45 Hz – 250 Hz
• Subwoofer filter network: Low-pass filter 6 dB/Oct, 200 Hz
• Satellite filter network: High-pass filter 6 dB/Oct, 200 Hz
• Satellite impedance: 8 Ohm load per satellite output (recommended)
• Connector: Euroblock (4 pin) x 2: Input (CH1: +/-, CH2: +/-) & Input (input: +/-, loop-thru: +/-)
• Overload protection: Full-range power limiting to protect network and transducers
• Magnetically shielded: No
• Enclosure shape: Rectangle
• Cabinet material: MDF
• Finish: Black (PVC, approximate value: Munsell N3)
• Dimensions (Speaker only): 10.2" x 19.7" x 15.3"
• Weight (Speaker only): 16.5 kg (36.4 lb)

The VXS10S subwoofer's design and performance make it a versatile and durable option for commercial installations, enhancing both music and voice clarity while ensuring seamless integration into any environment.
