Yamaha AD-5TT-WB Adecia Wired Mic. Bundle:5-RM-TT-B Mics(B)RM-CR,SWR-2311P-10G,SWR-2100-5G,2-VXL1B-16P(B)

SKU: AD5TTWB
$9,137.00
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Memorial Month Sale | additional discount in cart

  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • \n Frequency Response: 20Hz - 20kHz\n Dynamic Range: 100.5dBA\n Latency: 8ms\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote

  • Frequency Response: 20Hz - 20kHz

  • Dynamic Range: 100.5dBA

  • Latency: 8ms

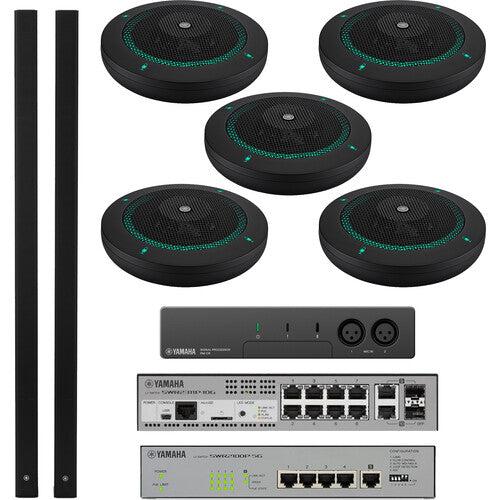

Included within the ADECIA solution family, the ADECIA Tabletop Microphone & Line Array Speaker Solution offering features the same easy setup and auto configuration features available through the RM-CR audio processor. Installation of the wired tabletop microphones is done through a LAN cable to the PoE switch. Up to 14 microphone pods (four microphones per pod) can be added for scalability.

Is This Right For You?


Recommendation


Yamaha Adecia Wired Mic. Bundle 5-RM-TT-B Mics(B)RM-CR,SWR-2311P-10G,SWR-2100-5G,2-VXL1B-16P(B)
Yamaha

Yamaha AD-5TT-WB Adecia Wired Mic. Bundle:5-RM-TT-B Mics(B)RM-CR,SWR-2311P-10G,SWR-2100-5G,2-VXL1B-16P(B)

$9,137.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

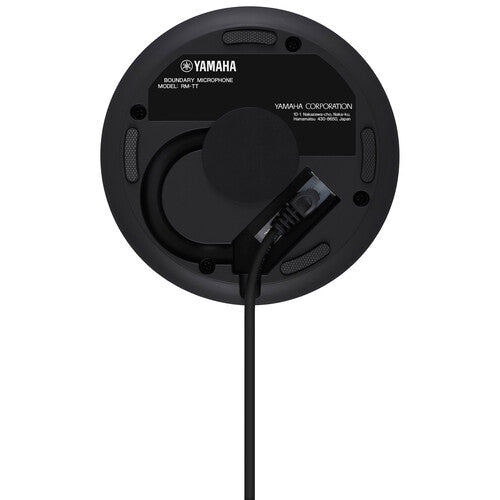

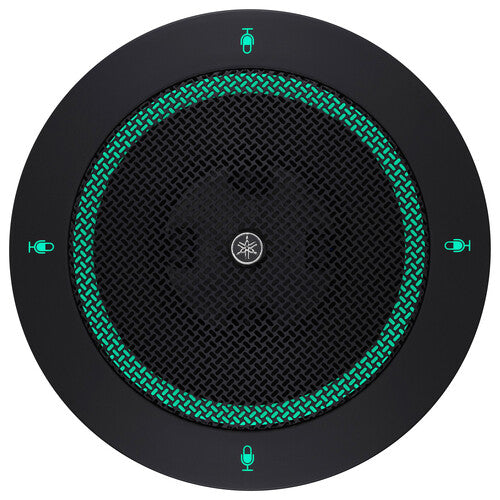

RM-TT GENERAL
Dimensions
140 (W) × 41.5 (H) × 140 (D) mm
Weight
310g
Power Requirements
PoE (IEEE 802.3af)
Maximum Power Consumption
4.5W
Connector
RJ45
In Operation Temp/Humidity
0°C - 40°C / 30% - 90% (no condensation)
Storage Temperature/Humidity
-20°C - 60°C / 20% - 90% (no condensation)
Indicator
Mute indicator (Mute/Unmute), Status indicator, Network port indicator
Max Device Number with RM-CR
14
Accessories
Installation manual, Tabletop mounting adapter, Screw for mounting x 3, Spacer x 3
RM-TT NETWORK
Ethernet
Dante, Remote Control, Web UI, PoE
Cable Requirements
CAT5e or higher (STP)
RM-TT AUDIO SPECIFICATIONS
Audio I/O Dante
1in/2out
Sampling Rate
48kHz
Bit Depth
24bit
Frequency Response
160Hz - 16kHz (-10dB)
Max Input Level of SPL (0dBFS)
106.8dB SPL
Self Noise
6.3dBA SPL
SN Ratio Ref. 94dB SPL at 1kHz
87.7dBA
Sensitivity
-12.8dBFS/Pa
Dynamic Range
100.5dBA
Signal Processing
Auto Voice Tracking, Selectable Polar Pattern (Cardioid, Hyper-cardioid, Super-cardioid, Omnidirectional, Bidirectional, Troid), Adaptive Echo Canceller, Noise Reduction, Dereverberation, Auto Mixer, Auto Gain Control, Parametric EQ, Output Gain
RM-CR GENERAL
Dimensions
215 (W) x 44 (H) x 260 (D) mm
Weight
1.6kg
Power Requirements
PoE+ (IEEE 802.3at, LLDP), DC 48V
Maximum Power Consumption
15.0W
In Operation Temp/Humidity
0°C - 40°C / 30% - 90% (no condensation)
Storage Temperature/Humidity
-20°C - 60°C / 20% - 90% (no condensation)
Indicator
Power indicator, Status indicator, Bluetooth indicator, Network port indicator x 3
Accessories
Installation manual, USB Cable (A-B) 5m (16.4ft), USB Cable (A-microB) 1m (3.3ft), Rubber foot x 4, Access panel
Options
Rack Mount Kit RM-MTL, Table Mount Kit RM-MRK
RM-CR NETWORK
Ether1
Dante, Remote Control, Web UI, PoE+
Ether2/Ether3
Corporate Network, Remote Control, SIP, Web UI
USB Network (Front)
USB2.0, Network Class, Web UI, Fixed IP
Cable Requirements
Ethernet1/2/3: CAT5e or higher (STP) USB Network : USB Cable (A-microB)
RM-CR AUDIO SPECIFICATIONS
Audio I/O Dante
16in/16out
Audio I/O USB
USB2.0, Audio Class 1.0, Input: 2ch, Output: 2ch @48kHz
Audio I/O Microphone Input
XLR Balanced, Input: 2ch
Audio I/O Aux
RCA Unbalanced (Line Level), Input: 2ch, Output: 2ch
Audio I/O Speaker Out
RCA Unbalanced (Line Level), Output: 2ch
Audio I/O Bluetooth
Version 4.2 Supported Profiles: HFP (1.6), A2DP, AVRCP Supported Codec: CVSD, SBC, mSBC Wireless Output: Class2 Maximum Communication Distance: 10m (32.8ft) (no obstacles) Radio Frequency (Operational Frequency): 2,402MHz - 2,480MHz Maximum Output Power (EIRP): 4.0dBm (2.5mW)
Audio I/O SIP
Call Handling: Dial, Answer, Hold, Resume, Forwarding, Do not disturb, Redial, Call timer, Call ID, Voice mail notifications (switch configured) Call Bridging: Supports bridging SIP, USB, BT and AUX calls. Join, Split, Hold, Resume, 5+1 lines: up to 2 SIP calls, 1 USB call, 1 Bluetooth call, 1 AUX, Plus the user Codecs: G.711, G.722HD, G.729ab, G.726 DTMF Support: RTP event, SIP in-band, SIP info package Security: SRTP support (RFC 1889), IETF SIP support (RFC 3261 and companion RFCs)
Sampling Rate
48kHz
Bit Depth
24bit
Latency
8ms (Dante In to USB Out, includes signal processing)
Frequency Response
20Hz - 20kHz
