Key Features
- UHD 4K Video
- 20x Total Zoom
- Single-Cable OneLINK Connectivity
- 328-Foot Cable Extension
- Ethernet And RS-232 Control
1
/
5
1
5
Product Summary

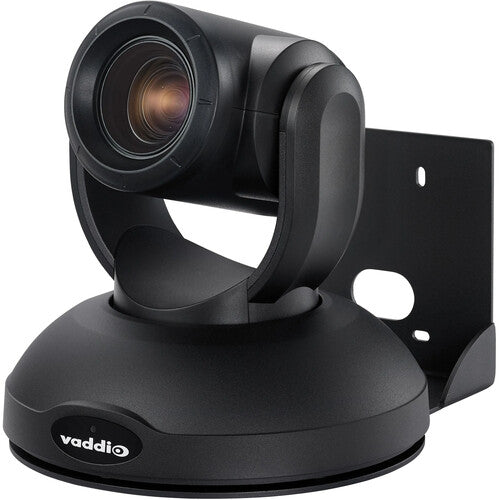

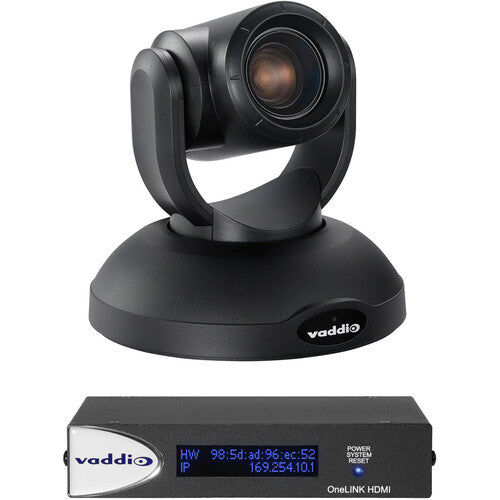

Vaddio RoboSHOT 20 UHD OneLINK HDMI PTZ Camera System – Black
Model: 999-9950-100B
The Vaddio RoboSHOT 20 UHD OneLINK HDMI System combines a black RoboSHOT 20 UHD PTZ camera with the OneLINK HDMI Receiver for HDBaseT cameras, creating a professional 4K camera system for corporate conferencing, distance learning, houses of worship, live streaming, and other professional AV applications. The OneLINK system simplifies installation by extending video, power, network, and camera control over a single CAT5e/6 cable at distances up to 328'.
UHD 4K Video
The RoboSHOT 20 UHD captures native UHD 4K (3840 x 2160) video at up to 30 fps, providing detailed, professional-quality imagery for presentations, conferencing, education, and live production.
Its back-illuminated 9.03MP 1/2.3"-type image sensor is designed to provide high-resolution imaging with performance suitable for demanding professional AV environments.
20x Total Zoom
The camera provides a 20x total zoom range, combining 12x optical zoom with 1.67x digital zoom. This gives operators flexibility to capture wide room views as well as tighter shots of presenters, instructors, speakers, or meeting participants.
Its horizontal field of view ranges from approximately 74° at wide angle to 4.8° at maximum zoom, making the camera suitable for both group coverage and detailed subject framing.

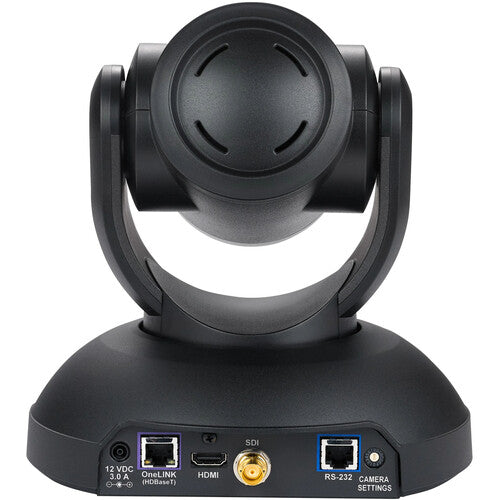

Multiple Video Outputs
The RoboSHOT 20 UHD supports multiple professional video interfaces, including HDMI, HDBaseT, 3G-SDI, and IP streaming. These outputs can operate simultaneously, providing flexibility when integrating the camera with displays, production switchers, streaming systems, recorders, and network-based AV workflows.

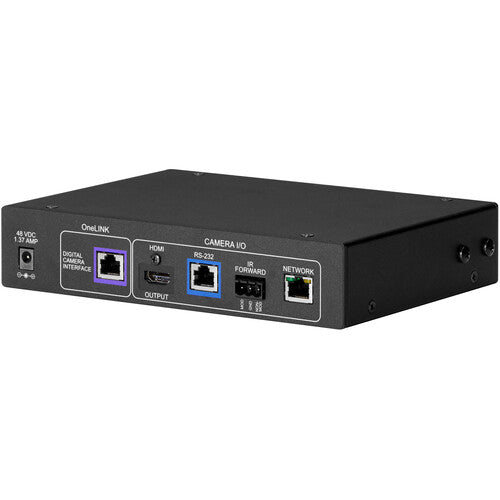

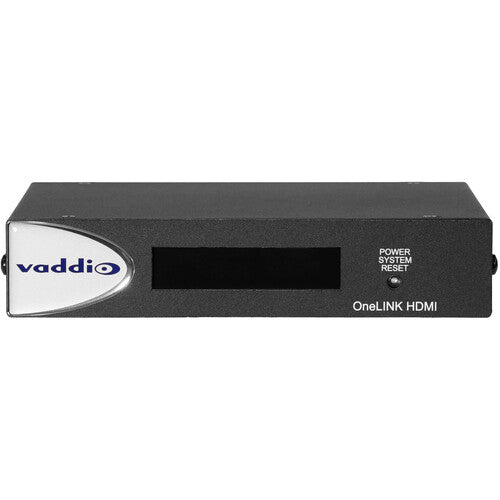

OneLINK HDMI Extension System
The included OneLINK HDMI Receiver simplifies camera installation by consolidating several essential connections onto a single cable.
The system carries:
- Video
- Camera power
- Network connectivity
- Camera control
- Bidirectional Ethernet
- RS-232 control
This reduces cabling requirements between the camera and the primary AV equipment while providing greater flexibility in camera placement.
Supports Cable Runs up to 328'
The OneLINK HDMI system supports transmission distances of up to 328 feet over CAT5e/6 cabling.
This makes the system particularly useful for larger conference rooms, lecture halls, classrooms, auditoriums, houses of worship, and other installations where the camera may need to be located a significant distance from the AV rack or control equipment.
Smooth PTZ Movement
The RoboSHOT 20 UHD provides precise motorized pan, tilt, and zoom control for professional camera positioning.
Pan and tilt movement speeds range from approximately 0.35° to 120° per second, allowing both subtle framing adjustments and rapid repositioning between subjects or preset positions.
Remote Camera Control
The camera can be controlled over the network from a connected computer, allowing administrators and AV operators to manage camera positioning and settings remotely.
An included IR remote control also provides convenient local operation for presenters and room users.
Designed for Professional AV
The combination of UHD imaging, PTZ functionality, long-distance HDBaseT connectivity, and multiple simultaneous outputs makes the RoboSHOT 20 UHD suitable for permanently installed professional AV systems.
Vaddio RoboSHOT 20 UHD OneLINK HDMI System (Black) 999-9950-100B
Authorized Dealer
Authorized
Vaddio
Dealer
Manufacturer Warranty
Authorized dealer coverage
Expert Support
Pre- and post-sale assistance
$7,279.20
BACK 2 SCHOOL SALE | additional discount in cart
Vaddio RoboSHOT 20 UHD OneLINK HDMI System (Black) 999-9950-100B
$7,279.20
In Stock
Current availability for this model
Free Ground Shipping
On qualifying orders to the lower 48 states
Project & Volume Pricing
Special pricing available for larger orders
Education & Government Purchase Orders
Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available
Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available
Best For
- 🎓 Education
- 🏢 Corporate Collaboration
- 🏛️ Government
Product Description
Vaddio RoboSHOT 20 UHD OneLINK HDMI PTZ Camera System – Black
Model: 999-9950-100B
The Vaddio RoboSHOT 20 UHD OneLINK HDMI System combines a black RoboSHOT 20 UHD PTZ camera with the OneLINK HDMI Receiver for HDBaseT cameras, creating a professional 4K camera system for corporate conferencing, distance learning, houses of worship, live streaming, and other professional AV applications. The OneLINK system simplifies installation by extending video, power, network, and camera control over a single CAT5e/6 cable at distances up to 328'.
UHD 4K Video
The RoboSHOT 20 UHD captures native UHD 4K (3840 x 2160) video at up to 30 fps, providing detailed, professional-quality imagery for presentations, conferencing, education, and live production.
Its back-illuminated 9.03MP 1/2.3"-type image sensor is designed to provide high-resolution imaging with performance suitable for demanding professional AV environments.
20x Total Zoom
The camera provides a 20x total zoom range, combining 12x optical zoom with 1.67x digital zoom. This gives operators flexibility to capture wide room views as well as tighter shots of presenters, instructors, speakers, or meeting participants.
Its horizontal field of view ranges from approximately 74° at wide angle to 4.8° at maximum zoom, making the camera suitable for both group coverage and detailed subject framing.
Multiple Video Outputs
The RoboSHOT 20 UHD supports multiple professional video interfaces, including HDMI, HDBaseT, 3G-SDI, and IP streaming. These outputs can operate simultaneously, providing flexibility when integrating the camera with displays, production switchers, streaming systems, recorders, and network-based AV workflows.
OneLINK HDMI Extension System
The included OneLINK HDMI Receiver simplifies camera installation by consolidating several essential connections onto a single cable.
The system carries:
- Video
- Camera power
- Network connectivity
- Camera control
- Bidirectional Ethernet
- RS-232 control
This reduces cabling requirements between the camera and the primary AV equipment while providing greater flexibility in camera placement.
Supports Cable Runs up to 328'
The OneLINK HDMI system supports transmission distances of up to 328 feet over CAT5e/6 cabling.
This makes the system particularly useful for larger conference rooms, lecture halls, classrooms, auditoriums, houses of worship, and other installations where the camera may need to be located a significant distance from the AV rack or control equipment.
Smooth PTZ Movement
The RoboSHOT 20 UHD provides precise motorized pan, tilt, and zoom control for professional camera positioning.
Pan and tilt movement speeds range from approximately 0.35° to 120° per second, allowing both subtle framing adjustments and rapid repositioning between subjects or preset positions.
Remote Camera Control
The camera can be controlled over the network from a connected computer, allowing administrators and AV operators to manage camera positioning and settings remotely.
An included IR remote control also provides convenient local operation for presenters and room users.
Designed for Professional AV
The combination of UHD imaging, PTZ functionality, long-distance HDBaseT connectivity, and multiple simultaneous outputs makes the RoboSHOT 20 UHD suitable for permanently installed professional AV systems.
Technical Details
Specifications
Resolution
HD 1080
Optical Zoom
12x
Pan Angle
320° (-160 to 160°)
Tilt Angle
120° (-30 to 90°)
Output
1 x BNC (3G-SDI) Output 1 x HDMI Output
