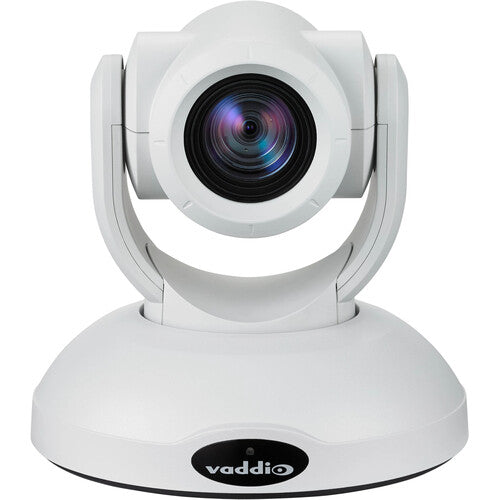

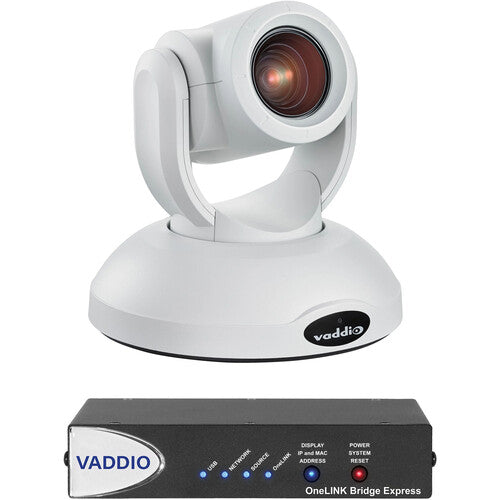

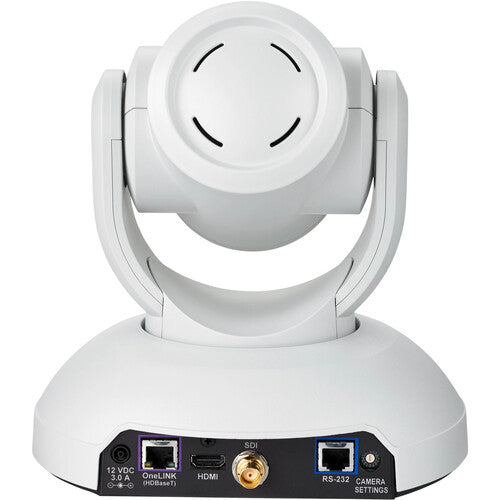

Vaddio RoboSHOT 20 UHD OneLINK Bridge Express System – White

Model: 999-9950-279W

The Vaddio RoboSHOT 20 UHD OneLINK Bridge Express System combines a white RoboSHOT 20 UHD PTZ Camera with the OneLINK Bridge Express interface, providing a professional 4K video solution with simplified long-distance connectivity. Designed for distance learning, corporate communications, conferencing, training, and other professional AV applications, the system carries video, power, network connectivity, and camera control over a single cable for a clean and efficient installation.

This configuration includes an Australia-compatible power cable.

UHD 4K Video

The RoboSHOT 20 UHD captures detailed UHD 4K (3840 x 2160) video at up to 30 fps, providing the resolution required for professional presentations, conferencing, education, and other high-quality video applications.

Its high-resolution imaging system provides excellent detail for environments where participants, presentations, and instructional content need to remain clearly visible.

1/2.3" Exmor Image Sensor

The camera incorporates a single 1/2.3"-type Exmor image sensor, providing the foundation for its high-resolution 4K imaging capabilities.

Combined with the camera's PTZ functionality and zoom system, the sensor enables professional-quality video capture across a variety of room sizes and applications.

Powerful 20x Total Zoom

The RoboSHOT 20 UHD provides up to 20x total zoom, giving operators flexibility when framing subjects at different distances.

This allows the camera to transition between wide room views and tighter shots of presenters, instructors, speakers, or other subjects without requiring the camera to be physically repositioned.

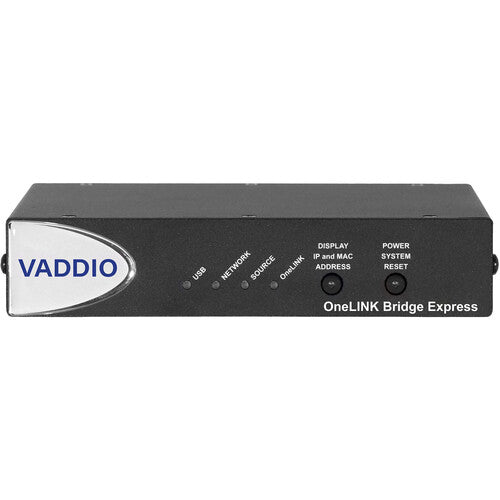

OneLINK Bridge Express

The included OneLINK Bridge Express simplifies professional AV installations by consolidating essential camera connections.

The system provides:

• Video
• Camera power
• Network connectivity
• Camera control

These functions can be carried between the camera and the OneLINK Bridge Express using a streamlined single-cable infrastructure.

Supports Cable Runs up to 328'

The system can transmit camera connectivity over CAT5e/6 cabling at distances up to 328 feet.

This extended range provides considerable flexibility when positioning the camera in larger conference rooms, classrooms, lecture halls, training facilities, and other professional spaces.

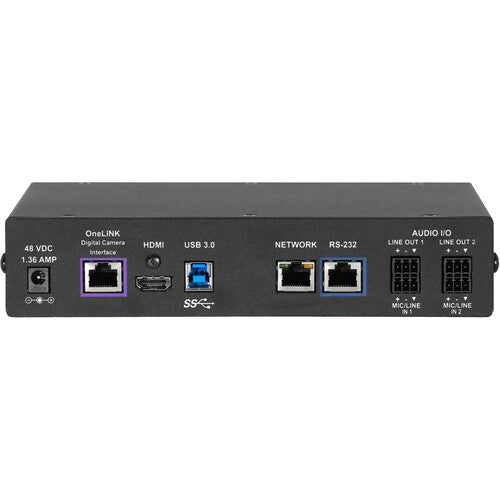

HDMI, USB 3.0 & IP Output

The OneLINK Bridge Express provides flexible output options for integrating the RoboSHOT camera into different AV and conferencing workflows.

Output capabilities include:

• HDMI
• USB 3.0
• IP video

This allows the system to integrate with displays, computers, conferencing applications, network infrastructure, and other compatible professional AV equipment.

USB 3.0 Integration

USB 3.0 connectivity makes it possible to incorporate the professional PTZ camera into compatible computer-based conferencing and video applications.

This provides a convenient bridge between permanently installed professional AV infrastructure and USB-based collaboration workflows.

Single-Cable Installation

One of the primary advantages of the RoboSHOT 20 UHD OneLINK system is its ability to consolidate multiple camera functions onto a single cable run.

By carrying video, power, network, and control, the system reduces the number of separate cables required between the camera and the main AV equipment.

The result is a cleaner installation with greater flexibility when determining camera placement.

Designed for Professional Environments

The combination of UHD 4K resolution, PTZ operation, 20x zoom, long-distance connectivity, and multiple output options makes the system suitable for professional environments where image quality and installation flexibility are important.

Australia-Compatible Configuration

This particular configuration includes an Australia-compatible power cable, making it appropriate for installations requiring the corresponding regional power connection.
