Product Summary

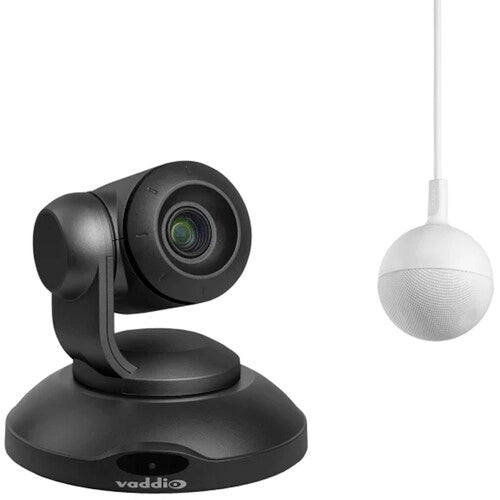

Vaddio ConferenceSHOT AV Bundle with CeilingMIC Microphone (Black Camera / White Microphone)

The Vaddio ConferenceSHOT AV Bundle with CeilingMIC Microphone is a complete professional conferencing solution designed for small to medium-sized meeting rooms, conference spaces, and unified communications environments. Combining a black ConferenceSHOT AV HD PTZ camera with a white CeilingMIC ceiling-mounted microphone, the system delivers professional-quality video and full-room audio while keeping conference tables free of microphones and unnecessary cabling.

Designed for straightforward deployment, ConferenceSHOT AV integrates a 10x zoom HD PTZ camera and audio conferencing mixer into a single USB 3.0 device. The system can operate as a standalone conferencing solution or integrate with an existing AV and network infrastructure.

The bundle includes the ConferenceSHOT AV camera, CeilingMIC microphone, CeilingMIC interface box, ceiling installation hardware, trim plates, tile brace, cable clamp, and the required power, USB, and Cat 5 cabling.

Professional USB Conferencing

ConferenceSHOT AV turns a compatible BYOD computer into a professional unified communications system without relying on conventional webcam-based room solutions.

Its USB 3.0 connection provides simple integration with popular conferencing platforms, including:

  • Microsoft Teams
  • WebEx
  • Google Meet
  • Skype for Business
  • Other compatible UCC applications

The camera is UVC compliant, eliminating the need to install external drivers on the connected PC. Simply connect the system to a compatible computer and select it from the conferencing application.

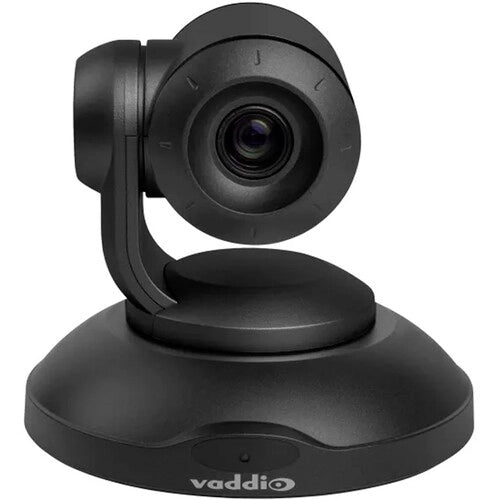

Integrated HD PTZ Camera

At the heart of the system is Vaddio's ConferenceSHOT AV camera, which combines professional PTZ imaging with room audio processing in a single conferencing device.

The integrated 10x zoom HD PTZ camera provides greater framing flexibility than a conventional fixed webcam, making it suitable for capturing individual speakers, conference tables, and groups throughout small and medium-sized rooms.

Integrated Audio Conferencing Mixer

ConferenceSHOT AV incorporates an audio conferencing mixer directly into the camera, simplifying the design of a complete room system.

Up to two compatible microphones and an external speaker can be connected directly to the camera, reducing the need for separate audio processing equipment in compatible installations.

The system can also accommodate customized AV designs using third-party equipment when a more specialized room configuration is required.

CeilingMIC 360° Room Coverage

The included white Vaddio CeilingMIC moves the microphone off the conference table and onto the ceiling, providing a clean, uncluttered room appearance while maintaining broad voice pickup.

Its three-element microphone array provides 360° pickup coverage and a frequency response of 100 Hz to 16 kHz.

Each unidirectional cardioid microphone element incorporates integrated echo cancellation and Digital Signal Processing (DSP), including equalization, filtering, and automatic gain control.

CeilingMIC Audio Features

  • Three-element microphone array
  • 360° pickup coverage
  • 100 Hz to 16 kHz frequency response
  • Unidirectional cardioid microphone elements
  • Integrated echo cancellation
  • Digital Signal Processing
  • Equalization and filtering
  • Automatic Gain Control (AGC)
  • Referenced and non-referenced AEC support
  • LED mute-status indicator

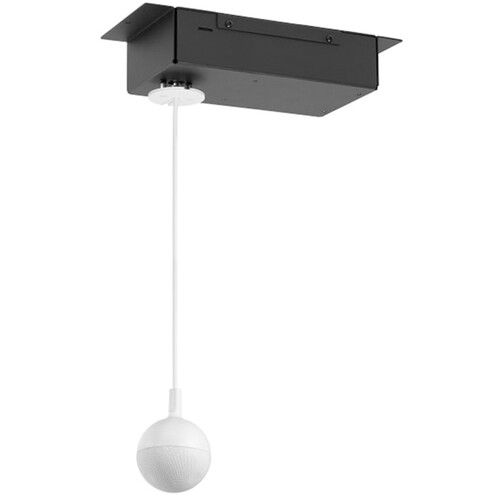

Designed for Clean Ceiling Installation

CeilingMIC is designed for both drop-tile and open-ceiling installations, allowing it to accommodate a variety of conference-room architectures.

The microphone supports a drop-down cable length of up to 15' and a cable distance of up to 100' between the interface box and connected device using Cat 5 cable.

Its cloth-wrapped microphone body features geometry designed to improve audio pickup while maintaining a professional appearance.

A two-piece ceiling trim plate can be installed after the rest of the microphone installation has been completed, helping simplify deployment and finishing.

EasyMIC Compatibility

The CeilingMIC works with compatible Vaddio products equipped with an EasyMIC port, including:

  • ConferenceSHOT AV cameras
  • AV Bridge MATRIX PRO
  • EasyUSB MicPOD I/O
  • EasyUSB Mixer/Amp

This makes the microphone useful not only as part of the included ConferenceSHOT AV system but also within compatible Vaddio AV environments.

Enterprise Network Management

ConferenceSHOT AV provides capabilities beyond basic USB conferencing by supporting remote monitoring, management, and control across a distributed camera network.

An IP-accessible, browser-based interface enables camera configuration and control along with IP live preview.

Compatible devices for browser-based access include:

  • Windows PCs
  • Macs
  • iPhone
  • iPad
  • Android devices

These network capabilities make ConferenceSHOT AV particularly useful for organizations deploying conferencing equipment across multiple meeting spaces.

Plug-and-Play Deployment

Both ConferenceSHOT AV and CeilingMIC are designed around straightforward installation and operation.

The UVC-compliant camera does not require dedicated PC drivers, while the CeilingMIC uses a plug-and-play connection to compatible Vaddio EasyMIC systems.

The system can therefore be deployed as a complete standalone conferencing solution or incorporated into a larger professional AV installation.

Vaddio ConferenceSHOT AV Bundle with CeilingMIC Microphone (Black) 999-99950-800B

SKU: 99999950800B | UPC: 840077506490
Authorized Dealer Authorized Vaddio Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$2,702.70

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Vaddio ConferenceSHOT AV Bundle with CeilingMIC Microphone (Black) 999-99950-800B $2,702.70
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • Complete Conferencing AV Bundle
  • ConferenceSHOT PTZ Camera
  • 360° CeilingMIC Audio Coverage
  • Standalone Or Network Deployment
  • Mounting And Network Hardware

Best For

  • 🎓 Education
  • 🏢 Corporate Collaboration
  • 🏛️ Government
Complete Your Solution

Mounts & Installation

Vaddio ConferenceSHOT AV Table Mount 999-89995-000

Vaddio

Vaddio ConferenceSHOT AV Table Mount 999-89995-000
$184.50
Vaddio ConferenceSHOT AV Table Mount 999-89995-000W

Vaddio

Vaddio ConferenceSHOT AV Table Mount 999-89995-000W
$171.00

Connectivity

Vaddio USB 3.0 Type A to Type B Active Cable - 20m 440-1005-023

Vaddio

Vaddio USB 3.0 Type A to Type B Active Cable - 20m 440-1005-023
$611.10
Vaddio USB 3.0 Type A to Type B Active Cable - 30m 440-1005-025

Vaddio

Vaddio USB 3.0 Type A to Type B Active Cable - 30m 440-1005-025
$854.10
Vaddio USB 3.0 Type A to Type B Active Cable - 8m (26.2 ft) 440-1005-008

Vaddio

Vaddio USB 3.0 Type A to Type B Active Cable - 8m (26.2 ft) 440-1005-008
$230.40
Vaddio ConferenceSHOT AV Bundle with CeilingMIC Microphone (Black) 99999950800B
Vaddio

Vaddio ConferenceSHOT AV Bundle with CeilingMIC Microphone (Black) 999-99950-800B

$2,702.70
