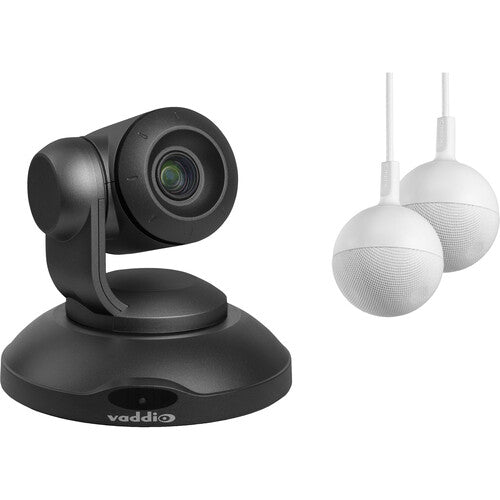

Vaddio ConferenceSHOT AV Bundle-CeilingMIC 2 with Dual Ceiling Microphones

The Vaddio ConferenceSHOT AV Bundle-CeilingMIC 2 is a complete professional videoconferencing solution that combines a black ConferenceSHOT AV PTZ Camera with two white CeilingMIC microphones. Designed for small to medium-sized conference rooms and collaborative spaces, the system provides Full HD video, flexible PTZ control, and broad ceiling-mounted microphone coverage while keeping conference tables clear of audio equipment.

With plug-and-play compatibility for popular UCC platforms such as Microsoft Teams, Google Meet, WebEx, and Skype, the ConferenceSHOT AV system provides an integrated solution for corporate meetings, remote collaboration, training, and other professional conferencing applications.

Note: An external speaker is not included.

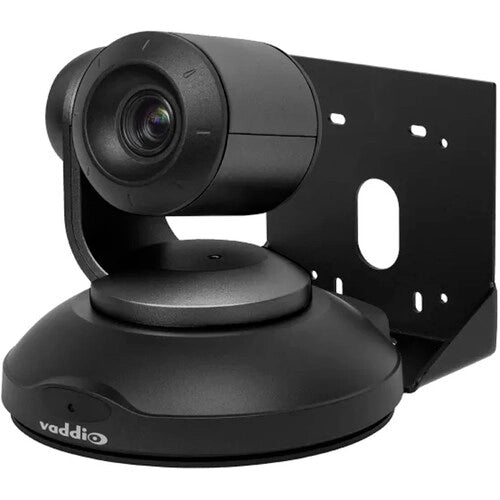

Full HD ConferenceSHOT AV PTZ Camera

The ConferenceSHOT AV features a 1/2.8"-type Exmor image sensor and delivers Full HD video for professional conferencing and network streaming.

Video can be transmitted over USB 3.0 at resolutions up to 1920 x 1080p30, while IP streaming supports resolutions up to 1920 x 1080p60.

The camera can simultaneously provide UVC video over USB 3.0 and H.264 IP video using RTSP, allowing it to support both local conferencing and network-based video workflows.

10x Optical Zoom and Wide-Angle Coverage

The integrated PTZ system provides the flexibility required to frame both groups and individual participants throughout a conference room.

The camera offers a 10x optical zoom along with an 11x Super-Wide optical zoom range, providing a horizontal field of view of up to approximately 74° at wide angle and 7.6° at full zoom.

PTZ Performance

• 10x optical zoom
• 11x Super-Wide optical zoom
• Up to 74° horizontal field of view
• 7.6° field of view at full zoom
• ±165° pan range
• 90 to -30° tilt range

This combination makes it easy to capture a complete meeting table or move in for a tighter view of an individual speaker.

Simultaneous USB and IP Video

ConferenceSHOT AV's outputs remain active simultaneously, eliminating the need to manually switch between USB and IP video workflows.

Video and Network Features

• USB 3.0 UVC video
• H.264 IP streaming
• RTSP streaming support
• Simultaneous USB and IP operation
• Built-in network streaming
• Ethernet camera control

The integrated IP streaming capability simplifies network video distribution without requiring a separate streaming device for supported workflows.

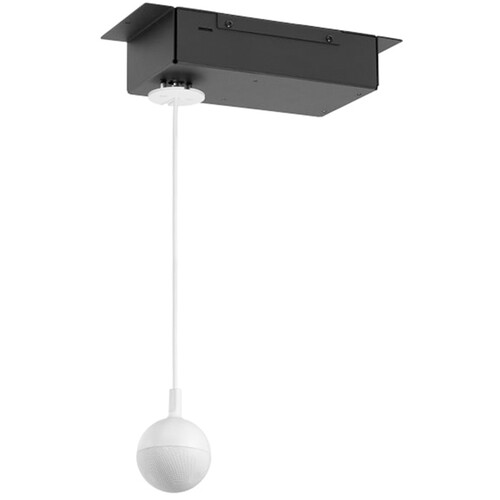

Dual CeilingMIC Microphones

This bundle includes two Vaddio CeilingMIC microphones, providing expanded overhead microphone coverage for meeting spaces.

Each CeilingMIC uses a three-element microphone array with full 360° pickup coverage, helping capture participants around the room while eliminating microphones and associated cabling from the conference table.

CeilingMIC Audio Features

• Three-element microphone array
• 360° pickup coverage
• 100 Hz to 16 kHz frequency response
• Unidirectional cardioid microphone elements
• Integrated echo cancellation
• Digital Signal Processing (DSP)
• Equalization and filtering
• Automatic Gain Control (AGC)
• Referenced and non-referenced AEC support
• LED mute-status indicator

Each microphone element incorporates its own audio processing to help provide clear, consistent voice pickup during conferencing sessions.

Direct EasyMIC Integration

The ConferenceSHOT AV camera incorporates two EasyMIC ports, allowing both included CeilingMIC microphones to connect directly to the conferencing system.

This integrated design reduces the amount of separate audio equipment required and helps simplify installation.

CeilingMIC is also compatible with other Vaddio products equipped with EasyMIC connectivity, including:

• AV Bridge MATRIX PRO
• ConferenceSHOT AV cameras
• EasyUSB MicPOD I/O
• EasyUSB Mixer/Amp

Clean, Uncluttered Meeting Spaces

By positioning both microphones overhead, the CeilingMIC system eliminates the need to place microphone pods on the meeting table.

The microphones are designed for drop-tile ceilings and open-ceiling environments and feature cloth-wrapped bodies with geometry optimized for audio pickup.

Each CeilingMIC supports a microphone drop of up to 15' and up to 100' of Cat 5 cable distance between its interface box and connected device.

Simplified Ceiling Installation

Each CeilingMIC includes installation components designed to streamline deployment in professional meeting environments.

A two-piece trim plate can be installed after the rest of the microphone installation has been completed, while the split strain-relief boot provides convenient access to the microphone cable connector.

CeilingMIC Installation Features

• Drop-tile and open-ceiling compatibility
• Up to 15' microphone drop
• Up to 100' Cat 5 connection distance
• Two-piece ceiling trim plate
• Ceiling tile brace
• Split strain-relief boot
• Cable clamp grommet
• Plug-and-play EasyMIC design

PoE+ Camera Power

The ConferenceSHOT AV camera supports PoE+, allowing compatible network infrastructure to provide power through the Ethernet connection.

This provides additional mounting flexibility because the camera does not have to be installed near a conventional AC outlet when connected to compatible PoE+ infrastructure.

Browser-Based Camera Management

A built-in web-based interface allows the ConferenceSHOT AV to be controlled and configured through a compatible browser.

Network connectivity enables remote camera access and control from a connected computer, while the included IR remote provides convenient local operation.
