High-Performance, Multifunctional 32-inch 4K Medical Grade Monitor

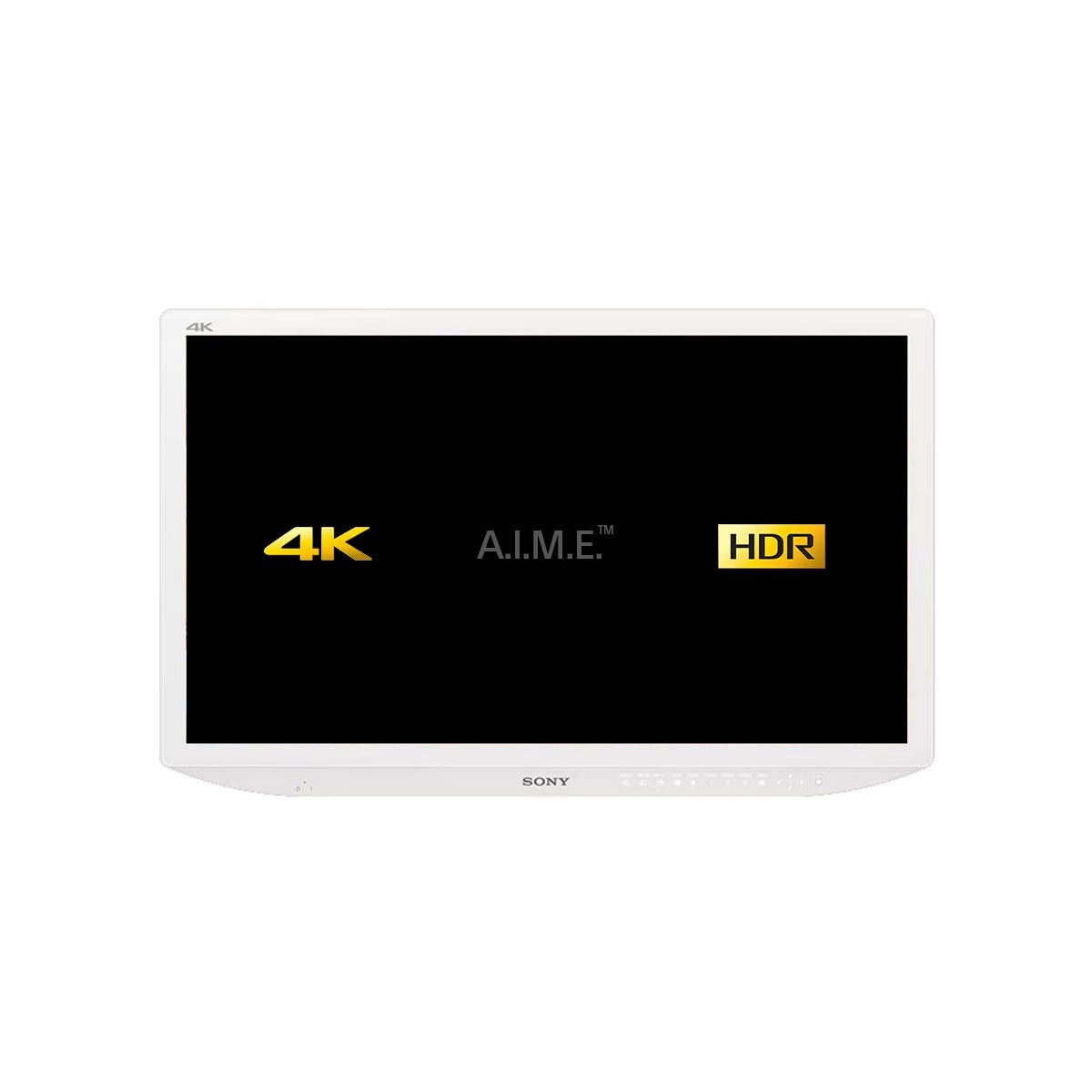

The LMD-X3200MD is a 32-inch medical-grade monitor that delivers superior 4K Ultra HD 2D color images. With a slim, lightweight design and versatile connectivity options, it is optimized for use in medical environments. Its flat, hygiene-friendly design ensures easy cleaning and maintenance.

Superb 4K Ultra HD Picture Quality

• Large 32-inch Panel: Offers a resolution of 3840 x 2160 pixels in a 16:9 widescreen aspect ratio, providing a larger display area compared to the 31-inch LMD-X310MD while maintaining the same chassis width.

• Boom-Arm Mounting: Thin and lightweight design makes it suitable for boom-arm mounting.

Optimized for Bright Operating Rooms

• Anti-Reflection Structure: Reduces glare from surgical lights and bright environments. Its scratch-resistant anti-reflection panel ensures high-contrast images from various viewing angles.

Accurate Color Reproduction

• Wide Color Gamut: Complies with ITU-R Recommendation BT.2020, offering superior color reproduction and realistic visualization.

• Advanced Signal Processing: Ensures consistent, accurate color rendering for demanding surgical applications.

Enhanced Imaging Features

• Advanced Image Multiple Enhancer (A.I.M.E.) Technology:

  • Structure Enhancement: Improves object outline clarity for better recognition.

  • Color Enhancement: Enhances tonal differences for increased visibility.

  • Shadow Enhancement: Enhances fine details in darker areas.

  • Front Panel Controls: Direct adjustment of enhancement parameters.

• Clone Output:

  • Replicates the display’s image with settings like A.I.M.E. or Picture-in-Picture (PIP) to a secondary display.

  • Supports 4K or HD resolution for the cloned output, enabling recording via connected devices.

• V Full Mode:

  • Enlarges Picture-out-Picture (POP) images to a 16:9 aspect ratio for full-screen viewing.

  • Allows simultaneous enlargement of one or both POP images based on user preference.

• HDR Technology:

  • Delivers a wider brightness range and greater contrast.

  • Supports Hybrid Log-Gamma (HLG) signals for enhanced image display.

User-Friendly Design and Safety Features

Simplified Installation and Cable Management

• Downward-Facing Connectors: Simplify cable hook-ups for tidier installations.

• Three Cable Access Points: Allow flexible configurations for different setups.

• Optional Cable Covers:

  • Small cover for monitor arm installations.

  • Medium-sized cover for 12G-SDI connections.

Auto Input Select Mode

• Automatically switches to a secondary input if the primary signal is interrupted, then reverts when the primary signal resumes.

Wide Connector Compatibility

• Supports a range of inputs, including 12G-SDI, 3G-SDI, Display Port, HDMI, and DVI.

Hands-Free Remote Control

• Compatible with the FS-24 footswitch (optional accessory) for hands-free operation of key functions, reducing interruptions during procedures.

Dual Power Options

• Offers both AC and DC input options for flexible integration in various medical environments. (AC-300MD adapter sold separately.)

Intuitive Control Panel

• LED-backlit buttons highlight active controls for easy navigation, especially in low-light settings. Customizable buttons for commonly used functions.

Hygiene and Maintenance

• Flat Surface Design: Edge-to-edge flush front surface simplifies cleaning of the LCD panel and controls.

• Rear Design: Features flush cable covers and minimal ventilation holes for easier disinfection.
