Product Summary

Shure QLXD14 Kit: Rackmount Digital Wireless Guitar System


Overview


Bundled by B&H, the Shure QLXD14 Kit is a rackmount digital wireless guitar system that ensures professional-quality audio and reliable RF performance. It is designed for musicians playing in medium-sized venues, including concert stages, houses of worship, theaters, and clubs, offering impressively low latency of 2.9ms.

Key Features



  • Frequency Band: Operates in the G50 band (470 to 534 MHz) to transmit pristine 24-bit/48 kHz digital audio.

  • Transmission Protection: Utilizes Digital Predictive Switching Diversity for interference protection and solid RF signal stability.

  • Multiple Channel Support: Can support up to 60 mic channels in the same location.


Components


WA305 Guitar/Bass Cable


  • Secure Connection: Connects your instrument to the bodypack transmitter securely.

  • Cable Type: 1/4" instrument to TA4F locking cable.

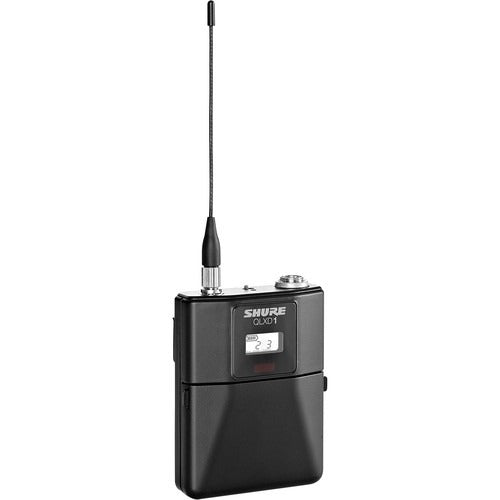

QLXD1 Bodypack Transmitter


  • Durable Design: Rugged, lightweight aluminum housing.

  • Operation Time: Up to 9 hours on two AA batteries.

  • Power Output: Selectable 1/10mW RF power.

  • Range: Transmission range up to 330 feet.

  • Input Options: TA4M input for lavalier, headset mic, or instrument cable.

  • User-Friendly: Backlit LCD, adjustable input sensitivity, frequency and power lockout functions.

  • Sync and Power Management: Quick sync via infrared and optional rechargeable battery with intelligent power management.

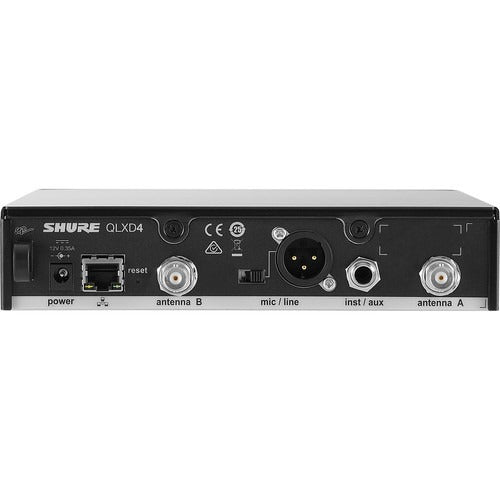

QLXD4 Digital Wireless Receiver


  • Construction: Housed in a rugged, full-metal chassis.

  • Frequency Range: 64 MHz UHF tuning range with 2560 selectable frequencies.

  • Audio Quality: Delivers 24-bit/48 kHz digital audio with clarity and accurate low end.

  • Features: Audio and RF meters, 60 dB gain control, mic/line XLR, and 1/4" instrument outputs.

  • Display: Large LCD screen with intuitive controls.

  • Frequency Coordination: Automatic frequency scanning and IR sync.

  • Networking: Ethernet port for simplified frequency coordination and deployment via Shure’s Wireless Workbench (WWB) software.

  • Encryption: AES 256-bit encryption for secure transmission.

  • Additional Antenna Support: Compatible with UA874 active and PA805 passive antennas for extended range and interference protection.


User Experience



  • Seamless Integration: Compatible with a wide range of Shure mics and transmitter types, ensuring versatility for different use cases.

  • Performance: Digital Predictive Switching Diversity ensures robust performance by preemptively switching antennas to avoid dropouts.

  • Convenient Setup: The receiver's scanning function and intuitive front-panel controls make setup and monitoring straightforward.

  • Remote Control: Adjust settings remotely using the ShurePlus Channels Mobile App for iOS devices.

  • Smart Power Options: Optional SB900A rechargeable battery pack provides extended life and precision metering.


Enhanced Reliability



  • Antenna Distribution: The UA844+SWB system (available separately) allows for more on-air channels with less setup time.

  • External Control Compatibility: Compatible with external controllers like AMX and Crestron for integrated system control.


Instrument Cable



  • Shure WA305: A 3' instrument cable with a gold-plated 1/4" jack and a locking TA4F connector, ideal for live stage applications. The gold plating enhances conductivity and reduces corrosion, while the locking mechanism prevents accidental disconnects.

Shure QLXD14 Wireless Guitar System Kit (G50: 470 to 534 MHz)

SKU: QLXD14G50
Authorized Dealer Authorized Shure Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

Call for Price

Contact OfficeWonderland for current pricing and availability.

BACK 2 SCHOOL SALE | additional discount in cart

Pricing must be confirmed before checkout.

Request a Quote
Shure QLXD14 Wireless Guitar System Kit (G50: 470 to 534 MHz) Call for Price
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Technical Details

Specifications

General
Number of RF Channel Frequencies
2560
Diversity
Antenna Diversity
RF Frequency Band
G50: 470 to 534 MHz
RF Bandwidth
64 MHz
Frequency Step Size
25 kHz
RF Channel Scanning
Auto-Scan
Max Operating Range
330' / 100.6 m
Max Transmitters per Band
60
Timecode Support
No
Mobile App Compatible
No
Latency
< 2.9 ms
Modulation
Proprietary
Receiver
Receiver Type
Tabletop
Mounting Options
Rackmount (with Included Hardware)
Rackmount Size
1 RU (1/2 Rack)
Antenna
2x 1/2 Wave External, Detachable (Rear-Mount)
Number of Audio Channels
1
Audio I/O
1x XLR 3-Pin Male Balanced Output 1x 1/4" TRS Female Balanced Output
Gain Range
-18 to +42 dB (1 dB Steps)
Pad
30 dB
Audio Output Level
XLR Output: +18 dBV (Line Level) XLR Output: -12 dBV (Mic Level) 1/4" Output: +12 dBV (Instrument Level)
Phantom Power Protection
On 1/4", XLR Output
Network I/O
1x RJ45 (10/100 Mb/s)
Network Protocols
DHCP, Manual IP
Standalone Audio Interface Capable
No
Impedance
XLR Output: 100 Ohms (Balanced) 1/4" Output: 100 Ohms (Balanced) 1/4" Output: 50 Ohms (Unbalanced)
Approximate RF Sensitivity
-97 dBm
Adjacent Channel Isolation
>70 dB
Spurious
Rejection: >80 dB
Power Requirements
AC/DC Power Adapter
AC/DC Power Adapter
12 VDC at 0.4 A, Center-Positive (Included)
AC Input Power
100 to 240 VAC, 50 / 60 Hz at 150 mA
Display & Indicators
1x Backlit LCD (AF Level, Channel, Group, Menu Navigation, Metering, RF Level, Transmitter Battery Status) 1x LED (Sync) 1x LED (Peak)
Housing
Metal
Operating Temperature
0 to 122°F / -18 to 50°C
Dimensions
7.8 x 1.6 x 5.9" / 197 x 41 x 151 mm (without Antennas)
Weight
1.7 lb / 777 g (without Antenna)
Packaging Info
Package Weight
7.745 lb
Box Dimensions (LxWxH)
19.9 x 17.4 x 4"

Shure WA305 1/4" Instrument To TA4F Cable For Shure Transmitters (3') Specs

Interface
Connector 1
1x 1/4" TS Male Straight
Connector 2
1x Lockable TA4 / Mini XLR 4-Pin Female
Electrical
Connector Plating
Gold
General
Environmental Protection
No
Cable Length
3' / 91.44 cm

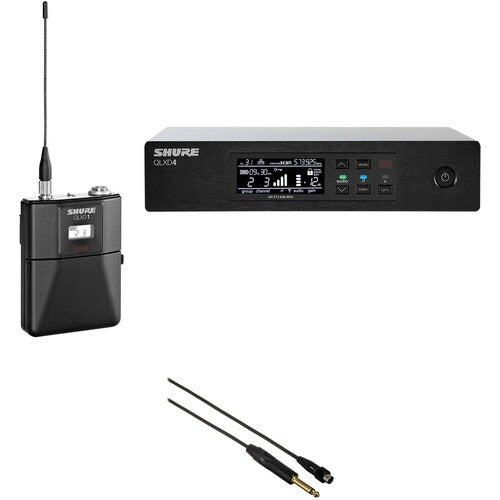

Shure QLXD14 Wireless Guitar System Kit (G50 470 to 534 MHz) bundle
