Product Summary

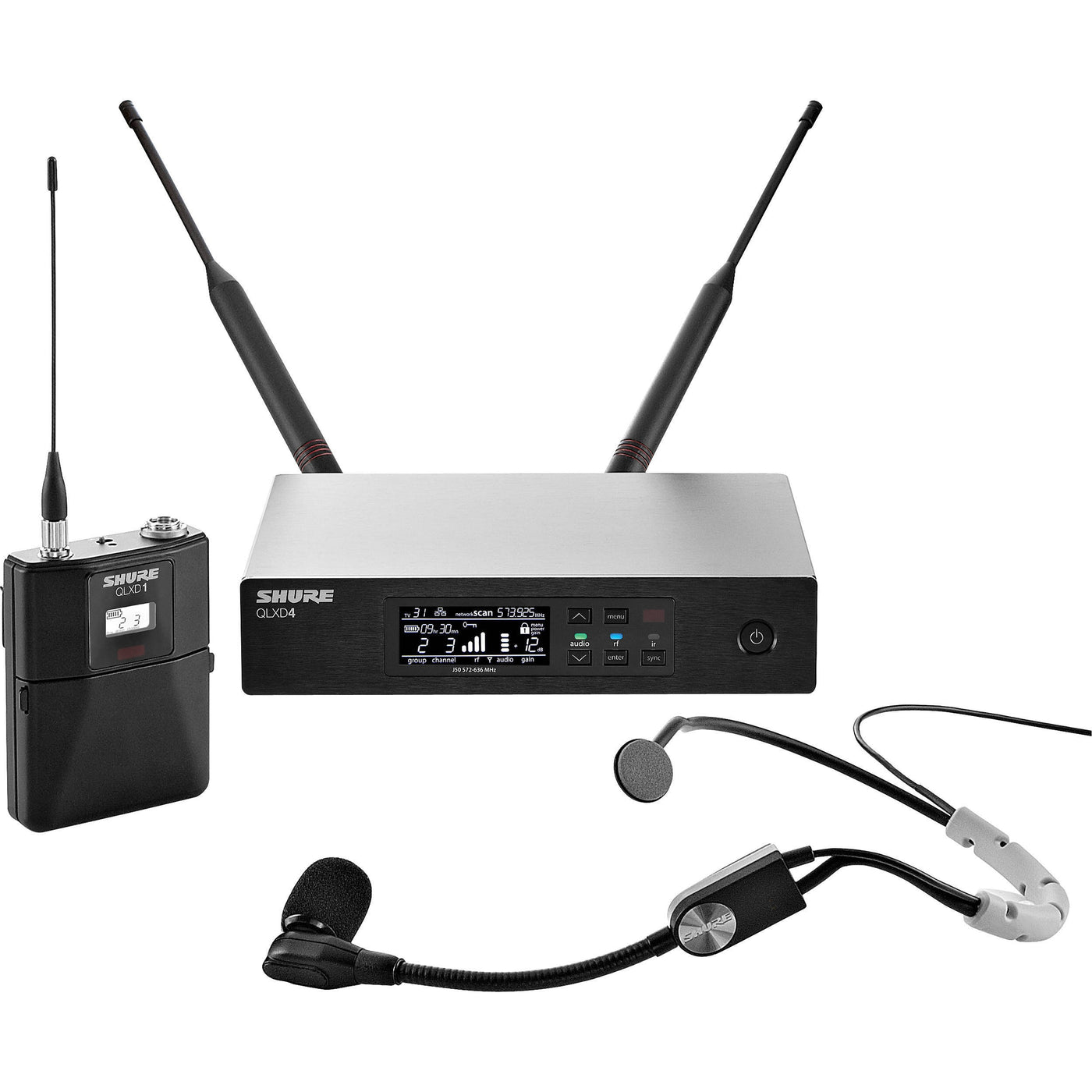

Shure QLXD14/SM35 Rackmount Digital Wireless Headset Microphone System
Professional-Quality Audio and Reliable Performance
The Shure QLXD14/SM35 digital wireless headset microphone system is designed for instructors, presenters, and broadcasters who require professional-quality audio and dependable RF performance. Ideal for medium-sized venues, houses of worship, and A/V installations in conference, educational, and corporate facilities, the system ensures secure audio with AES 256-bit encryption.
Crystal-Clear Digital Audio
Operating in the UHF band, the QLXD14/SM35 transmits pristine 24-bit/48 kHz digital audio, offering clarity, accurate low end, and crisp transient response. Digital Predictive Switching Diversity technology protects against interference, providing solid RF signal stability without audio artifacts. The system supports up to 60 mic channels in the same location.
Comfortable and Secure Headset Microphone
The included SM35 cardioid performance headset microphone is designed for clear vocal reproduction. Its comfortable, wearable design ensures a secure fit for long periods of use, allowing active performers to move freely without sacrificing sound quality.
Durable and Efficient Bodypack Transmitter
The compact QLXD1 bodypack transmitter offers up to 9 hours of operation on two AA batteries, with selectable 1/10mW RF power and a transmission range up to 330 feet. The transmitter features a rugged, all-metal construction with a backlit LCD for essential information and easy menu access. The locking TA4M connection ensures a secure fit for the headset microphone, and the adjustable input sensitivity accommodates various speaking styles and mic levels.
Versatile Receiver with Intuitive Controls

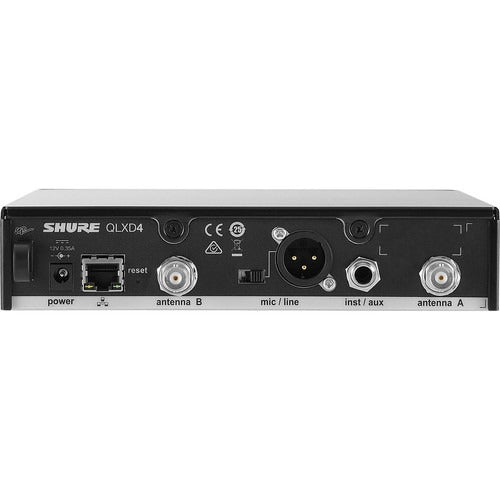

The receiver features audio and RF meters, 60 dB of gain control, and both mic/line XLR and 1/4" instrument outputs. A large LCD screen and intuitive controls allow quick adjustments, even in low-light conditions. Automatic frequency scanning and IR sync simplify setup, while internal limiting prevents clipping.
Network Integration and Remote Control
The Ethernet port allows for easy networking of multiple receivers for simplified frequency coordination and deployment via Shure's Wireless Workbench (WWB) software. The system is compatible with external controllers such as AMX and Crestron and can be controlled remotely using the ShurePlus Channels Mobile App for iOS devices.
Enhanced Security and Low Latency
Operating in the J50A UHF band (572 to 608 + 614 to 616 MHz) with a 44 MHz tuning range and 1760 selectable frequencies, the system ensures low latency and robust performance. The 256-bit AES encryption provides unbreachable privacy with a unique encryption key generated every time encryption is enabled.
Smart Power Management
Smart power management options include the SB900A lithium-ion rechargeable battery (available separately) with extended life over alkaline batteries. The remaining battery life can be metered in hours and minutes from the receiver's front panel.
System Expansion and Reliability
Enhance your system's reliability with UA874 active antennas or PA805 passive antennas, which increase range and protection against interference. The UA844+SWB antenna distribution system (available separately) allows for more on-air channels in less setup time.
Flexible Microphone Options
Shure offers various lavalier and handheld microphone options to adapt your QLX-D system as your needs evolve:
- WL183: Omnidirectional lavalier mic for consistent pickup.
- WL185: Cardioid lavalier mic for feedback resistance.
- WL184: Supercardioid lavalier mic for louder events.
- MX153: Sub-miniature earset mic for exceptional clarity in spoken word applications.
- QLXD2 Handheld Transmitter: Available with several mic capsule choices for those who prefer handheld microphones.
The Shure QLXD14/SM35 system combines rugged construction, clear audio, and versatile features, making it an ideal choice for professional presentations, broadcasts, and performances.
Shure QLXD14/SM35 Digital Wireless Cardioid Performance Headset Microphone System (J50A: 572 to 608 + 614 to 616 MHz)
Call for Price
Product Description
Shure QLXD14/SM35 Rackmount Digital Wireless Headset Microphone System
Professional-Quality Audio and Reliable Performance
The Shure QLXD14/SM35 digital wireless headset microphone system is designed for instructors, presenters, and broadcasters who require professional-quality audio and dependable RF performance. Ideal for medium-sized venues, houses of worship, and A/V installations in conference, educational, and corporate facilities, the system ensures secure audio with AES 256-bit encryption.
Crystal-Clear Digital Audio
Operating in the UHF band, the QLXD14/SM35 transmits pristine 24-bit/48 kHz digital audio, offering clarity, accurate low end, and crisp transient response. Digital Predictive Switching Diversity technology protects against interference, providing solid RF signal stability without audio artifacts. The system supports up to 60 mic channels in the same location.
Comfortable and Secure Headset Microphone
The included SM35 cardioid performance headset microphone is designed for clear vocal reproduction. Its comfortable, wearable design ensures a secure fit for long periods of use, allowing active performers to move freely without sacrificing sound quality.
Durable and Efficient Bodypack Transmitter
The compact QLXD1 bodypack transmitter offers up to 9 hours of operation on two AA batteries, with selectable 1/10mW RF power and a transmission range up to 330 feet. The transmitter features a rugged, all-metal construction with a backlit LCD for essential information and easy menu access. The locking TA4M connection ensures a secure fit for the headset microphone, and the adjustable input sensitivity accommodates various speaking styles and mic levels.
Versatile Receiver with Intuitive Controls
The receiver features audio and RF meters, 60 dB of gain control, and both mic/line XLR and 1/4" instrument outputs. A large LCD screen and intuitive controls allow quick adjustments, even in low-light conditions. Automatic frequency scanning and IR sync simplify setup, while internal limiting prevents clipping.
Network Integration and Remote Control
The Ethernet port allows for easy networking of multiple receivers for simplified frequency coordination and deployment via Shure's Wireless Workbench (WWB) software. The system is compatible with external controllers such as AMX and Crestron and can be controlled remotely using the ShurePlus Channels Mobile App for iOS devices.
Enhanced Security and Low Latency
Operating in the J50A UHF band (572 to 608 + 614 to 616 MHz) with a 44 MHz tuning range and 1760 selectable frequencies, the system ensures low latency and robust performance. The 256-bit AES encryption provides unbreachable privacy with a unique encryption key generated every time encryption is enabled.
Smart Power Management
Smart power management options include the SB900A lithium-ion rechargeable battery (available separately) with extended life over alkaline batteries. The remaining battery life can be metered in hours and minutes from the receiver's front panel.
System Expansion and Reliability
Enhance your system's reliability with UA874 active antennas or PA805 passive antennas, which increase range and protection against interference. The UA844+SWB antenna distribution system (available separately) allows for more on-air channels in less setup time.
Flexible Microphone Options
Shure offers various lavalier and handheld microphone options to adapt your QLX-D system as your needs evolve:
- WL183: Omnidirectional lavalier mic for consistent pickup.
- WL185: Cardioid lavalier mic for feedback resistance.
- WL184: Supercardioid lavalier mic for louder events.
- MX153: Sub-miniature earset mic for exceptional clarity in spoken word applications.
- QLXD2 Handheld Transmitter: Available with several mic capsule choices for those who prefer handheld microphones.
The Shure QLXD14/SM35 system combines rugged construction, clear audio, and versatile features, making it an ideal choice for professional presentations, broadcasts, and performances.
Technical Details
Specifications
| Wireless Technology | |
| Number of RF Channel Frequencies | |
| Included Transmitters | |
| Diversity | |
| RF Frequency Band | |
| RF Bandwidth | |
| Frequency Step Size | |
| Max Operating Range | |
| Max Transmitters per Band | |
| Sample Rate/Resolution | |
| Latency | |
| Dynamic Range | |
| Encryption | |
| Modulation |
| Receiver Type | |
| Mounting Options | |
| Rackmount Size | |
| Antenna | |
| Number of Audio Channels | |
| Audio I/O | |
| Gain Range | |
| Pad | |
| Audio Output Level | |
| Phantom Power Protection | |
| Network I/O | |
| Network Protocols | |
| Impedance | |
| Adjacent Channel Isolation | |
| Spurious | |
| Power Requirements | |
| AC/DC Power Adapter | |
| AC Input Power | |
| Display & Indicators | |
| Housing | |
| Operating Temperature | |
| Dimensions | |
| Weight |
| Transmitter Type | |
| RF Output Power | |
| Audio I/O | |
| Audio Input Level | |
| Gain Range | |
| Frequency Response | |
| Sync Method | |
| Antenna | |
| Power Requirements | |
| Battery Type | |
| Approx. Battery Life | |
| Display & Indicators | |
| Housing | |
| Dimensions | |
| Weight |
| Microphone Type | |
| Sound Field | |
| Capsule | |
| Polar Pattern | |
| Frequency Range | |
| Maximum SPL | |
| Impedance | |
| Sensitivity | |
| Dynamic Range | |
| Output Connector | |
| Cable Length | |
| Operating Voltage | |
| Weight |
