Product Summary

Introducing the Shure QLXD14/93 Rackmount Digital Wireless Lavalier Microphone System, the epitome of professional-grade audio excellence tailored for instructors, presenters, and broadcasters. Engineered to deliver pristine sound, reliable RF performance, and enhanced security through AES 256-bit encryption, this system is ruggedly built and intuitively designed for seamless integration into a variety of settings.

Operating within the UHF band, the QLXD14/93 ensures the transmission of flawless 24-bit/48 kHz digital audio characterized by exceptional clarity, precise low-end reproduction, and a crisp transient response. Leveraging Digital Predictive Switching Diversity, it shields your transmission from interference, providing unwavering RF signal stability without compromising on audio integrity. With the capacity to accommodate up to 12 microphone channels concurrently in the same location, you have the flexibility to manage diverse audio setups with ease.

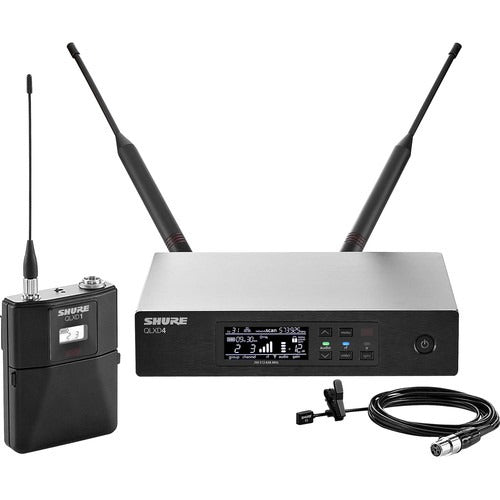

Included in the system is the WL93 omnidirectional lavalier microphone, meticulously optimized for speech intelligibility while maintaining a discreet profile. The rugged bodypack transmitter offers up to 9 hours of operation on just two AA batteries, featuring selectable 1/10mW RF power and a transmission range of up to 330 feet, ensuring uninterrupted performance throughout your event.

On the receiving end, the receiver boasts audio and RF meters, 60 dB of gain control, and versatile mic/line XLR and 1/4" instrument outputs for seamless integration into any audio setup. Navigate effortlessly through settings with the large LCD screen and intuitive controls, even in low-light conditions. Additional features such as automatic frequency scanning, IR sync, and internal limiting further enhance your user experience.

For streamlined frequency coordination and deployment, the Ethernet port enables easy networking of multiple receivers using Shure's Wireless Workbench (WWB) software, simplifying your workflow and ensuring optimal performance.

Experience rugged durability, uncompromising audio quality, and hassle-free operation with the Shure QLXD14/93 Rackmount Digital Wireless Lavalier Microphone System – your ultimate companion for elevating your audio productions to new heights.

Shure QLXD14/93-J50A Digital Wireless Omnidirectional Lavalier Microphone System

SKU: QLXD14/93-J50A
Authorized Dealer Authorized Shure Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$1,325.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Shure QLXD14/93-J50A Digital Wireless Omnidirectional Lavalier Microphone System $1,325.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Technical Details

Specifications

General
Key Specs
Wireless Technology
Digital UHF
Included Transmitters
1x Bodypack
Diversity
Antenna Diversity
Max Operating Range
330' / 100.6 m
Receiver Type
Tabletop
Microphone Type
Lavalier
Polar Pattern
Omnidirectional
System
Wireless Technology
Digital UHF
RF Carrier Frequency Range
J50A: 572 to 608 + 614 to 616 MHz
Number of RF Channel Frequencies
1760
Working Range
330' / 100 m Note: Actual Range Depends on RF Signal Absorption, Reflection, and Interference
Included Transmitters
1x Bodypack
RF
Tuning Step Size: 25 kHz, Varies by Region
Image Rejection
>70 dB, Typical
Diversity
Antenna Diversity
RF Sensitivity
-97 dBm at 10-5 BER
RF Frequency Band
J50A: 572 to 608 MHz 614 to 616 MHz
Latency
<2.9 ms
Audio Frequency Response
QLXD1: 20 Hz to 20 kHz (±1 dB)
RF Bandwidth
44 MHz
Frequency Step Size
25 kHz
Audio Dynamic Range
System Gain @ +10: >120 dB, A-Weighted, Typical
Total Harmonic Distortion (THD)
-12 dBFS Input, System Gain @ +10: <0.1%
RF Channel Scanning
Auto-Scan
Polarity
System Audio: Positive Pressure on Microphone Diaphragm Produces Positive Voltage on Pin 2 (with Respect to Pin 3 of XLR Output) and the Tip of the 1/4" / 6.35 mm Output
Max Operating Range
330' / 100.6 m
Max Transmitters per Band
60
Operating Temperature Range
0 to 122°F / -18 to 50°C Note: Battery Characteristics May Limit This Range
Built-In Recorder
No
Storage Temperature Range
-20 to 165°F ? -29 to 74°C Note: Battery Characteristics May Limit This Range
Receiver
Timecode Support
No
Mobile App Compatible
Yes: iOS Only App Name: Boxcast Functionality: View Live Feed
Housing
Steel
OS Compatibility
Windows 10 or Later macOS 10.14 or Later
Power Requirement
12 VDC @ 0.4 A, Supplied by External Power Supply (Tip Positive)
RF Input
Spurious Rejection: >80 dB, Typical Connector Type: BNC Impedance: 50 Ohms

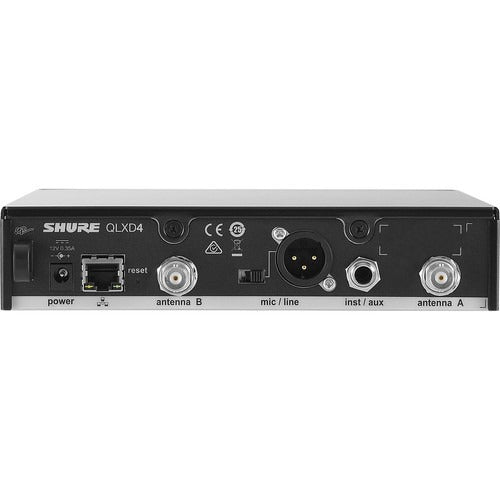

Audio Output
Gain Adjustment Range: -18 to +42 dB in 1 dB Steps Configuration: 1/4" / 6.35 mm, Impedance Balanced (Tip=Audio, Ring=No Audio, Sleeve=Ground) XLR: Balanced (1=Ground, 2=Audio +, 3=Audio -) Impedance 1/4" / 6.35 mm, 100 Ohms (50 Ohms Unbalanced) XLR: 100 Ohms Full Scale Output: 1/4" / 6.35 mm, +12 dBV XLR: LINE Setting= +18 dBV, MIC Setting= -12 dBV Mic/Line Switch: 30 dB Pad Phantom Power Protection: 1/4" / 6.35 mm, Yes XLR: Yes
Networking
Network Interface: Single Port Ethernet 10/100 Mbps Network Addressing Capability: DHCP or Manual IP Address Maximum Ethernet Cable Length: 328' / 100 m
Dimensions
1.63 x 7.75 x 5.94" / 41 x 197 x 151 mm
Weight
1.71 lb / 777 g
Sample Rate/Resolution
48 kHz / 24-Bit
Receiver Type
Tabletop
Mounting Options
Rackmount (with Included Hardware)
Rackmount Size
1 RU (1/2 Rack)
Antenna
2x 1/2 Wave External, Detachable (Rear-Mount)
Number of Audio Channels
1
Audio I/O
1x XLR 3-Pin Male Balanced Output 1x 1/4" TRS Female Balanced Output
Gain Range
-18 to +42 dB (1 dB Steps)
Pad
30 dB
Audio Output Level
XLR Output: +18 dBV (Line Level) XLR Output: -12 dBV (Mic Level) 1/4" Output: +12 dBV (Instrument Level)
Phantom Power Protection
On 1/4", XLR Output
Frequency Response
20 Hz to 20 kHz
Network I/O
1x RJ45 (10/100 Mb/s)
Network Protocols
DHCP, Manual IP
Word Clock I/O
No
USB/Lightning Connectivity
No
Impedance
XLR Output: 100 Ohms (Balanced) 1/4" Output: 100 Ohms (Balanced) 1/4" Output: 50 Ohms (Unbalanced)
Adjacent Channel Isolation
>70 dB
Spurious
Rejection: >80 dB
Power Requirements
AC/DC Power Adapter
AC/DC Power Adapter
12 VDC at 0.4 A, Center-Positive (Included)
DC Input Power
12 VDC at 0.4A
AC Input Power
100 to 240 VAC, 50 / 60 Hz at 150 mA
Display & Indicators

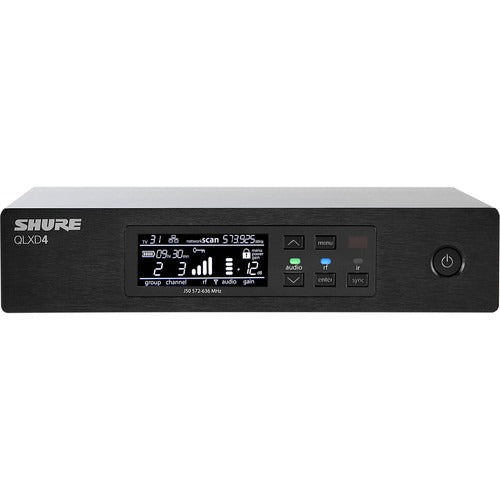

1x Backlit LCD (AF Level, Channel, Group, Menu Navigation, Metering, RF Level, Transmitter Battery Status) 1x LED (Sync) 1x LED (Peak)
Housing
Metal
Operating Temperature
0 to 122°F / -18 to 50°C
Dimensions
7.8 x 1.6 x 5.9" / 197 x 41 x 151 mm (without Antennas)
Weight
1.7 lb / 777 g (without Antenna)

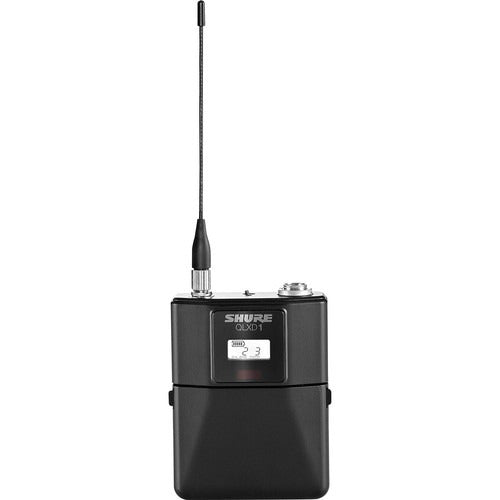

Bodypack Transmitter
Latency
< 2.9 ms
Housing
Cast Aluminum
Dynamic Range
120 dB
Encryption
AES 256
Mic Offset Range
0 to 21 dB (in 3 dB Steps)
Battery Type
Shure SB900 Rechargeable Li-Ion or AA Batteries 1.5 V
Battery Life
At 10 mW: Shure SB900: Up to 10 Hours Alkaline: Up to 9 Hours
Modulation
Proprietary
Audio Input
Connector: 4-Pin Male Mini Connector (TA4M) Configuration: Unbalanced Impedance: 1 MOhm Maximum Input Level 1 kHz at 1% THD: 8.5 dBV (7.5 Vpp) Preamplifier Equivalent Input Noise (EIN) System Gain Setting ≥ +20: -120 dBV, A-Weighted, Typical
RF Output
Connector: SMA Antenna Type: 1/4 Wave Impedance: 50 Ω Occupied Bandwidth: <200 kHz Modulation Type: Shure Proprietary Digital Power: 1 mW or 10 mW Varies by Region
Dimensions
3.38 x 2.57 x 0.92" / 86 x 65 x 23 mm
Weight
4.9 oz / 138 g, Without Batteries
Microphone
