Product Summary
- WL185 Cardioid Lavalier Microphone
- Durable Bodypack Transmitter
- SM58 Dynamic Cardioid Microphone/Transmitter
- Switching-Diversity Rackmount Receiver
- 2560 Auto-Scan Frequencies
- Adjustable 1/10mW Radio Frequency (RF) Power
- Ethernet Port, Liquid Crystal Display (LCD)
- 9-Hour AA Batteries
- Expandable to 60 Microphone Channels with a Range of 330 feet
The Shure QLXD124/85-J50A rackmount digital wireless combo microphone system offers a high-quality audio solution for instructors, clergy, presenters, and performers. With its dependable RF performance and advanced AES 256-bit encryption, it ensures secure and reliable transmission of audio signals. Designed to withstand rough handling, this system is both durable and user-friendly, making it perfect for sound-reinforcement applications in medium-sized venues, houses of worship, and A/V installations in conference, educational, and corporate settings. Whether you’re delivering a presentation or leading a worship service, the Shure QLXD124/85-J50A system delivers professional-grade audio performance you can rely on.
Operating in the UHF band, the QLXD124/85-J50A system excels at transmitting high-quality, pristine digital audio at a 24-bit/48 kHz resolution. Its advanced technology ensures exceptional clarity, accurate low-end reproduction, and a crisp transient response, resulting in outstanding audio fidelity. By employing Digital Predictive Switching Diversity, the system effectively safeguards the transmission from interference, providing a robust RF signal stability while minimizing any potential audio artifacts. With its impressive capabilities, this system enables you to run up to 60 microphone channels simultaneously in a single location, offering remarkable flexibility and scalability for various audio setups and environments.

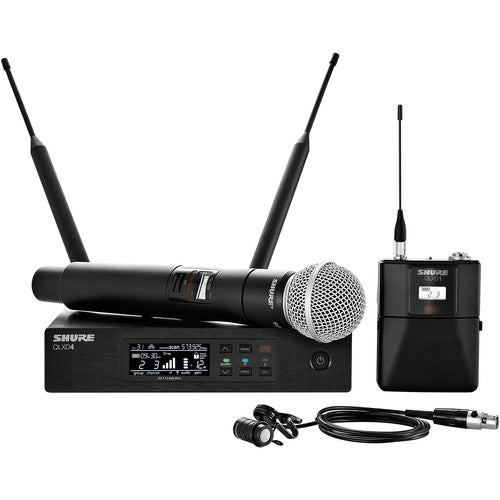

Shure QLXD124/85-J50A Digital Wireless Combo Microphone System
$1,549.00
Product Description
- WL185 Cardioid Lavalier Microphone
- Durable Bodypack Transmitter
- SM58 Dynamic Cardioid Microphone/Transmitter
- Switching-Diversity Rackmount Receiver
- 2560 Auto-Scan Frequencies
- Adjustable 1/10mW Radio Frequency (RF) Power
- Ethernet Port, Liquid Crystal Display (LCD)
- 9-Hour AA Batteries
- Expandable to 60 Microphone Channels with a Range of 330 feet
The Shure QLXD124/85-J50A rackmount digital wireless combo microphone system offers a high-quality audio solution for instructors, clergy, presenters, and performers. With its dependable RF performance and advanced AES 256-bit encryption, it ensures secure and reliable transmission of audio signals. Designed to withstand rough handling, this system is both durable and user-friendly, making it perfect for sound-reinforcement applications in medium-sized venues, houses of worship, and A/V installations in conference, educational, and corporate settings. Whether you’re delivering a presentation or leading a worship service, the Shure QLXD124/85-J50A system delivers professional-grade audio performance you can rely on.
Operating in the UHF band, the QLXD124/85-J50A system excels at transmitting high-quality, pristine digital audio at a 24-bit/48 kHz resolution. Its advanced technology ensures exceptional clarity, accurate low-end reproduction, and a crisp transient response, resulting in outstanding audio fidelity. By employing Digital Predictive Switching Diversity, the system effectively safeguards the transmission from interference, providing a robust RF signal stability while minimizing any potential audio artifacts. With its impressive capabilities, this system enables you to run up to 60 microphone channels simultaneously in a single location, offering remarkable flexibility and scalability for various audio setups and environments.
Technical Details
Specifications
System
| Wireless Technology | Digital UHF |
| Number of RF Channel Frequencies | 1760 |
| Included Transmitters | 1 x Bodypack 1 x Handheld |
| Diversity | Antenna Diversity |
| RF Frequency Band | J50A: 572 to 608 MHz 614 to 616 MHz |
| RF Bandwidth | 44 MHz |
| Frequency Step Size | 25 kHz |
| Max Operating Range | 330' / 100.6 m |
| Max Transmitters per Band | 60 |
| Sample Rate/Resolution | 48 kHz / 24-Bit |
| Latency | < 2.9 ms |
| Dynamic Range | 120 dB |
| Encryption | AES 256 |
| Modulation | Proprietary |

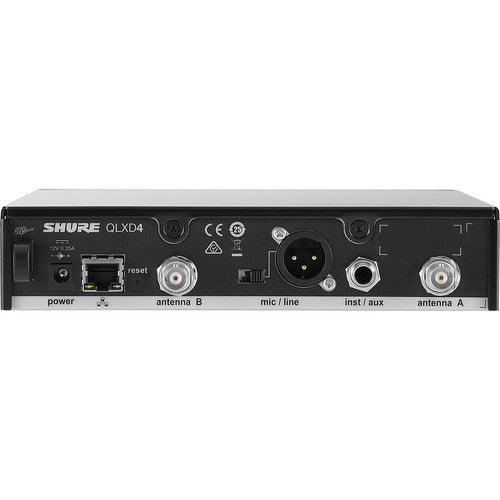

Receiver
| Receiver Type | Tabletop |
| Mounting Options | Rackmount (with Included Hardware) |
| Rackmount Size | 1 RU (1/2 Rack) |
| Antenna | 2 x 1/2 Wave External, Detachable (Rear-Mount) |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x XLR 3-Pin Male Balanced Output 1 x 1/4" TRS Female Balanced Output |
| Gain Range | -18 to +42 dB (1 dB Steps) |
| Pad | 30 dB |
| Audio Output Level | XLR Output: +18 dBV (Line Level) XLR Output: -12 dBV (Mic Level) 1/4" Output: +12 dBV (Instrument Level) |
| Phantom Power Protection | On 1/4", XLR Output |
| Network I/O | 1 x RJ45 (10/100 Mb/s) |
| Network Protocols | DHCP, Manual IP |
| Impedance | XLR Output: 100 Ohms (Balanced) 1/4" Output: 100 Ohms (Balanced) 1/4" Output: 50 Ohms (Unbalanced) |
| Approximate RF Sensitivity | -97 dBm |
| Adjacent Channel Isolation | >70 dB |
| Spurious | Rejection: >80 dB |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | 12 VDC at 0.4 A, Center-Positive (Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 150 mA |
| Display & Indicators | 1 x Backlit LCD (AF Level, Channel, Group, Menu Navigation, Metering, RF Level, Transmitter Battery Status) 1 x LED (Sync) 1 x LED (Peak) |
| Housing | Metal |
| Operating Temperature | 0 to 122°F / -18 to 50°C |
| Dimensions | 7.8 x 1.6 x 5.9" / 197 x 41 x 151 mm (without Antennas) |
| Weight | 1.7 lb / 777 g (without Antenna) |
Transmitter
| Transmitter Type | Bodypack |
| RF Output Power | 1 / 10 mW |
| Audio I/O | 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable) |
| Audio Input Level | 8.5 dBV / 7.5 Vpp |
| Gain Range | 0 to 21 dB (3 dB Steps) |
| Frequency Response | 20 Hz to 20 kHz |
| Sync Method | IR |
| Antenna | 1 x 1/4 Wave |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Included) 1 x Shure SB900A (Not Included, Replaceable) |
| Approx. Battery Life | 9 Hours (Alkaline) |
| Display & Indicators | 1 x Backlit LCD (Channel, Group, RF Output Power) |
| Housing | Aluminum |
| Dimensions | 2.6 x 3.4 x 0.9" / 65 x 86 x 23 mm |
| Weight | 4.9 oz / 138 g (without Batteries) |
Microphone
| Microphone Type | Lavalier |
| Sound Field | Mono |
| Capsule | Electret Condenser |
| Polar Pattern | Cardioid |
| Frequency Range | 50 Hz to 17 kHz |
| SNR | 18 dB A-Weighted |
| Maximum SPL | 130.5 dB SPL |
| Impedance | 1800 Ohms |
| Sensitivity | -45.5 dBV/Pa |
| Dynamic Range | 102.5 dB |
| Output | 1 x TA4/Mini XLR 4-Pin Female Unbalanced (Lockable) |
| Cable Length | 3.94' / 1.2 m |
| Operating Voltage | 1.5 to 10 V |
Transmitter 2
| Transmitter Type | Handheld |
| RF Output Power | 1 / 10 mW |
| Audio I/O | None |
| Gain Range | 0 to 21 dB (3 dB Steps) |
| Frequency Response | 30 Hz to 20 kHz |
| Sync Method | IR |
| Antenna | 1 x 1/4 Wave Internal |
| Power Requirements | Battery, Bus Power (USB) |
| Battery Type | 2 x AA (Included) 1 x Shure SB900A (Not Included, Replaceable) |
| Approx. Battery Life | 9 Hours (Alkaline) |
| Display & Indicators | 1 x Backlit LCD (Battery Status, Channel, Group, RF Output Power) |
| Housing | Aluminum |
| Dimensions | 2 x 10.1" / 51 x 256 mm |
| Weight | 12.2 oz / 347 g (without Batteries) |
Microphone 2
| Microphone Type | Handheld Capsule |
| Sound Field | Mono |
| Capsule | Dynamic |
| Polar Pattern | Cardioid |
| Frequency Range | 50 Hz to 15 kHz |
| Maximum SPL | 145 dB SPL |
| THD | 1% |
| Sensitivity | -54.5 dBV/Pa |
Packaging Info
| Package Weight | 9.81 lb |
| Box Dimensions (LxWxH) | 20 x 18.2 x 4.1" |
