Product Summary
Musicians can now enjoy the freedom of stable and cable-free operation during performances and rehearsals, all at an affordable price. The Shure PGXD14-X8 Digital Series offers a reliable receiver that operates within a stable 900 MHz bandwidth, effectively minimizing noise and RF interference. On the rear panel, you'll find XLR and 1/4" phone outputs for versatile connectivity options. The system's Scan & Sync feature takes care of the setup process automatically, ensuring a stable connection between the transmitter and receiver. The bodypack transmitter is both lightweight and durable, making it ideal for active use. It features a 4-pin mini microphone input that is fully compatible with Shure's WL series lavaliers, headsets, and instrument cables, offering flexibility for various audio input sources.

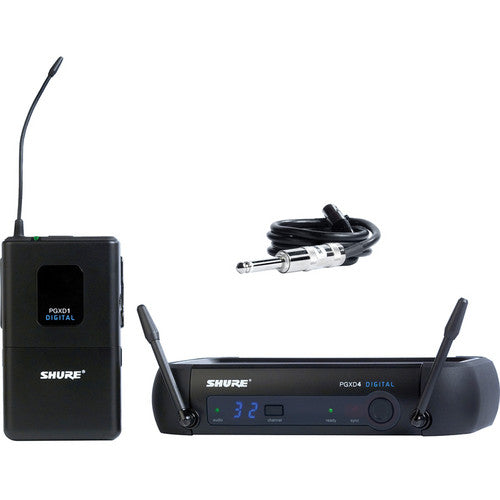

Shure PGXD14-X8 Digital Wireless Guitar System
$379.00
Product Description
Musicians can now enjoy the freedom of stable and cable-free operation during performances and rehearsals, all at an affordable price. The Shure PGXD14-X8 Digital Series offers a reliable receiver that operates within a stable 900 MHz bandwidth, effectively minimizing noise and RF interference. On the rear panel, you'll find XLR and 1/4" phone outputs for versatile connectivity options. The system's Scan & Sync feature takes care of the setup process automatically, ensuring a stable connection between the transmitter and receiver. The bodypack transmitter is both lightweight and durable, making it ideal for active use. It features a 4-pin mini microphone input that is fully compatible with Shure's WL series lavaliers, headsets, and instrument cables, offering flexibility for various audio input sources.
Technical Details
Specifications
System
| Wireless Technology | Digital UHF (900 MHz) |
| Included Transmitters | 1 x Bodypack |
| Diversity | Non-Diversity |
| RF Frequency Band | 902 to 928 MHz |
| RF Bandwidth | 26 MHz |
| Max Operating Range | 200' / 61 m |
| Max Transmitters per Band | 1 |
| Mobile App Compatible | Yes: iOS Only App Name: BoxCast Functionality: View Live Feed *As of February, 2023: Check with manufacturer for the most up-to-date compatibility |
| OS Compatibility | iOS *As of February, 2023: Check with manufacturer for the most up-to-date compatibility |
| Sample Rate/Resolution | 48 kHz / 24-Bit |
| Latency | 3.5 ms |
| Dynamic Range | >108 dB |
| THD | 0.02 % |
Receiver
| Receiver Type | Tabletop / Rackmount |
| Mounting Options | Rackmount, Tabletop (with Optional Hardware) |
| Rackmount Size | 1 RU (1/2 Rack) |
| Antenna | 2 x External, Fixed (Front-Mount) |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x XLR 3-Pin Balanced Output 1 x 1/4" TRS Unbalanced Output |
| Audio Output Level | XLR Output: -2.5 dBV 1/4" Output: +10 dBV |
| Frequency Response | 20 Hz to 20 kHz |
| USB/Lightning Connectivity | None |
| Impedance | XLR Output: 50 Ohms 1/4" Output: 50 Ohms |
| Approximate RF Sensitivity | -102 dBm |
| Squelch | None |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | 12 to 18 VDC at 150 mA, Center-Positive (Included) |
| Display & Indicators | 1 x LCD (Channel) 1 x LED (AF Level, Battery Status) |
| Housing | ABS |
| Operating Temperature | 0 to 122°F / -18 to 50°C |
| Dimensions | 7.1 x 1.6 x 4.1" / 181 x 40 x 104 mm |
| Weight | 10.2 oz / 289 g |
Transmitter
| Transmitter Type | Bodypack |
| RF Output Power | 10 mW |
| Audio I/O | 1 x TA4/Mini XLR 4-Pin Male Input |
| Included Cable Connector | None |
| Pad | None |
| Muting | Mute Switch |
| Gain Range | 26 dB |
| Signal Processing | None |
| Sync Method | IR |
| Antenna | 1 x 1/4 Wave Flexible Whip, Fixed (Beltpack) |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Included) |
| Approx. Battery Life | 10 Hours |
| USB/Lightning I/O | None |
| Display & Indicators | 1 x LCD |
| Housing | Plastic |
| Dimensions | 4.3 x 2.5 x 0.7" / 108 x 64 x 19 mm |
| Weight | 4.5 oz / 128 g (without Batteries) |
Packaging Info
| Package Weight | 4 lb |
| Box Dimensions (LxWxH) | 17.4 x 12.5 x 4.2" |
