Product Summary


  • 5.25" Woofer and 1" Silk Dome Tweeter

  • 100W RMS Power Handling

  • 115° Conical Coverage

  • 116 dB Peak Maximum SPL

  • 65 Hz to 20 kHz Frequency Range

  • Low-Saturation Multi-Tap Transformer



  • 5.25" Woofer and 1" Silk Dome Tweeter

  • 100W RMS Power Handling

  • 115° Conical Coverage

  • 116 dB Peak Maximum SPL

  • 65 Hz to 20 kHz Frequency Range

  • Low-Saturation Multi-Tap Transformer

  • Supports 70V, 100V, or 8-Ohm Operation

  • Euroblock Connector for Easy Wiring

  • Includes Award-Winning X-Mount Systems

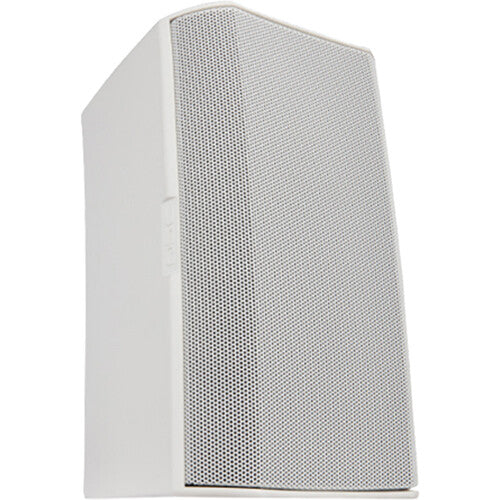

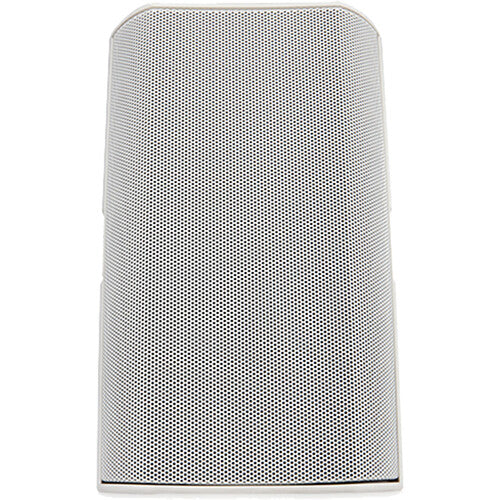

The white AcousticDesign Series QSC AD-S5T is a pair of transformer-equipped, 5.25" surface-mount loudspeakers supplied with award-winning X-Mount systems, making them suitable for 70/100V or 8-ohm operation in a variety of foreground and background music applications, whether installed in horizontal, vertical, wall, or ceiling deployments.

QSC AD-S5T AcousticDesign Series 5.25" 2-Way 100W Surface-Mount Loudspeaker (Pair, White)

SKU: ADS5TWH
Authorized Dealer Authorized QSC Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

Call for Price

Contact OfficeWonderland for current pricing and availability.

BACK 2 SCHOOL SALE | additional discount in cart

Pricing must be confirmed before checkout.

Request a Quote
QSC AD-S5T AcousticDesign Series 5.25" 2-Way 100W Surface-Mount Loudspeaker (Pair, White) Call for Price
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul class="list_OMS5rN7R1Z">\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">5.25" Woofer and 1" Silk Dome Tweeter</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">100W RMS Power Handling</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">115° Conical Coverage</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">116 dB Peak Maximum SPL</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">65 Hz to 20 kHz Frequency Range</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">Low-Saturation Multi-Tap Transformer</li>\n</ul>

Technical Details

Specifications

Inputs
• 1 x Block 4-Pole Speaker Input/Thru (Removable)
General
Speaker
Active or Passive
Passive
Number of Included Speakers
2
Speaker Configuration
2-Way
Power Handling
For 2 Hours: 100 W RMS
Recommended Amplifier Power
300 W
Constant Voltage / Transformer Taps
70 V: 60 / 30 / 15 / 7.5 W 100 V: 60 / 30 / 15 W or 8 Ohms Bypass
Impedance
8 Ohms (Transformer Bypassed)
Enclosure Type
Sealed
Shielded
No
Drivers
HF Driver
1 x 1" / 2.5 cm Horn-Loaded Silk Dome Tweeter
HF Voice Coil
1" / 2.5 cm
LF Driver
1 x 5.25" / 13.34 cm Paper Woofer
LF Voice Coil
1" / 2.54 cm
Magnet
Neodymium
Performance
Frequency Range
65 Hz to 20 kHz -10 dB
Maximum SPL
106 dB (Continuous) 116 dB (Peak)
Sensitivity
86.3 dB SPL
Coverage Angle
115° (Conical)
Directivity
6.9 (Directivity/Q Factor) 8.4 dB (Directivity Index)
Connectivity
I/O
1 x Block 4-Pole Speaker Input/Thru (Removable)
Environmental
Environmental Protection
Advertised as Dust Resistant/Humidity Resistant/Water Resistant *Manufacturer Testing: IP54
Operating Temperature
-4 to 122°F / -20 to 50°C
Physical
Color
White
Mounting
1 x Bracket Point (Rear)
Construction Material
ABS, Aluminum Grille, Polymer
Dimensions
11.26 x 6.88 x 6.85" / 28.6 x 17.48 x 17.4 cm
Weight
9.9 lb / 4.5 kg (Each Speaker)
Packaging Info
Package Weight
20.33 lb
Box Dimensions (LxWxH)
18.5 x 16.1 x 10.7"
