Product Summary


  • 12" Woofer & 1" Exit Compression Driver

  • 300W RMS Power Handling

  • 75° Conical Coverage

  • 126 dB Peak Maximum SPL



  • 12" Woofer & 1" Exit Compression Driver

  • 300W RMS Power Handling

  • 75° Conical Coverage

  • 126 dB Peak Maximum SPL

  • 52 Hz to 20 kHz Frequency Range

  • 8-Ohm Impedance

  • Euroblock Connector for Easy Wiring

  • Includes Award-Winning X-Mount System









Introducing the QSC AD-S12 from the AcousticDesign Series—an elegant white 12" surface-mount loudspeaker. This exceptional piece of audio technology comes equipped with the renowned X-Mount system, elevating its versatility across a wide spectrum of musical applications. Whether it takes the spotlight in immersive auditory experiences or subtly enriches the sonic backdrop, this speaker truly shines. Its innate adaptability is enhanced by its 8-ohm configuration, seamlessly harmonizing with a range of setups. Effortless installation is made possible on walls or ceilings, offering a flexible approach to orientation—be it horizontal, vertical, or tailored to your preference. Immerse yourself in a realm of unparalleled sound quality and limitless potential with the QSC AD-S12 loudspeaker.

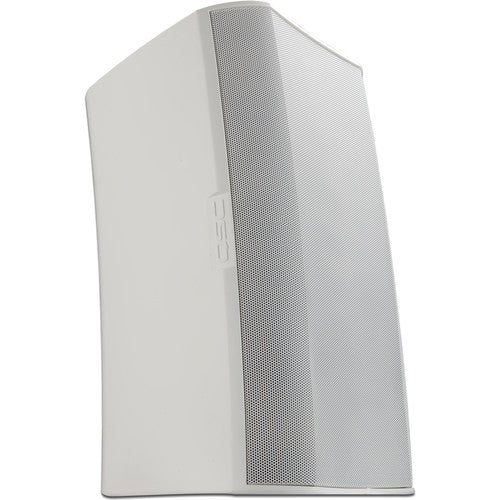

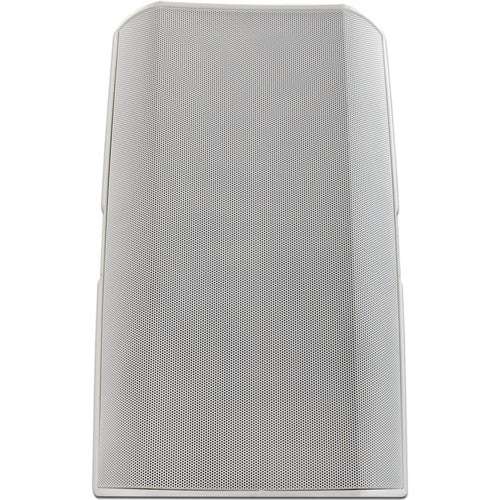

QSC AD-S12 AcousticDesign Series 12" 2-Way 300W Surface-Mount Loudspeaker (Single, White)

SKU: ADS12WH | UPC: 684284059529
Authorized Dealer Authorized QSC Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$1,100.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
QSC AD-S12 AcousticDesign Series 12" 2-Way 300W Surface-Mount Loudspeaker (Single, White) $1,100.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul class="list_OMS5rN7R1Z">\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">12" Woofer &amp; 1" Exit Compression Driver</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">300W RMS Power Handling</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">75° Conical Coverage</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">126 dB Peak Maximum SPL</li>\n</ul>

Technical Details

Specifications

Inputs
• 1 x Block 4-Pole Speaker Input/Thru (Removable)
General
Speaker
Active or Passive
Passive
Number of Included Speakers
1
Speaker Configuration
2-Way
Power Handling
For 2 Hours / At Low-Z: 300 W RMS
Recommended Amplifier Power
600 W
Impedance
8 Ohms
Enclosure Type
Sealed
Shielded
No

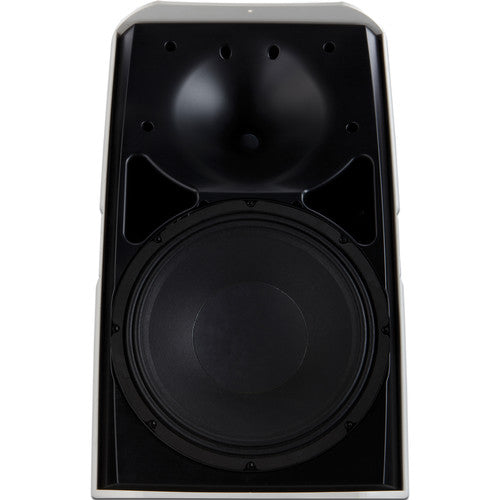

Drivers
HF Driver
1 x 1" / 2.54 cm Compression Driver
HF Voice Coil
1.4" / 3.56 cm
LF Driver
1 x 12" / 30.48 cm Paper Woofer
LF Voice Coil
2.5" / 6.35 cm
Performance
Frequency Range
52 Hz to 20 kHz -10 dB
Maximum SPL
120 dB (Continuous) 126 dB (Peak)
Sensitivity
95 dB SPL
Coverage Angle
75° (Conical)
Directivity
12 (Directivity/Q Factor) 11 dB (Directivity Index)
Maximum Input Voltage
50 V RMS
Connectivity
I/O
1 x Block 4-Pole Speaker Input/Thru (Removable)
Environmental
Environmental Protection
Advertised as Dust Resistant/Humidity Resistant/Water Resistant *Manufacturer Testing: IP54
Operating Temperature
-4 to 122°F / -20 to 50°C
Physical
Color
White

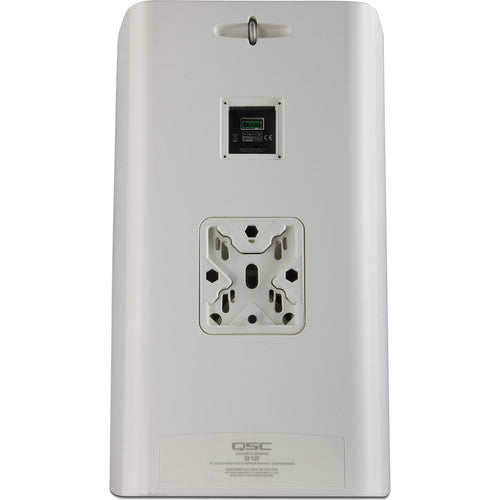

Mounting
1 x Bracket Point (Rear) 2 x M10 Suspension (Bottom)
Construction Material
ABS, Aluminum Grille, Polymer
Dimensions
23.4 x 13.9 x 12.7" / 59.44 x 35.31 x 32.26 cm
Weight
35.2 lb / 16 kg
Packaging Info
Package Weight
52 lb
Box Dimensions (LxWxH)
35 x 17 x 17"
