Product Summary


  • 4.5" Woofer, 0.75" Aluminum Dome Tweeter

  • 30W RMS Power Handling

  • 150° Conical Coverage

  • 108 dB Peak Maximum SPL



  • 4.5" Woofer, 0.75" Aluminum Dome Tweeter

  • 30W RMS Power Handling

  • 150° Conical Coverage

  • 108 dB Peak Maximum SPL

  • 65 Hz to 20 kHz Frequency Range

  • Low-Saturation Multi-Tap Transformer

  • Supports 70V, 100V, or 16-Ohm Operation

  • Euroblock Connector for Easy Wiring

  • Includes Quick-Link Cable Assemblies

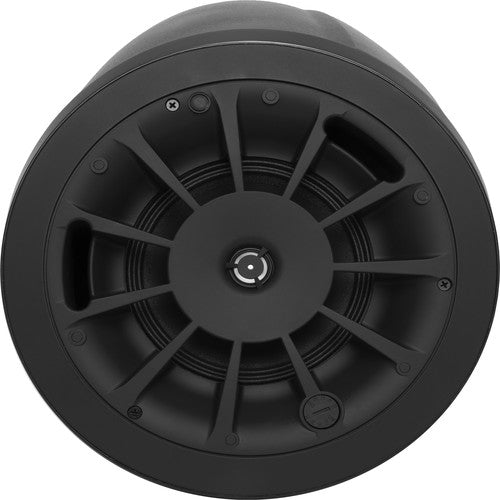

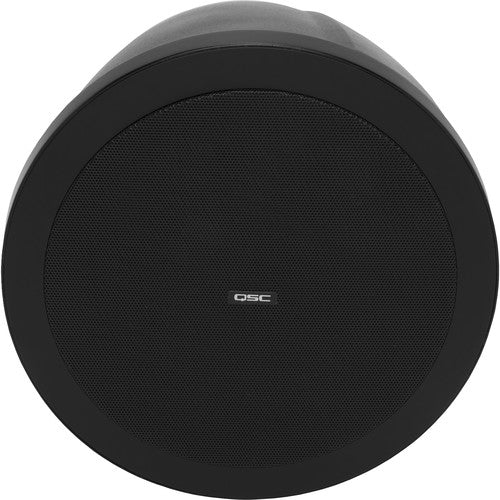

Presenting the sleek AcousticDesign Series AD-P4T by QSC in black – a pendant-mount loudspeaker with a 4.5" driver and integrated transformer. Meticulously tuned to provide uniform tonal quality across the entire AcousticDesign speaker lineup, these speakers excel in a diverse range of foreground and background music scenarios. Whether set up for 70/100V operation or 16-ohm usage, these speakers seamlessly adapt, making them ideal for creating captivating auditory experiences in various environments.






QSC AD-P4T AcousticDesign Series 4.5" 2-Way 30W Pendant-Mount Loudspeaker (Black)

SKU: ADP4TBK | UPC: 684284067586
Authorized Dealer Authorized QSC Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$292.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
QSC AD-P4T AcousticDesign Series 4.5" 2-Way 30W Pendant-Mount Loudspeaker (Black) $292.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul class="list_OMS5rN7R1Z">\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">4.5" Woofer, 0.75" Aluminum Dome Tweeter</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">30W RMS Power Handling</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">150° Conical Coverage</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">108 dB Peak Maximum SPL</li>\n</ul>

Technical Details

Specifications

Inputs
• 1 x Block 4-Pole Speaker Input/Thru (Locking, Removable)
General
Speaker
Active or Passive
Passive
Number of Included Speakers
1
Speaker Configuration
2-Way
Power Handling
For 2 Hours / At Low-Z: 30 W RMS
Recommended Amplifier Power
60 W
Constant Voltage / Transformer Taps
70 V: 30 / 15 / 7.5 / 3.75 W or 16 Ohms Bypass 100 V: 30 / 15 / 7.5 W or 16 Ohms Bypass
Impedance
16 Ohms (Nominal, Transformer Bypassed)
Transformer Wattage
30 W
Enclosure Type
Sealed
Shielded
No
Drivers
HF Driver
1 x 0.75" / 1.91 cm Waveguide-Coupled Aluminum Dome Tweeter
LF Driver
1 x 4.5" / 11.43 cm Paper Woofer
LF Voice Coil
1" / 2.54 cm
Performance
Frequency Range
65 Hz to 20 kHz -10 dB
Maximum SPL
102 dB (Continuous) 108 dB (Peak)
Sensitivity
87.9 dB
Coverage Angle
150° (Conical)
Directivity
4.5 (Directivity/Q Factor) 6.5 dB (Directivity Index)
Maximum Input Voltage
22 V RMS
Connectivity
I/O
1 x Block 4-Pole Speaker Input/Thru (Locking, Removable)
Maximum Wire Gauge
18 AWG
Environmental
Certifications
UL
Environmental Protection
Advertised as Water Resistant *Manufacturer Testing: IP34
Operating Temperature
-4 to 122°F / -20 to 50°C
Physical
Color
Black
Mounting
1 x Suspension (Rear)
Construction Material
ABS, Metal Grille
Dimensions
10.7 x 9.3" / 27.18 x 23.62 cm
Weight
6.5 lb / 2.9 kg
Packaging Info
Package Weight
8.95 lb
Box Dimensions (LxWxH)
14.4 x 12.9 x 11.6"
