Product Summary


  • 2.75" Full-Range Woofer

  • Aluminum Dome Dust Cap

  • 25W at 16 Ohms

  • Locking 2-Pole Euroblock Connectors



  • 2.75" Full-Range Woofer

  • Aluminum Dome Dust Cap

  • 25W at 16 Ohms

  • Locking 2-Pole Euroblock Connectors

  • Removable Conduit Cover Plate

  • Two Dog-Ear Blind Mounting System

  • Intrinsic Correction Voicing Capable

  • C-Ring, Cut-Out Templates

  • Snap-Fit Magnetic Grill









Presenting the exquisite duo of white QSC AD-C.SAT 2.75" Small-Format Passive Ceiling Satellite Loudspeakers – a meticulously integrated and enclosed loudspeaker system meticulously engineered to elevate background music experiences that demand precise depth and clarity, even when enjoyed at lower volume levels. This thoughtfully designed system is tailored for environments where sonic excellence is paramount, delivering an auditory encounter that's both sophisticated and immersive.






QSC AD-C.SAT 2.75" Small-Format Passive Ceiling Satellite Loudspeakers (White, Pair)

SKU: ADCSATWH | UPC: 684284075833
Authorized Dealer Authorized QSC Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$110.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
QSC AD-C.SAT 2.75" Small-Format Passive Ceiling Satellite Loudspeakers (White, Pair) $110.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul class="list_neCtljXF3z" data-selenium="miniProductPageSellingPointsList">\n <li class="element_neCtljXF3z" data-selenium="miniProductPageSellingPointsListItem">2.75" Full-Range Woofer</li>\n <li class="element_neCtljXF3z" data-selenium="miniProductPageSellingPointsListItem">Aluminum Dome Dust Cap</li>\n <li class="element_neCtljXF3z" data-selenium="miniProductPageSellingPointsListItem">25W at 16 Ohms</li>\n <li class="element_neCtljXF3z" data-selenium="miniProductPageSellingPointsListItem">Locking 2-Pole Euroblock Connectors</li>\n</ul>

Technical Details

Specifications

Inputs
• 2 x Block 2-Pole Speaker Input/Thru
General
Speaker
Active or Passive
Passive
Number of Included Speakers
1
Speaker Configuration
Full-Range
Power Handling
25 W
Impedance
16 Ohms
Enclosure Type
Open-Back
Drivers
Full-Range Driver
1 x 2.75" / 6.99 cm Paper Cone
Performance
Frequency Range
120 Hz to 20 kHz
Maximum SPL
103 dB (Peak) 97 dB (Continuous)
Sensitivity
83 dB
Coverage Angle
170° (Conical)
Directivity
4.4 dB (Directivity Index) 2.75 (Directivity/Q Factor)
Connectivity
I/O
2 x Block 2-Pole Speaker Input/Thru
Environmental
Certifications
CE, RoHS, UL
Environmental Protection
Advertised as Water Resistant *Manufacturer Testing: IP34
Operating Temperature
-4 to 122°F / -20 to 50°C
Physical
Color
White
Mounting
2 x In-Ceiling
Cutout Depth
3" / 76.3 mm
Cutout Size
4.5 x 4.5" / 11.4 x 11.4 cm
Construction Material
ABS, Steel
Dimensions
5.9 x 3.3" / 149.86 x 83.82 mm
Weight
1.3 lb / 0.6 kg (Each Speaker)

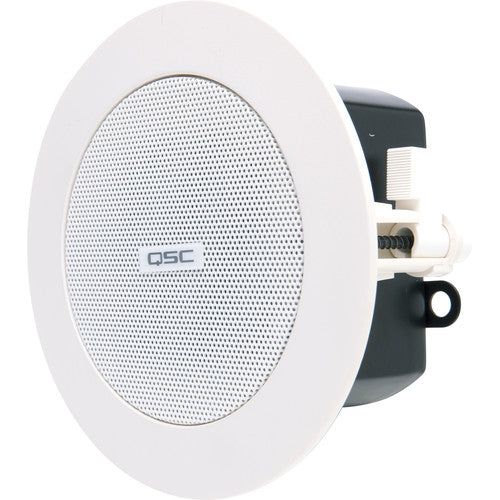

1552303403_1459277
