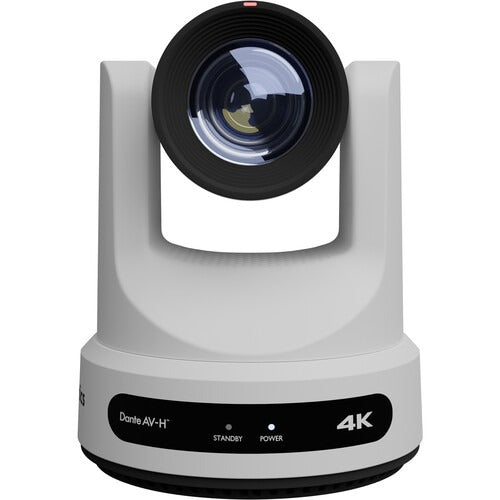

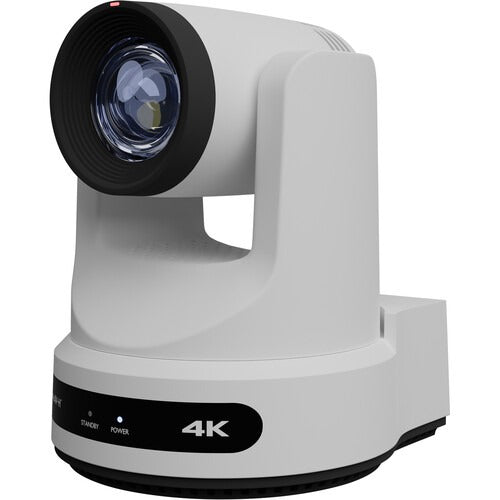

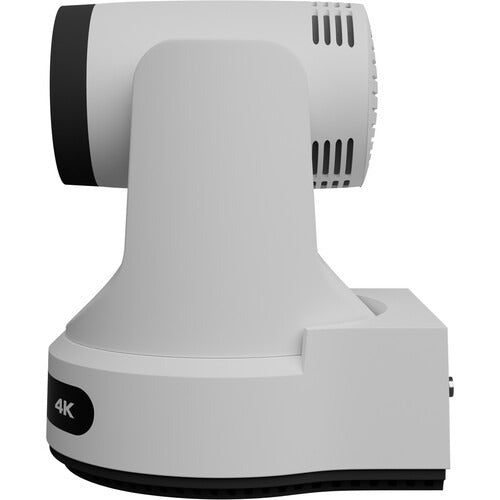

PTZOptics PT20X-LINK-4K-WH Link 4K SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom (White)

SKU: PT20XLINK4KWH  |  UPC: 840170500722
$2,349.00
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

BACK 2 SCHOOL SALE | additional discount in cart

Request a Quote
AUTHORIZED DEALER
  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • Professional Auto-Tracking PTZ Camera
  • 20X Optical Zoom
  • 4K Ultra HD Resolution at 60fps
  • 1/1.8" Sony 8.42MP CMOS Image Sensor
  • AI Auto-Tracking with Presenter Tracking up to 250 ft.
  • Dante AV-H™ Audio & Video Networking
  • Simultaneous HDMI 2.0, 3G-SDI, USB 2.0 & IP Video Outputs

Best For

🎓 Education 🏢 Corporate Collaboration ⛪ House of Worship 🏛️ Government

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote
Learn More About Purchase Orders

PTZOptics Link 4K 20X Auto-Tracking PTZ Camera (White)

The PTZOptics Link 4K 20X Auto-Tracking PTZ Camera (White) delivers professional-grade video performance for classrooms, conference rooms, houses of worship, and live production environments. Featuring UHD 4K60 video capture, 20x optical zoom, AI-powered auto-tracking, and Dante AV-H support, this advanced PTZ camera provides exceptional image quality and seamless integration with today's leading conferencing and streaming platforms. With HDMI, 3G-SDI, USB, and IP outputs, the Link 4K is built to meet the demands of professional AV installations.

Stunning UHD 4K Video Quality

Capture presentations, meetings, and live events with remarkable clarity.

  • 1/1.8" 8.42MP CMOS image sensor
  • UHD 4K60 output via HDMI and IP
  • Full HD 1080p60 via 3G-SDI
  • Wide Dynamic Range (WDR)
  • 3D Noise Reduction

Advanced imaging technology delivers sharp detail, vibrant colors, and outstanding low-light performance for professional-quality productions.

AI Auto-Tracking Technology

Keep presenters perfectly framed without manual camera operation.

  • Intelligent presenter tracking
  • Automatic subject lock
  • One-touch presenter switching
  • Tracks subjects up to 300 feet away
  • Ideal for education, corporate presentations, and houses of worship

The built-in AI tracking system automatically follows presenters throughout the room, creating engaging, operator-free productions.

Powerful 20X Optical Zoom

Capture fine details from virtually anywhere.

  • 20x optical zoom
  • Up to 16x digital zoom
  • Fast autofocus
  • Smooth pan, tilt, and zoom performance

The precision zoom lens allows you to capture presenters, presentation materials, and audience interactions with exceptional clarity.

Dante AV-H Integration

Simplify professional AV workflows with advanced networked video and audio.

  • Dante AV-H support
  • Integrated audio and video routing
  • Centralized configuration and management
  • Compatible with thousands of Dante-enabled devices

Dante AV-H enables flexible, enterprise-grade routing and management for professional AV environments.

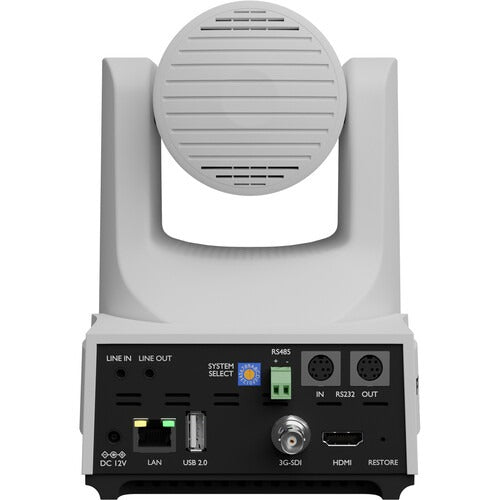

Professional Connectivity

Integrate seamlessly into virtually any production workflow.

  • HDMI output
  • 3G-SDI output
  • USB output
  • IP streaming
  • Simultaneous video outputs

Multiple output options make the Link 4K ideal for conferencing, broadcasting, recording, and live streaming applications.

Advanced Streaming Performance

Broadcast high-quality video to virtually any platform.

  • H.265, H.264, and MJPEG compression
  • Dual simultaneous video streams
  • Dante AV-H
  • SRT
  • RTSP
  • RTMP

Flexible streaming protocols ensure reliable, low-latency delivery across professional networks and cloud platforms.

Flexible Camera Control

Choose the control method that fits your workflow.

  • Web UI with integrated tutorials
  • IR remote control included
  • RS-232 control
  • RS-485 control
  • IP control
  • 255 programmable presets

The updated web interface makes setup and operation simple for both beginners and experienced AV professionals.

Audio Integration

Embed professional-quality audio directly into your productions.

  • 3.5mm stereo line-level input
  • 3.5mm audio output
  • Embedded audio support
  • Dante audio compatibility

Integrate external microphones and audio systems for complete production flexibility.

Flexible Installation Options

Install the camera wherever it performs best.

  • Wall mount compatible
  • Ceiling mount compatible
  • Automatic image inversion
  • Power over Ethernet (PoE)
  • AC power adapter included

Automatic orientation detection simplifies installation while PoE reduces cable clutter in permanent AV installations.

Broad Software Compatibility

Compatible with today's leading conferencing, streaming, and production platforms.

Supports:

  • Microsoft Teams
  • Zoom
  • Skype
  • OBS Studio
  • Livestream Studio
  • Wirecast
  • vMix
  • mimoLive
  • NewTek TriCaster
  • Facebook Live
  • YouTube Live
  • NewBlueFX Titler Live 5 Present
PTZOptics PT20X-LINK-4K-WH Link 4K SDI HDMI USB IP PTZ Camera with 20x Optical Zoom (White) front
PTZOptics

PTZOptics PT20X-LINK-4K-WH Link 4K SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom (White)

$2,349.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<div class="group_fDXOr6EpR9">
<div class="name_fDXOr6EpR9" data-selenium="specsItemGroupName">Imaging</div>
<table class="table_fDXOr6EpR9" data-selenium="specsItemGroupTable">
<tbody>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv " data-selenium="specsItemGroupTableColumnLabel">Image Sensor</td>
<td class="value_KqJ3Q3GPKv " data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">1/1.8"-Type CMOS</div></td>
</tr>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnLabel">Sensor Resolution</td>
<td class="value_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">Effective: 8.42 Megapixel (3840 x 2160)</div></td>
</tr>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnLabel">IR Cut Filter</td>
<td class="value_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">No</div></td>
</tr>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnLabel">Built-In ND Filter</td>
<td class="value_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">No</div></td>
</tr>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnLabel">Focus Control</td>
<td class="value_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">Autofocus
Manual Focus</div></td>
</tr>
</tbody>
</table>
</div>
<div class="group_fDXOr6EpR9">
<div class="name_fDXOr6EpR9" data-selenium="specsItemGroupName">Exposure Control</div>
<table class="table_fDXOr6EpR9" data-selenium="specsItemGroupTable">
<tbody>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv " data-selenium="specsItemGroupTableColumnLabel">Shutter Speed</td>
<td class="value_KqJ3Q3GPKv " data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">1/10000 to 1/30 Second</div></td>
</tr>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnLabel">Signal-to-Noise Ratio</td>
<td class="value_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">55 dB</div></td>
</tr>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnLabel">Minimum Illumination</td>
<td class="value_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">0.5 Lux</div></td>
</tr>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnLabel">Flip / Mirror Support</td>
<td class="value_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">Image Flip, Mirror (Vertical)</div></td>
</tr>
</tbody>
</table>
</div>
<div class="group_fDXOr6EpR9">
<div class="name_fDXOr6EpR9" data-selenium="specsItemGroupName">Lens</div>
<table class="table_fDXOr6EpR9" data-selenium="specsItemGroupTable">
<tbody>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv " data-selenium="specsItemGroupTableColumnLabel">Focal Length</td>
<td class="value_KqJ3Q3GPKv " data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">6.25 to 125mm</div></td>
</tr>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnLabel">Optical Zoom Ratio</td>
<td class="value_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">20x</div></td>
</tr>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnLabel">Max Digital Zoom</td>
<td class="value_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">16x</div></td>
</tr>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnLabel">Field of View</td>
<td class="value_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">Horizontal: 60.7 to 3.5°
Vertical: 34.1 to 1.9°</div></td>
</tr>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnLabel">Maximum Aperture</td>
<td class="value_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">f/1.58 to 3.95</div></td>
</tr>
</tbody>
</table>
</div>
<div class="group_fDXOr6EpR9">
<div class="name_fDXOr6EpR9" data-selenium="specsItemGroupName">Video Capture</div>
<table class="table_fDXOr6EpR9" data-selenium="specsItemGroupTable">
<tbody>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv " data-selenium="specsItemGroupTableColumnLabel">External Recording Modes</td>
<td class="value_KqJ3Q3GPKv " data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv"><b>SDI/BNC</b>
HD (1920 x 1080p) at 25/29.97/30.00/50/59.94/60.00 fps
HD (1920 x 1080i) at 50/59.94/60.00 fps
HD (1280 x 720) at 59.94/60.00 fps
<b>HDMI / RJ45 / USB</b>
UHD 4K (3840 x 2160) at 25/29.97/30.00/50/59.94/60.00 fps
HD (1920 x 1080p) at 25/29.97/30.00/50/59.94/60.00 fps
HD (1920 x 1080i) at 50/59.94/60.00 fps
HD (1280 x 720) at 59.94/60.00 fps</div></td>
</tr>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnLabel">Broadcast Output</td>
<td class="value_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">NTSC/PAL</div></td>
</tr>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnLabel">IP Streaming</td>
<td class="value_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv"><b>RTMP, RTMPS, RTSP, SRT</b>
<b></b>640 x 360 to 3840 x 2160 to
<b></b>320 x 240 to 720 x 480 to
<b>Dante AV-H</b>
<b></b>1920 x 1080 at 60p</div></td>
</tr>
</tbody>
</table>
</div>
<div class="group_fDXOr6EpR9">
<div class="name_fDXOr6EpR9" data-selenium="specsItemGroupName">Control</div>
<table class="table_fDXOr6EpR9" data-selenium="specsItemGroupTable">
<tbody>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv " data-selenium="specsItemGroupTableColumnLabel">Presets</td>
<td class="value_KqJ3Q3GPKv " data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">255</div></td>
</tr>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnLabel">Move Speed</td>
<td class="value_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">Pan: 1.7 to 100°/sec
Tilt: 1.7 to 69.9°/sec</div></td>
</tr>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnLabel">Movement Range</td>
<td class="value_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°)</div></td>
</tr>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnLabel">Tally Light</td>
<td class="value_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">Yes</div></td>
</tr>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnLabel">Supported Control Protocols</td>
<td class="value_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">IP
IR
NDI
Pelco-D
Pelco-P
RS-232
RS-485
VISCA</div></td>
</tr>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnLabel">Wireless Range</td>
<td class="value_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">30' / 9.1 m (IR)</div></td>
</tr>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnLabel">Max Cable Length</td>
<td class="value_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">98.5' / 30 m (RS-232)
3937' / 1200 m (RS-485)</div></td>
</tr>
</tbody>
</table>
</div>
<div class="group_fDXOr6EpR9">
<div class="name_fDXOr6EpR9" data-selenium="specsItemGroupName">Interface</div>
<table class="table_fDXOr6EpR9" data-selenium="specsItemGroupTable">
<tbody>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv " data-selenium="specsItemGroupTableColumnLabel">Video I/O</td>
<td class="value_KqJ3Q3GPKv " data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">1x HDMI 2.0 Output
1x BNC (3G-SDI) Output
1x RJ45 Output
1x USB-A 2.0 Output</div></td>
</tr>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnLabel">Audio I/O</td>
<td class="value_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">1x 1/8" / 3.5 mm TRS Stereo Line Input
1x 1/8" / 3.5 mm TRS Stereo Line Output</div></td>
</tr>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnLabel">Other I/O</td>
<td class="value_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">1x D-Sub 8-Pin (RS-232) Control Input
1x D-Sub 8-Pin (RS-232) Control Output
1x Block 2-Pin (RS-485) Control Input/Output</div></td>
</tr>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnLabel">Built-In Speaker</td>
<td class="value_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">No</div></td>
</tr>
</tbody>
</table>
</div>
<div class="group_fDXOr6EpR9">
<div class="name_fDXOr6EpR9" data-selenium="specsItemGroupName">Power</div>
<table class="table_fDXOr6EpR9" data-selenium="specsItemGroupTable">
<tbody>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv " data-selenium="specsItemGroupTableColumnLabel">PoE Support</td>
<td class="value_KqJ3Q3GPKv " data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">PoE+ 802.3at</div></td>
</tr>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnLabel">Power I/O</td>
<td class="value_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">1x Barrel (12VDC) Input</div></td>
</tr>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnLabel">Power Consumption</td>
<td class="value_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">Device: 12 VDC at 2 A (18 W)</div></td>
</tr>
</tbody>
</table>
</div>
<div class="group_fDXOr6EpR9">
<div class="name_fDXOr6EpR9" data-selenium="specsItemGroupName">Environmental</div>
<table class="table_fDXOr6EpR9" data-selenium="specsItemGroupTable">
<tbody>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv " data-selenium="specsItemGroupTableColumnLabel">Operating Temperature</td>
<td class="value_KqJ3Q3GPKv " data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">14 to 104°F / -10 to 40°C</div></td>
</tr>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnLabel">Storage Temperature</td>
<td class="value_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">-40 to 140°F / -40 to 60°C</div></td>
</tr>
</tbody>
</table>
</div>
<div class="group_fDXOr6EpR9">
<div class="name_fDXOr6EpR9" data-selenium="specsItemGroupName">General</div>
<table class="table_fDXOr6EpR9" data-selenium="specsItemGroupTable">
<tbody>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv " data-selenium="specsItemGroupTableColumnLabel">Material of Construction</td>
<td class="value_KqJ3Q3GPKv " data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">Aluminum, Plastic</div></td>
</tr>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnLabel">OS Compatibility</td>
<td class="value_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">Windows
macOS
Linux</div></td>
</tr>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnLabel">Mobile App Compatible</td>
<td class="value_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">Yes<b></b><b></b><b></b><b></b></div></td>
</tr>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnLabel">Dimensions (W x H x D)</td>
<td class="value_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">5.6 x 5.9 x 6.9" / 141.5 x 151 x 176 mm
5.6 x 5.9 x 7.9" / 141.5 x 151 x 201 mm (With Tilt Up)</div></td>
</tr>
<tr class="pair_KqJ3Q3GPKv" data-selenium="specsItemGroupTableRow">
<td class="label_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnLabel">Weight</td>
<td class="value_KqJ3Q3GPKv" data-selenium="specsItemGroupTableColumnValue">
<div class="expandableValue_KqJ3Q3GPKv">3.24 lb / 1.47 kg</div></td>
</tr>
</tbody>
</table>
</div>

N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Sensor

1/1.8"-Type CMOS

N/A

Resolution

4K

N/A

Signal Sysyetm

N/A

N/A

Signal To Noise Ratio

55 dB

N/A

Gain

N/A

N/A

Shutter Speed Range

1/10000 to 1/30 Second

N/A

Exposure Control

N/A

N/A

White Balance

N/A

N/A

Image Stabilization

N/A

N/A

Image Flip

Yes

N/A

ICR

N/A

N/A

Sync

N/A

N/A

Output

1x 1/8" / 3.5 mm TRS Stereo Line Output

N/A

Audio Input

1x 1/8" / 3.5 mm TRS Stereo Line Input

N/A

Audio

N/A

N/A

Camera Control

IP IR NDI Pelco-D Pelco-P RS-232 RS-485 VISCA

N/A

Focal Length

6.25 to 125mm

N/A

Minimum Object Distance

N/A

N/A

Pan Angle

Pan: 340° (-170 to 170°)

N/A

Tilt Angle

Tilt: 120° (-30 to 90°)

N/A

Pan Speed

Pan: 1.7 to 100°/sec

N/A

Tilt Speed

Tilt: 1.7 to 69.9°/sec

N/A

Presets

255

N/A

Operating Temperature

14 to 104°F / -10 to 40°C

N/A

Power

1x Barrel (12VDC) Input

N/A

Power Consumption

N/A

N/A

Minimum Illumination

N/A

N/A

Optical Zoom

20x

N/A

TAA Compliant

N/A
View product
