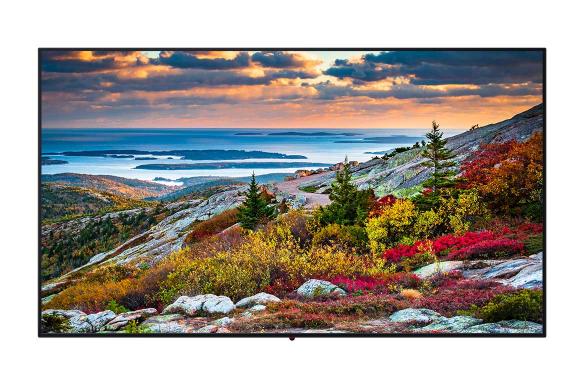

Panasonic TH-86SQE1W Series 86" Class 4K UHD Professional IPS LED Display

SKU: TH86SQE1W | UPC: 885170428027

$6,099.00

In Stock · Free Shipping to Lower 48 States

Tax-Exempt & Purchase Orders Accepted

Bulk Pricing Available

Memorial Month Sale | additional discount in cart

Request a Quote

Manufacturer Warranty Included
Lifetime Technical Support from OfficeWonderland
No Sales Tax for Qualified Tax-Exempt Organizations
Purchase Orders Accepted (Net 30 Available)

Key Features

\n 4K UHD (3840 x 2160) Native Resolution\n 500 cd/m² Brightness\n 1200:1 Contrast Ratio\n HDMI and VGA Inputs\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

Net 30 Purchase Orders
Tax-Exempt Sales for Eligible Organizations
W-9 Available Upon Request

Request a Quote

4K UHD (3840 x 2160) Native Resolution

500 cd/m² Brightness

1200:1 Contrast Ratio

HDMI and VGA Inputs

The 4K-resolution (3840 x 2160) SQE1 series supports 4K/60p signal (HDMI) and is capable of operating 24 hours a day. The IPS panel offers a wide viewing angle to deliver information accurately to many people in a large area. It is highly suited to installation in train stations, airports and commercial facilities

High Picture Quality: Four times higher resolution quality than Full HD has been achieved to display 4K/60p video that expresses images in detail

Excellent Reliability: Compatible with a wide range of applications, for a design that blends into spaces. Supports portrait installation, and 24/7 continuous operation. Ideal for installation in public spaces

Wide Expandability: A slot with Intel® SDM (Smart Display Module) specifications has been adopted

Brightness

500 cd/m²
Weight without stand

62.9 kg (138.7 lbs)
Duty Cycle

24/7
Dimensions

Without remote IR sensor box: 1929 x 1100 x 81 mm (75.91" x 43.28" x 3.16"). With remote IR sensor box: 1929 x 1116 x 81 mm (75.91" x 43.94" x 3.16").
Native Resolution

4K Ultra HD (3840 x 2160)
Inputs

4 x HDMI (Type A Connector, with HDCP 2.2 support) 1 x DisplayPort 1 x Mini D-sub 15-pin (for PC) 1 x Stereo Mini Jack (M3) for IR 1 x D-sub 9-pin (RS-232C Compatible) 1 x Stereo Mini Jack (M3) for Audio 1 x RJ45 (for LAN) 1 x Intel® SDM slot 4 x USB (2 x Type A, 1 x Type C, 1 x internal Type A)
Outputs

1 x DisplayPort 1 x Stereo Mini Jack (M3) for Audio 1 x SPDIF for Digital Audio
Contrast Ratio

1200:1
Viewing Angle

178° Horizontal / 178° Vertical
Response Time

8ms
Sound Output

12W x 2
Screen Size

86"
Monitor Configuration

General Use Monitor
Display Orientation

Landscape & Portrait
WiFi

No
General

SLOT Intel (R) SDM specification
Corresponding size SDM-S / SDM-L, Supply power 40 W
Wi-Fi Dongle
Power Requirements AC 110 - 127 V 50 Hz / 60 Hz
AC 220 - 240 V 50 Hz / 60 Hz
Power Consumption 364 W (SLOT not in use:312 W)
On Mode Average Power Consumption* 231 W
Power Off Condition 0 W
Stand-by Condition Approx. 0.5 W
Apparent power 371 W (SLOT not in use:318 W) (AC 110-127 V)
372 W (SLOT not in use:319 W) (AC 220-240 V)
Bezel Color Black
Bezel Width T/R/L/B 15.3 mm (0.6")
Pitch for Wall-Hanging VESA Compliant 600 x 400 mm (23.7" x 15.8") (Installed by: M8 screws / Screw hole depth 12 mm (0.48")
Tilting Angle Landscape : 20 degrees forward
Portrait : 20 degrees forward
Operating Environment Temperature : 0℃ to 40℃ (32°F to 104°F)*1
: 0℃ to 35℃ (32°F to 95°F)*2
Humidity : 20% to 80% (No condensation)
Storage Environment Temperature : -20℃ to 60℃ (-4°F to 140°F)
Humidity : 20% to 80% (No condensation)
SAFETY
REGULATIONS
EU/AUS/NZ/USA
CB Report (LVD; IEC62368-1 2nd Edition + EU/AUS/
NZ/USA Deviation)
EU Deviation : EN62368-1:2014 2nd Edition
AUS/NZ Deviation : AUS/NZ
AUS/NZS62368-1:2018
2nd Edition
USA Deviation : UL62368-1-2014, 2nd Edition
UL Certification
RADIATION
REGULATIONS
EU : EMC test report [Class-A]
(CE; EN55032:2012/EN61000-3-2:2014/
EN61000-3-3:2013/EN55024:2010
IEC61000-4-2:2008 IEC61000-4-3:2010
IEC61000-4-4:2012 IEC61000-4-5:2005
IEC61000-4-6:2013 IEC61000-4-8:2009
IEC61000-4-11:2004)
AUS : RCM-CISPR32 test report [Class-A]
US : FCC [Class-A
VESA Pattern

600 x 400 mm
Dimensions

Without remote IR sensor box: 1929 x 1100 x 81 mm (75.91" x 43.28" x 3.16"). With remote IR sensor box: 1929 x 1116 x 81 mm (75.91" x 43.94" x 3.16").
