Product Summary


  • Wireless Display

  • USB Media Player

  • Data Cloning

  • Multi display settings

  • Power on Screen Delay


The 4K-resolution (3840 x 2160) SQE1 series supports 4K/60p signal (HDMI) and is capable of operating 24 hours a day. The IPS panel offers a wide viewing angle to deliver information accurately to many people in a large area. It is highly suited to installation in train stations, airports and commercial facilities



  • High Picture Quality: Four times higher resolution quality than Full HD has been achieved to display 4K/60p video that expresses images in detail

  • Excellent Reliability: Compatible with a wide range of applications, for a design that blends into spaces. Supports portrait installation, and 24/7 continuous operation. Ideal for installation in public spaces

  • Wide Expandability: A slot with Intel® SDM (Smart Display Module) specifications has been adopted

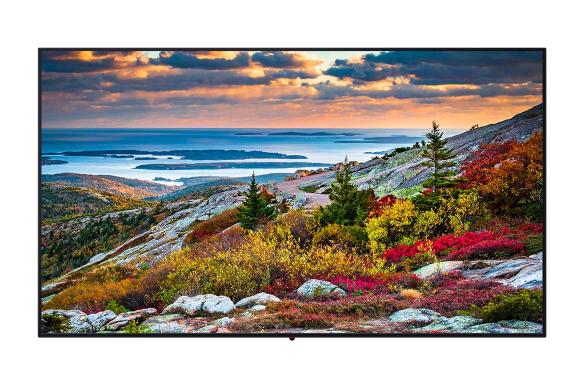

Panasonic TH-75SQE1W Series 75"-Class 4K UHD Professional Display

SKU: TH75SQE1W | UPC: 885170428034
Authorized Dealer Authorized Panasonic Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$3,970.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Panasonic TH-75SQE1W Series 75"-Class 4K UHD Professional Display $3,970.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • 75" 4K UHD Display
  • Reliable 24/7 Operation
  • Portrait Installation Supported
  • Wireless Display Capability
  • Integrated USB Media Player
  • Intel SDM Expansion Slot

Technical Details

Specifications

Screen Size
75"
Native Resolution
4K Ultra HD at 3840 x 2160 pixels
Brightness
500 cd/m²
Contrast Ratio
1200:01:00
Display Orientation
Landscape & Portrait
Response Time
8ms
Viewing Angle
178° Horizontal / 178° Vertical
Inputs
• HDMI: 4 x HDMI Type-A connectors. DisplayPort: 1 x DisplayPort In, 1 x DisplayPort Out. PC In: 1 x Mini D-sub 15-pin. USB: 2 x USB Type-A, 1 x USB Type-C (Internal), 1 x USB Type-A (Internal). LAN: 1 x RJ45 (10BASE-T/100BASE-TX). Audio: 2 x RCA (L/R) Audio In Serial: 1 x D-sub 9-pin (RS232C compatible). IR: 1 x 3.5mm Stereo Mini Jack IR In. Expansion Slot: 1 x Intel® SDM slot.
Outputs
• 1 x 3.5mm Stereo Mini Jack Audio Out, 1 x S/PDIF Out.
Sound Output
12W x 2
WiFi
Yes
VESA Pattern
600 x 400 mm
Panasonic TH-75SQE1W Series 75"-Class 4K UHD Professional Display
Panasonic

Panasonic TH-75SQE1W Series 75"-Class 4K UHD Professional Display

$3,970.00

Brightness

500 cd/m²

N/A

Weight without stand

37.4 kg (82.5 lbs)

N/A

Weight with Stand

N/A

N/A

Duty Cycle

24 hours per day, 7 days per week.

N/A

Dimensions

(W x H x D): 1684 x 968 x 100 mm (66.28" x 38.09" x 3.92")

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

4K Ultra HD at 3840 x 2160 pixels

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

HDMI: 4 x HDMI Type-A connectors. DisplayPort: 1 x DisplayPort In, 1 x DisplayPort Out. PC In: 1 x Mini D-sub 15-pin. USB: 2 x USB Type-A, 1 x USB Type-C (Internal), 1 x USB Type-A (Internal). LAN: 1 x RJ45 (10BASE-T/100BASE-TX). Audio: 2 x RCA (L/R) Audio In Serial: 1 x D-sub 9-pin (RS232C compatible). IR: 1 x 3.5mm Stereo Mini Jack IR In. Expansion Slot: 1 x Intel® SDM slot.

N/A

Outputs

1 x 3.5mm Stereo Mini Jack Audio Out, 1 x S/PDIF Out.

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

1200:01:00

N/A

Viewing Angle

178° Horizontal / 178° Vertical

N/A

Response Time

8ms

N/A

Sound Output

12W x 2

N/A

Screen Size

75"

N/A

Monitor Configuration

General Use Monitor

N/A

Display Orientation

Landscape & Portrait

N/A

WiFi

Yes

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

SLOT Intel (R) SDM specification
Corresponding size SDM-S / SDM-L, Supply power 40 W
Power Requirements AC 110 - 127 V 50 Hz / 60 Hz
AC 220 - 240 V 50 Hz / 60 Hz
Power Consumption 334 W (SLOT not in use:280 W)
On Mode Average Power Consumption* 249 W
Power Off Condition 0 W
Stand-by Condition Approx. 0.5 W
Apparent power 342 W (SLOT not in use:286 W) (AC 110-127 V)
346 W (SLOT not in use:290 W) (AC 220-240 V)
Bezel Color Black
Bezel Width T/R/L 15.7 mm (0.62") B 21.5 mm (0.85")
Pitch for Wall-Hanging VESA Compliant 600 x 400 mm (23.7" x 15.8") (Installed by: M8 screws / Screw hole depth 10 mm (0.40")
Tilting Angle Landscape : 20 degrees forward
Portrait : 20 degrees forward
Operating Environment Temperature : 0℃ to 40℃ (32°F to 104°F)*1
: 0℃ to 35℃ (32°F to 95°F)*2
Humidity : 20% to 80% (No condensation)
Storage Environment Temperature : -20℃ to 60℃ (-4°F to 140°F)
Humidity : 20% to 80% (No condensation)
SAFETY
REGULATIONS
EU/AUS/NZ/USA
CB Report (LVD; IEC62368-1 2nd Edition + EU/AUS/
NZ/USA Deviation)
EU Deviation : EN62368-1:2014 2nd Edition
AUS/NZ Deviation : AUS/NZ
AUS/NZS62368-1:2018
2nd Edition
USA Deviation : UL62368-1-2014, 2nd Edition
UL Certification
RADIATION
REGULATIONS
EU : EMC test report [Class-A]
(CE; EN55032:2012/EN61000-3-2:2014/
EN61000-3-3:2013/EN55024:2010
IEC61000-4-2:2008 IEC61000-4-3:2010
IEC61000-4-4:2012 IEC61000-4-5:2005
IEC61000-4-6:2013 IEC61000-4-8:2009
IEC61000-4-11:2004)
AUS : RCM-CISPR32 test report [Class-A]
US : FCC [Class-A

N/A

VESA Pattern

600 x 400 mm

N/A

TAA Compliant
