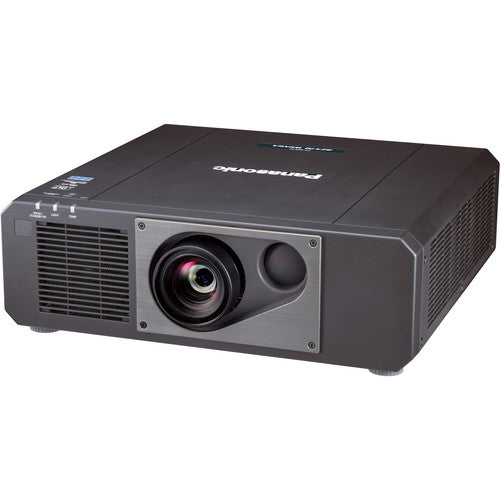

Panasonic PT-RZ575U7 WUXGA DLP Laser Projector

• 4800 ANSI Lumens


• WUXGA Resolution (1920 x 1200)


• 20,000 Hours Laser Lamp Life

Unfailingly Dependable in Museums and Surveillance Centers

The Panasonic PT-RZ575U7 set-and-forget projection maintains brightness year in, year out, with minimum maintenance necessary and a slower rate of image degradation than comparable video projectors. The Panasonic PT-RZ575U7 Performance is achieved with dust-resistant SOLID SHINE Laser drive applied
with DLP™ technology for rear projection in control rooms, surveillance centers, and museum exhibits. Economode brightness modes can extend low-maintenance operation beyond 10 years. A dependable workhorse, yet capable of excellent detail reproduction
and color accuracy. The PT-RZ575U7 makes sense for long-haul applications.

SOLID SHINE Laser Technology

Reproducing Full-Spectrum Color with 1-Chip DLP™ SOLID SHINE Laser

With next-generation DLP™ technology delivering high-resolution detail, dual laser modules for high brightness, Quartet Color Harmonizer to reduce energy loss from the light source, and robust heat-resistant phosphor wheel, Panasonic’s 1-Chip
DLP™ SOLID SHINE Laser system produces scintillating images with unfailing reliability.

Rich Color Enhancer

Rich Color Enhancer offers a Dynamic Mode setting to increase image brightness, or Graphic Mode/Standard Mode, which adjusts color-wheel timing to produce deeper, richer colors in rooms where maximum brightness is unnecessary.

Superior White Balance and Color Reproduction

Quartet Color Harmonizer wheel mechanism captures a wider color space than comparable projectors, allowing white to be reproduced more realistically on screen. Conventional projectors can’t achieve an accurate white balance, so images can appear
with a distracting greenish cast. Not the case with the Panasonic 1-Chip DLP™ SOLID SHINE Laser projectors.

Lasting Picture Quality

Up to 10 Years Operation with Constant Brightness Modes

In environments where full brightness is not necessary, such as surveillance, control, and simulation rooms, constant operation modes extend light-source replacement up to 87,600 hours* in Long Life 3 Mode—about 10 years of 24/7 projection—with
consistent brightness and color performance.

Efficient Cooling System

Heat-pipe cooling for the laser light source and a heavy-duty heat sink for the DMD module keep images crisp and bright while reducing fan speed, lowering noise levels and preventing distractions in quiet classrooms.

Dynamic Light Control for High Contrast

Dynamic Light Control directly modulates laser output to achieve high contrast with less power consumption. Digitally controlled frame-by-frame scene-linking modulation ensures highly precise adjustment of light output, while accurate contrast is delivered
even when bright and dark scenes frequently interchange.

Detail Clarity Processor 3

This unique Panasonic circuitry optimizes the sharpness of each image based on information gathered from four frequency bands of the video signal. The resulting images are expressed with natural, convincing realism

Daylight View Basic

Panasonic’s Daylight View Basic technology achieves sharp, easily viewed images by enhancing detail, particularly in dark areas of the image that are normally difficult to see in brightly lit rooms. A built-in sensor measures ambient light while
Daylight View Basic adjusts halftone color and brightness according to the surrounding level of illumination.

Professional System Integration

Built-in Short-throw Lens

A built-in short-throw lens is ideal for rear projection in dedicated boxes. With this lens, projection distance can be as little as about 1.2 m (3.9 ft) to produce a 70-inch-diagonal wide-screen image.

Free 360-degree Installation

SOLID SHINE Laser technology enables free 360-degree installation through any axis. Together with powered lens shift and a wide range of optional lenses, the projector can be mounted in any way desired without picture distortion temporarily or in permanent
applications.

Single-Cable DIGITAL LINK Connection

DIGITAL LINK transmits uncompressed video, audio^*1, and control commands through a single CAT 5e or higher STP cable for distances of up to 150 m (492 ft)^*2. Optional DIGITAL LINK Switcher or Digital Interface Box further simplifies
installation, reduces cabling and associated costs, and enhances reliability.



*1 Audio transmission depending on model’s audio capability.



*2 150 m (492 ft) transmission available only with ET-YFB200G DIGITAL LINK Switcher for signals up to 1080p.

Early Warning Software ET-SWA100 Series (Optional)

Early Warning Software monitors the status of projectors and displays connected to an intranet, and informs the operator when an abnormality is detected or predicted, or when there are symptoms of trouble. This minimizes downtime to provide more stable
operation.

Silent Operation Mode

Technologies combine to keep noise levels down in Silent Mode so the sound of the cooling fan is hardly noticeable. This is made possible by an efficient cooling system, reduction of light output to limit fan speed, and color-wheel speed control to prevent
excessive noise.

Auto Screen Image Rotation

Images are automatically* rotated depending on installation orientation—upside down on the ceiling or set on a table—using a built-in angle sensor.

ECO Management System

Push the ECO button on the remote control to set up Eco Management functions, including automatic brightness reduction in dim ambient lighting conditions, and power consumption reduction when no input signal is detected.

Additional Features

• Quick Start and Quick Off


• Laser Safety Guaranteed


• Edge Blending and Color Matching


• Art-Net DMX, Crestron Connected™, and PJLink™


• DICOM Simulation Mode


• Fade In and Fade Out


• Picture-in-Picture Capability


• Screen Adjustment for Specially Shaped Screens

What is Digital Link?
