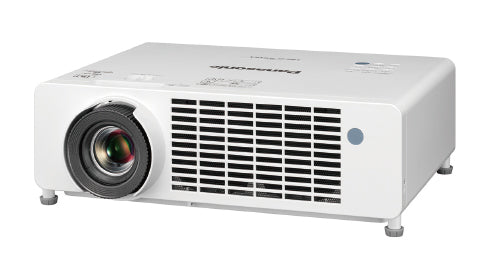

Panasonic PT-LRZ35U 1-Chip DLP WUXGA RGB LED Projector
Panasonic PT-LRZ35U 1-Chip DLP WUXGA RGB LED Projector is backordered and will ship as soon as it is back in stock.
Need Help? Call Us 800-211-2718
Couldn't load pickup availability
Accessories
- 1920 x 1200 WUXGA Resolution
- 3,500 ANSI Lumens
- 30,000:1 Contrast ratio
- 20,000 Laser life hours
- 1.3x manual zoom
DUNS #074303253
IRS W-9 form
- Remote control
- power cord
- quick start guide
- cd-rom manual
- 1920 x 1200 WUXGA Resolution
- 3,500 ANSI Lumens
- 30,000:1 Contrast ratio
- 20,000 Laser life hours
- 1.3x manual zoom
The Panasonic PT-LRZ35U projector includes Panasonic's first projectors with a discrete RGB light source, and quite possibly the first commercial projectors to include HDMI-CEC control. The Panasonic PT-LRZ35U combines 3500 ANSI lumens of brightness WUXGA resolution and a sealed optical unit that is maintenance-free for the first 20,000 hours of use.
Brilliantly Vivid Colors Resist Breakup
Panasonic RGB LED Light Engine
The New light-engine employs discrete LEDs for each R/G/B channel, eliminating the need for color and phosphor wheels. Unlock deep, wide-gamut saturation with superior white-balance accuracy, contrast, and gradation with virtually no color breakup. Visibility remains outstanding even in ambient light.
Wheel-less Design Eliminates Rainbow Effect
As well as increasing color-depth, the wheel-less design avoids the rainbow effect caused by color-wheel timing with the use of high-speed LED switching. By omitting the color-wheel normally required for 1-Chip DLP™ projection, viewers can enjoy the superior color, contrast, and resolution that defines DLP™ imaging technology without distracting artifacts.
Flexible Installation and Connectivity for Teams
CEC-ready HDMI® Inputs and USB-DC Outlet
HDMI-CEC inputs enable one-touch projector start-up and playback on command from the source component’s remote control. USB-DC outlet is available to power a streaming device* so team members can share their content to the big screen wirelessly from PC or mobile. USB power is useful when the projector is mounted on the ceiling, minimizing extraneous cabling.
* Sold separately. Compatibility with third-party devices cannot be guaranteed.
Ready for 3D Video with DLP®-Link™ Technology
DLP-Link provides an immersive 3D experience when combined with compatible active-shutter glasses and 3D content via HDMI, such as a 3D Blu-ray™ video. A variety of image formats are supported, including frame-sequential, frame-packing, side-by-side, and top-and-bottom. Invite immersive high-color AR projections into smaller events and exhibition spaces. Click here for a list of 3D glasses tested for compatibility with the Panasonic PT-LRZ35U Series.
Installation Freedom with 1.3x Zoom Lens with Lens-Shift
A 1.3x optical zoom lens (conveniently operated via a recessed lever) expands the range of available throw-distances to achieve your desired image size for flexible projector installation. Vertical Lens-Shift (up to +52 %, +42 %)* positions the image at an ideal height when optimal projector location isn’t possible, while Vertical Corner Keystone (±30 %) corrects distortion from an angled projection.
* Panasonic PT-LRZ35U: (+50 %, +40 %), PT-LRW35: (+52 %, +42 %).
Note: Above throw-distance is for Panasonic PT-LRZ35U in 16:10 aspect ratio producing a 100-inch image.
PT-LRW35 requires 2.92 m–3.94 m throw-distance in 16:10 aspect ratio for a 100-inch image.
Fits Your Existing Control Infrastructure
The PT-LRZ35 Series has a 10Base-T- and 100Base-T-compliant LAN terminal for control via a network using our free Multi Monitoring & Control Software or your choice of third-party control solution, including PJ Link™ (Class 2), Crestron® Connected, and AMX. An RS-232C serial terminal is also included for control-signal transmission.
Lightweight Mobility and Effortless Installation
Weighing 6.7 kg (14.8 lbs), the PT-LRZ35 Series can be carried from room to room and conveniently installed on the ceiling thanks to its low body-mass. In business or education applications, compact dimensions make for easier handling and free up desk-space for laptops and notebooks.
360 ° Front and Side Rotation for Exhibitions
LED RGB light-engine supports safe installation at any angle through 360 ° in front or side rotation, opening high-color opportunities for retail signage, video-walls, and for projection in building lobbies, at tourist attractions, in museums, or anywhere strong color performance is a priority.
Excellent Reliability and Long Life
Extremely Reliable with Lasting Picture Quality
With no color or phosphor wheels, the Panasonic PT-LRZ35U Series has fewer moving parts to wear out than a typical projector, adding to the design’s fantastic reliability. This significantly reduces TCO with fewer callouts and a smooth, professional presentation every time. You can depend on 20,000 hours* of maintenance-free projection at full brightness.
* At about 20,000 hours, Panasonic recommends cleaning or checkup at point of purchase. Light-source lifetime may be reduced depending on environmental conditions. Replacement of parts other than the light-source may be required within a shorter period. At 20,000 hours, brightness will have decreased to approximately 50 % of its original level (Light Output: NORMAL, Picture Mode: DYNAMIC).
Efficient Filterless Cooling with Heat Sinks
Each LED unit has a discrete heat-sink to pull heat from the light source. Thanks to high-efficiency airflow and hermetically sealed DMD block, a consumable air-filter is not required, and there are no lamps to replace. This saves administrators on spare-part inventories, callouts, and maintenance over years of projection.
Dustproof DMD Block Helps Maintain Image Quality
The new wheel-less light-engine created an opportunity to further refine the structural sealing around the DMD block so that dust intrusion is impossible. Hermetically sealed optical block maintains picture quality in even the dustiest environments, particularly high-traffic areas such as schools and offices.
Silent Operation Keeps Your People Focused
These wheel-less projectors are essentially inaudible when operated in Quiet Mode, generating just 24 dB* of sound. This minimizes distraction and keeps your audience alert even if the lights are dimmed.
* Projection noise is 27 dB in ECO Mode and 35 dB in NORMAL Mode.
No Wasted Time with Quick On/Quick Off
RGB LED light-engine supports instant image display when the projector is switched on and fast shut-down when switched off. Start your presentation immediately—no gradual picture fade-in as with lamp projectors, and no waiting for the unit to cool down when it’s time to leave. You can switch these projectors on and off whenever desired without risk of damage.
Additional Features
- ・ Built-in 10 W speaker, mic input, and variable audio output
- ・ Supports Closed Captions (CC) for broadcast content
- ・ Fade In/Fade Out Function and mechanical shutter
- ・ D-sub RGB inputs for PC, RCA video inputs, and monitor out
- ・ Adjustable feet and optional mounts/brackets for high/low ceilings
-
Custom Aspect Ratio
-
Native Resolution
-
Contrast Ratio
-
Throw Distance
-
Lens
-
Inputs
-
Outputs
-
Display Technology
-
Wireless Networking
-
Speakers
-
Economode
-
Audible Noise
-
Lamp Life
-
Short Throw
-
Aspect Ratio
-
Image Size Diagonal
-
Lens Shift
-
Data / Video Signals
-
Digital Keystone
-
Unit Weight
-
Projector Methods
-
Dimensions (WxDxH)
-
Inputs
-
Outputs
-
Dimensions
-
Aspect Ratio
