Key Features
- UHD 4K60 Video
- 20x Optical Zoom
- 75.1° Wide Field View
- 12G-SDI HDMI Fiber And IP
- PoE++ Simplifies Installation
1
/
3
1
3
Product Summary

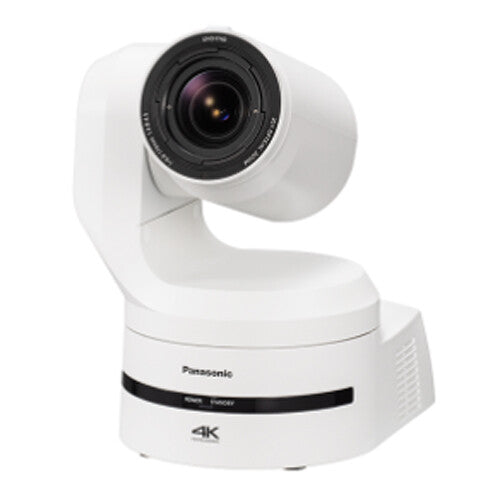

Panasonic AW-UE160 UHD 4K 20x PTZ Camera with 1" MOS Sensor – White
The Panasonic AW-UE160 UHD 4K PTZ Camera – White is a high-performance professional camera built for broadcast, live production, sports, houses of worship, corporate events, education, and remote production. Featuring a large 1" type 9.62MP MOS sensor, UHD 4K60 imaging, 20x optical zoom, improved phase-detection autofocus, and a wide 75.1° horizontal viewing angle, the AW-UE160 delivers detailed images and flexible camera coverage for demanding professional workflows.
With 12G-SDI, HDMI, optical fiber, and IP transmission, the AW-UE160 can integrate into both traditional and network-based production systems. Additional capabilities including HDR with HLG/BT.2020, 2x high-speed capture, RTMP live streaming, PoE++, dual XLR audio inputs, and front/rear tally lamps make it a versatile choice for sophisticated multi-camera installations.
Large 1" Type MOS Sensor
The AW-UE160 features a large 1" type MOS image sensor with approximately 9.62 megapixels of effective resolution.
The large-format sensor provides the imaging performance required for detailed UHD 4K production while helping the camera produce strong results across challenging professional lighting environments.
UHD 4K60 Video
The AW-UE160 supports professional UHD 4K video at up to 60p, providing detailed images and smooth reproduction of movement.
It can accommodate workflows requiring UHD 4K and 1080 output simultaneously, providing greater flexibility when integrating the camera into production environments using multiple video formats.
1600 TV Lines Horizontal Resolution
With horizontal resolution rated at up to 1600 TV lines, the AW-UE160 is designed to reproduce fine image detail for demanding professional video applications.
Combined with its large 1" sensor and UHD 4K capabilities, this high resolving performance makes the camera suitable for broadcast and high-end live production.
Powerful 20x Optical Zoom
A professional 20x optical zoom provides the reach needed to capture distant presenters, performers, athletes, speakers, and other subjects while maintaining optical image quality.
The extended zoom range makes the AW-UE160 particularly useful in:
- Large auditoriums
- Sports venues
- Houses of worship
- Broadcast studios
- Concert venues
- Lecture halls
- Corporate event spaces
- Live-production environments
Wide 75.1° Horizontal Viewing Angle
The AW-UE160 provides a wide 75.1° horizontal viewing angle, allowing operators to capture broad scenes when the lens is at its widest position.
Combining this wide field of view with 20x optical zoom gives production teams the flexibility to move between expansive establishing shots and tightly framed close-ups.
Improved Phase-Detection Autofocus
An improved phase-detection autofocus system helps the AW-UE160 maintain accurate focus during professional productions.
Fast autofocus performance is particularly valuable when tracking presenters, performers, athletes, or other subjects moving throughout the scene.
2x High-Speed Capture
Support for 2x high-speed capture expands the camera's capabilities when recording fast-moving subjects.
This feature makes the AW-UE160 especially useful for sports, live entertainment, performances, and other productions where smooth reproduction of rapid motion is important.
High-Speed Pan & Tilt
The AW-UE160 provides high-performance PTZ movement at speeds of up to 180° per second.
Fast pan and tilt operation allows production teams to quickly reposition the camera between subjects and preset positions during dynamic multi-camera productions.
Professional 12G-SDI Output
Integrated 12G-SDI connectivity provides a high-bandwidth professional video interface suitable for UHD 4K broadcast and live-production workflows.
This allows the camera to integrate with compatible professional switchers, routers, recorders, and other SDI-based production equipment.
HDMI Video Output
An integrated HDMI output provides additional connectivity for compatible displays, video switchers, recorders, capture devices, and other AV equipment.
This flexibility allows the AW-UE160 to accommodate both traditional broadcast infrastructure and conventional professional AV systems.
Optical Fiber Transmission
Support for optical fiber connectivity provides an additional transmission option for large-scale professional production environments.
Fiber is particularly useful in stadiums, performance venues, broadcast facilities, and other installations where video signals may need to travel significant distances.
Professional IP Transmission
The AW-UE160 supports IP-based video transmission, making it suitable for modern network-based and remote-production workflows.
Network connectivity provides greater flexibility when cameras, operators, and production equipment are distributed throughout a facility or located remotely.
HDR with HLG & BT.2020
Support for HDR with HLG and BT.2020 compatibility allows the AW-UE160 to accommodate professional HDR production workflows.
HDR capability provides greater flexibility when capturing scenes with demanding contrast, bright highlights, and a broad range of color information.
RTMP Live Streaming
Integrated RTMP streaming allows the AW-UE160 to distribute live video through compatible streaming platforms and services.
This makes the camera suitable for:
- Live events
- Worship services
- Corporate broadcasts
- Online education
- Sports
- Presentations
- Streaming productions
Dual XLR Audio Inputs
The AW-UE160 provides two professional XLR audio inputs, allowing compatible microphones, mixers, and other professional audio sources to be incorporated into the production workflow.
This helps create a more complete video and audio solution for broadcast, streaming, and live-production applications.
Front & Rear Tally Lamps
Integrated front and rear tally lamps provide clear camera-status indications during multi-camera productions.
Tally functionality allows presenters, performers, camera operators, and production personnel to quickly identify which camera is currently active.
PoE++ Connectivity
PoE++ compatibility can simplify installation by allowing compatible network infrastructure to provide power to the camera through Ethernet connectivity.
Reducing the need for separate power cabling at the camera location can help create cleaner and more efficient professional installations.
Flexible Shutter Control
The AW-UE160 provides shutter speeds ranging from approximately 1/48 to 1/2000 second.
Flexible shutter adjustment gives operators greater control when capturing moving subjects or working under different lighting conditions.
Professional White Finish
The white finish allows the AW-UE160 to blend more discreetly into environments with light-colored ceilings, walls, and architectural elements.
This makes it especially attractive for houses of worship, corporate spaces, auditoriums, educational facilities, and other installations where visual integration is important.
Panasonic AW-UE160WPJ UHD 4K 20x PTZ Camera (White)
Authorized Dealer
Authorized
Panasonic
Dealer
Manufacturer Warranty
Authorized dealer coverage
Expert Support
Pre- and post-sale assistance
$15,270.00
BACK 2 SCHOOL SALE | additional discount in cart
Panasonic AW-UE160WPJ UHD 4K 20x PTZ Camera (White)
$15,270.00
In Stock
Current availability for this model
Free Ground Shipping
On qualifying orders to the lower 48 states
Project & Volume Pricing
Special pricing available for larger orders
Education & Government Purchase Orders
Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available
Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available
Best For
- 🎓 Education
- 🏢 Corporate Collaboration
- ⛪ House of Worship
- 🏛️ Government
Product Description
Panasonic AW-UE160 UHD 4K 20x PTZ Camera with 1" MOS Sensor – White
The Panasonic AW-UE160 UHD 4K PTZ Camera – White is a high-performance professional camera built for broadcast, live production, sports, houses of worship, corporate events, education, and remote production. Featuring a large 1" type 9.62MP MOS sensor, UHD 4K60 imaging, 20x optical zoom, improved phase-detection autofocus, and a wide 75.1° horizontal viewing angle, the AW-UE160 delivers detailed images and flexible camera coverage for demanding professional workflows.
With 12G-SDI, HDMI, optical fiber, and IP transmission, the AW-UE160 can integrate into both traditional and network-based production systems. Additional capabilities including HDR with HLG/BT.2020, 2x high-speed capture, RTMP live streaming, PoE++, dual XLR audio inputs, and front/rear tally lamps make it a versatile choice for sophisticated multi-camera installations.
Large 1" Type MOS Sensor
The AW-UE160 features a large 1" type MOS image sensor with approximately 9.62 megapixels of effective resolution.
The large-format sensor provides the imaging performance required for detailed UHD 4K production while helping the camera produce strong results across challenging professional lighting environments.
UHD 4K60 Video
The AW-UE160 supports professional UHD 4K video at up to 60p, providing detailed images and smooth reproduction of movement.
It can accommodate workflows requiring UHD 4K and 1080 output simultaneously, providing greater flexibility when integrating the camera into production environments using multiple video formats.
1600 TV Lines Horizontal Resolution
With horizontal resolution rated at up to 1600 TV lines, the AW-UE160 is designed to reproduce fine image detail for demanding professional video applications.
Combined with its large 1" sensor and UHD 4K capabilities, this high resolving performance makes the camera suitable for broadcast and high-end live production.
Powerful 20x Optical Zoom
A professional 20x optical zoom provides the reach needed to capture distant presenters, performers, athletes, speakers, and other subjects while maintaining optical image quality.
The extended zoom range makes the AW-UE160 particularly useful in:
- Large auditoriums
- Sports venues
- Houses of worship
- Broadcast studios
- Concert venues
- Lecture halls
- Corporate event spaces
- Live-production environments
Wide 75.1° Horizontal Viewing Angle
The AW-UE160 provides a wide 75.1° horizontal viewing angle, allowing operators to capture broad scenes when the lens is at its widest position.
Combining this wide field of view with 20x optical zoom gives production teams the flexibility to move between expansive establishing shots and tightly framed close-ups.
Improved Phase-Detection Autofocus
An improved phase-detection autofocus system helps the AW-UE160 maintain accurate focus during professional productions.
Fast autofocus performance is particularly valuable when tracking presenters, performers, athletes, or other subjects moving throughout the scene.
2x High-Speed Capture
Support for 2x high-speed capture expands the camera's capabilities when recording fast-moving subjects.
This feature makes the AW-UE160 especially useful for sports, live entertainment, performances, and other productions where smooth reproduction of rapid motion is important.
High-Speed Pan & Tilt
The AW-UE160 provides high-performance PTZ movement at speeds of up to 180° per second.
Fast pan and tilt operation allows production teams to quickly reposition the camera between subjects and preset positions during dynamic multi-camera productions.
Professional 12G-SDI Output
Integrated 12G-SDI connectivity provides a high-bandwidth professional video interface suitable for UHD 4K broadcast and live-production workflows.
This allows the camera to integrate with compatible professional switchers, routers, recorders, and other SDI-based production equipment.
HDMI Video Output
An integrated HDMI output provides additional connectivity for compatible displays, video switchers, recorders, capture devices, and other AV equipment.
This flexibility allows the AW-UE160 to accommodate both traditional broadcast infrastructure and conventional professional AV systems.
Optical Fiber Transmission
Support for optical fiber connectivity provides an additional transmission option for large-scale professional production environments.
Fiber is particularly useful in stadiums, performance venues, broadcast facilities, and other installations where video signals may need to travel significant distances.
Professional IP Transmission
The AW-UE160 supports IP-based video transmission, making it suitable for modern network-based and remote-production workflows.
Network connectivity provides greater flexibility when cameras, operators, and production equipment are distributed throughout a facility or located remotely.
HDR with HLG & BT.2020
Support for HDR with HLG and BT.2020 compatibility allows the AW-UE160 to accommodate professional HDR production workflows.
HDR capability provides greater flexibility when capturing scenes with demanding contrast, bright highlights, and a broad range of color information.
RTMP Live Streaming
Integrated RTMP streaming allows the AW-UE160 to distribute live video through compatible streaming platforms and services.
This makes the camera suitable for:
- Live events
- Worship services
- Corporate broadcasts
- Online education
- Sports
- Presentations
- Streaming productions
Dual XLR Audio Inputs
The AW-UE160 provides two professional XLR audio inputs, allowing compatible microphones, mixers, and other professional audio sources to be incorporated into the production workflow.
This helps create a more complete video and audio solution for broadcast, streaming, and live-production applications.
Front & Rear Tally Lamps
Integrated front and rear tally lamps provide clear camera-status indications during multi-camera productions.
Tally functionality allows presenters, performers, camera operators, and production personnel to quickly identify which camera is currently active.
PoE++ Connectivity
PoE++ compatibility can simplify installation by allowing compatible network infrastructure to provide power to the camera through Ethernet connectivity.
Reducing the need for separate power cabling at the camera location can help create cleaner and more efficient professional installations.
Flexible Shutter Control
The AW-UE160 provides shutter speeds ranging from approximately 1/48 to 1/2000 second.
Flexible shutter adjustment gives operators greater control when capturing moving subjects or working under different lighting conditions.
Professional White Finish
The white finish allows the AW-UE160 to blend more discreetly into environments with light-colored ceilings, walls, and architectural elements.
This makes it especially attractive for houses of worship, corporate spaces, auditoriums, educational facilities, and other installations where visual integration is important.
Technical Details
Specifications
Resolution
4K
Optical Zoom
20x

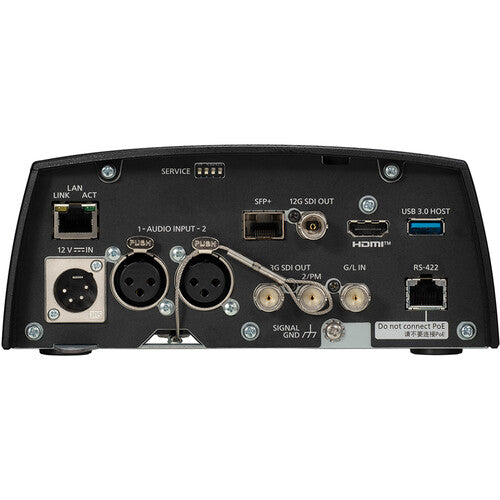

Output
1 x RJ45 (LAN) Control 1 x RJ45 (RS-422)
Audio Input
2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input
Power
1 x XLR 4-Pin (12VDC at 1.5 A) Input
