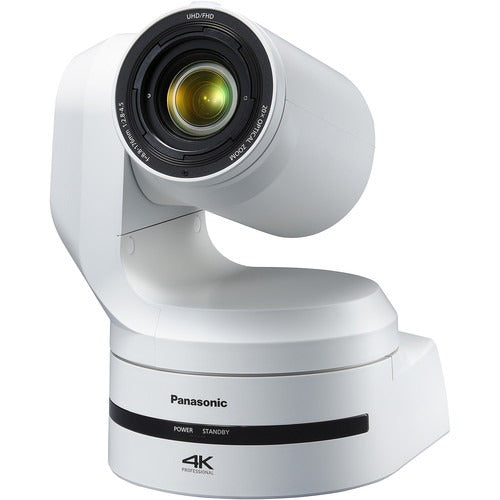

Panasonic AW-UE150AKPJ UHD 4K 20x PTZ Camera (White, 4-Pack)

Panasonic AW-UE150AWPJ UHD 4K60 PTZ Camera with 20x Optical Zoom & OLPF – White

The Panasonic AW-UE150AWPJ UHD 4K PTZ Camera brings professional 4K imaging, advanced IP production capabilities, and intelligent camera operation to broadcast studios, live events, corporate production, houses of worship, education, virtual production, and LED-wall environments. Built around a large 1" type MOS sensor, the AW-UE150AWPJ captures video at up to UHD 4K 60p and combines a powerful 20x optical zoom with a wide 75.1° angle of view.

Extensive connectivity includes 12G-SDI, 3G-SDI, HDMI, optical fiber, NDI High Bandwidth, NDI|HX2, and IP streaming. An integrated Optical Low-Pass Filter (OLPF) helps reduce moiré when shooting LED displays, while built-in auto tracking, improved PTZ synchronization, V-Log, HDR, FreeD, optical image stabilization, and PoE++ provide the advanced functionality required for modern professional productions.

Large 1" Type MOS Sensor

The AW-UE150AWPJ features a large 1" type MOS sensor designed to produce detailed, professional-quality images for demanding UHD production.

The large sensor makes the camera well suited for broadcast, studio, corporate, event, worship, education, and other professional video environments.

UHD 4K60 Video

Supporting resolutions up to UHD 4K at 60p, the AW-UE150AWPJ delivers detailed video with smooth reproduction of moving subjects.

4K60 imaging provides the image quality and motion performance needed for live events, performances, sports, presentations, and professional broadcast applications.

Powerful 20x Optical Zoom

An integrated 20x optical zoom lens provides substantial reach for capturing subjects across large studios, stages, auditoriums, and venues.

Operators can smoothly move between wide establishing shots and detailed close-ups without physically repositioning the camera.

Wide 75.1° Angle of View

At its wide setting, the AW-UE150AWPJ provides a 75.1° angle of view, enabling broad coverage from a single installed camera position.

The combination of wide-angle coverage and 20x optical zoom gives production teams considerable flexibility when framing both large scenes and individual subjects.

Optical Low-Pass Filter

An integrated Optical Low-Pass Filter (OLPF) helps reduce the moiré patterns that can occur when capturing fine repeating patterns.

This feature is particularly valuable when presenters or performers are positioned in front of LED video walls, where pixel structures can otherwise create distracting visual artifacts.

Optimized for LED Wall Production

The integrated OLPF makes the AW-UE150AWPJ an excellent fit for productions incorporating LED walls and large digital displays.

It helps provide cleaner images in broadcast studios, corporate stages, virtual-production environments, live events, and other applications where LED displays frequently appear on camera.

Professional 12G-SDI Output

Integrated 12G-SDI provides a professional interface for transporting UHD 4K video through compatible SDI production infrastructure.

The camera can connect directly with compatible professional switchers, routers, recorders, monitors, and other production equipment.

3G-SDI Connectivity

The AW-UE150AWPJ also provides 3G-SDI connectivity, expanding integration options for professional HD production and monitoring environments.

HDMI Video Output

Integrated HDMI output provides additional connectivity with compatible video switchers, displays, recorders, capture devices, and other AV equipment.

Optical Fiber Connectivity

Support for optical fiber expands the camera's flexibility for professional production environments and larger venue installations.

Fiber connectivity is especially useful where cameras need to integrate into extensive professional video infrastructure.

Integrated NDI High Bandwidth

The AW-UE150AWPJ includes NDI High Bandwidth support for high-quality professional network video production.

Built-in support includes UHD 4K NDI streaming, providing low-latency network video for compatible production systems.

Integrated NDI|HX2

The camera also incorporates NDI|HX2 connectivity, giving production teams another option for transporting video over compatible IP networks.

Support for both NDI High Bandwidth and NDI|HX provides greater flexibility when balancing image quality, network bandwidth, and production requirements.

Professional IP Streaming

Integrated IP streaming allows the AW-UE150AWPJ to operate within modern network-based video-production environments.

This makes the camera suitable for centralized production, remote production, live streaming, and distributed professional AV systems.

RTMP Live Streaming

The AW-UE150AWPJ supports RTMP streaming, allowing it to integrate with compatible live-streaming workflows.

This capability expands its usefulness for corporate broadcasts, worship services, events, education, and other applications delivering live video over networks.

V-Log Output

The AW-UE150AWPJ supports V-Log, providing wide dynamic range and wide color gamut capabilities for professional production and post-production workflows.

V-Log helps production teams integrate footage from the PTZ camera with Panasonic VariCam and other compatible cameras where image matching and professional color grading are important.

Simultaneous V-Log & V-709

V-Log can be output through 12G-SDI, 3G-SDI, monitor output, and HDMI, while the camera can simultaneously provide V-709 for monitoring.

This enables production teams to monitor a conventional image on set while retaining V-Log output for post-production color grading.

HLG HDR Support

The AW-UE150AWPJ supports HLG high dynamic range imaging, helping retain more detail across bright highlights and darker areas of an image.

HDR provides more nuanced reproduction when shooting environments with challenging differences in brightness.

BT.2020 Color Gamut

Support for the BT.2020 color gamut provides the expanded color capabilities required for compatible UHD and HDR production workflows.

Optical Image Stabilization

Integrated Optical Image Stabilization (OIS) helps compensate for unwanted vibration affecting the camera or mounting surface.

OIS can reduce visible movement caused by nearby audio systems, equipment, doors, stages, or other sources of vibration.

Fast 180°/Second PTZ Movement

In high-speed mode, the AW-UE150AWPJ supports pan and tilt speeds of up to 180° per second.

Fast positioning allows operators to rapidly move between subjects and predetermined camera angles during dynamic live productions.

Improved PTZ Synchronization

Enhanced PTZ synchronization provides improved coordination of pan, tilt, and zoom movements.

More coordinated camera movement helps create smooth, professional-looking transitions when PTZ movement is visible during a production.

Built-In Auto Tracking

Integrated auto tracking allows the AW-UE150AWPJ to automatically follow a selected subject.

This functionality can reduce the need for continuous manual PTZ operation during presentations, lectures, corporate events, worship services, and other productions.

FreeD Protocol Support

The AW-UE150AWPJ supports the FreeD protocol, enabling pan, tilt, zoom, and iris data to be transmitted directly to compatible tracking systems through RS-422 or UDP/IP.

This allows the PTZ camera to integrate with virtual-production systems without requiring a separate external tracking encoder.

AR/VR & Virtual Production

FreeD support makes the AW-UE150AWPJ particularly valuable for augmented reality, virtual reality, and virtual-production workflows.

Camera movement data can be synchronized with compatible graphics and tracking systems to integrate virtual elements with live camera movements.

UHD Crop Function

The camera's UHD crop functionality can create multiple HD compositions from a single 4K image.

Production teams can select up to three different angles from one UHD source, helping create a multi-camera appearance without requiring three separate physical cameras.

Multi-Camera Look from One Camera

The cropping feature allows different sections of the 4K image to function as individual HD compositions.

Operators can also zoom into the cropped area, providing additional flexibility for presentations, lectures, events, and other productions requiring multiple viewpoints.

Built-In ND Filters

Integrated 1/4, 1/16, and 1/64 ND filters provide greater exposure control in environments with varying levels of illumination.

The built-in filters give operators greater flexibility when adapting the camera to bright production environments.

Infrared Night Mode

The AW-UE150AWPJ incorporates Night Mode for specialized low-light applications.

Night Mode enables monochrome HD video capture under extremely limited visible light, making it useful for specialized production and wildlife applications.

Embedded & External Audio

The camera supports embedded audio along with external audio through a 3.5mm stereo input.

This provides flexibility when incorporating microphones and other audio sources into professional production and streaming workflows.

Redesigned Web Interface

A redesigned web interface provides convenient remote access to camera settings and operation.

The interface is compatible with PCs, Macs, tablets, and Android and iOS smartphones, giving production teams multiple options for camera configuration and management.

Adjustable Tally Light

An integrated adjustable tally light provides a clear indication of camera status during multi-camera productions.

This helps presenters, performers, operators, and production personnel identify which camera is currently active.

PoE++ Support

The AW-UE150AWPJ supports PoE++ based on IEEE 802.3bt, allowing power to be supplied through compatible network infrastructure.

Using a compatible PoE++ hub can reduce dedicated power cabling and simplify installation, particularly for cameras mounted in difficult-to-access locations.

Professional White Finish

The AW-UE150AWPJ features a white finish, providing a clean and discreet appearance for corporate spaces, houses of worship, educational facilities, conference environments, and other architecturally sensitive installations.
