Key Features
- Full HD 1080p60 Video
- 20x Optical Zoom
- 32x Intelligent Zoom
- 3G-SDI HDMI And IP
- PoE+ With Secure SRT Streaming
1
/
3
1
3
Product Summary

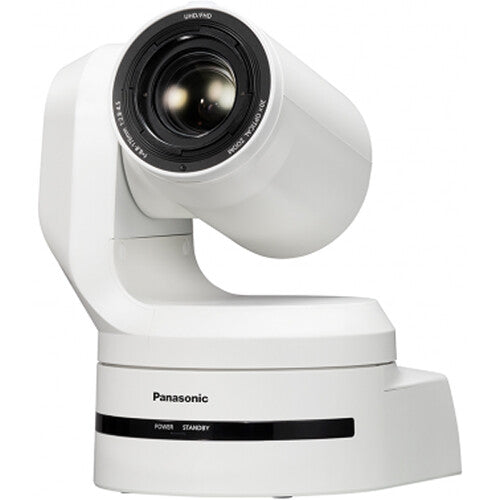

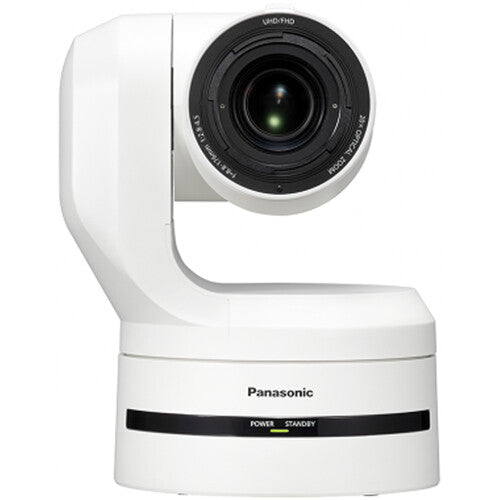

Panasonic AW-HE145 Full HD PTZ Camera with 20x Optical Zoom – White
The Panasonic AW-HE145 Full HD PTZ Camera is a professional remote camera designed for broadcast, education, houses of worship, corporate production, conference rooms, live events, and remote production. Built around a large 1" Full HD MOS sensor, the AW-HE145 delivers video up to 1080p60 while providing strong low-light performance, HDR functionality, and flexible remote operation.
A versatile 20x optical zoom lens, 32x iZoom, HDMI, 3G-SDI, and IP video outputs provide the flexibility required for professional AV and production environments. The camera also supports SRT, RTMP, H.265/H.264/MJPEG compression, PoE+, browser-based control, Night Mode, and optional NDI|HX, making it a powerful solution for organizations building reliable remote and network-based video workflows.
Large 1" Full HD MOS Sensor
The AW-HE145 features a 1" MOS image sensor designed to provide high-quality Full HD imaging across demanding professional applications.
The large sensor helps the camera deliver detailed images while providing strong performance in challenging lighting environments.
Full HD 1080p60 Video
The AW-HE145 supports professional video output at resolutions up to Full HD 1080p60, providing smooth reproduction of motion for live production, presentations, worship services, education, and corporate events.
Multiple output options allow the camera to integrate into both traditional and IP-based production systems.
Powerful 20x Optical Zoom
An integrated 20x optical zoom lens provides substantial reach for capturing presenters, instructors, performers, speakers, and other subjects from across large spaces.
The lens offers an 8.8 to 176mm focal length, equivalent to approximately 24.5 to 490mm in 35mm format.
32x iZoom & 10x Digital Zoom
When additional magnification is required, the AW-HE145 provides:
- 20x optical zoom
- Up to 32x iZoom
- Up to 10x digital zoom
These capabilities give operators extensive framing flexibility when capturing subjects at varying distances.
High Dynamic Range
The camera's High Dynamic Range (HDR) function helps improve image reproduction in scenes containing significant differences between bright and dark areas.
HDR is particularly useful when capturing subjects positioned in challenging backlit environments.
Night Mode
Integrated Night Mode expands the AW-HE145's capabilities for low-light shooting.
Night Mode can be activated manually or automatically, allowing the camera to capture scenes in lighting conditions where conventional shooting may be difficult.
This capability makes the camera useful for specialized applications such as wildlife observation as well as professional environments with limited illumination.

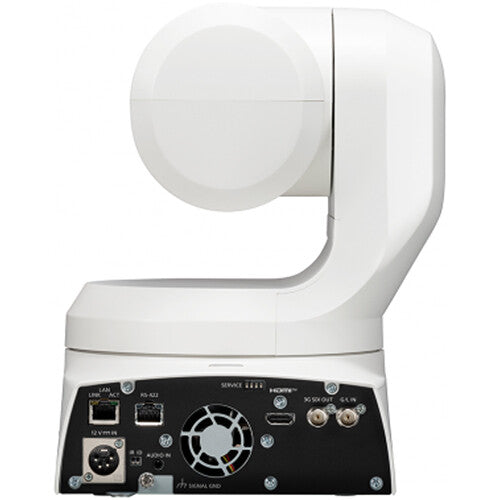

Professional 3G-SDI Output
A 3G-SDI output enables integration with compatible professional video switchers, recorders, routers, and other production equipment.
SDI connectivity makes the AW-HE145 suitable for professional broadcast, live-production, and AV infrastructures.
HDMI Video Output
An integrated HDMI output provides additional connectivity with compatible displays, switchers, recorders, and video capture equipment.
The combination of HDMI and 3G-SDI gives system designers greater flexibility when integrating the camera into existing AV environments.
Professional IP Video
Integrated RJ45 LAN connectivity enables IP video transmission and remote camera operation across compatible networks.
IP connectivity can help reduce system complexity while making centralized camera operation and remote production easier to implement.
SRT Video Streaming
The AW-HE145 supports SRT, a network video transmission protocol designed for reliable and secure video transport.
SRT is particularly valuable for remote-production and streaming environments where video must be transmitted across networks that may experience changing conditions.
RTMP Streaming
Support for RTMP streaming allows the AW-HE145 to integrate with compatible online video and streaming workflows.
Combined with the camera's IP connectivity, RTMP provides another option for distributing professional Full HD video over a network.
H.265, H.264 & MJPEG Compression
The AW-HE145 supports multiple video compression formats, including:
- H.265
- H.264
- MJPEG
Multiple encoding options provide additional flexibility when integrating the camera into different IP streaming and monitoring environments.
Optional NDI|HX Support
The AW-HE145 can be upgraded for NDI|HX compatibility through an optional license.
NDI|HX enables high-quality, bandwidth-efficient video transmission across compatible IP networks, providing another option for professional network-based production.
Browser-Based Remote Control
Using a compatible IP browser, operators can remotely control the AW-HE145 and monitor IP video from a computer or mobile device.
Remote browser operation can be performed using devices such as:
- Desktop computers
- Laptops
- Smartphones
- Tablets
This provides greater flexibility for remote production and centralized camera management.
Professional PTZ Control
The AW-HE145 provides extensive remote pan, tilt, and zoom functionality for professional production environments.
Its PTZ range includes:
- Pan range up to ±175°
- Tilt range from -30° to +90°
- 20x optical zoom
- RS-422 serial control
These capabilities allow operators to cover large production spaces from a fixed camera location.
PoE+ Support
PoE+ compatibility allows compatible network infrastructure to provide power to the camera through the LAN connection.
Using network cabling for power can reduce the need for additional power wiring at the camera location, helping lower installation complexity and cost.
Stereo Mic/Line Audio Input
The AW-HE145 supports stereo analog mic/line audio input through a 3.5mm connection.
Audio can be embedded and encoded alongside the video signal, with audio output also supported through compatible IP workflows.
AAC-LC Audio Compression
Support for AAC-LC audio compression provides efficient audio encoding for compatible network-based video and streaming applications.
This allows professional video and audio to be incorporated into an integrated IP workflow.
Genlock Input
A dedicated genlock input enables the AW-HE145 to synchronize with compatible professional production systems.
This is particularly valuable in multi-camera environments where synchronization between video sources is required.
Built-In 4-Stage ND Filter
The AW-HE145 incorporates a 4-stage ND filter system, providing additional control when operating under varying lighting conditions.
ND filtration helps operators manage incoming light while maintaining appropriate camera and exposure settings.
Auto White Balance
Integrated automatic white balance helps the AW-HE145 maintain accurate and consistent color reproduction as lighting conditions change.
This simplifies camera operation in dynamic production environments where manual adjustments may not always be practical.
Auto Tracking Software Compatibility
The AW-HE145 is compatible with Panasonic Auto Tracking Software, providing an option for more automated camera operation.
With the appropriate software configuration, facial recognition and body detection can be used to help the camera automatically follow a subject around the room.
This can reduce the amount of manual camera operation required during lectures, presentations, and other single-presenter applications.
PTZ Control Center Compatibility
Compatibility with Panasonic's PTZ Control Center provides additional tools for controlling and managing compatible PTZ camera systems.
This can simplify workflows in installations using multiple remote cameras.
Panasonic Controller Compatibility
The AW-HE145 is compatible with a range of Panasonic professional camera controllers, including:
- Panasonic AW-RP150
- Panasonic AW-RP60
- Panasonic AK-HRP1000GJ
- Panasonic AK-HRP1015GJ
- Panasonic AK-HRP250GJ
This provides flexibility when incorporating the camera into existing Panasonic production environments.
Single-Cable Installation
Combining IP video, remote camera control, audio capabilities, and PoE+ helps simplify system wiring.
This network-based approach can reduce installation complexity and make it easier to deploy remote cameras across multiple locations.
Designed for Remote Production
The AW-HE145 provides the imaging, connectivity, streaming, and control capabilities required for professional remote-production workflows.
Browser-based management and IP video monitoring allow camera systems to be operated from remote locations, potentially reducing the need for production personnel at every camera location.
Panasonic AW-HE145WPJ Full-HD Professional PTZ Camera (White)
Authorized Dealer
Authorized
Panasonic
Dealer
Manufacturer Warranty
Authorized dealer coverage
Expert Support
Pre- and post-sale assistance
$8,995.00
BACK 2 SCHOOL SALE | additional discount in cart
Panasonic AW-HE145WPJ Full-HD Professional PTZ Camera (White)
$8,995.00
In Stock
Current availability for this model
Free Ground Shipping
On qualifying orders to the lower 48 states
Project & Volume Pricing
Special pricing available for larger orders
Education & Government Purchase Orders
Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available
Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available
Best For
- 🎓 Education
- 🏢 Corporate Collaboration
- ⛪ House of Worship
- 🏛️ Government
Product Description
Panasonic AW-HE145 Full HD PTZ Camera with 20x Optical Zoom – White
The Panasonic AW-HE145 Full HD PTZ Camera is a professional remote camera designed for broadcast, education, houses of worship, corporate production, conference rooms, live events, and remote production. Built around a large 1" Full HD MOS sensor, the AW-HE145 delivers video up to 1080p60 while providing strong low-light performance, HDR functionality, and flexible remote operation.
A versatile 20x optical zoom lens, 32x iZoom, HDMI, 3G-SDI, and IP video outputs provide the flexibility required for professional AV and production environments. The camera also supports SRT, RTMP, H.265/H.264/MJPEG compression, PoE+, browser-based control, Night Mode, and optional NDI|HX, making it a powerful solution for organizations building reliable remote and network-based video workflows.
Large 1" Full HD MOS Sensor
The AW-HE145 features a 1" MOS image sensor designed to provide high-quality Full HD imaging across demanding professional applications.
The large sensor helps the camera deliver detailed images while providing strong performance in challenging lighting environments.
Full HD 1080p60 Video
The AW-HE145 supports professional video output at resolutions up to Full HD 1080p60, providing smooth reproduction of motion for live production, presentations, worship services, education, and corporate events.
Multiple output options allow the camera to integrate into both traditional and IP-based production systems.
Powerful 20x Optical Zoom
An integrated 20x optical zoom lens provides substantial reach for capturing presenters, instructors, performers, speakers, and other subjects from across large spaces.
The lens offers an 8.8 to 176mm focal length, equivalent to approximately 24.5 to 490mm in 35mm format.
32x iZoom & 10x Digital Zoom
When additional magnification is required, the AW-HE145 provides:
- 20x optical zoom
- Up to 32x iZoom
- Up to 10x digital zoom
These capabilities give operators extensive framing flexibility when capturing subjects at varying distances.
High Dynamic Range
The camera's High Dynamic Range (HDR) function helps improve image reproduction in scenes containing significant differences between bright and dark areas.
HDR is particularly useful when capturing subjects positioned in challenging backlit environments.
Night Mode
Integrated Night Mode expands the AW-HE145's capabilities for low-light shooting.
Night Mode can be activated manually or automatically, allowing the camera to capture scenes in lighting conditions where conventional shooting may be difficult.
This capability makes the camera useful for specialized applications such as wildlife observation as well as professional environments with limited illumination.
Professional 3G-SDI Output
A 3G-SDI output enables integration with compatible professional video switchers, recorders, routers, and other production equipment.
SDI connectivity makes the AW-HE145 suitable for professional broadcast, live-production, and AV infrastructures.
HDMI Video Output
An integrated HDMI output provides additional connectivity with compatible displays, switchers, recorders, and video capture equipment.
The combination of HDMI and 3G-SDI gives system designers greater flexibility when integrating the camera into existing AV environments.
Professional IP Video
Integrated RJ45 LAN connectivity enables IP video transmission and remote camera operation across compatible networks.
IP connectivity can help reduce system complexity while making centralized camera operation and remote production easier to implement.
SRT Video Streaming
The AW-HE145 supports SRT, a network video transmission protocol designed for reliable and secure video transport.
SRT is particularly valuable for remote-production and streaming environments where video must be transmitted across networks that may experience changing conditions.
RTMP Streaming
Support for RTMP streaming allows the AW-HE145 to integrate with compatible online video and streaming workflows.
Combined with the camera's IP connectivity, RTMP provides another option for distributing professional Full HD video over a network.
H.265, H.264 & MJPEG Compression
The AW-HE145 supports multiple video compression formats, including:
- H.265
- H.264
- MJPEG
Multiple encoding options provide additional flexibility when integrating the camera into different IP streaming and monitoring environments.
Optional NDI|HX Support
The AW-HE145 can be upgraded for NDI|HX compatibility through an optional license.
NDI|HX enables high-quality, bandwidth-efficient video transmission across compatible IP networks, providing another option for professional network-based production.
Browser-Based Remote Control
Using a compatible IP browser, operators can remotely control the AW-HE145 and monitor IP video from a computer or mobile device.
Remote browser operation can be performed using devices such as:
- Desktop computers
- Laptops
- Smartphones
- Tablets
This provides greater flexibility for remote production and centralized camera management.
Professional PTZ Control
The AW-HE145 provides extensive remote pan, tilt, and zoom functionality for professional production environments.
Its PTZ range includes:
- Pan range up to ±175°
- Tilt range from -30° to +90°
- 20x optical zoom
- RS-422 serial control
These capabilities allow operators to cover large production spaces from a fixed camera location.
PoE+ Support
PoE+ compatibility allows compatible network infrastructure to provide power to the camera through the LAN connection.
Using network cabling for power can reduce the need for additional power wiring at the camera location, helping lower installation complexity and cost.
Stereo Mic/Line Audio Input
The AW-HE145 supports stereo analog mic/line audio input through a 3.5mm connection.
Audio can be embedded and encoded alongside the video signal, with audio output also supported through compatible IP workflows.
AAC-LC Audio Compression
Support for AAC-LC audio compression provides efficient audio encoding for compatible network-based video and streaming applications.
This allows professional video and audio to be incorporated into an integrated IP workflow.
Genlock Input
A dedicated genlock input enables the AW-HE145 to synchronize with compatible professional production systems.
This is particularly valuable in multi-camera environments where synchronization between video sources is required.
Built-In 4-Stage ND Filter
The AW-HE145 incorporates a 4-stage ND filter system, providing additional control when operating under varying lighting conditions.
ND filtration helps operators manage incoming light while maintaining appropriate camera and exposure settings.
Auto White Balance
Integrated automatic white balance helps the AW-HE145 maintain accurate and consistent color reproduction as lighting conditions change.
This simplifies camera operation in dynamic production environments where manual adjustments may not always be practical.
Auto Tracking Software Compatibility
The AW-HE145 is compatible with Panasonic Auto Tracking Software, providing an option for more automated camera operation.
With the appropriate software configuration, facial recognition and body detection can be used to help the camera automatically follow a subject around the room.
This can reduce the amount of manual camera operation required during lectures, presentations, and other single-presenter applications.
PTZ Control Center Compatibility
Compatibility with Panasonic's PTZ Control Center provides additional tools for controlling and managing compatible PTZ camera systems.
This can simplify workflows in installations using multiple remote cameras.
Panasonic Controller Compatibility
The AW-HE145 is compatible with a range of Panasonic professional camera controllers, including:
- Panasonic AW-RP150
- Panasonic AW-RP60
- Panasonic AK-HRP1000GJ
- Panasonic AK-HRP1015GJ
- Panasonic AK-HRP250GJ
This provides flexibility when incorporating the camera into existing Panasonic production environments.
Single-Cable Installation
Combining IP video, remote camera control, audio capabilities, and PoE+ helps simplify system wiring.
This network-based approach can reduce installation complexity and make it easier to deploy remote cameras across multiple locations.
Designed for Remote Production
The AW-HE145 provides the imaging, connectivity, streaming, and control capabilities required for professional remote-production workflows.
Browser-based management and IP video monitoring allow camera systems to be operated from remote locations, potentially reducing the need for production personnel at every camera location.
Technical Details
Specifications
Resolution
HD 1080
Optical Zoom
20x
Pan Angle
Pan: 350° (-175 to 175°)
Tilt Angle
Tilt: 240° (-30 to 210°)
Output
1 x BNC (Genlock) Output, 1 x 2-Pin Euroblock (IR) Input/Output, 1 x BNC (3G-SDI) Female, 1 x HDMI Type A Female, 1 x RJ45 Female
Audio Input
1 x 1/8" / 3.5 mm Stereo Mic/Line Level Input
Power
Power Supply: 4 A
Complete Your Solution
Controllers
Connectivity
Purchase Orders
We accept Purchase Orders from all Schools, Universities, Major Government Agencies and Not-for-profit Organizations within the United States and Canada Only. All Purchase Orders are subject to approval.
Simply email, fax or mail your purchase order and please ensure your P/O contains the following information:
- Contact name, email address & telephone number. Note: An email address is required to receive order/shipping confirmation.
- Billing name & address.
- Shipping address.
- Tax ID#. For tax exempt orders, please see the Tax Exempt information below.
- Purchase Order Number.
- Date needed. Please note: Up to 3–5 days are needed to process requests. This does not include delivery time.
- Authorized signature. Your purchase order can only be accepted when accompanied by the signature of the officer authorizing the purchase and when submitted on your organization's official purchase order form or letterhead.
- Purchase orders must be in excess of $75 excluding shipping. All prices are in USD.
- Sales tax is charged only on orders shipping to the state of Florida.
Submit Your Purchase Order
Please email completed purchase orders to Sales@OfficeWonderland.com .
You can also fax it to: (786) 916-5963
Or mail it to:
OfficeWonderland.comAttn: Purchase Orders
20400 NE 16th PL
North Miami Beach, FL 33179
Once we have all the information requested above, an account and order will be created.
Please Note
- Please allow 3–5 days for us to process requests.
- Confirmation emails are sent when the order is placed and another email is sent when the order ships.
- Please make all checks payable to OfficeWonderland Ltd. at the address referenced above.
- Payments on PO orders are due within 30 days.
Terms
We operate with a Net 30 Day payment arrangement for approved purchase orders. Payment is expected to be made in full not more than 30 days after your order is processed.
In the Box
- 📷 Panasonic AW-HE145WPJ PTZ Camera – Pearl White
- 🔩 Direct Ceiling / Installation Mount Bracket
- 🔗 Safety / Drop-Prevention Wire
- 🔩 Mounting Hardware
- 📖 Installation & Safety Documentation
- 🛡️ Panasonic Limited Manufacturer Warranty
