• 3840 x 2160 Resolution


• Brightness 350 cd/m2


• 24/7 Scheduler with Real Time Clock


• Orientation Landscape/Portrait

• Stylish and sleek design allows for easy and unobtrusive integration into any environment


• 350 cd/m² brightness combined with UHD resolution and new anti-reflective screen surface will capture the attention of the audience while allowing for clear visibility in higher ambient light conditions


• Future proof modular expansion options including the ability to integrate Open Pluggable Specification (OPS) or a Raspberry Pi Compute Modules seamlessly into the display


• SpectraView Engine allows for complete color, intensity, gamma or uniformity control for the ultimate imaging performance


• Integrated Media Player allows for audio, video or image playback via USB or SD card


• Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allows for hassle-free 24/7 operation


• Full 3 year commercial warranty to allow for peace of mind and protection of this investment

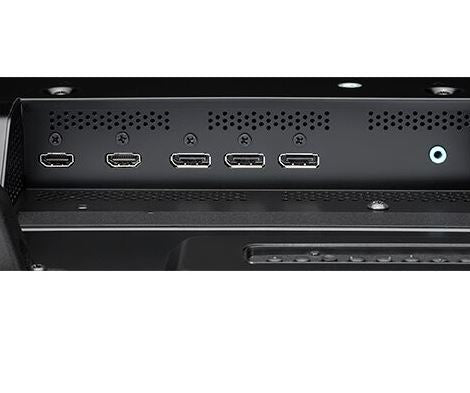

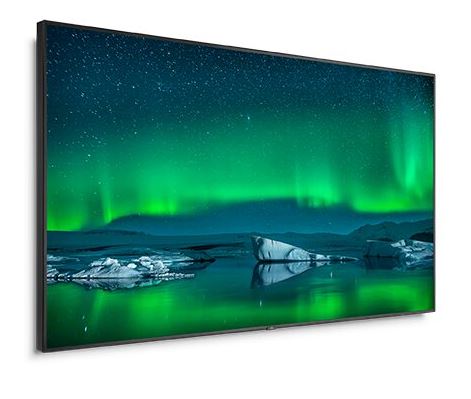

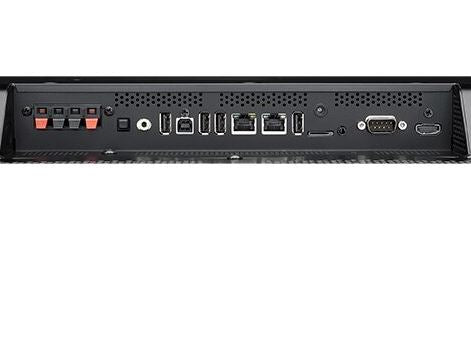

24/7 digital signage display with pre-installed Windows 10 PC, the 86" NEC C861Q-PC4 allows for clear, detailed imagery for unobtrusive digital signage. New contemporary and slim mechanical design with focused aesthetics allows for the smooth and stylistic integration into any type of environment while the full metal chassis coupled with real-time temperature sensors and integrated cooling fans maintain the professional quality necessary for commercial environments. With a wide range of the latest connectivity interfaces including HDMI 2.0 x3 and DisplayPort 1.2 x2/daisy chain option, these displays offer the future-proofing necessary for the investment. OPS specifications - AMD 2.1Ghz quad core, WIndows 10 IoT Enterprise, 4GB RAM, 64GB SSD, UHD supported

NEC LCD Professional Large Format Displays



Benefit from the UHD resolution viewing experience and HDR support* with 24/7 worry free operation at the lowest operational investment. The modern and slim design are the perfect fit for surrounding architecture whilst the suitable brightness output from 350 to 700 cd/m² along with the low reflection anti-glare surface offers superior visibility under common light conditions.

4K Quality and Large Screens Offer Overwhelming Appeal

The impressive large screens offer 4K (3,840 × 2,160) display, which is four times the resolution of Full HD. They precisely reproduce photos and video down to their fine details and bring overwhelming presence, realism, and depth to public spaces.

UHD Upscaling Function

The UHD upscaling function can display Full HD video signals at a quality-level equivalent to 4K, so many conventional content types can be displayed at high quality.



Increasing the resolution clarifies the unevenness of the wall, revealing a feeling of solidity and depth.

Modern and Slim Design

The new elegant slimline design provides unobtrusive integration into any application and environment. The simplicity of its shape supports an unhindered viewing experience ensuring that the screen content is the prevalent factor. Its reduced depth means that access to buildings and integration within interior design is straightforward and hassle-free.

Out of the Box Signage Solution

The integrated media player supports easy content playback and management for out-of-the box signage solutions that could not be simpler. Content can be transferred through the USB interface or a network connection.

Multi-Screen Display of Up to Four Screens Enables Display of Large Volumes of Information

The multi-screen function lets you divide the display and show separate input signals at the same time. Even when the display is divided into two, three, or four screens, there are various multi-screen functions using 4K ultra high resolution. In addition, the display provides a seamless 4K multi-screen environment by displaying four Full HD (1,920 × 1,080) screens at the same time.

Smart Expansion

An open platform modular approach is the smartest way to deliver tailor-made signage solutions, where scalable computing power such as Raspberry Pi compute modules or OPS* slot-in PCs are seamlessly embedded into the display.

SpectraView® Engine Precisely Recreates Colours with High Precision

3D lookup table

The display can reproduce colours more accurately because it is equipped with a 3D lookup table and unique colour conversion algorithm through its dedicated image processing. Various colour gamuts can be expressed precisely according to sRGB and other industry standards without calibration of each image-quality setting. In addition, display settings designed for different applications are preset at the factory as “Picture Mode” settings, so you can use a setting quickly by selecting it from the menu.

Support for MultiProfiler® Software to Easily Realize Various Emulation Functions

The display supports MultiProfiler®, NEC’s unique application software. Applying an ICC profile^* to the display easily enables advanced colour reproduction, and you can also create and save ICC profiles for displays that require colour management.



*ICC profile: A file established by the International Color Consortium (ICC) that lists the colour gamut of the device to determine how a specific device reproduces colour.
Files can be created for three main device types: displays, input devices (digital cameras, scanners, etc.) and output devices (printers, etc.).

NaViSet^® Administrator 2

This software is an all-in-one remote support solution that runs from a central location and provides monitoring, asset management and control of the majority of NEC display devices and Windows computers. It is ideal for multi-device installations over larger infrastructures.

Dedicated Colour Calibration Software^*

As the brightness and colour temperature of the LCD change with time, colours may not match across multiple screens. Our dedicated colour calibration software ensures colour uniformity and fidelity across multiple screens, creating a perfectly matched image in tiled environments.

^*NEC Display Wall Calibrator
