Product Summary

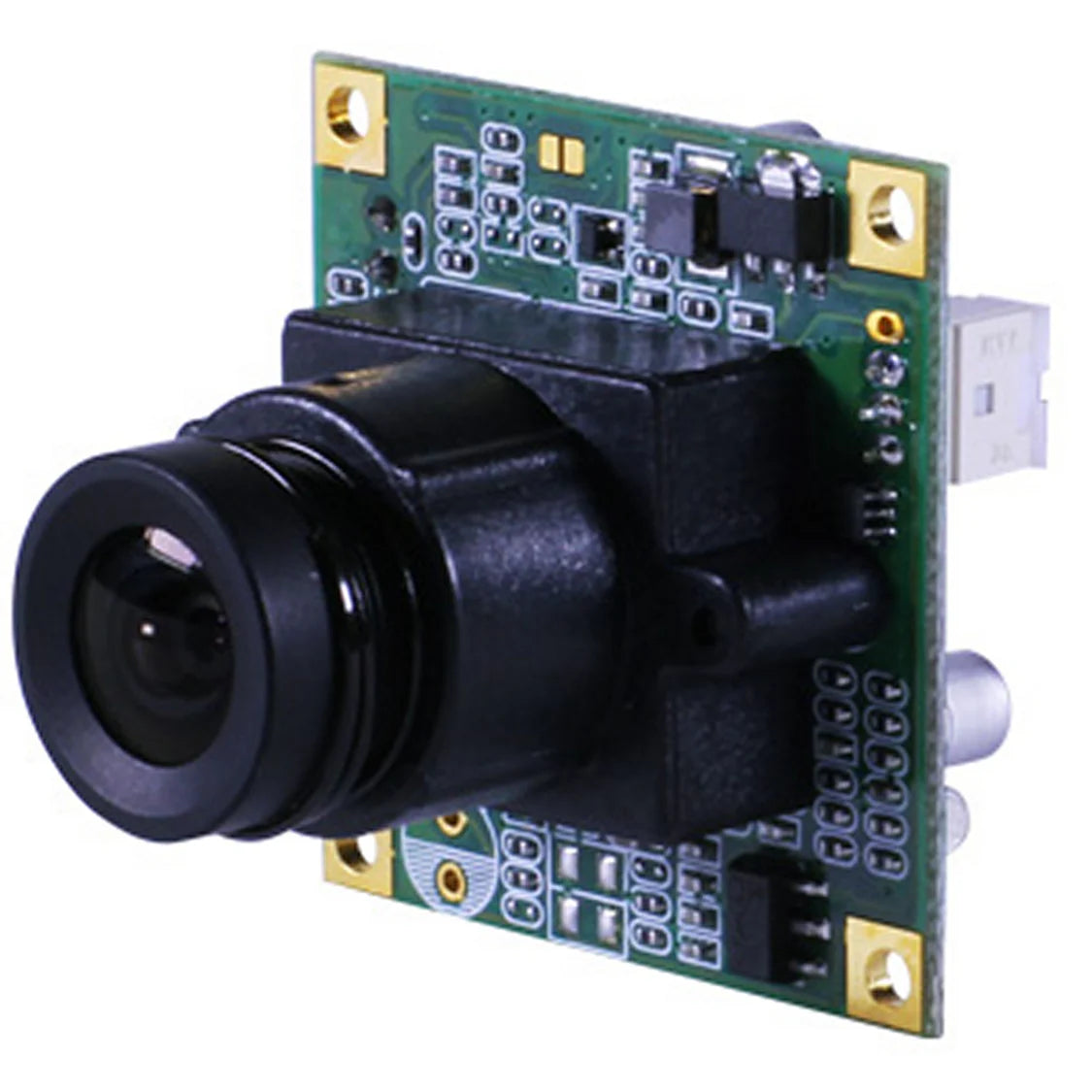

📷 Marshall V-1217-PCB-3.7 – High-Performance B&W Board Camera


⚙️ Key Features

  • 🔍 Image Sensor:
    1/3" Interline Transfer CCD for sharp monochrome imaging

  • 🖥️ Resolution:
    Delivers 420 TV lines of horizontal clarity

  • 🌙 Low-Light Capability:
    Operates down to 0.5 lux @ F2.0 for dim environments

  • 🔬 Near IR Performance:
    Captures up to 1,000nm wavelength with V-4700 Series Visible/IR Corrected lenses

  • 🔭 Lens Included:
    3.7mm F2.0 miniature M12 lens with 92° horizontal field of view (HFOV)

  • 🎛️ Auto Gain Control:
    Automatically adjusts gain for consistent brightness

  • ⚡ Electronic Shutter:
    Auto range from 1/60 to 1/100,000 sec for flexible light handling

  • 📺 Video Output:
    Outputs 1.0Vp-p composite signal at 75 ohm load

  • 🔌 Power Supply:
    12V DC ±10%, with low 1.2W power consumption

  • 📦 Compact Design:
    Measures just 1.26" x 1.26" x 1.18" (32mm x 32mm x 30mm)

  • ⚖️ Lightweight:
    Weighs only 0.6 oz (17g) for easy integration

  • 🌡️ Operating Temp:
    Reliable from -20°C to +50°C, suitable for various environments


🔄 Lens Compatibility

  • ✅ Works with Marshall V-4300 CCTV Series

  • ✅ Compatible with V-4400 HiRes Series

  • ✅ Optimized for V-4700 Visible/IR Corrected lenses


📦 What’s in the Box

  • 📸 Marshall V-1217-PCB-3.7 B&W Board Camera

  • 🔭 3.7mm F2.0 miniature M12 lens

Marshall Electronics V 1217 PCB 3.7 B&W Board Camera – High Res Low Light Performance

SKU: V1217PCB37 | UPC: 801813174625
Authorized Dealer Authorized Marshall Electronics Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$179.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Marshall Electronics V 1217 PCB 3.7 B&W Board Camera – High Res Low Light Performance $179.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available
Marshall Electronics

Marshall Electronics V 1217 PCB 3.7 B&W Board Camera – High Res Low Light Performance

$179.00
