Product Summary

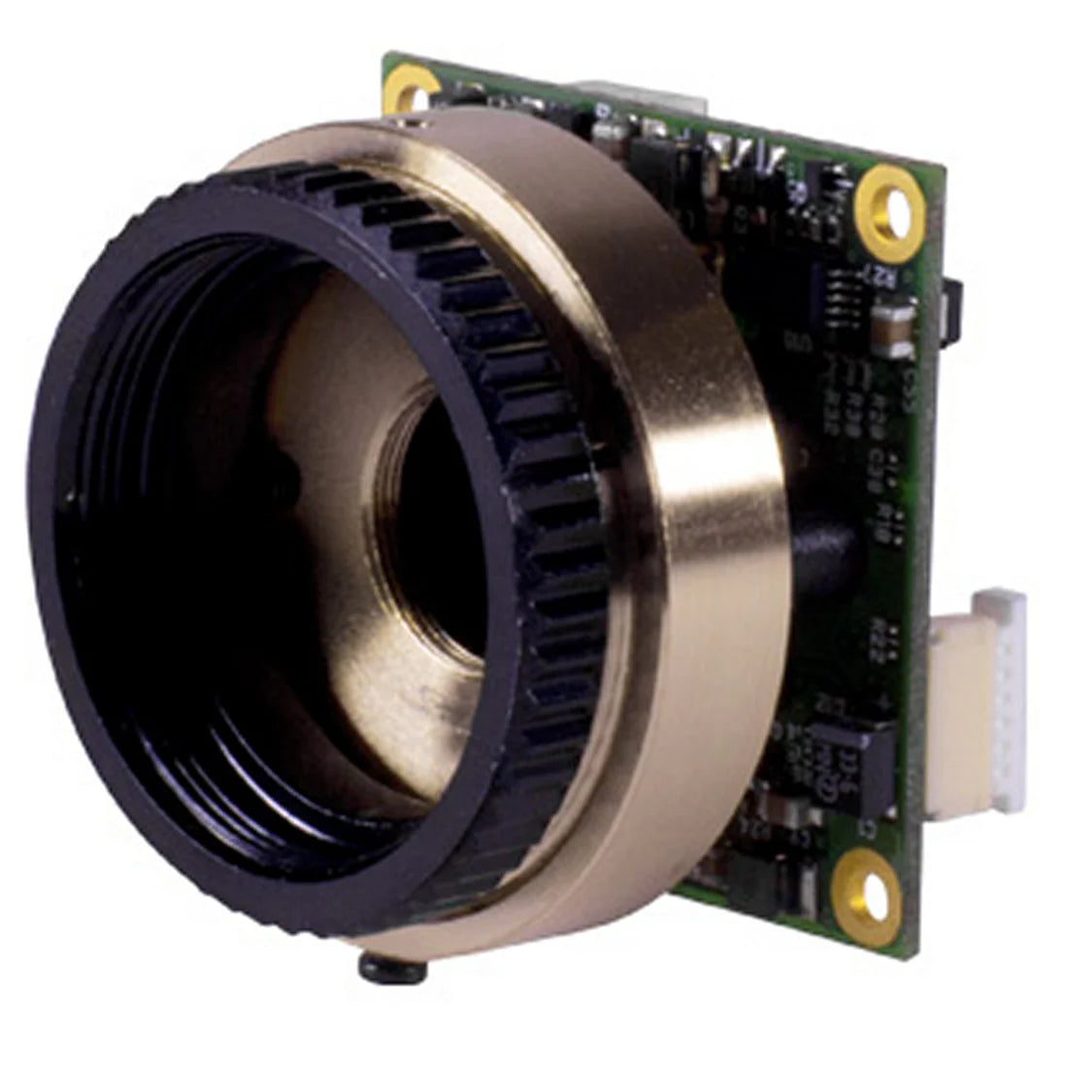

📷 Marshall V-1217-C/CS – Single Board Black & White Camera

High-performance compact camera designed for professional applications like OEM, industrial, scientific, security, and more.


⚙️ Key Features

  • 🔍 Image Sensor:
    1/3-inch CCD sensor delivers sharp black-and-white video

  • 🖥️ Resolution:
    Outputs 420 TV lines of high-quality video

  • 🌙 Low-Light Sensitivity:
    Captures clear images in dim conditions with just 0.03 lux @ F1.2

  • 🔌 Power Efficient:
    Runs on DC 12V ±10%, consuming only 1.2W

  • 🔄 Lens Compatibility:
    C/CS mount supports a variety of lenses (lens not included)

  • 🔍 2X Digital Zoom:
    Switchable for zoom-in clarity when needed

  • ⚡ Electronic Shutter:
    Fast and flexible, from 1/60 to 1/120,000 seconds

  • 📈 Auto Gain Control (AGC):
    Enabled for consistent exposure

  • 🪞 Mirror Function:
    Switchable for mirrored video output

  • 📺 Video Output:
    Composite 1.0V p-p at 75 ohm

  • 🌡️ Operating Temp Range:
    Performs reliably from -20°C to +50°C

  • 💧 Humidity Tolerance:
    Operates in environments up to 85% RH


🔬 Ideal For:

OEM integration, industrial processes, machine vision, medical imaging, scientific research, law enforcement, military, and security systems


🧾 Technical Specifications

  • 📦 Part Number: V-1217-C/CS

  • 📺 TV System: EIA (NTSC)

  • 📸 Total Pixels: 537(H) x 505(V)

  • 🌀 Scanning System: 525 lines, 60 fields/sec

  • 🔄 Sync System: Internal

  • 🔇 S/N Ratio: 52dB (min) / 60dB (typ) with AGC off

  • 🎛️ Gamma Correction: 0.45

  • 🕶️ Auto Iris: A.E.S. (Auto Electronic Shutter)


📦 What’s in the Box

  • Marshall V-1217-C/CS Single Board B&W Camera


📐 Dimensions

  • Board Size: 32mm x 32mm (1.26" x 1.26")

Marshall Electronics V 1217 C/CS CCD Sensor B&W Camera – Low Light Pro Imaging

SKU: V1217CCS | UPC: 801813174618
Authorized Dealer Authorized Marshall Electronics Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$189.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Marshall Electronics V 1217 C/CS CCD Sensor B&W Camera – Low Light Pro Imaging $189.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available
Marshall Electronics

Marshall Electronics V 1217 C/CS CCD Sensor B&W Camera – Low Light Pro Imaging

$189.00
