Product Summary


  • Capture and Stream up to 1080p60 Video

  • 5x Optical Zoom, 10x Digital Zoom

  • 85° Angle of View

  • 3G/HD-SDI and IP Video Output

  • RS-232/VISCA Serial Control



  • 2 Megapixel (HD) sensor

  • 5X Optical Zoom (3~15mm) - starting at 85° AOV

  • HD Resolution: 1920x1080p, 1920x1080i & 1280x720p

  • Resolution/Framerate choices:

    • 1920x1080p at 60/59.94/50/30/29.97/25fps

    • 1920x1080i at 60/59.94/50fps

    • 1280x720p at 60/59.94/50/30/29.97/25fps



  • Low Illumination capability at 0.5Lux (F1.8) for challenging environments

  • 3G-SDI (BNC) and IP (H.265/H.264) with RS232 via RJ45

  • Ethernet IP supports video, audio, control, and PoE (IEEE802.3af) over one Cat cable

  • Control Options: IR remote, GUI, VS-PTC-200 (RS232/RS422), VS-PTC-IP (IP/RS232/RS422) or Custom

  • 3.5mm audio (Line or Mic level) input (AAC, MP3, G.711A compression)


The CV605-WH 5X optical zoom 3GSDI camera makes use of a professional grade 2 Megapixel sensor to obtain crisp HD video beginning at a wide-angle 85° and up to 1920x1080p resolution at 60fps. Numerous available outputs consist of 3GSDI and IP (H.265/H.264). Marshall's simplistic design and east to use makes this camera an affordable camera for a wide array of broadcast and professional A/V applications. CV605-WH can be installed through the one-cable to camera setup which uses one Ethernet (CAT) cable to carry power, video, audio, and control over IP.


Ultra-Wide 85° with 5x Optical Zoom Range


The wide-angle optical zoom lens offers an impressive 85-degree angle-of-view through 20-degree (15mm) with smooth transition and an additional 10x digital zoom range.
Marshall Electronics CV605-WH 3GSDI + IP (Ethernet) Workflow Flexibility

3GSDI + IP (Ethernet) Workflow Flexibility

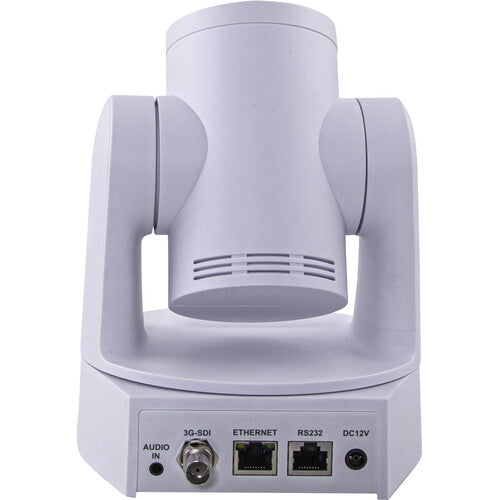

CV605-WH offers low latency 3GSDI (BNC) output as well as IP interface with multiple protocol supported. An IP interface provides easy one-cable setup with ethernet (Cat) cable handling video, audio, control and PoE (power).
Marshall Electronics CV605-WH Low-light Sensitivity

Low-light Sensitivity


The CV605-WH PTZ camera operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including live events, houses of worship, indoor or outdoor sporting events, and other dynamic lighting environments.
Marshall Electronics CV605-WH One Cable to Camera

One Cable to Camera


One cable to camera provides up to HD video, audio, control, and power (PoE) over one cable with IP (H.265/H.264) and 3GSDI simultaneous outputs with audio embedding.

Marshall Electronics CV605-WH Compact 3G-SDI/IP PTZ Camera with 5x Optical Zoom

SKU: CV605WH | UPC: 801813225266
Authorized Dealer Authorized Marshall Electronics Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$708.75

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Marshall Electronics CV605-WH Compact 3G-SDI/IP PTZ Camera with 5x Optical Zoom $708.75
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • Full HD 1080p60 Video
  • 5x Optical Zoom
  • 85° Ultra-Wide Field View
  • 3G-SDI And IP Outputs
  • One-Cable PoE And Control
Complete Your Solution

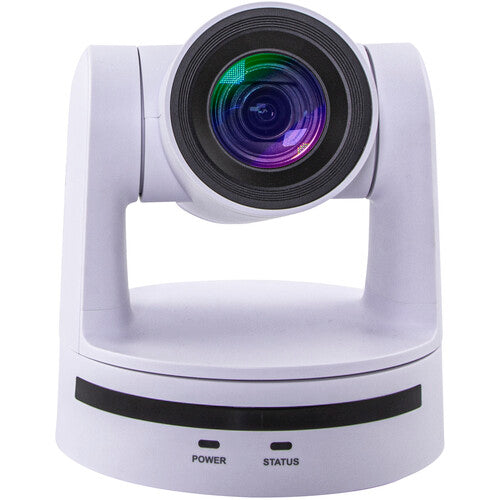

Marshall Electronics CV605-WH Compact 3G-SDI IP PTZ Camera with 5x Optical Zoom Front
Marshall Electronics

Marshall Electronics CV605-WH Compact 3G-SDI/IP PTZ Camera with 5x Optical Zoom

$708.75

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

N/A

N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Sensor

1-Chip 1/2.8" CMOS Sensor

N/A

Resolution

4K

N/A

Signal Sysyetm

N/A

N/A

Signal To Noise Ratio

55 dB

N/A

Gain

N/A

N/A

Shutter Speed Range

N/A

N/A

Exposure Control

N/A

N/A

White Balance

N/A

N/A

Image Stabilization

N/A

N/A

Image Flip

Mirror Support

N/A

ICR

N/A

N/A

Sync

N/A

N/A

Output

SDI, RJ45: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps 1920 x 1080i at 50, 59.94, 60 fps 1280 x 720p at 25, 29.97, 30, 50, 59.94, 60 fps

N/A

Audio Input

1 x 1/8" / 3.5 mm Stereo Mic/Line Level Input

N/A

Audio

SDI

N/A

Camera Control

N/A

N/A

Focal Length

3 to 15.5mm

N/A

Minimum Object Distance

N/A

N/A

Pan Angle

270° (-135 to 135°)

N/A

Tilt Angle

60° (-30 to 30°)

N/A

Pan Speed

1 to 60°/sec

N/A

Tilt Speed

1 to 30°/sec

N/A

Presets

N/A

N/A

Operating Temperature

14 to 122°F / -10 to 50°C

N/A

Power

PoE 802.3af

N/A

Power Consumption

N/A

N/A

Minimum Illumination

N/A

N/A

Optical Zoom

5x

N/A

TAA Compliant

N/A
