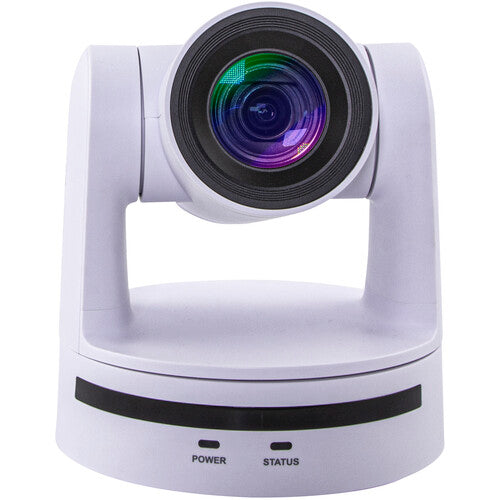

• Marshall Electronics CV605-U3W Compact PTZ USB HDMI Camera front

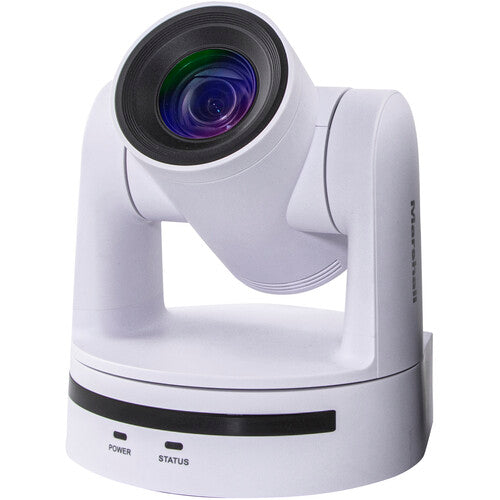

  • Marshall Electronics CV605-U3W Compact PTZ USB HDMI Camera angled

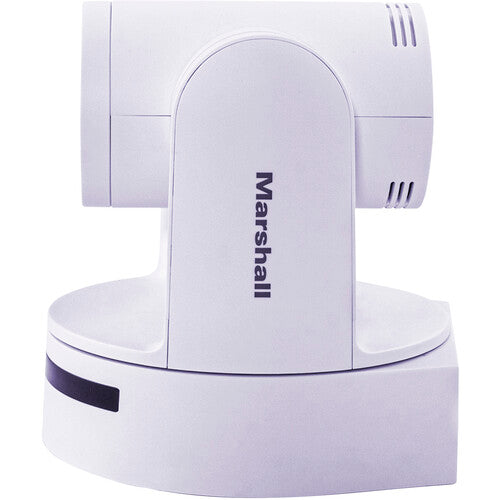

  • Marshall Electronics CV605-U3W Compact PTZ USB HDMI Camera side

Marshall Electronics CV605-U3W Compact PTZ USB/HDMI Camera

SKU: CV605U3W  |  UPC: 801813225242
$708.75
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Summer Sale | additional discount in cart

Request a Quote
  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • \n 2 Megapixel (1/2.8") Full-HD sensor\n 5X Optical Zoom (3~15mm) – starting at 85° AOV\n Full-HD Resolution: 1920x1080p up to 60fps, 1920x1080i & 1280x720p\n Low Illumination capability at 0.5Lux (F1.8) for challenging environments\n USB-C (USB3.0/2.0) HDMI and IP (H.265/H.264) or RS232 via RJ45\n Ethernet IP supports video, audio, control, and PoE over one Cat cable\n Control Options: Zoom (certified), software GUI via web, UVC1.5, OBS Studio plugins & docs, IR remote, Marshall VS-PTC-200 (RS232) & VS-PTC-IP (IP/RS232)\n 3.5mm audio linear input (AAC, MP3, G.711A compression)\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote
Learn More About Purchase Orders

  • 2 Megapixel (1/2.8") Full-HD sensor

  • 5X Optical Zoom (3~15mm) – starting at 85° AOV

  • Full-HD Resolution: 1920x1080p up to 60fps, 1920x1080i & 1280x720p

  • Low Illumination capability at 0.5Lux (F1.8) for challenging environments

  • USB-C (USB3.0/2.0) HDMI and IP (H.265/H.264) or RS232 via RJ45

  • Ethernet IP supports video, audio, control, and PoE over one Cat cable

  • Control Options: Zoom (certified), software GUI via web, UVC1.5, OBS Studio plugins & docs, IR remote, Marshall VS-PTC-200 (RS232) & VS-PTC-IP (IP/RS232)

  • 3.5mm audio linear input (AAC, MP3, G.711A compression)



  • 5x optical zoom, 10x digital zoom

  • USB Type-C, HDMI, and IP outputs

  • Professional grade 2.07MP 1/2.8" CMOS sensor to capture crisp HD video

  • Wide-angle up to 85°

  • Up to 1920 x 1080p60 resolution

  • 3.5mm analog audio input for embedding

  • H.265/H.264 RTSP/RTMP streaming

  • PoE (Power-over-Ethernet)


The CV605-U3W 5X optical zoom USB-C, HDMI and IP camera makes use of a professional grade 2 Megapixel sensor to obtain crisp HD video beginning at a wide-angle 85° and up to 1920x1080p resolution at 60fps. A variety of outputs feature HDMI, USB.C and IP (H.265/H.264). Marshall's clear-cut design and ease-of-use make this camera a cost-efficient camera for a wide array of video conference, video streaming and professional A/V applications. CV605-U3W can be installed through one Ethernet (CAT) cable carrying video, audio, power (PoE), and control over IP. Also is easily dockable via OBS Studio, Zoom (certified) and as well as convenient in other soft codecs.

Marshall Electronics CV605-U3B Ultra-Wide 85° Horizontal AOV

Ultra-Wide 85° Horizontal AOV


The wide-angle optical zoom lens offers an impressive 85-degree horizontal angle-of-view (wide open) with minimal distortion. Optical zoom from 3 ~ 15mm (F1.8~F2.8) and an additional 10x digital zoom.
Marshall Electronics CV605-U3B Flexible USB-C + HDMI + IP options

Flexible USB-C + HDMI + IP options


The CV605-U3W offers a USB-C connection for video conference, collaboration, and streaming. HDMI opens a wide range of options with HDMI workflows and IP provides an easy one-cable to camera setup and operation.

Marshall Electronics CV605-U3B Zoom Certified

Zoom Certified


The CV605-U3W PTZ camera is certified by Zoom and operates within the Zoom Room infrastructure seamlessly providing a wide-angle, high-quality video source for any Zoom video conference.
Marshall Electronics CV605-U3B Low-light Sensitivity

Low-light Sensitivity


The CV605-U3W PTZ camera operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including video conference, live streaming, live podcast and other applications with challenging light sources.

Marshall Electronics CV605-U3B One Cable to Camera

One Cable to Camera


One cable to camera can provide video, audio, control, and power (PoE) over one cable with IP (H.265/H.264) and HDMI simultaneous outputs with audio embedding.
Marshall Electronics CV605-U3B Privacy Standby Mode

Privacy Standby Mode


The CV605-U3W PTZ camera contains a standby mode for privacy between video calls. Managing what is being streamed over the internet is paramount to protect intellectual properties and proprietary information while not in video meetings.

Is This Right For You?


Recommendation


Marshall Electronics CV605-U3W Compact PTZ USB HDMI Camera front
Marshall Electronics

Marshall Electronics CV605-U3W Compact PTZ USB/HDMI Camera

$708.75

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<div>
<div class="feature_BGP5ZCbKOY">
<div class="featureHeader_BGP5ZCbKOY">
<h3 class="text_v_wGSQBcdt comfy_v_wGSQBcdt sizeTitle3_v_wGSQBcdt weightNormal_v_wGSQBcdt primary_aEALyqkgyT">Ultra-Wide 85° Horizontal Angle of View</h3>
</div>
<div>
<div class="js-injected-html text_BGP5ZCbKOY">The wide-angle optical zoom lens offers an impressive 85° horizontal angle-of-view (wide open) with minimal distortion. The 5x optical zoom ranges from 3 to 15mm focal length (F1.8 to 2.8 aperture) and it features an additional 10x digital zoom.</div>
</div>
</div>
</div>
<div>
<div class="feature_BGP5ZCbKOY">
<div class="featureHeader_BGP5ZCbKOY">
<h3 class="text_v_wGSQBcdt comfy_v_wGSQBcdt sizeTitle3_v_wGSQBcdt weightNormal_v_wGSQBcdt primary_aEALyqkgyT">Flexible USB Type-C + HDMI + IP options</h3>
</div>
<div>
<div class="js-injected-html text_BGP5ZCbKOY">The CV605-U3 offers a USB Type-C connection for video conferencing, collaboration, and streaming via a computer connection. HDMI opens a wide range of options with HDMI workflows, and IP provides an easy one-cable to camera setup and operation.</div>
</div>
</div>
</div>
<div>
<div class="feature_BGP5ZCbKOY">
<div class="featureHeader_BGP5ZCbKOY">
<h3 class="text_v_wGSQBcdt comfy_v_wGSQBcdt sizeTitle3_v_wGSQBcdt weightNormal_v_wGSQBcdt primary_aEALyqkgyT">Zoom Certified</h3>
</div>
<div>
<div class="js-injected-html text_BGP5ZCbKOY">The CV605-U3 PTZ camera is certified by Zoom and operates within the Zoom Room infrastructure seamlessly providing a wide-angle, high-quality video source for any Zoom video conference.</div>
</div>
</div>
</div>
<div>
<div class="feature_BGP5ZCbKOY">
<div class="featureHeader_BGP5ZCbKOY">
<h3 class="text_v_wGSQBcdt comfy_v_wGSQBcdt sizeTitle3_v_wGSQBcdt weightNormal_v_wGSQBcdt primary_aEALyqkgyT">Low-Light Sensitivity</h3>
</div>
<div>
<div class="js-injected-html text_BGP5ZCbKOY">The CV605-U3 PTZ camera operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including video conference, live streaming, live podcast, and other applications with challenging light sources.</div>
</div>
</div>
</div>
<div>
<div class="feature_BGP5ZCbKOY">
<div class="featureHeader_BGP5ZCbKOY">
<h3 class="text_v_wGSQBcdt comfy_v_wGSQBcdt sizeTitle3_v_wGSQBcdt weightNormal_v_wGSQBcdt primary_aEALyqkgyT">One Cable to Camera</h3>
</div>
<div>
<div class="js-injected-html text_BGP5ZCbKOY">One cable to camera can provide video, audio, control, and power (PoE) over one cable with IP (H.265/H.264) and HDMI simultaneous outputs with audio embedding.</div>
</div>
</div>
</div>
<div>
<div class="feature_BGP5ZCbKOY">
<div class="featureHeader_BGP5ZCbKOY">
<h3 class="text_v_wGSQBcdt comfy_v_wGSQBcdt sizeTitle3_v_wGSQBcdt weightNormal_v_wGSQBcdt primary_aEALyqkgyT">Privacy Standby Mode</h3>
</div>
<div>
<div class="js-injected-html text_BGP5ZCbKOY">The CV605-U3 PTZ camera contains a standby mode for privacy between video calls. Managing what is being streamed over the Internet is paramount to protect intellectual properties and proprietary information while not in video meetings.</div>
</div>
</div>
</div>

N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Sensor

1-Chip 1/2.8" CMOS Sensor

N/A

Resolution

4K

N/A

Signal Sysyetm

N/A

N/A

Signal To Noise Ratio

55 dB

N/A

Gain

N/A

N/A

Shutter Speed Range

N/A

N/A

Exposure Control

N/A

N/A

White Balance

Auto / Manual/ One Push/ VAR

N/A

Image Stabilization

N/A

N/A

Image Flip

Image Flip, Mirror (Vertical)

N/A

ICR

N/A

N/A

Sync

N/A

N/A

Output

HDMI: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps 1280 x 720p at 50, 59.94, 60 fps RJ45: 1920 x 1080p1600 x 896p1280 x 720p1024 x 768p1024 x 576p960 x 540p800 x 600p800 x 448p720 x 576p720 x 480p640 x 360p640 x 480p480 x 270p320 x 180p USB: 1920 x 1080p1280 x 720p1024 x 576p800 x 600p800 x 448p640 x 480p640 x 360p480 x 270p320 x 180p

N/A

Audio Input

1 x 1/8" / 3.5 mm Stereo Mic Level Input

N/A

Audio

HDMI/USB Type-C

N/A

Camera Control

N/A

N/A

Focal Length

3.1 to 15.5mm

N/A

Minimum Object Distance

N/A

N/A

Pan Angle

Pan: 270° (-135 to 135°)

N/A

Tilt Angle

Tilt: 60° (-30 to 30°)

N/A

Pan Speed

Pan: 0.1 to 60°/sec

N/A

Tilt Speed

Tilt: 0.1 to 30°/sec

N/A

Presets

255 via IP, RS-232, VISCA 10 via IR

N/A

Operating Temperature

14 to 122°F / -10 to 50°C

N/A

Power

N/A

N/A

Power Consumption

N/A

N/A

Minimum Illumination

0.5 Lux

N/A

Optical Zoom

5x

N/A

TAA Compliant

N/A
