Product Summary

πŸ“‘ Marshall Electronics VDA-108 – 1x8 3G/HD/SD-SDI Reclocking Distribution Amplifier

  • πŸ” 1x8 SDI Distribution

    • Distributes a single SDI input to eight outputs simultaneously

  • 🎞️ Multi-Format Support

    • Supports 3G-SDI (SMPTE 424M, 425M Level A/B – up to 2.97 Gb/s)

    • Supports HD-SDI (SMPTE 292M, 296M – up to 1.485 Gb/s)

    • Supports SD-SDI (SMPTE 259M – up to 270 Mb/s)

  • 🧠 Automatic Detection

    • Auto-detects 3G/HD/SD-SDI input formats

    • Passes all ancillary data

  • πŸ”§ Reclocking & Cable Equalization

    • Eight separately buffered and reclocked outputs for stable signal transmission

    • Supports signal retiming and video bandwidth up to 2.97 Gb/s

    • Automatic cable equalization for long cable runs using Belden 1694A:

      • 3G-SDI: >400 ft

      • HD-SDI: >667 ft

      • SD-SDI: >1000 ft

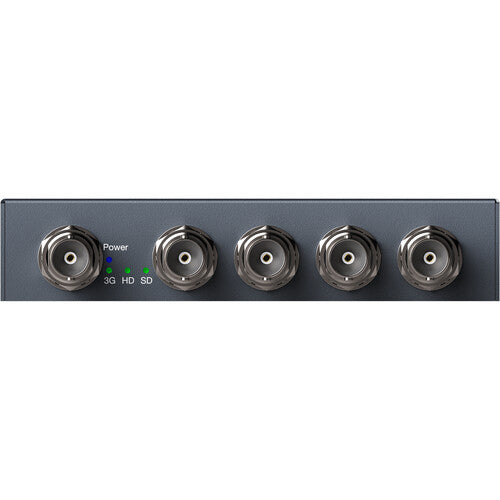

  • πŸ’‘ Status Indicators

    • Dual-color LED displays input lock and signal rate

  • πŸ”’ Secure Power

    • Features an interlocked power supply for improved reliability in fixed installations

Marshall Electronics 1 x 8 3G/HD/SD-SDI Reclocking Distribution Amplifier

SKU: VDA1083GS | UPC: 801813228762
Authorized Dealer Authorized Marshall Electronics Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$182.95

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Marshall Electronics 1 x 8 3G/HD/SD-SDI Reclocking Distribution Amplifier $182.95
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education β€’ Government β€’ Nonprofits β€’ Corporate β€’ Volume Orders
βœ“ Tax-Exempt Purchasing Available
Marshall Electronics

Marshall Electronics 1 x 8 3G/HD/SD-SDI Reclocking Distribution Amplifier

$182.95
