SKU: CV620IPW  |  UPC: 801813188349

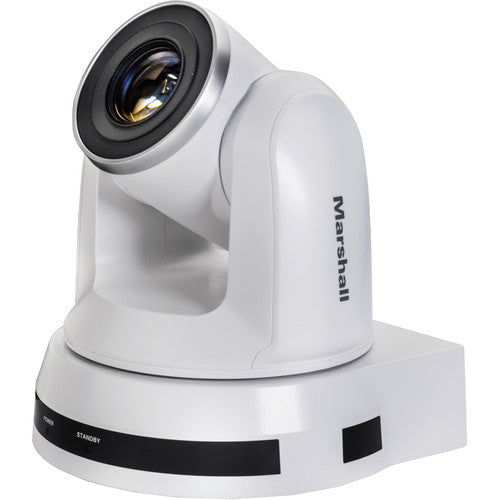

Marshall CV620-IPW HD PTZ Camera with IP, 3G/HD-SDI, HDMI (White)

$1,949.00
Free Shipping At Checkout!

Fall Flash Sale additional discount in cart

Need Help? Call Us 800-211-2718

Accessories

Marshall Electronics

Marshall VS-PTC-IP IP PTZ Camera Controller

$1,349.00
View details
Product Highlights:
  • RS422/RS232 Remote Control Interface
  • 20x optical zoom
  • 1080p, 1080i, and 720p modes
  • 1/2.8" sensor captures clear images

Click above to submit a purchase order
DUNS #074303253

IRS W-9 form
Included In The Box:
  • Mounting Hardware
  • RS-422 Phoenix Connector Block
  • Power Supply with Power Cord
  • Remote Control


  • RS422/RS232 Remote Control Interface

  • 20x optical zoom

  • 1080p, 1080i, and 720p modes

  • 1/2.8" sensor captures clear images



  • 2 Megapixel 1/2.8-inch Sensor

  • Full-HD: 1920x1080i, 1920x1080p, 1280x720p

  • High Speed: 60, 59.94, 50, 30, 29.97, 25 fps

  • 20X Optical Zoom 4.7~94mm (F1.6~3.5) with 12x Digital

  • Wide Pan-Tilt Range: 340 degree Horizontal Pan - 120 degree Vertical Tilt

  • Quiet, smooth, stable, synchronous PAN-TILT-ZOOM motor allows for quality transitions

  • TRS Audio Line/Mic level select (2.5V to mic)

  • IP (H.264), 3G/HD-SDI and HDMI simultaneous outputs

  • RS422/RS232 Remote Control Interface at High Comm Speeds

  • Mountable via table, wall or ceiling. Ceiling mount included in box; wall mounts CV6XX-WM (Black) or CV6XX-WMW (White) sold separately.

  • Compatible with integrated video conferencing systems

  • (1) Ethernet (Cat) connection allows for H.264 video, PoE+ (power), and Control over one Cat cable.


REAR OUTPUTS:

1. USB port for FW updates

2. 12V Power input

3. IP NETWORK Ethernet (PoE+/H.264/IP Control)

4. HDMI Type-A Output

5. 3G/HD-SDI Output

6. OUTPUT Selection Switch

7. IR SELECT

8. TRS Audio In

9. RS-232 loop-through OUT

10. RS-232 INPUT port

11. RS-422 port

Marshall Electronics Broadcast ProAV PTZ Camera is built around a professional grade 2 Megapixel 1/2.8-inch sensor with a smooth 20x Optical Zoom (4.7~94mm) block. Versatile outputs such as 3G/HD-SDI, HDMI Type-A, and IP (H.264) which allows for one Ethernet cable to contain compressed H.264 Video, PoE (48V) and IP Control. Remote operation and control via VMS (Video Management Software), Web Browser GUI, or RS232/RS422 using common protocols make it compatible with most integrated control systems. Broadcast adjustable settings such as White Balance, Exposure, Iris, Gamma, Gain, Black Level and other operational adjustments create tremendous flexibility of use. Applications served would include Remote Confidence Monitoring, Corporate, Broadcast, Education, Worship, Healthcare, Medical, Government, Courtroom, Entertainment, Music and a variety of Broadcast ProAV studio workflows using IP, 3G/HD-SDI, or HDMI.
