SKU: CV506H12  |  UPC: 801813191073

Marshall CV506-H12 Miniature High-Speed Camera

$599.00
Free Shipping At Checkout!

CYBER WEEK Extended additional discount in cart

Need Help? Call Us 800-211-2718

Product Highlights:
  • HDMI Video Output
  • 2 MP 1/2.8" Sony Exmor

Click above to submit a purchase order
DUNS #074303253

IRS W-9 form
Included In The Box:
  • 3.6mm M12 Mount Lens
  • 12V Power Adapter
  • I/O Breakout Cable


  • HDMI Video Output

  • 2 MP 1/2.8" Sony Exmor


Compatible Lenses

Prime Lenses:



CV-4702.3-3MP: 2.3mm, f2.2 3MP M12 lens; Horiz. AOV = 126°

CV-4702.8-3MP-IR: 2.8mm, f2.6 3MP M12 lens; Horiz. AOV = 100°

CV-4703.6-3MP: 3.6mm, f2.0 3MP M12 lens (included); Horiz. AOV = 72°

CV-4706-3MP-IR: 6mm, f2.4 3MP M12 lens; Horiz. AOV = 48°

CV-4708.0-3MP: 8mm, f1.8 3MP M12 lens; Horiz. AOV = 40°

CV-4712.0-3MP: 12mm, f1.8 3MP M12 lens; Horiz. AOV = 33°

CV-4716.0-2MP: 16.0mm, f1.8 2MP M12 lens; Horiz AOV = 25°



Varifocal Lenses:



CV-2812-3MP: 2.8–12mm, f1.4 3MP Varifocal M12 lens; Horiz. AOV = 108–3°

CV-0622-5MP: 6–22mm, f1.6 5MP Varifocal M12 lens; Horiz. AOV = 46–16°

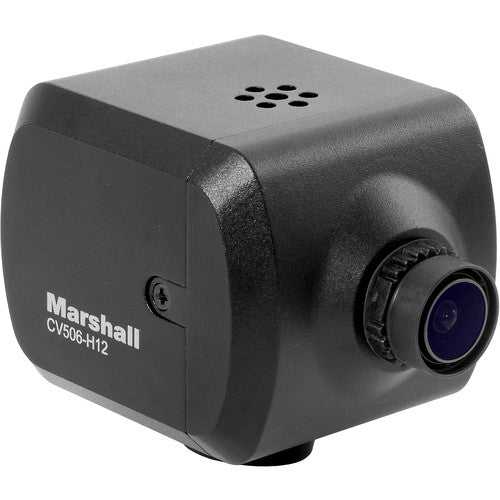

Use the CV506-H12 Miniature High-Speed Camera from Marshall to capture broadcast, sports, racing, or any high-speed action and create slow-motion, high-resolution video. This tiny camera features a 2MP 1/2.8" Sony Exmor sensor and records up to 1080p60 and up to 120 fps slow-motion video.

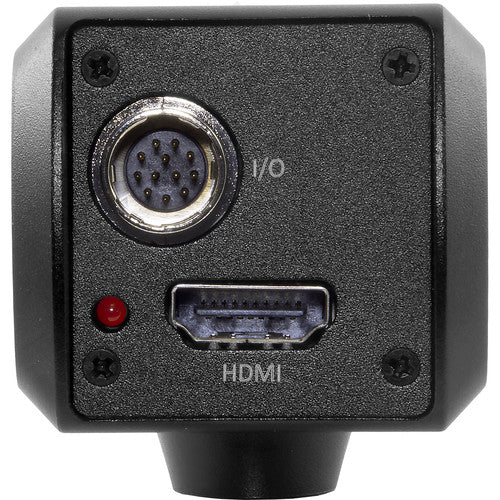

The CV506-H12 can be controlled with a joystick or by an RS-485 Visca-capable controller, which are both connected via the included breakout cable. Mic and line connectors are also provided on the breakout cable, providing TRS stereo output. An HDMI 2.0 port on the back of the unit outputs HD video for recording and broadcast. Configurable camera settings include paint, white balance, exposure, gain, pedestal (black), gamma, shutter, and others.



The camera includes a 3.6mm M12 prime lens with a 72° horizontal angle of view, and since the M12 lens mount is interchangeable you can replace the stock lens with one of the supported lenses listed below. A 12V power adapter is also included.
