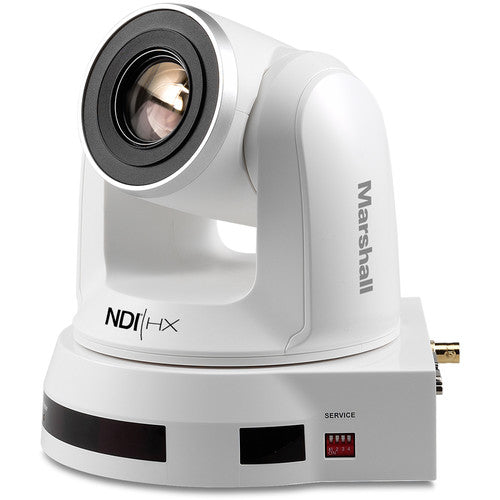

Marhsall CV620-NDIW Full-HD PTZ Camera (White)

SKU: CV620NDIW  |  UPC: 801813189766
$2,299.00
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

SPRING SALE | additional discount in cart

Request a Quote
  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • \n 3G/HD-SDI, HDMI, and NDI Outputs\n 2MP 1/2.8" Sensor\n 4.7-94mm Lens, 20x Optical Zoom\n 1080p/i & 720p Resolution up to 60 fps\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote
Learn More About Purchase Orders

Recommended Solutions

Loading recommendations...

  • 3G/HD-SDI, HDMI, and NDI Outputs

  • 2MP 1/2.8" Sensor

  • 4.7-94mm Lens, 20x Optical Zoom

  • 1080p/i & 720p Resolution up to 60 fps



  • 2-Megapixel 1/2.8-inch Sensor

  • Full-HD: 1920x1080i, 1920x1080p, 1280x720p

  • High Speed: 60, 59.94, 50, 30, 29.97, 25 fps

  • 20X Optical Zoom 4.7~94mm (F1.6~3.5) with 12x Digital

  • Wide Pan-Tilt Range: 340-degree Horizontal Pan - 120-degree Vertical Tilt

  • TRS Audio Line/Mic level select (2.5V to mic)

  • Quiet, smooth, stable, synchronous PAN-TILT-ZOOM motor

  • Mountable via table, wall or ceiling. Ceiling mount included in box; wall mounts CV6XX-WM (Black) or CV6XX-WMW (White) sold separately.

  • 3G/HD-SDI, HDMI, and NDI simultaneous outputs with support for

  • PoE+ (802.3af) Power over Ethernet

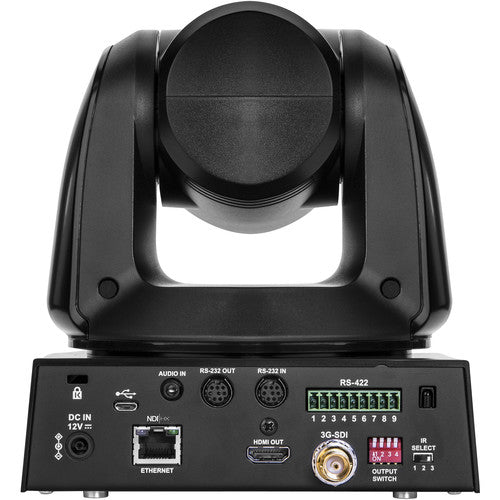

REAR OUTPUTS:

1. USB port for FW updates

2. 12V Power input

3. NDI NETWORK Ethernet (PoE/H.264/Control)

4. HDMI Type-A Output

5. 3G/HD-SDI Output

6. OUTPUT Selection Switch

7. IR SELECT

8. TRS Audio In

9. RS-232 loop-through OUT

10. RS-232 INPUT port

11. RS-422 port

The Marshall CV620-NDI Full-HD PTZ Camera combines the performance and versatility of the popular Marshall CV620 PTZ Camera with NewTek's NDI|HX technology for use with NDI compatible systems. The CV620-NDI is built around a professional grade 2-Megapixel 1/2.8-inch sensor with 20x optical zoom, 340-degree horizontal pan, and 120-degree vertical tilt for complete crisp video coverage of meeting rooms, connected classrooms, control rooms, live events, and more.



In addition to 3G/HD-SDI and HDMI outputs, the CV620-NDI's NDI capability enables this camera to be easily integrated, controlled, and managed using a range of NDI-enabled equipment for seamless IP-based workflows.

  • RS422/RS232 Remote Control Interface at High Comm Speeds

  • Mountable via table, wall, ceiling mounts included for use with built-in image flip setting

  • Compatible with integrated video conferencing systems and NDI-enabled networks

Is This Right For You?


Recommendation


Customers rate us 5.0/5 based on 4 reviews.

Customers are saying

5.00 ★ (4)
Verified
16353
Marshall Electronics

Marhsall CV620-NDIW Full-HD PTZ Camera (White)

$2,299.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

N/A

N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Sensor

1-Chip 1/2.8" CMOS Sensor

N/A

Resolution

4K

N/A

Signal Sysyetm

N/A

N/A

Signal To Noise Ratio

Signal-to-Noise Ratio50 dB

N/A

Gain

N/A

N/A

Shutter Speed Range

1/10000 to 1/1 sec

N/A

Exposure Control

N/A

N/A

White Balance

N/A

N/A

Image Stabilization

N/A

N/A

Image Flip

Flip / Mirror SupportImage Flip

N/A

ICR

N/A

N/A

Sync

N/A

N/A

Output

IP StreamingH.264, MJPEG: 1080p, 720p

N/A

Audio Input

N/A

N/A

Audio

1 x 1/8" / 3.5 mm Stereo Mic Level Input

N/A

Camera Control

1 x 8-Pin Mini-DIN (RS-232) Input 1 x 8-Pin Mini-DIN (RS-232) Output 1 x 9-Pin Terminal Block (RS-422) Input

N/A

Focal Length

Focal Length4.7 to 94mm, Maximum Aperture f/1.6 to 3.5

N/A

Minimum Object Distance

N/A

N/A

Pan Angle

340°

N/A

Tilt Angle

120°

N/A

Pan Speed

N/A

N/A

Tilt Speed

N/A

N/A

Presets

128

N/A

Operating Temperature

N/A

N/A

Power

PoE SupportPoE 802.3af

N/A

Power Consumption

N/A

N/A

Minimum Illumination

1 Lux

N/A

Optical Zoom

20x

N/A

TAA Compliant

N/A
