$4,267.00
The LG 86UP5Q-E 86" 4K UHD Commercial Digital Signage Display delivers impressive large-format visuals, intelligent content management, and professional-grade reliability for demanding business environments. Featuring 3840 × 2160 Ultra HD resolution, 500-nit brightness, a 120Hz ADS panel, and LG webOS 8.0, this commercial display produces sharp, vibrant visuals that help businesses capture attention and communicate effectively.
Designed for 24/7 continuous operation, the LG 86UP5Q-E combines built-in Wi-Fi, LG Shield security, SuperSign CMS compatibility, 32GB internal storage, and IP5X dust protection. Its expansive 86-inch screen, integrated 20W speakers, and slim 1.16-inch profile make it an excellent solution for retail stores, corporate lobbies, transportation hubs, educational institutions, and professional digital signage installations.

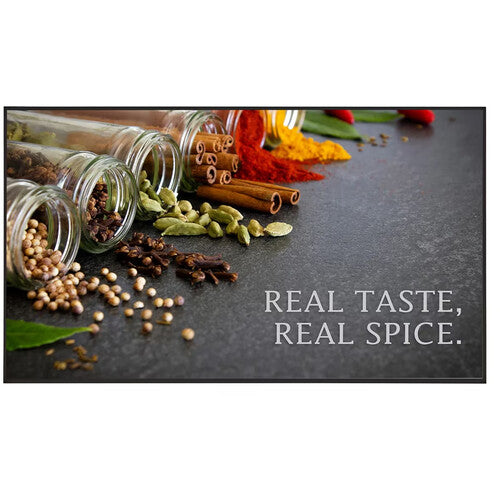

Transform commercial spaces with the LG 86UP5Q-E's impressive 86-inch 4K Ultra HD display.
Featuring a native resolution of 3840 × 2160, this commercial monitor delivers four times the pixel count of Full HD, producing sharp text, detailed images, and visually engaging content.
Whether displaying promotional videos, corporate presentations, public information, or branded digital advertising, the expansive screen helps businesses communicate with clarity and impact.
Its edge-lit LED backlight and ADS panel technology provide consistent image quality for professional indoor applications.
The LG 86UP5Q-E delivers 500 nits of typical brightness, helping content remain clear and engaging in brightly illuminated indoor environments.
This higher brightness level makes the display especially suitable for shopping centers, corporate lobbies, retail stores, and public spaces where conventional televisions may struggle to maintain visibility.
Combined with its large screen and surface haze treatment, the display helps reduce distracting reflections and keeps important information readable.
The LG 86UP5Q-E features a native 120Hz refresh rate, delivering smooth motion and responsive image transitions.
This is particularly beneficial for fast-moving promotional videos, animated digital signage, and multimedia presentations.
The higher refresh rate helps create a polished visual experience for professional content.
Equipped with ADS panel technology, the LG 86UP5Q-E offers 178° horizontal and vertical viewing angles.
This helps maintain consistent image quality for audiences viewing the display from different positions.
The panel features a 1200:1 typical contrast ratio, 95% BT.709 color gamut coverage, and approximately 1.07 billion colors through 8-bit + FRC processing.
These capabilities help deliver detailed imagery and natural-looking colors for professional digital signage.
Powered by LG webOS 8.0, the 86UP5Q-E provides a professional smart signage platform designed for efficient content playback and management.
Its integrated System-on-Chip architecture supports compatible signage applications without requiring a dedicated external media player for many installations.
The platform offers a user-friendly interface, flexible application integration, and tools for creating customized commercial signage experiences.
Protect professional digital signage operations with LG Shield, a multilayer security solution designed for LG's webOS signage platform.
LG Shield uses five layers of protection covering the server, application, operating system, system, and hardware.
This approach helps strengthen the security of compatible digital signage deployments, making the display suitable for businesses that prioritize network and device protection.
The LG 86UP5Q-E includes 32GB of internal memory, providing storage for compatible signage content and applications.
Businesses can store promotional materials, images, and video files directly on the display, reducing reliance on external playback devices.
USB connectivity also helps simplify media transfers and content updates.
The LG 86UP5Q-E supports multi-screen playback with up to four content streams through compatible applications.
Businesses can divide the screen into multiple viewing areas to display advertisements, informational content, presentations, or different media sources simultaneously.
Its 4K on-screen display capabilities help maintain clear text and detailed graphics across supported layouts.
This makes the display especially useful for corporate dashboards, transportation information, and multi-content signage applications.
The LG 86UP5Q-E features built-in Wi-Fi, allowing businesses to connect to compatible wireless networks without requiring a separate Wi-Fi adapter.
Wireless connectivity supports compatible content management applications, network-based signage services, and screen sharing.
The display also includes an RJ45 Ethernet port for wired network installations.
Built-In Wi-Fi: Yes.
Built-In Bluetooth: No, according to LG's U.S. product specifications.
The LG 86UP5Q-E supports LG SuperSign CMS, a professional content management solution for creating, distributing, and scheduling digital signage content.
Businesses can organize promotional campaigns, update advertisements, and manage information across compatible displays.
Additional compatibility with SuperSign Cloud, SuperSign Control+, SuperSign WB, and Mobile CMS provides flexible options for professional signage management.
SuperSign software subscriptions and licenses may be sold separately.
The LG 86UP5Q-E supports LG ConnectedCare, an optional remote monitoring and management solution.
Authorized administrators can monitor compatible displays, diagnose supported operational issues, and perform remote management tasks.
This functionality is especially useful for businesses operating multiple displays across different locations.
LG ConnectedCare may require a separate service purchase.
Designed for demanding professional environments, the LG 86UP5Q-E supports 24 hours per day, 7 days per week operation.
Its specified display lifetime is up to 50,000 hours, providing dependable performance for always-on commercial applications.
This makes the display ideal for transportation hubs, retail stores, corporate facilities, monitoring environments, and other installations requiring continuous visual communication.
The LG 86UP5Q-E features IP5X dust protection, helping protect the display against dust intrusion in supported commercial environments.
This added durability makes it suitable for demanding indoor installations where dust exposure may be a concern.
IP5X certification does not indicate water resistance or outdoor suitability.
The LG 86UP5Q-E incorporates partial conformal coating on selected areas of its power board.
This protective treatment helps improve resistance to environmental factors such as humidity, dust, salt, and iron powder.
Combined with IP5X dust protection, the coating supports dependable performance in a variety of indoor commercial environments.
The LG 86UP5Q-E includes several professional hardware monitoring capabilities.
Its temperature sensor, automatic brightness sensor, and acceleration sensor help support intelligent display operation and maintenance.
Shock Monitoring can detect certain physical impacts and provide alerts through compatible monitoring functions.
These capabilities help organizations maintain greater visibility over their signage equipment.
The LG 86UP5Q-E supports portrait and landscape orientations, providing flexibility for different signage applications.
Landscape orientation is ideal for promotional videos, corporate presentations, and wide-format advertisements.
Portrait orientation works well for digital directories, informational displays, and vertical advertising layouts.
The display also supports compatible tile-mode configurations for larger multi-display installations.
The LG 86UP5Q-E includes dual 10W speakers, delivering 20W total audio output.
Built-in audio supports promotional videos, multimedia presentations, and informational content without requiring separate speakers for basic installations.
A 3.5mm audio output provides connectivity for compatible external audio systems.

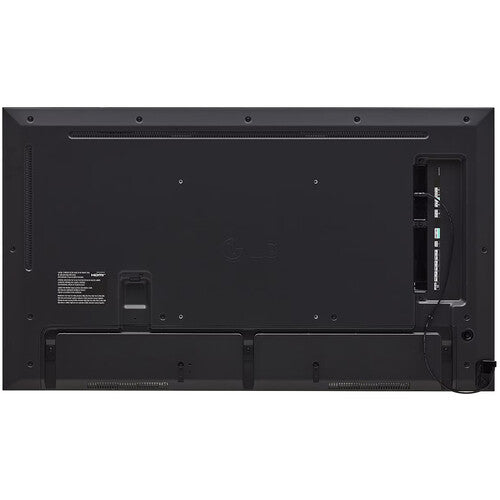

The LG 86UP5Q-E offers versatile connectivity for professional AV environments.
The display features three HDMI inputs, one DisplayPort input, USB connectivity, RJ45 Ethernet, and RS-232C control connections.
These interfaces support compatible media players, computers, digital signage systems, and professional AV control equipment.
USB connectivity simplifies content updates, while wired networking supports centralized signage administration.

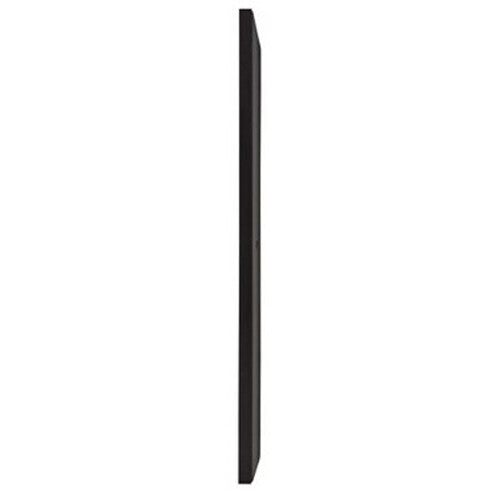

The LG 86UP5Q-E features a sleek black cabinet with an exceptionally slim 1.16-inch depth, excluding its IR receiver and handles.
Its 600 × 400mm VESA mounting pattern supports installation using compatible heavy-duty commercial wall mounts.
