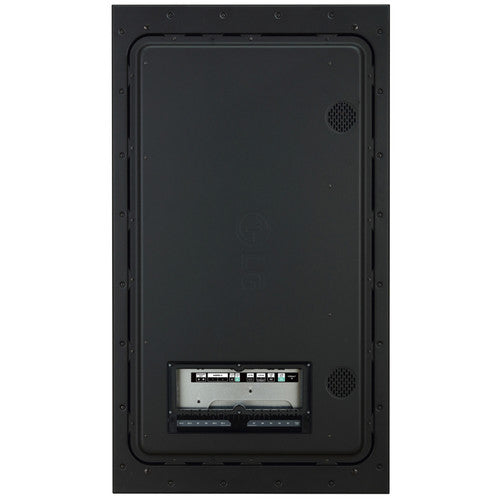

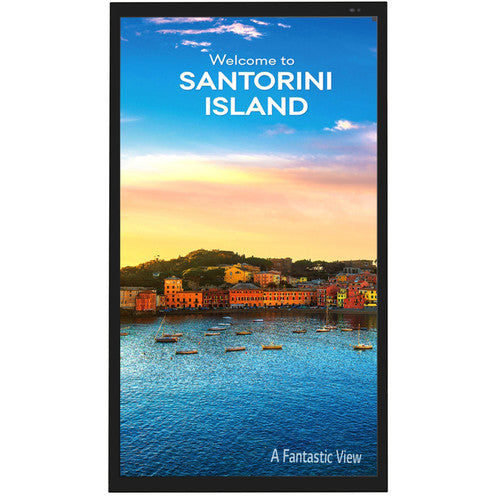

LG XE4F-M 55” Full HD Outdoor Digital Signage Display

Key Specifications

• Resolution: Full HD (1920 × 1080)

• Brightness: Up to 4,000 cd/m²

• Orientation: Landscape & Portrait

• Ingress Protection: IP56 (weather and dust resistant)

• Impact Protection: IK10-rated tempered glass

• Connectivity: HDBaseT, DisplayPort, 2× HDMI

• Control: Web monitoring, RS232, Ethernet

• Included Accessories: Remote control

Designed for Outdoor Performance

Slim, Lightweight Construction

The XE4F-M series features a streamlined, mount-ready design that eliminates the need for an additional enclosure. Its slimmer, lighter build simplifies installation and integration in outdoor menu boards, kiosks, and commercial signage.

Easy Integration

Engineered for flexibility, the XE4F-M adapts to a wide range of environments — from restaurants and transportation hubs to retail storefronts — allowing businesses to customize their setup for outdoor applications.

Brilliant Visibility in Any Condition

4,000 nits High Brightness

Exceptional brightness ensures clear visibility under direct sunlight, capturing attention even in bright outdoor spaces.

Wide Viewing Angle

LG’s IPS technology delivers sharp and accurate colors from virtually any angle, maintaining clarity and consistency across the display.

Polarized Sunglasses Compatible

The built-in Quarter Wave Plate (QWP) technology keeps content visible even for viewers wearing polarized sunglasses.

Built to Withstand the Elements

IP56 Weatherproof Rating

The display is sealed against water, dust, snow, and wind, providing dependable operation in harsh outdoor environments.

IK10 Impact Protection

A durable tempered and laminated front glass protects the display against external impacts, ensuring long-term reliability in public spaces.

Reliable, Efficient Operation

Long-Lasting Brightness

An enhanced LED backlight system increases brightness output while reducing heat, extending the display’s operational life.

HDBaseT Connectivity

Simplify installation with single-cable transmission of video, audio, Ethernet, USB, IR, and control signals — ideal for longer distances.

Smart Management & Control

Web-Based Monitoring

Access real-time display data and make remote adjustments from anywhere. The web monitoring tool enables control, diagnostics, and performance tracking from mobile or desktop devices.

Software Compatibility

The XE4F-M integrates seamlessly with LG’s management platforms and third-party control systems, supporting centralized management across multiple displays.
