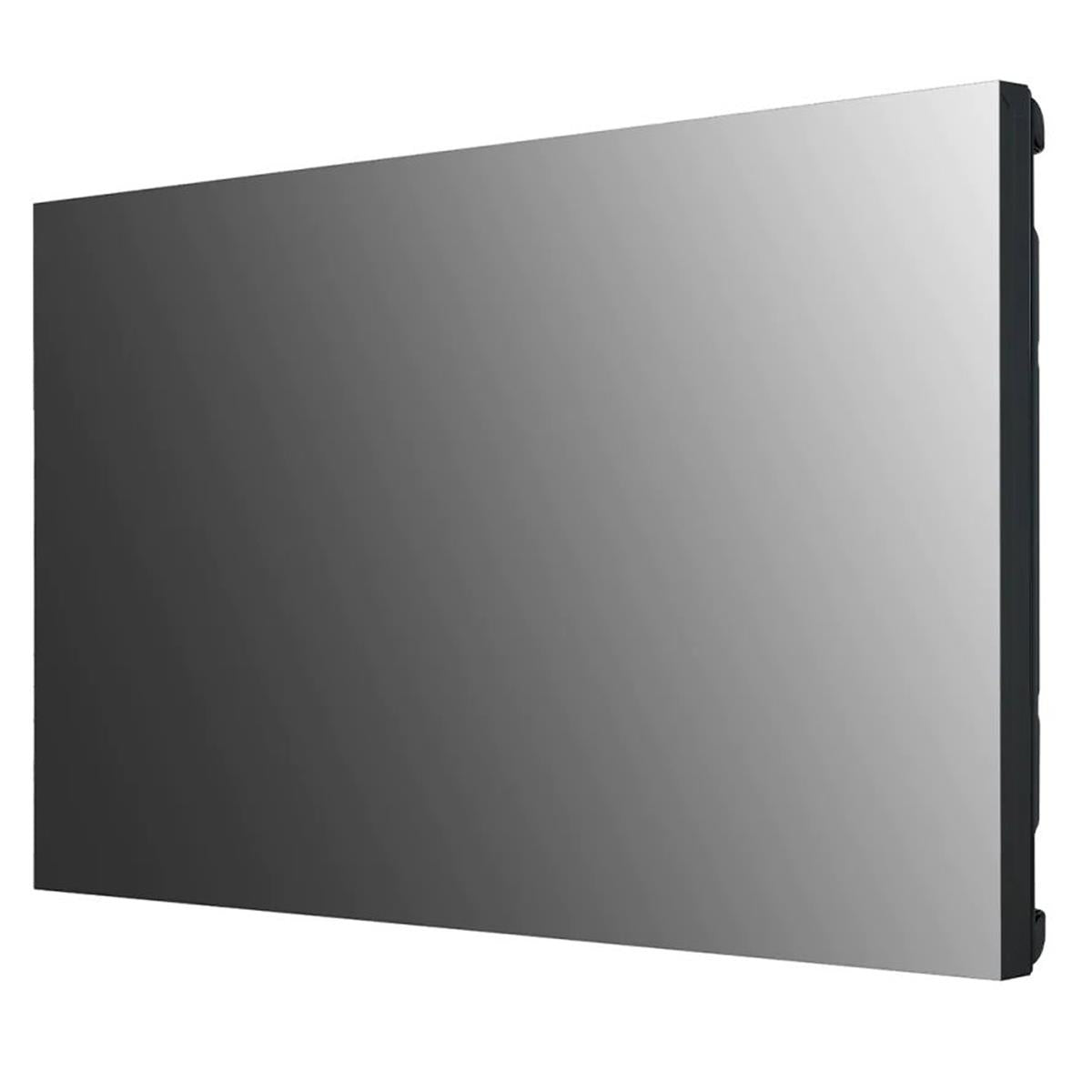

LG 55VSM5JW-4P 55" 3x3 Full HD IPS Video Wall Display

LG VSM5J Series – 55" Video Wall Display

0.44mm Even Bezel | Full HD Resolution | 24/7 Operation

Key Specifications

• Resolution: 1,920 × 1,080 (Full HD)

• Brightness: 500 cd/m² (Typ.)

• Contrast Ratio: 500,000:1

• Bezel: 0.44mm Even / 0.88mm Bezel-to-Bezel

• Orientation: Landscape / Portrait

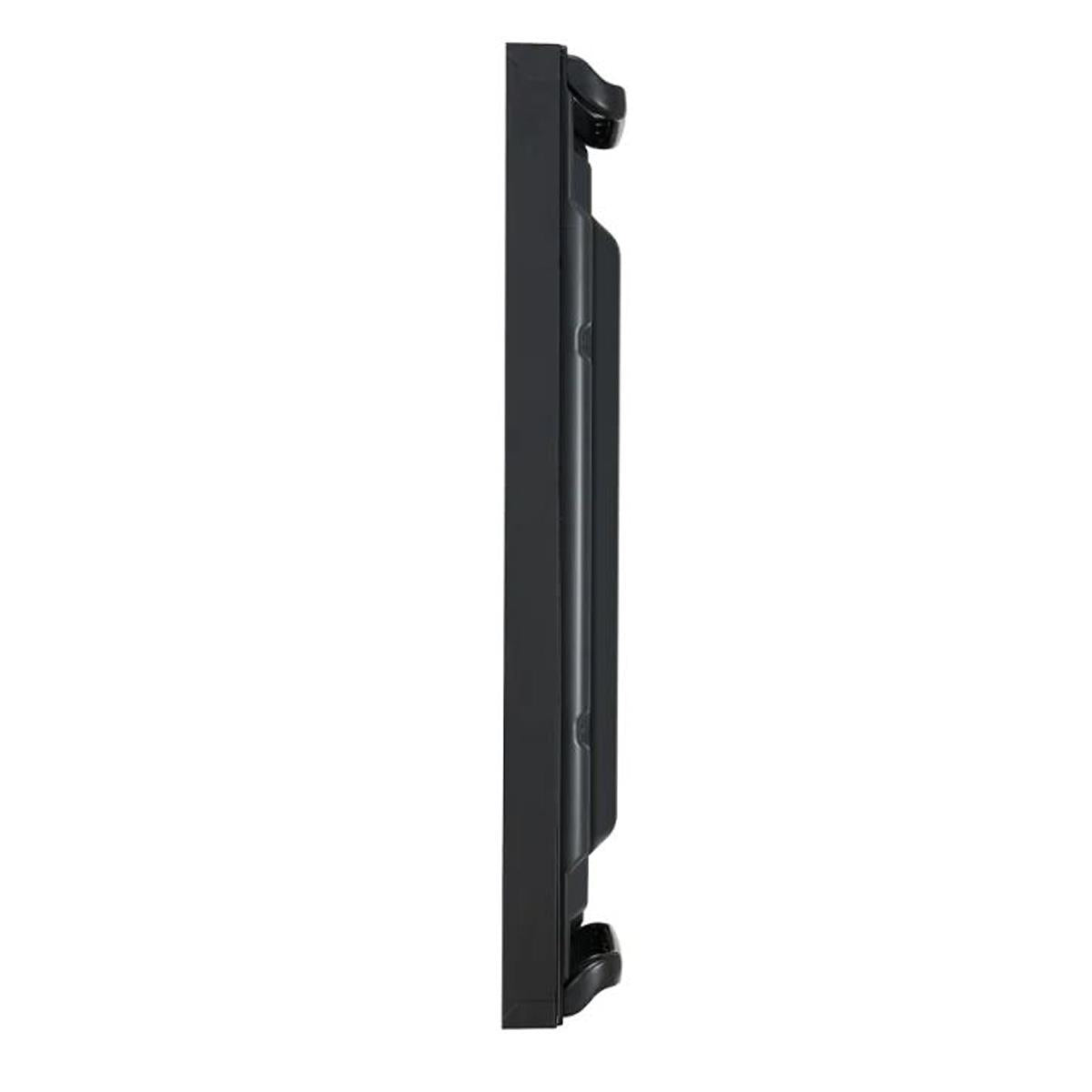

• Depth: 86.5mm

• Operation: 24/7 Continuous

• Interfaces: HDMI (x2), DisplayPort, DVI-D, USB, RS232C, RJ45, Audio, IR

• Special Feature: Smart Calibration

Ultra-Narrow Bezel for Immersive Viewing

The razor-thin 0.44mm even bezel ensures content appears true-to-form without distortion, delivering a seamless large-screen experience that fully immerses viewers.

Exceptional Viewing Quality

• Higher Viewing Angle: Maintains vivid, distortion-free colors even when installed above eye level.

• Wide Viewing Angle: LG’s IPS panel technology ensures lifelike colors from virtually any perspective.

• Uniform Color Expression: Enhanced corner brightness for consistent color across the entire display.

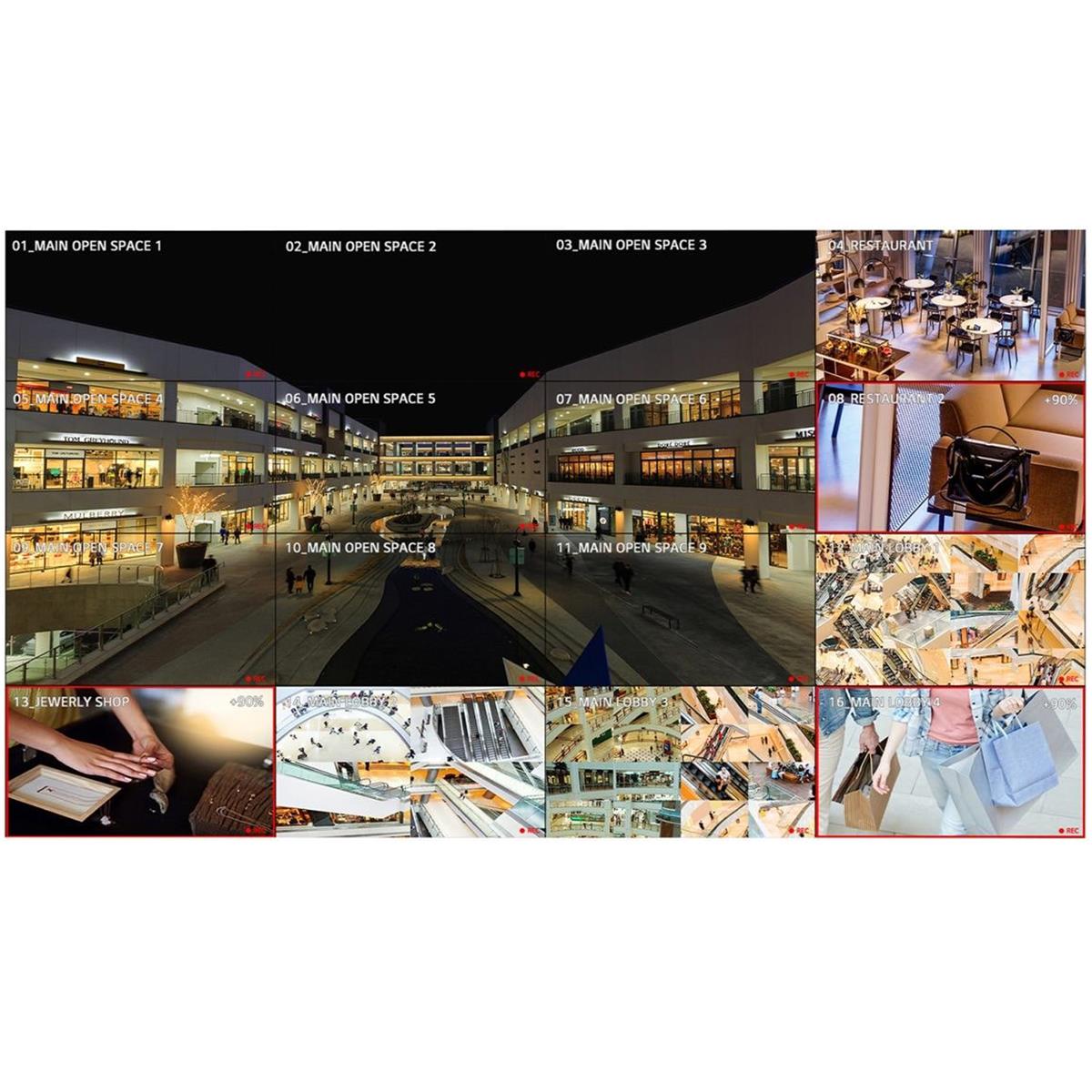

Seamless Video Wall Performance

• Image Gap Reduction: Built-in algorithm minimizes visual breaks between tiled screens for smoother visuals.

• Smart Calibration: Quick, error-free color adjustment across all connected displays—done in minutes with a remote. Can be scheduled for automatic intervals.

Clear, Readable Content

The non-glare panel with 28% haze improves text clarity and visibility, even in bright environments.

Built-in SoC & webOS Smart Signage

• Handles multiple tasks simultaneously with smooth playback—no external media player needed.

• Supports HTML5 and offers an SDK for easy app development.

• Play up to four videos at once with animation effects, real-time streaming, and flexible layouts.

User-Friendly Interface

• Optimized Menu Structure: Simplified navigation with grouped functions and large fonts.

• Portrait Mode GUI: Dedicated 9:16 layout with a long-range menu for comfortable vertical usage.

Easy Integration & Management

• Daisy Chain Capability: Control and update multiple displays over LAN or create UHD video walls without extra hardware.

• LG Connected Care (Optional): Cloud-based remote monitoring and fault diagnosis for stable, worry-free operation.
