• 1,920 x 1,080 (Full HD) Resolution


• 500 Nit Brightness


• 24/7 Operation Run Time


• Landscape/Portrait Orientation

0.44mm Video Wall with Clear & Vibrant Picture

The 0.44mm Even Bezel Video Wall offers a virtually seamless view throughout the assembled large screen. Also, the non-glare screen offers a clear and vivid picture in bright environments.

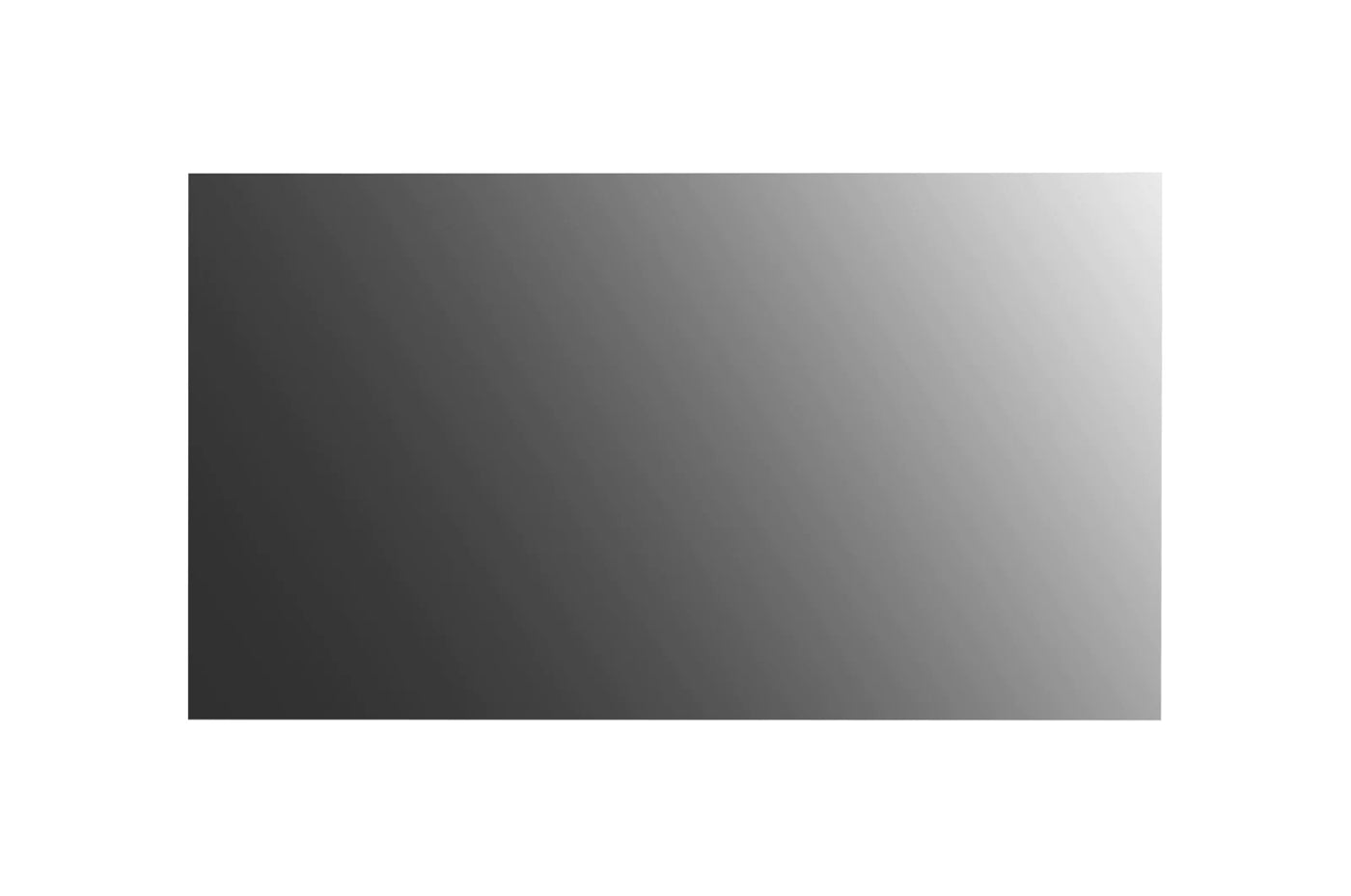

Groundbreaking 0.44mm Even Bezel

The razor-thin bezel – 0.44mm EVEN BEZEL and 0.88mm BEZEL-TO-BEZEL – verified by Nemko,* makes content look more natural by depicting a subject without distortion. Virtually seamless on a large video wall screen, the 55SVM5F-H will provide an even more immersive experience for viewers.

Smart Calibration

Smart Calibration is a solution that enables virtually error-free calibration. It analyzes not only the color property differences within each individual display, but also the property differences between the connected displays.
*Image for illustration purposes only.

Clear View with Non-Glare Panel

Viewers can be distracted by unnecessary light reflection when viewing a screen under bright conditions. The 55SVM5F-H series has nearly resolved the problem by increasing the level of haze to 28％, which enhances visibility and text readability.
*Image for illustration purposes only.

Uniform Color Expression

Poor uniformity around bezel boundaries can produce a dark appearance to corners, which doesn’t look good on a large screen. However, the 55SVM5F-H has enhanced uniformity, including the four corners of the display, to deliver vivid and consistent color throughout the screen.
*Uniformity among 13 points of the screen. Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.
**Image for illustration purposes only.

Higher Viewing Angle

Large digital signage screens are usually positioned higher than eye level, making uniform picture quality essential for video walls. The viewing angle of the 55SVM5F-H is superior to that of conventional video walls, allowing it to display vivid colors with no distortion – even from vertical viewing angles up to 178 degrees.
*Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.
**Image for illustration purposes only.

Image Gap Reduction

The 55SVH7PF-H includes an image improvement algorithm that can reduce image gaps among tiled displays when playing videos. Objects located on the bezel boundaries are adjusted for a virtually seamless viewing experience.
*The "Conventional" refers to displays which do not include an image improvement algorithm.
**Image for illustration purposes only.

Intuitive Menu Structure

The 55SVM5F-H menu structure has been optimized for commercial operation. It simplifies accessibility and groups similar functions together, adopting a more intuitive Graphic User Interface (GUI) for ease of use. Users can now avoid trial and error when exploring desired functions and managing displays.

Dedicated GUI for Portrait Orientation

The conventional GUI was designed based on landscape-oriented consumer TV use, so On Screen Display (OSD) wasn’t well-suited for screens in portrait mode. The OSD of the 55SVM5F-H, however, consists of a long-range menu with larger font sizes in 9:16 ratio, creating a comfortable and efficient business environment.

Real-time ConnectedCare Service

Maintenance is easy and fast with the optional ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.
*ConnectedCare is the brand name of LG Signage365Care Service. Availability differs by region.

Daisy Chain Capability

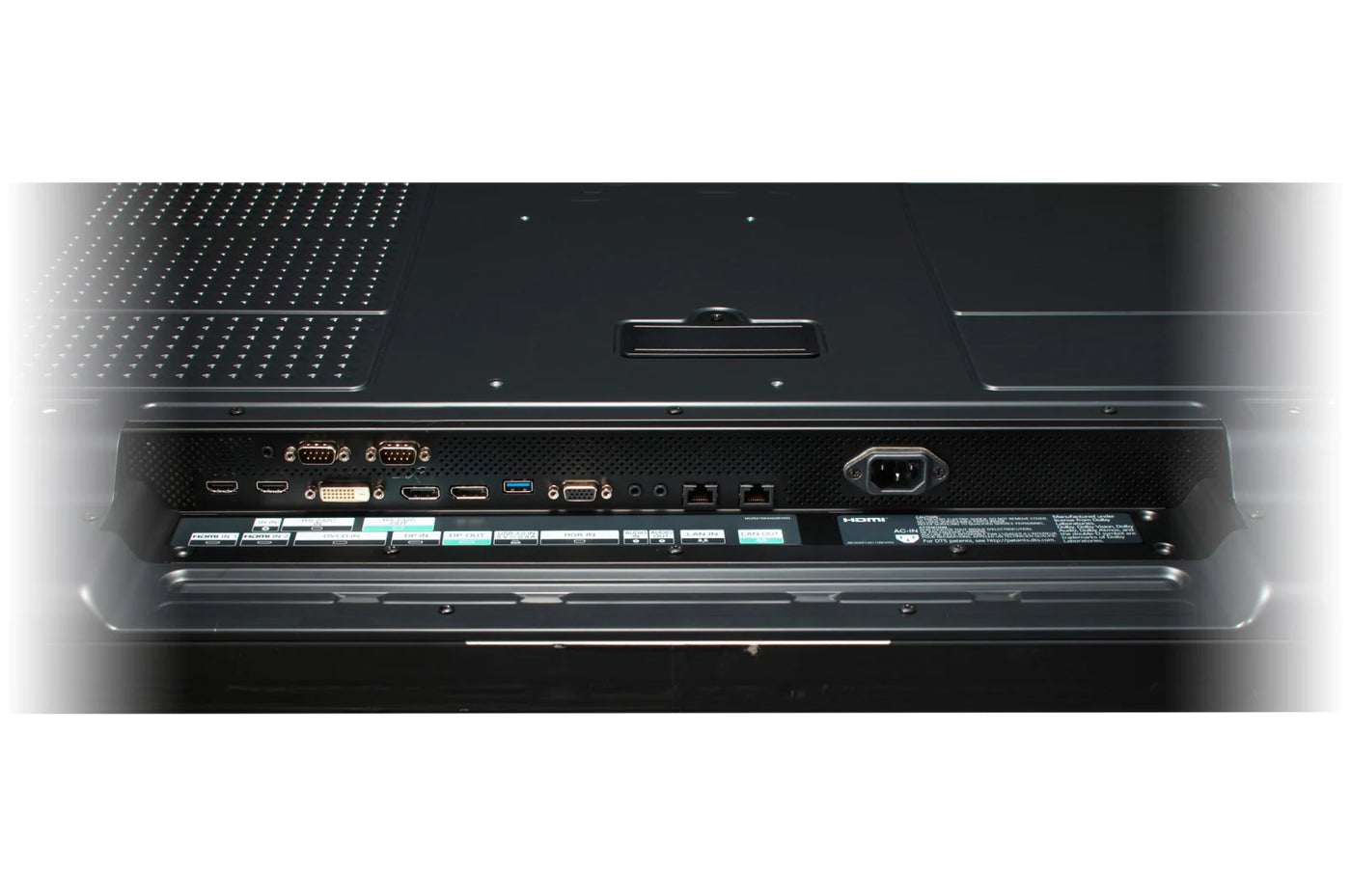

A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST or Matrox graphics card.
