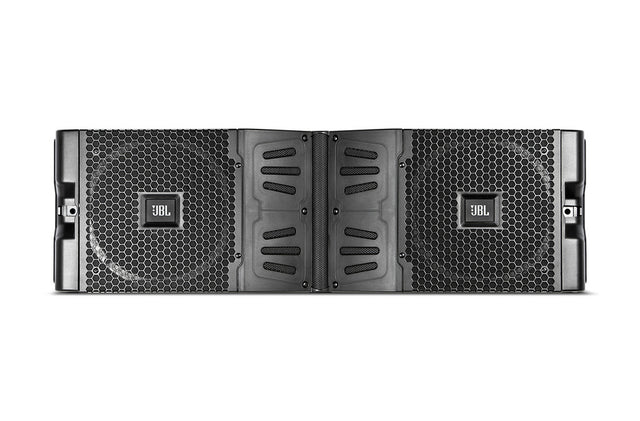

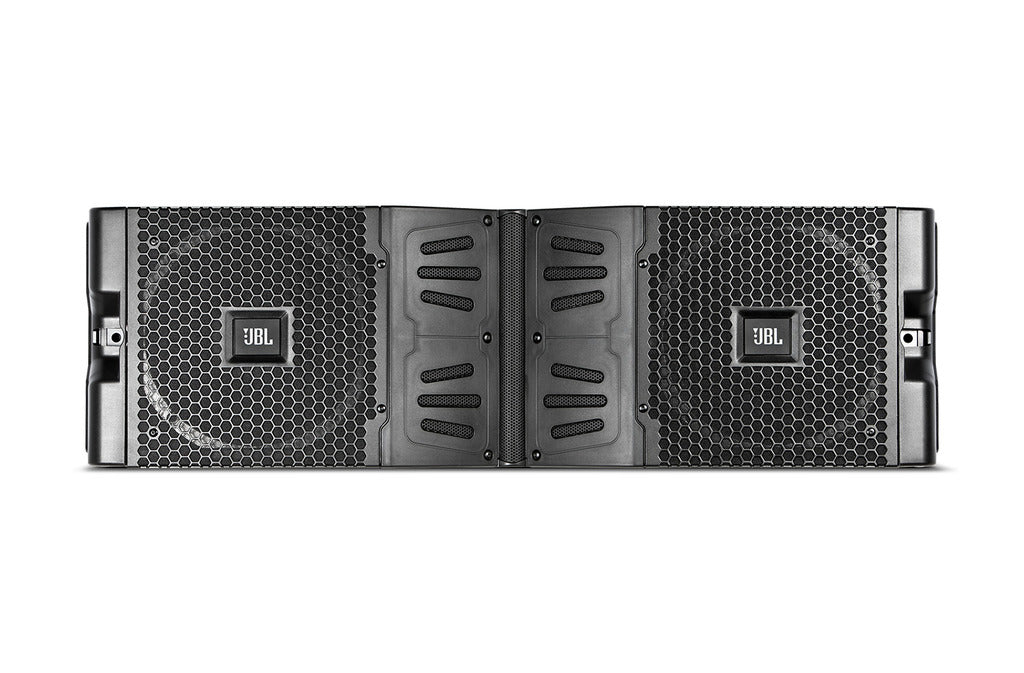

JBL VTX-V20-BP Three-Way High Directivity Line Array Element

SKU: VTXV20BP  |  UPC: 691991034299
Call For Price
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Memorial Month Sale | additional discount in cart

  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • \n Superior sound quality\n Enhanced high-frequency performance\n High-power 3-way system\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote

  • Superior sound quality

  • Enhanced high-frequency performance

  • High-power 3-way system


Unveiling Remarkable Performance in a Compact Package

Introducing the VTX V20, a marvel of cutting-edge technology and exceptional performance, encapsulating the groundbreaking prowess of the VTX V25 in a more compact, high-power 3-way system. This engineering masterpiece is complemented by a novel suspension system designed for swift transport, hassle-free setup, and precise configuration. Every facet of the VTX V20 has been meticulously crafted to ensure a stable 105-degree horizontal coverage and optimal line source array coupling in the vertical dimension. This results in an audio experience that remains faithful and crystal-clear even when pushing the boundaries of output levels, all packaged within its remarkably compact size.

Key Features:

  1. Differential Drive Technology: Experience superior sound quality with our state-of-the-art differential drive technology.

  2. 4th Generation Advanced High-Frequency Waveguide: Enjoy enhanced high-frequency performance with our cutting-edge waveguide technology.

  3. Compact Version of the Patented D2 Dual Compression Driver: The VTX V20 boasts a smaller yet equally powerful iteration of our patented D2 dual compression driver.

  4. ASM Suspension System: Our innovative ASM suspension system ensures efficient transport and effortless setup.

  5. V5 System Integration: Seamlessly integrate the VTX V20 into your audio setup with our V5 system integration technology.


Experience extraordinary sound performance in a package that defies its compact nature – the VTX V20.

Is This Right For You?


Recommendation


JBL VTX-V20-BP Three-Way High Directivity Line Array Element
JBL

JBL VTX-V20-BP Three-Way High Directivity Line Array Element

Call For Price

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<table class="specs">
<tbody>
<tr>
<td class="name">System Type</td>
<td>3-Way High Directivity Line Array Element with D2 Technology</td>
</tr>
<tr>
<td class="name">Frequency Range (-10dB)</td>
<td>60 Hz – 20 kHz (Preset: VTX V20)</td>
</tr>
<tr>
<td class="name">Horizontal Coverage (-6 dB)</td>
<td>105 degrees nominal (300 Hz - 16 kHz)</td>
</tr>
<tr>
<td class="name">Maximum Peak Output</td>
<td>139 dB (Preset: VTX V20)</td>
</tr>
<tr>
<td class="name">System Amplification</td>
<td>Crown Audio I-Tech HD</td>
</tr>
<tr>
<td class="name">Nominal Impedance</td>
<td>Active:
LF: 2x 8 ohms
MF: 8 ohms
HF: 8 ohms

Passive:
LF: 16 ohms
MHF: 8 ohms</td>
</tr>
<tr>

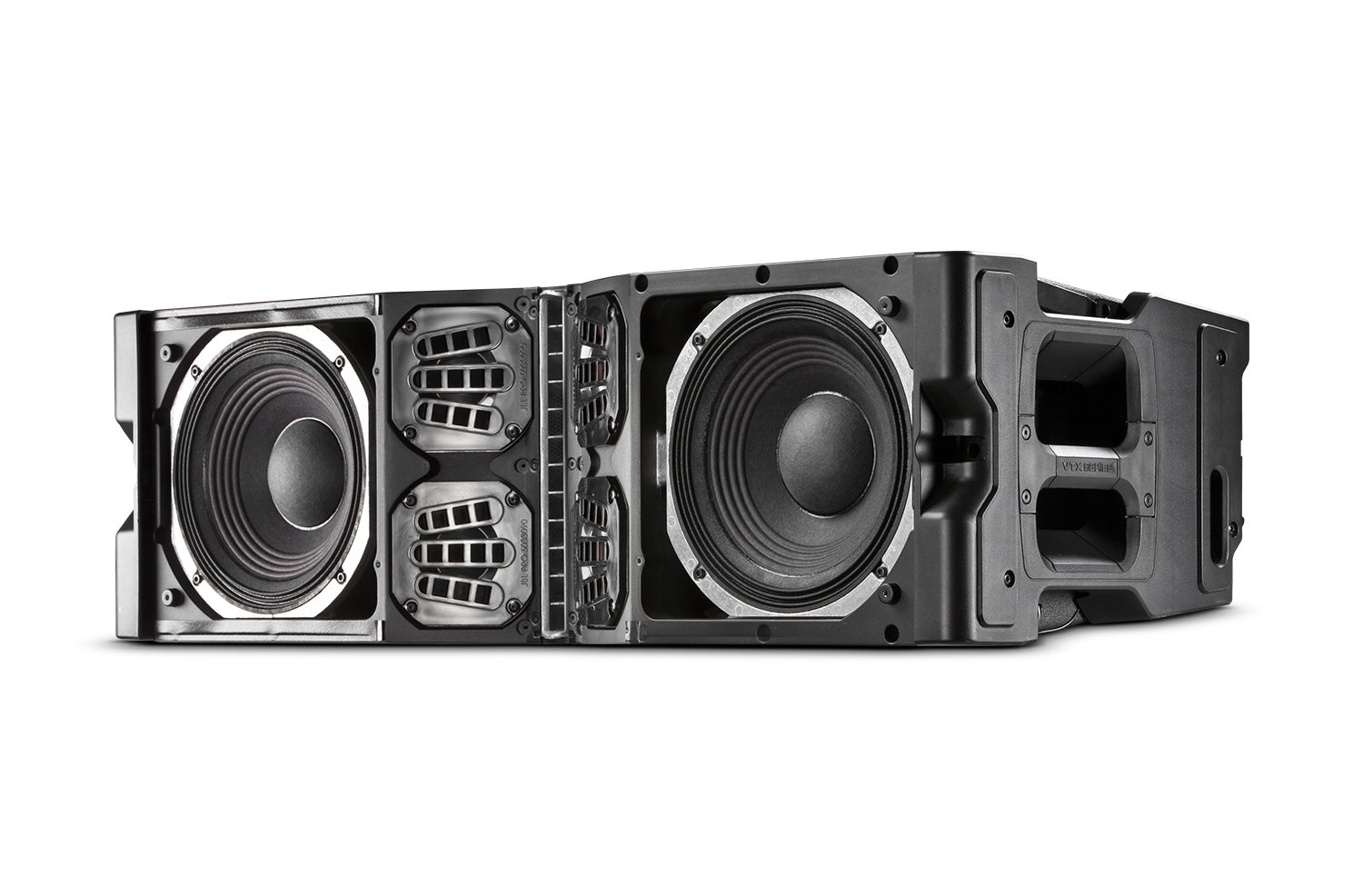

<td class="name">LF Driver</td>
<td>(2) JBL 2261H 10-inch Neodymium Differential Drive® woofer</td>
</tr>
<tr>
<td class="name">MF Driver</td>
<td>(4) JBL 2164H 5-inch Neodymium mid-range woofer</td>
</tr>
<tr>
<td class="name">HF Driver</td>
<td>(3) JBL 2415K D2 Dual Diaphragm, Dual Voice Coil, Neodymium Compression Drive</td>
</tr>
<tr>
<td class="name">Enclosure</td>
<td>Cast aluminum front baffles and HF waveguide, Finnish birch plywood; black DuraFlex™ finish, integral recessed handles</td>
</tr>
<tr>
<td class="name">Inter-enclosure Angle</td>
<td>0, 0.5, 0.75, 1, 1.5, 2, 2.5, 3, 4, 5, 7.5, 10, 12.5</td>
</tr>
<tr>
<td class="name">Dimensions (H x W x D)</td>
<td>280 mm x 911 mm x 402 mm
11 in x 35.9 in x 15.8 in</td>
</tr>
<tr>
<td class="name">Net Weight (each)</td>
<td>40 kg (88 lbs)</td>
</tr>
</tbody>
</table>
