Product Summary

  • Outrigger system for VTX A12 VT
  • Support for up to 6 x VTX A12
  • 4 screw jacks included for adjusting height

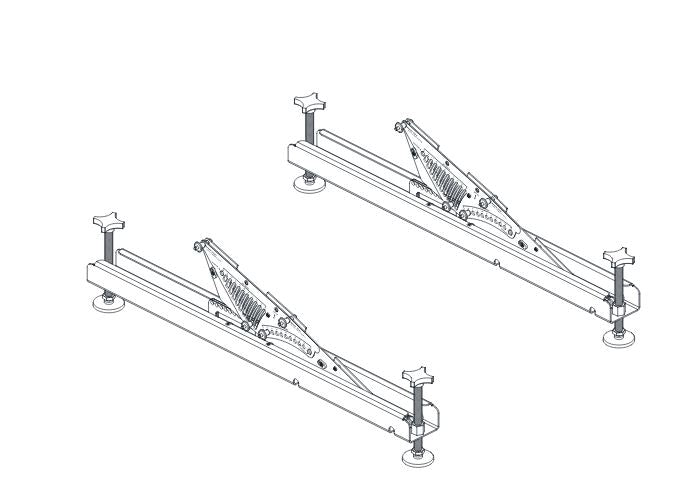

The
VTX A12 VT GND
outrigger system works in conjunction with the
VTX A12 VT
and allows A12 enclosures to be ground
stacked without the need to remove the speakers from the transportation cart. The two outriggers extend in front of and behind
the stack and connect to the VT using the included Quick-Release Pins. Screw jacks are used to lift the stack off the ground, and
the innovative spring based angle-set hinges are used to adjust overall aiming. The hinge mechanism uses gas springs, which allow
adjustment of the overall stack angle without having to manually lift the speakers or move any heavy parts. Depending on the array
geometry, the VTX A12 VT GND can support the weight of up to 6 x A12 cabinets and allows for angles ranging from -15-degrees
to +5-degress. JBL’s LAC-3 software is used to calculate the ground stack parameters and mechanical safety.

JBL VTX A12 GND Ground Stack

SKU: VTXA12GND
Authorized Dealer Authorized JBL Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$3,255.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
JBL VTX A12 GND Ground Stack $3,255.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul><li>Outrigger system for VTX A12 VT</li><li>Support for up to 6 x VTX A12</li><li>4 screw jacks included for adjusting height</li></ul>
jbl-vtx-a12-gnd-ground-stack
JBL

JBL VTX A12 GND Ground Stack

$3,255.00
