Product Summary


  • High-output version

  • Advanced technology component transducers

  • Offers a wealth of comprehensive rigging points


Introducing the VLA Series: Pushing the Boundaries of Sound Reinforcement

The VLA Series (Variable Line Array Series) stands as a groundbreaking innovation in sound reinforcement technology, redefining the possibilities of high-impact audio projection, even at distances that were once beyond the capabilities of traditional loudspeaker designs.

Key Features:

1. Precision Line Array Module: Crafted for permanent installations, the VLA Series represents the pinnacle of audio integration. It excels in environments where uncompromising audio quality is paramount.

2. High-Output Configuration: The high-output version of the VLA Series is engineered for extraordinary performance, featuring 6 HF (High-Frequency) drivers, 4 MF (Mid-Frequency) drivers, and 2 LF (Low-Frequency) drivers. This configuration ensures a commanding and immersive sound experience.

3. Cutting-Edge Transducer Technology: Our advanced technology component transducers are meticulously designed for lightweight construction and high-output performance. You'll experience remarkable audio quality without any compromises.

4. Effortless Configuration: The VLA Series offers a wealth of comprehensive rigging points, simplifying the process of creating a line array configuration tailored to your specific requirements. Achieve precise sound dispersion and coverage with ease.

5. Built to Endure: Protect your investment with a rugged DuraFlex™ exterior finish and weatherized components, guaranteeing durability in various environments. For enhanced protection, consider JBL's WRC or WRX weather protections, making the VLA Series suitable for both indoor and outdoor installations, even in challenging weather conditions.

Discover the future of sound reinforcement with the VLA Series, where innovation meets excellence. Whether you're pushing the boundaries of audio projection or seeking reliable audio performance in challenging environments, these speakers redefine what's possible in sound reinforcement technology.

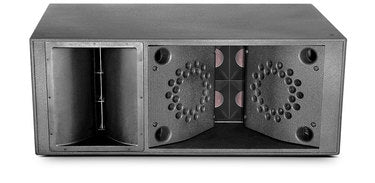

JBL VLA901HI-WRC High Output Three-Way Full Range Loudspeaker with 2 x 15" LF

SKU: VLA901HIWRC | UPC: 691991015021
Authorized Dealer Authorized JBL Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

Call for Price

Contact OfficeWonderland for current pricing and availability.

BACK 2 SCHOOL SALE | additional discount in cart

Pricing must be confirmed before checkout.

Request a Quote
JBL VLA901HI-WRC High Output Three-Way Full Range Loudspeaker with 2 x 15" LF Call for Price
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>High-output version</li>\n <li>Advanced technology component transducers</li>\n <li>Offers a wealth of comprehensive rigging points</li>\n</ul>

Technical Details

Specifications

General
ACOUSTIC & ELECTRICAL SPECIFICATIONS: • Frequency Response: 58 Hz – 12 kHz (±3 dB) • Frequency Range: 42 Hz – 15 kHz (–10 dB) • Horizontal Coverage: 90° • Vertical Coverage: Varies with array size and configuration • Directivity Factor (Q): 20 • Directivity Index (DI): 13 dB • System Power Ratings (AES): LF: 1600 W (6400 W Peak, 2 hrs. 1200 W (4800 W peak), 100 hrs. MF: 1400 W (5600 W peak), 100 hrs. HF: 450 W (1800 W peak), 2 hrs. • Max. Peak Output: LF: 131 dB SPL continuous average MF: 139 dB SPL continuous average HF: 142 dB SPL continuous average TRANSDUCER SECTION: • Cabinet: (Not For Sale) • Grille: 361798-001 • Low Frequency Driver: 2 x 2226HPL 380 mm (15 in) driver with 100 mm (4 in) voice coil • DC Resistance: 5 ohms ±10% • Sensitiviy (1 w @ 1 m): 99 dB SPL TRANSDUCER SECTION CONT’D: • Mid Frequency Driver: 4 x 2169H 200 mm (8 in) cone midrange compression driver with dual 75 mm (3 in) voice coil 339111-001X • DC Resistance: 5 ohms ±10% • Sensitiviy (1 w @ 1 m): 108 dB SPL • High Frequency Driver: 6 x 2431H 38 mm (1.5 in) exit compression driver with 75 mm (3 in) voice coil; 339894-001X • DC Resistance: 4 ohms ±10%s • Sensitiviy (1 w @ 1 m): 115 dB SPL AURAL SWEEP TEST SPECIFICATIONS: A. L.F. Aural Sweep Test: 10V Input, 10 Hz to 300 Hz B. M.F. Aural Sweep Test: 7V Input, 100 Hz to 3 kHz C. H.F. Aural Sweep Test: 2V Input, 1 kHz to 20 kHz PHYSICAL SPECIFICATIONS: • Enclosure Dimensions: 533 mm x 1351 mm x 640 mm D (H x W x D) (21.0 in. x 53.2 in. x 25.2 in. D) • Net Weight: 109 kg (241 lb)
JBL VLA901Hi-WRC High Output Three-Way Full Range Loudspeaker with 2 x 15 LF
JBL

JBL VLA901HI-WRC High Output Three-Way Full Range Loudspeaker with 2 x 15" LF

Call For Price

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

ACOUSTIC &amp; ELECTRICAL SPECIFICATIONS:
• Frequency Response: 58 Hz – 12 kHz (±3 dB)
• Frequency Range: 42 Hz – 15 kHz (–10 dB)
• Horizontal Coverage: 90°
• Vertical Coverage: Varies with array size and configuration
• Directivity Factor (Q): 20
• Directivity Index (DI): 13 dB
• System Power Ratings (AES): LF: 1600 W (6400 W Peak, 2 hrs.
1200 W (4800 W peak), 100 hrs.
MF: 1400 W (5600 W peak), 100 hrs.
HF: 450 W (1800 W peak), 2 hrs.
• Max. Peak Output: LF: 131 dB SPL continuous average
MF: 139 dB SPL continuous average
HF: 142 dB SPL continuous average
TRANSDUCER SECTION:
• Cabinet: (Not For Sale)
• Grille: 361798-001
• Low Frequency Driver: 2 x 2226HPL 380 mm (15 in) driver with
100 mm (4 in) voice coil
• DC Resistance: 5 ohms ±10%
• Sensitiviy (1 w @ 1 m): 99 dB SPL
TRANSDUCER SECTION CONT’D:
• Mid Frequency Driver: 4 x 2169H 200 mm (8 in) cone
midrange compression driver with
dual 75 mm (3 in) voice coil
339111-001X
• DC Resistance: 5 ohms ±10%
• Sensitiviy (1 w @ 1 m): 108 dB SPL
• High Frequency Driver: 6 x 2431H 38 mm (1.5 in) exit
compression driver with 75 mm
(3 in) voice coil; 339894-001X
• DC Resistance: 4 ohms ±10%s
• Sensitiviy (1 w @ 1 m): 115 dB SPL
AURAL SWEEP TEST SPECIFICATIONS:
A. L.F. Aural Sweep Test: 10V Input, 10 Hz to 300 Hz
B. M.F. Aural Sweep Test: 7V Input, 100 Hz to 3 kHz
C. H.F. Aural Sweep Test: 2V Input, 1 kHz to 20 kHz
PHYSICAL SPECIFICATIONS:
• Enclosure Dimensions: 533 mm x 1351 mm x 640 mm D
(H x W x D) (21.0 in. x 53.2 in. x 25.2 in. D)
• Net Weight: 109 kg (241 lb)
