Product Summary


  • Effortless Rigging and Configuration

  • Exceptional Driver Configuration

  • Cutting-Edge Transducer Technology


Introducing the Powerhouse Three-Way Full-Range Loudspeaker

Prepare to be blown away by our Three-Way Full-Range Loudspeaker, a sonic powerhouse engineered to redefine your audio experience. With a formidable configuration of 2 x 15" LF (Low-Frequency) drivers, 2 x 8" MF (Mid-Frequency) drivers, and 3 x 1.5" exit HF (High-Frequency) drivers, complemented by an impressive 60° horizontal dispersion, this loudspeaker sets a new standard in audio performance.

Key Features:

1. Purpose-Built Line Array Module: Crafted with precision, our Line Array Module is optimized for permanent installations, ensuring a seamless blend into your audio setup. It's designed to excel in environments where uncompromising audio quality is a must.

2. Exceptional Driver Configuration: The standard version of this loudspeaker features a robust combination of 3 HF drivers, 2 MF drivers, and 2 LF drivers. The harmonious fusion of these elements delivers a breathtaking audio experience that captivates your audience.

3. Cutting-Edge Transducer Technology: Our advanced technology component transducers strike a delicate balance between lightweight construction and high-output performance. This ensures that you experience superior audio quality without any compromises.

4. Effortless Rigging and Configuration: Explore the limitless possibilities of audio projection with a wide array of comprehensive rigging points. Creating the perfect line array configuration tailored to your needs has never been easier.

5. Built to Withstand the Elements: Your investment is safeguarded with a rugged DuraFlex™ exterior finish and weatherized components, ensuring durability in a variety of environments. Additionally, for enhanced protection, consider JBL's WRC or WRX weather protections. This makes our loudspeaker suitable for both indoor and outdoor installations, even in challenging weather conditions.

Elevate your sound reinforcement to extraordinary levels with the Three-Way Full-Range Loudspeaker. Whether you're pushing the boundaries of audio projection or seeking reliability in demanding conditions, our loudspeaker stands as a testament to cutting-edge technology and uncompromising audio performance.

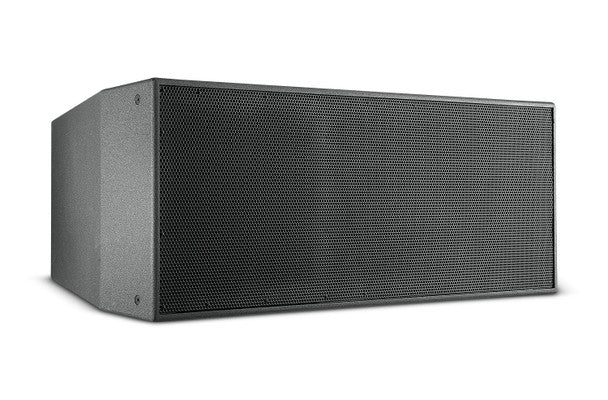

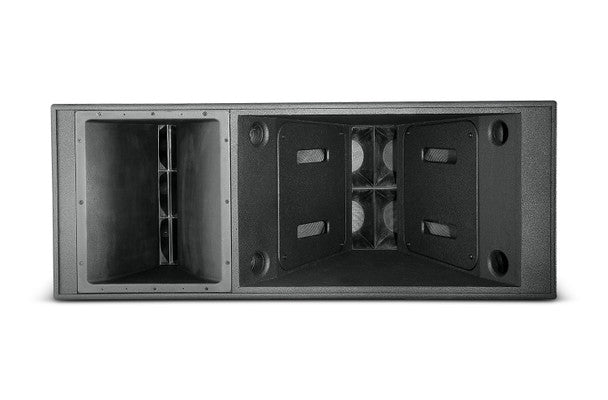

JBL VLA601i Three-Way Full Range Loudspeaker with 2 x 15" LF

SKU: VLA601I | UPC: 691991014963
Authorized Dealer Authorized JBL Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$10,420.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
JBL VLA601i Three-Way Full Range Loudspeaker with 2 x 15" LF $10,420.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>Effortless Rigging and Configuration</li>\n <li>Exceptional Driver Configuration</li>\n <li>Cutting-Edge Transducer Technology</li>\n</ul>

Technical Details

Specifications

General
Frequency Range (-10dB) 41 - 20kHz
Frequency Response (-6 dB) 45 - 19.5kHz
Frequency Response (-3 dB) 50 - 19.2kHz
Horizontal Coverage 60° nominal (500 Hz – 16 kHz)
Vertical Coverage Varies with array size and configuration.
System Power Ratings LF: 1000W Continuous (IEC /100 hour)
MF: 400W Continuous (IEC /100 hour)
HF: 160W Continuous (IEC /100 hour)
Maximum SPL (1m) 147.2dB (Preset: Flat)
LF Driver 2 x JBL 2265H, 15in diameter, dual 3in diameter voice coil, Neodymium Differential Drive
Nominal Impedance 4 ohms
Sensitivity (2.83V @ 1m) LF: 99dB/96dB MF: 107dB/104dB HF: 108db/111dB
Mid-Frequency Driver 2 x JBL 2169H, 8in diameter, dual 3in diameter voice coil, Neodymium Differential Drive
High-Frequency Driver 3 x JBL 2432H, 1.5in exit compression driver, 3in diameter voice coil, Neodymium Magnet
Enclosure 18mm and 16mm, Exterior grade Baltic birch plywood, DuraFlexTM finish or optional Fiberglass
Suspension Attachments 16 points (4 each top bottom & rear, 2 each side), M10 threaded hardware (eyebolts NOT included).
Finish Black DuraFlexTM (STD), Gray DuraFlexTM (WRC), Gray Fiberglass (WRX), optional colors; Stainless Steel Hardware (WRC/WRX)
Optional Weather Resistant Versions WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments, such as tropical or beach, or in areas with salt air, extreme high humidity or rapid changes in temperatures. See WRC/WRX configuration sheet for details.
Grille Powder coated 14 gauge perforated steel, zinc-phosphate dipped, acoustically transparent foam backing (grill cloth backing on white units) (16 gauge stainless steel on WR versions)
Input Connectors Barrier Strip for #6 spade lug, including gland nut and cover plate
Environmental Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.
Dimensions (H x W x D) 528.3mm x 1346.2mm x 767.1mm (20.8in x 53.0in x 30.2in)
Net Weight 100.7kg (222.0lbs)
