Product Summary


  • Weatherized components

  • Effortless Configuration

  • Cutting-Edge Transducer Technology


Introducing the Three-Way Full Range Loudspeaker: Elevate Your Sound Experience

Prepare to be immersed in a world of exceptional audio with our Three-Way Full Range Loudspeaker. Engineered to deliver a remarkable sonic experience, this powerful speaker features 2 x 15" LF (Low-Frequency) drivers, 2 x 8" MF (Mid-Frequency) drivers, and 3 x 1.5" exit HF (High-Frequency) drivers, all with a precise 60° horizontal dispersion. Whether for permanent installations or live events, this loudspeaker sets a new standard for your audio expectations.

Key Features:

1. Unmatched Audio Performance: Elevate your sound experience with a robust configuration of 2 x 15" LF drivers, 2 x 8" MF drivers, and 3 x 1.5" exit HF drivers. This combination delivers a powerful and balanced sound that captivates your audience.

2. Precision Line Array Module: Designed for permanent installations, this loudspeaker seamlessly integrates into your audio setup, ensuring uncompromising sound quality built to endure the test of time.

3. Cutting-Edge Transducer Technology: Advanced technology component transducers are meticulously engineered for a lightweight design and high-output performance, guaranteeing an exceptional audio experience without any compromises.

4. Effortless Configuration: With a multitude of comprehensive rigging points, setting up the perfect line array configuration tailored to your specific needs is a breeze. Achieve optimal sound dispersion and coverage with confidence.

5. Built to Withstand: Protect your investment with a rugged DuraFlex™ exterior finish and weatherized components, ensuring durability in various environments. For added peace of mind, consider JBL's WRC or WRX weather protections, making this loudspeaker suitable for both indoor and outdoor installations, even in challenging weather conditions.

Elevate your sound experience to new heights with the Three-Way Full Range Loudspeaker. Whether you're pushing the boundaries of audio projection or seeking reliability in demanding conditions, our loudspeaker is the epitome of cutting-edge technology and uncompromising audio excellence.

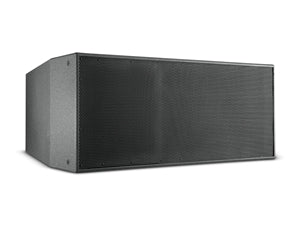

JBL VLA601HI-WRX 3-way Horn-Loaded Line Array System (Extreme Weather Protection Treatment)

SKU: VLA601HIWRX
Authorized Dealer Authorized JBL Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

Call for Price

Contact OfficeWonderland for current pricing and availability.

BACK 2 SCHOOL SALE | additional discount in cart

Pricing must be confirmed before checkout.

Request a Quote
JBL VLA601HI-WRX 3-way Horn-Loaded Line Array System (Extreme Weather Protection Treatment) Call for Price
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>Weatherized components</li>\n <li>Effortless Configuration</li>\n <li>Cutting-Edge Transducer Technology</li>\n</ul>

Technical Details

Specifications

General
Frequency Range (-10dB) 41 - 20kHz
Frequency Response (-6 dB) 45 - 19.5kHz
Frequency Response (-3 dB) 50 - 19.2kHz
Horizontal Coverage 60° nominal (500 Hz – 16 kHz)
Vertical Coverage Varies with array size and configuration.
System Power Ratings (AES) LF: 1000W Continuous (IEC /100 hour) MF: 550W Continuous (IEC /100 hour) HF: 300W Continuous (IEC /100 hour)
Maximum SPL (1m) 150.7dB (Preset: Flat)
LF Driver 2 x JBL 2265H, 15in diameter, dual 3in diameter voice coil, Neodymium Differential Drive
Nominal Impedance 4 ohms
Sensitivity (2.83V @ 1m) LF: 99dB/96dB MF: 104dB/104dB HF: 114db/111dB
Mid-Frequency Driver 4 x JBL 2169H, 8in diameter, dual 3in diameter voice coil, Neodymium Differential Drive
High-Frequency Driver 6 x JBL 2432H, 1.5in exit compression driver, 3in diameter voice coil, Neodymium Magnet
Enclosure 18mm and 16mm, Exterior grade Baltic birch plywood, DuraFlexTM finish or optional Fiberglass
Suspension Attachments 16 points (4 each top bottom & rear, 2 each side), M10 threaded hardware (eyebolts NOT included).
Finish Black DuraFlexTM (STD), Gray DuraFlexTM (WRC), Gray Fiberglass (WRX), optional colors; Stainless Steel Hardware (WRC/WRX)
Optional Weather Resistant Versions WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments, such as tropical or beach, or in areas with salt air, extreme high humidity or rapid changes in temperatures. See WRC/WRX configuration sheet for details.
Grille Powder coated 14 gauge perforated steel, zinc-phosphate dipped, acoustically transparent foam backing (grill cloth backing on white units) (16 gauge stainless steel on WR versions)
Input Connectors Barrier Strip for #6 spade lug, including gland nut and cover plate
Environmental Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.
