SKU: VLA601HI  |  UPC: 691991014987

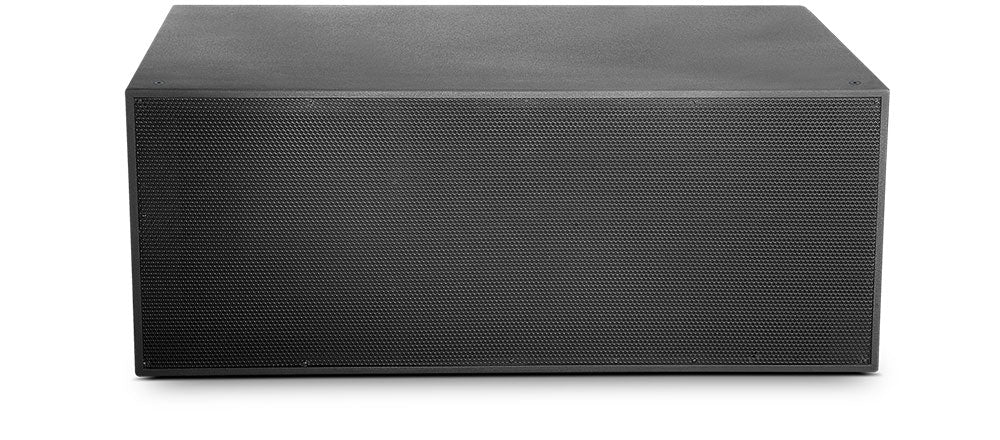

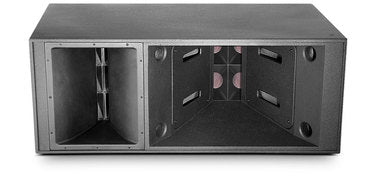

JBL VLA601Hi High Output Three-Way Full Range Loudspeaker with 2 x 15" LF

$14,770.00
Free Shipping At Checkout!

SPRING SALE | additional discount in cart

Need Help? Call Us 800-211-2718

Product Highlights:
  • 6 x 1.5" exit HF drivers
  • Lightweight design and high-output performance
  • Suitable for both indoor and outdoor installations

Click above to submit a purchase order
DUNS #074303253

IRS W-9 form

  • 6 x 1.5" exit HF drivers

  • Lightweight design and high-output performance

  • Suitable for both indoor and outdoor installations










Introducing the High-Output Three-Way Full Range Loudspeaker: Unleash Sonic Power

Prepare to be immersed in a world of unparalleled audio with our High-Output Three-Way Full Range Loudspeaker. Engineered to deliver an extraordinary sonic experience, this powerhouse features 2 x 15" LF (Low-Frequency) drivers, 4 x 8" MF (Mid-Frequency) drivers, and a staggering 6 x 1.5" exit HF (High-Frequency) drivers, all with precise 60° horizontal dispersion. Whether for permanent installations or live events, this loudspeaker redefines your sound expectations.

Key Features:

1. Unmatched Audio Prowess: Elevate your sound experience with a formidable configuration of 2 x 15" LF drivers, 4 x 8" MF drivers, and 6 x 1.5" exit HF drivers. This combination delivers a powerful, crystal-clear sound that captivates your audience.

2. Precision Line Array Module: Designed for permanent installations, this loudspeaker seamlessly integrates into your audio setup, providing uncompromising sound quality built to withstand the test of time.

3. Cutting-Edge Transducer Technology: Advanced technology component transducers are meticulously engineered for a lightweight design and high-output performance, ensuring you experience audio excellence without any compromises.

4. Effortless Configuration: With comprehensive rigging points, setting up the perfect line array configuration tailored to your specific needs is a breeze. Achieve optimal sound dispersion and coverage with confidence.

5. Built to Endure: Safeguard your investment with a rugged DuraFlex™ exterior finish and weatherized components, ensuring durability in various environments. For added protection, consider JBL's WRC or WRX weather protections, making this loudspeaker suitable for both indoor and outdoor installations, even in challenging weather conditions.

Unleash the full potential of your sound experience with the High-Output Three-Way Full Range Loudspeaker. Whether you're pushing the boundaries of audio projection or seeking reliability in demanding conditions, our loudspeaker is the embodiment of cutting-edge technology and uncompromising audio excellence.







Payment & Security

Payment methods

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

JBL VLA601Hi High Output Three-Way Full Range Loudspeaker with 2 x 15 LF f
JBL

JBL VLA601Hi High Output Three-Way Full Range Loudspeaker with 2 x 15" LF

$14,770.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<table class="specs">
<tbody>
<tr>
<td class="name">Frequency Range (-10dB)</td>
<td>41 - 20kHz</td>
</tr>
<tr>
<td class="name">Frequency Response (-6 dB)</td>
<td>45 - 19.5kHz</td>
</tr>
<tr>
<td class="name">Frequency Response (-3 dB)</td>
<td>50 - 19.2kHz</td>
</tr>
<tr>
<td class="name">Horizontal Coverage</td>
<td>60° nominal (500 Hz – 16 kHz)</td>
</tr>
<tr>
<td class="name">Vertical Coverage</td>
<td>Varies with array size and configuration.</td>
</tr>
<tr>
<td class="name">System Power Ratings (AES)</td>
<td>LF: 1000W Continuous (IEC /100 hour) MF: 550W Continuous (IEC /100 hour) HF: 300W Continuous (IEC /100 hour)</td>
</tr>
<tr>
<td class="name">Maximum SPL (1m)</td>
<td>150.7dB (Preset: Flat)</td>
</tr>
<tr>
<td class="name">LF Driver</td>
<td>2 x JBL 2265H, 15in diameter, dual 3in diameter voice coil, Neodymium Differential Drive</td>
</tr>
<tr>
<td class="name">Nominal Impedance</td>
<td>4 ohms</td>
</tr>
<tr>
<td class="name">Sensitivity (2.83V @ 1m)</td>
<td>LF: 99dB/96dB
MF: 104dB/104dB
HF: 114db/111dB</td>
</tr>
<tr>
<td class="name">Mid-Frequency Driver</td>
<td>4 x JBL 2169H, 8in diameter, dual 3in diameter voice coil, Neodymium Differential Drive</td>
</tr>
<tr>
<td class="name">High-Frequency Driver</td>
<td>6 x JBL 2432H, 1.5in exit compression driver, 3in diameter voice coil, Neodymium Magnet</td>
</tr>
<tr>
<td class="name">Enclosure</td>
<td>18mm and 16mm, Exterior grade Baltic birch plywood, DuraFlexTM finish or optional Fiberglass</td>
</tr>
<tr>
<td class="name">Suspension Attachments</td>
<td>16 points (4 each top bottom &amp; rear, 2 each side), M10 threaded hardware (eyebolts NOT included).</td>
</tr>
<tr>
<td class="name">Finish</td>
<td>Black DuraFlexTM (STD), Gray DuraFlexTM (WRC), Gray Fiberglass (WRX), optional colors; Stainless Steel Hardware (WRC/WRX)</td>
</tr>
<tr>
<td class="name">Optional Weather Resistant Versions</td>
<td>WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements. WRX for direct exposure or extreme environments, such as tropical or beach, or in areas with salt air, extreme high humidity or rapid changes in temperatures. See WRC/WRX configuration sheet for details.</td>
</tr>
<tr>
<td class="name">Grille</td>
<td>Powder coated 14 gauge perforated steel, zinc-phosphate dipped, acoustically transparent foam backing (grill cloth backing on white units) (16 gauge stainless steel on WR versions)</td>
</tr>
<tr>
<td class="name">Input Connectors</td>
<td>Barrier Strip for #6 spade lug, including gland nut and cover plate</td>
</tr>
<tr>
<td class="name">Environmental</td>
<td>Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.</td>
</tr>
</tbody>
</table>
