JBL VLA-C265-BK Two-Way Full Range Loudspeaker with 2 x 10" Differential Drive LF

SKU: VLAC265BK  |  UPC: 691991032479
$7,960.00
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Memorial Month Sale | additional discount in cart

  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • \n Immersive Sound Coverage\n Perfect for Permanent Installations\n Effortless Rigging and Customization\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote

  • Immersive Sound Coverage

  • Perfect for Permanent Installations

  • Effortless Rigging and Customization


Unleash Audio Excellence with the VLA-C265 Two-Way Full Range Loudspeaker

Experience the pinnacle of audio quality with the VLA-C265, a powerful and versatile loudspeaker that incorporates JBL's cutting-edge technology. Whether for permanent installations or outdoor events, this compact speaker delivers exceptional sound performance with unmatched features.

Precise High-Frequency Detail

The VLA-C265 is designed to captivate your audience with its high-frequency precision. Featuring a horn-loaded design, it achieves maximum sensitivity and precise pattern control. This section boasts three D2415 drivers equipped with 1.5” diameter annular diaphragms, 1.5” voice coils, and neodymium motors, ensuring crisp and clear high-frequency output.

Robust Low-Frequency Power

Beneath the surface, the VLA-C265 packs a punch with its low-frequency section, powered by dual 2261 10” Differential Drive® drivers with 3” voice coils. The result is deep, resonant bass that fills the space with immersive audio.

Built to Endure

Built to withstand the harshest conditions, the VLA-C265 features enclosures constructed from multi-layer reinforced fiberglass and robust steel end-panels. Its grilles are not just rugged but also zinc plated and powder coated 14-gauge perforated steel. They are backed by an acoustically transparent black grill cloth, a hydrophobic mesh underlayer, and a waterproof rail system. With an IP55 rating, this speaker is your reliable choice for outdoor events.

Effortless Rigging and Customization

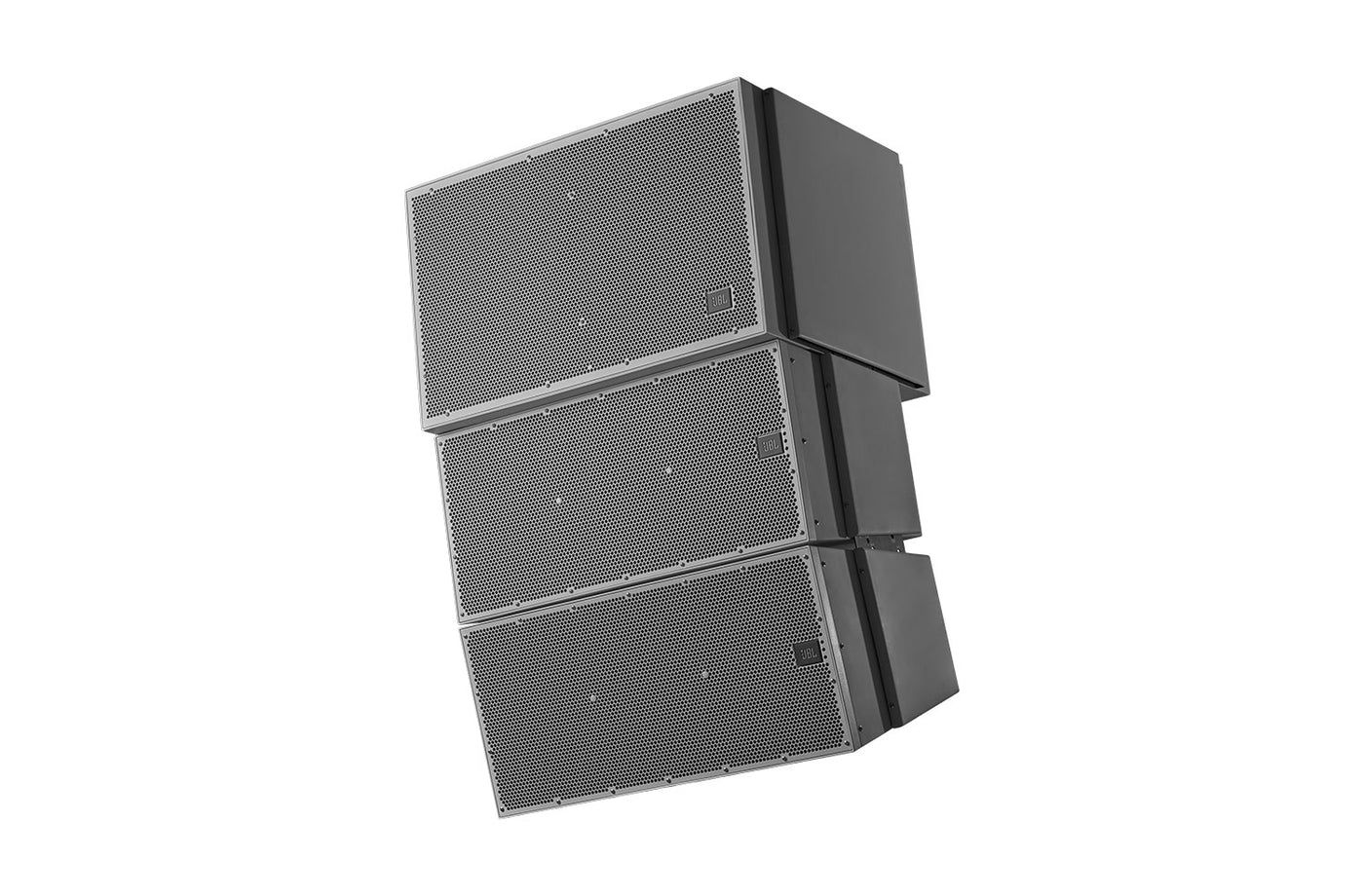

Setting up your audio system has never been easier. The VLA-C265 comes with an inherent rigging system that allows you to select inter-box angles during assembly. To enhance your setup, explore our range of accessories, including a rigging frame, pull-back bar, and a cardioid kit for the sub.

Amplification Freedom

Tailor your sound experience to your exact needs. The VLA-C265 can be bi-amplified for maximum SPL or operated passively, saving on amplification costs without compromising on audio excellence.

Immersive Sound Coverage

With a wide 65° horizontal coverage pattern, the VLA-C265 ensures that every seat in the venue enjoys consistent, high-quality sound.

Perfect for Permanent Installations

Optimized for permanent installations, this compact line array module is your answer to delivering extraordinary audio quality in any setting.

Don't settle for ordinary sound. Elevate your audio experience with the VLA-C265, where innovation meets performance. It's time to create audio magic that leaves a lasting impression.

Is This Right For You?


Recommendation


JBL VLA-C265-BK Two-Way Full Range Loudspeaker with 2 x 10 Differential Drive LF
JBL

JBL VLA-C265-BK Two-Way Full Range Loudspeaker with 2 x 10" Differential Drive LF

$7,960.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

Sensitivity4
: Full-Range: 102 dB (85 Hz – 19 kHz)
Bi-Amp LF: 100 dB (85 Hz – 950 Hz)
Bi-Amp HF: 108 dB (950 Hz – 19.2 kHz)
Coverage Pattern (-6 dB): Horizontal: 65° (+15°/-10°, 1.5 kHz to 15 kHz)
Vertical: Varies with array size and configuration
Impedance: Full-Range: 8Ω, 6.6Ω min @ 162 Hz
Bi-Amp LF: 8Ω, 6.8 Ω min @ 162 Hz
Bi-Amp HF: 16 Ω, 16.2 Ω min @ 11 kHz
Amplifiers: Crown DCi Family with DSP on-board
Recommended: Crown DCi 2 | 1250N
Crown DCi 4 | 1250N/ND/DA
Crown DCi 2 | 2400N
Crown DCi 4 | 2400N

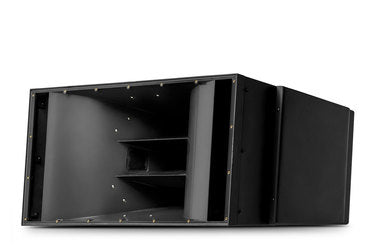

Included grilles removed, -BK model shown, included side trim cover panel installed
Transducers:
Low Frequency Driver:
High Frequency Driver:
2 x 2261FF, 254 mm (10 in) diameter, each with two 76 mm (3 in)
diameter voice coils, Neodymium Differential Drive®, Direct Cooled™
3 x 2415K, D2 Dual Diaphragm Dual Voice Coil Compression Drivers,
each with two 38 mm (1.5 in) dia. Voice Coils; 21 mm (0.8 in) exit
Physical:
Enclosure Material: Fiberglass shell, gelcoat finish, with 18 mm Birch plywood internal
bracing.
Grille: Powder coated 14 gauge hex-perforated steel with zinc under-coating,
backed with acoustically transparent cloth and hydrophobic screen.
Inter-Enclosure Angles: VLA-C265 to VLA-C265: 1.5°, 2.4° 3.8°, 6.0°, 9.5° using VLA-C265
Bracket Plate (included with VLA-C265)
VLA-C265 to VLA-C2100 (either model on top/bottom): 1.9°, 3.0°
using VLA-C2100 Bracket Plate (included with VLA-C2100) and 4.7°,
7.5°, 11.9° using VLA-C265 Bracket Plate (included with VLA-C265)
VLA-C265 below VLA-C125S Subwoofer (VLA-C265 cannot be connected above C125S): 0°, 5° using VLA-C125S Bracket Plate (included
with VLA-C125S)
Environmental: IP-55 rating per IEC529 (dust protected and protected against jets of water).
Terminals: CE-compliant covered barrier strip terminals. Barrier terminals accept up
to 5.2 sq mm (10 AWG) wire or max width 9mm (0.375 in) spade lugs.
Touch-proof covers.
